1 x Rivet Steel/ steel HIGHTBOLT Standard round head 6.4X14

1 x Rivet Steel/ steel HIGHTBOLT Standard round...

1 x Rivet Steel/ steel HIGHTBOLT Standard round head 6.4X14

Name: 1 x Rivet Steel/ steel HIGHTBOLT Standard round head 6.4X14
Brand: Vis-Express
SKU: 3712641401
Price: 3.85 EUR
Availability: InStock

Reference 3712641401_1

In stock 4782 Pièces

€3.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	250
Lot price VAT included	€3.85	€7.70	€12.30	€93.15

Rivet Steel/ steel HIGHTBOLT Standard round head 6.4X14

Packaging

1 unit
10 units
30 units
250 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 6.4
Diameter Head: 13,4
Material: BODY Steel / rod Steel
Sub product family: Rivets BLIND STRUCTURAL (HIGH RESISTANCE)
Shear (N): 11780
Clamping thickness: 2 A 9,5
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 14
Unit weight: 9 GR
Head shape: Round Head standard
Hole diameter: 6,8
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 10450

In stock 4782 Items

ean13 3663072483958

Application

Fixing thick parts or parts subjected to high stress
Assembly of:
metal structures
lightweight frames
industrial machinery and equipment
Heavy goods vehicle/trailer bodywork

Description

Rivet Steel/ steel HIGHTBOLT Standard round head 6.4X14
Diameter = 6.4, Sub Product Family = Rivets BLIND STRUCTURAL (HIGH RESISTANCE), Material = BODY Steel / rod Steel

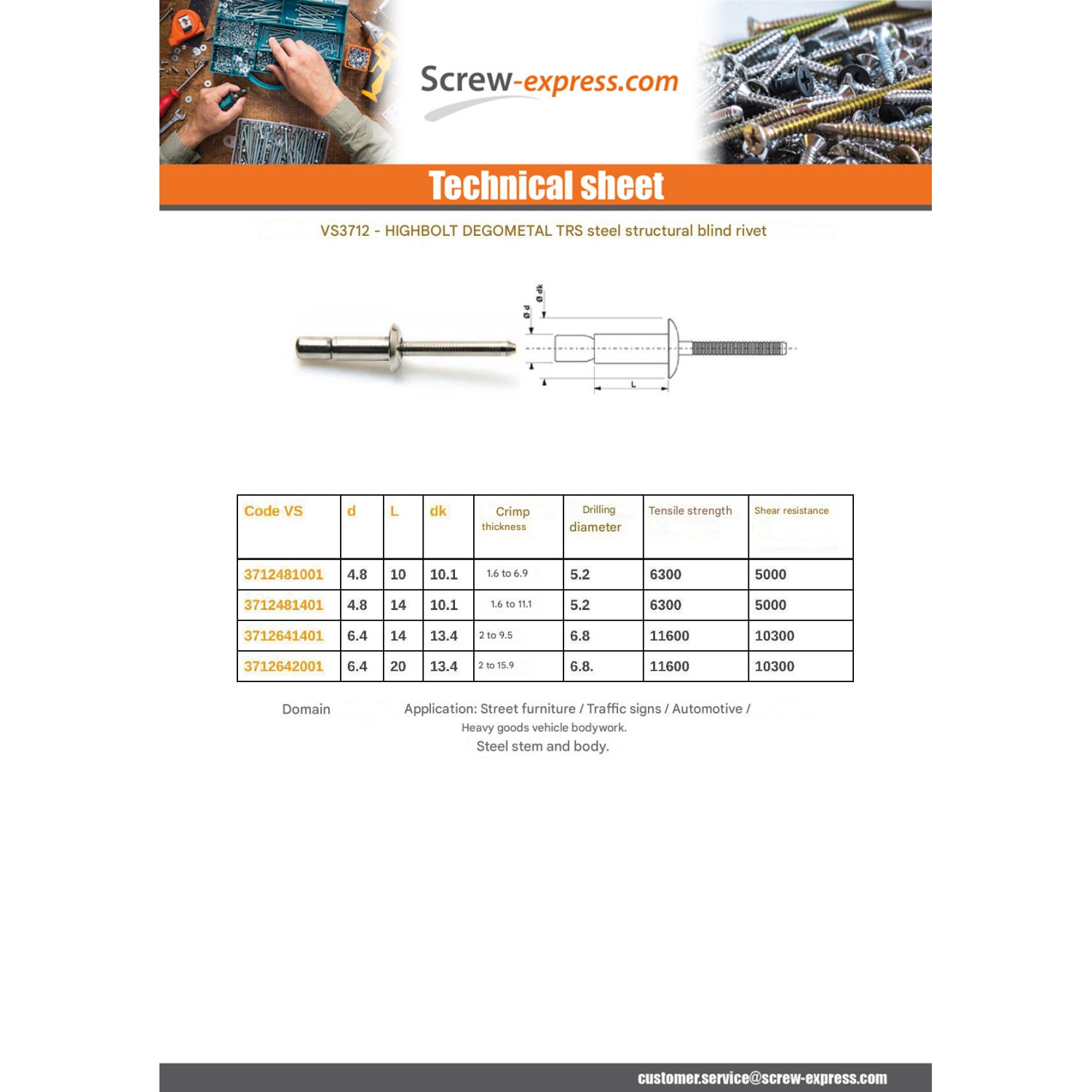

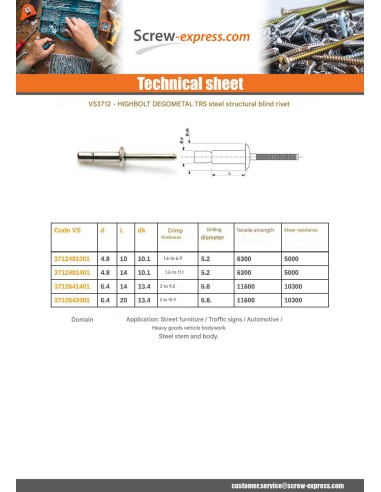

dimensional guide (mm)

Diameter	4.8	4.8	6.4	6.4
longueur utile	10	14	14	20
Head diameter	10.1	10.1	13.4	13.4
epaisseur a sertir	1.6-6.9	1.6-11.1	2-9.5	2-15.9
diametre percage	5.2	5.2	6.8	6.8
Tensile strength	6300	6300	11600	11600
Shear strength	5000	5000	10300	10300
gamme DEGOMETAL
