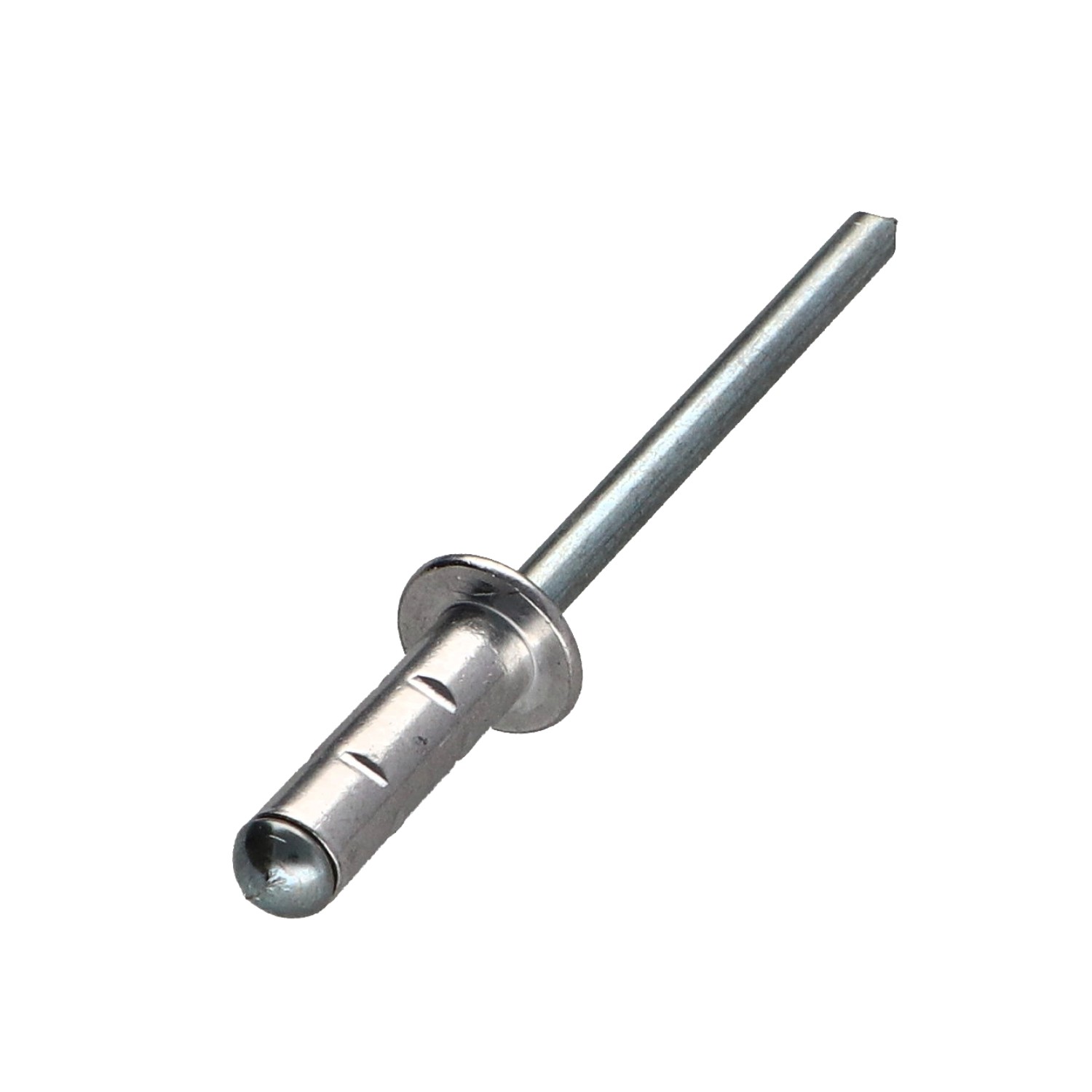

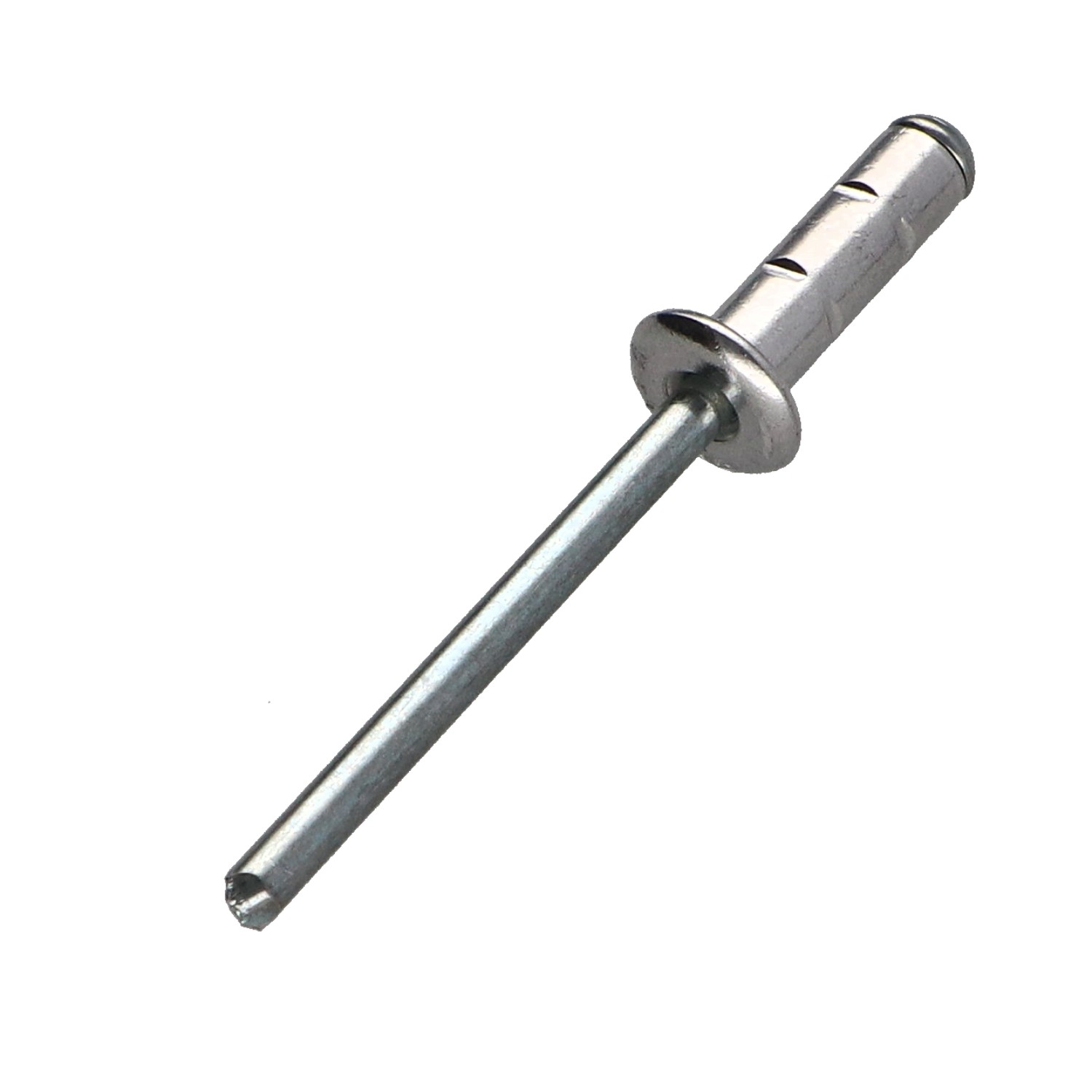

1 x Blind rivets Aluminium Stahlgewinde 4.8X10 Head PLA Multigrip
1 x Blind rivets Aluminium Stahlgewinde 4.8X10 Head PLA Multigrip
1 x Blind rivets Aluminium Stahlgewinde 4.8X10...
1 x Blind rivets Aluminium Stahlgewinde 4.8X10...

1 x Blind rivets Aluminium Stahlgewinde 4.8X10 Head PLA Multigrip

9146700144_1
In stock 27221 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €32.00
DOC 3720 - Blind rivets Aluminium Stahlgewinde 4.8X10 Head PLA Multigrip
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
10
Material
Aluminium STEM Steel
WEIGHT For THERE unit
2 GR
27221 Items
3663072176843

Application

  • Thin to medium-sized sheets
  • Aluminium + steel + plastic
  • Assemblies with variable thicknesses
  • Lightweight structures
  • Carters, boxes
  • Quick repairs without perfect precision
  • Containers, trailers
  • Metal cladding
Blind rivets Aluminium Stahlgewinde 4.8X10 Head PLA Multigrip
Diameter = Class 4.8, Sub Product Family = Rivets BLIND MULTI-CLASPING (LARGE) range Of TIGHTENING), Material = BODY Aluminium / rod Steel


dimensional guide (mm)
Diameter3.23.23.24444.84.84.84.84.8
Length89.5111013171015172530
d Perc3.33.33.34.14.14.14.94.94.94.94.9
Crimp thickness0.5-5.01.5-6.53.0-8.00.5-6.53.5-9.57.0-13.00.5-6.54.5-11.06.5-13.011.0-19.516.0-24.0

Other Reference : 3617501970557 RIV410 / CDE M78722520 400115 10176027 M78722520 3663072176843
