1 x Blind rivets Aluminium Stahlgewinde 4X17 Head PLA Multigrip
1 x Blind rivets Aluminium Stahlgewinde 4X17 Head PLA Multigrip
1 x Blind rivets Aluminium Stahlgewinde 4X17...
1 x Blind rivets Aluminium Stahlgewinde 4X17...

1 x Blind rivets Aluminium Stahlgewinde 4X17 Head PLA Multigrip

9146700101_1
Not in stock
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €15.30 €66.25

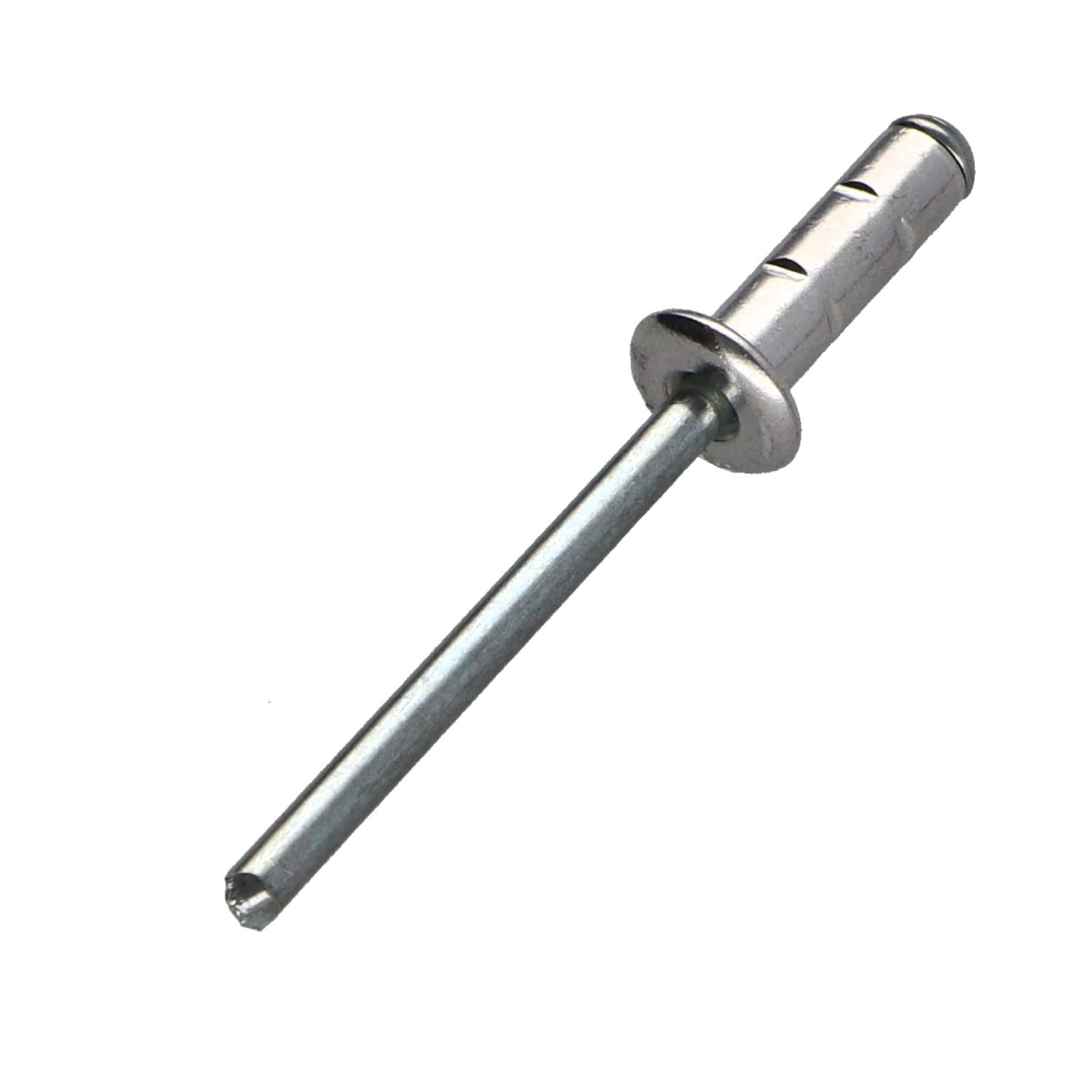

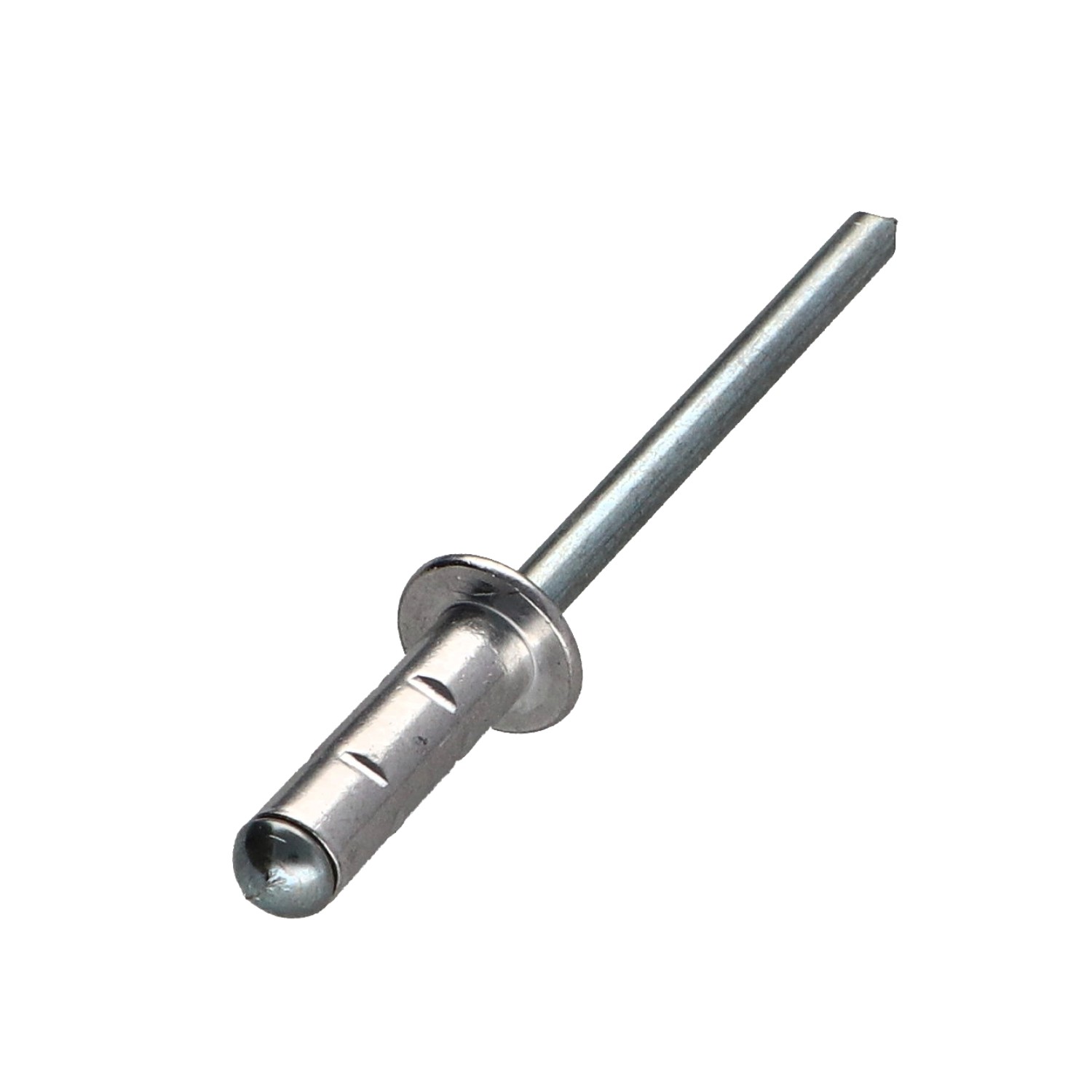

DOC 3720 - Blind rivets Aluminium Stahlgewinde 4X17 Head PLA Multigrip
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units


Dimensions shown in millimeters (mm)

Diameter
3
Length
17
Material
Aluminium STEM Steel
WEIGHT For THERE unit
2.29 GR
3663072185517

Application

  • Thin to medium-sized sheets
  • Aluminium + steel + plastic
  • Assemblies with variable thicknesses
  • Lightweight structures
  • Carters, boxes
  • Quick repairs without perfect precision
  • Containers, trailers
  • Metal cladding
Blind rivets Aluminium Stahlgewinde 4X17 Head PLA Multigrip
Diameter = 4, Sub Product Family = Rivets BLIND MULTI-CLASPING (LARGE) range Of TIGHTENING), Material = BODY Aluminium / rod Steel


dimensional guide (mm)
Diameter 3.2 3.2 3.2 4 4 4 4.8 4.8 4.8 4.8 4.8
Length 8 9.5 11 10 13 17 10 15 17 25 30
d Perc 3.3 3.3 3.3 4.1 4.1 4.1 4.9 4.9 4.9 4.9 4.9
Crimp thickness 0.5-5.0 1.5-6.5 3.0-8.0 0.5-6.5 3.5-9.5 7.0-13.0 0.5-6.5 4.5-11.0 6.5-13.0 11.0-19.5 16.0-24.0

Other Reference : 4007081700108 RIVETPOP4X17 5482 5482 9003013 3663072185517
