3700320612_1
In stock 3588 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €21.30

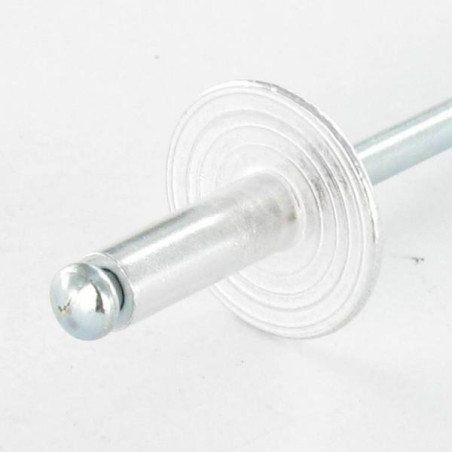

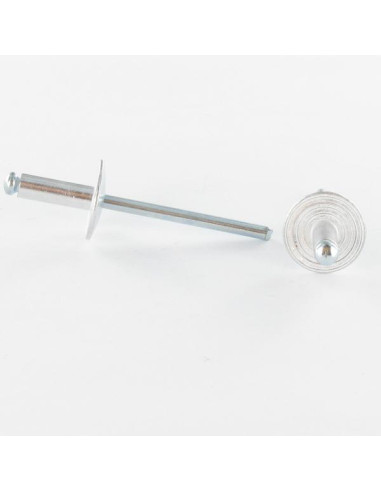

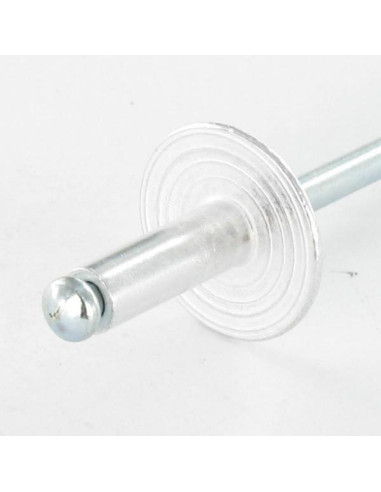

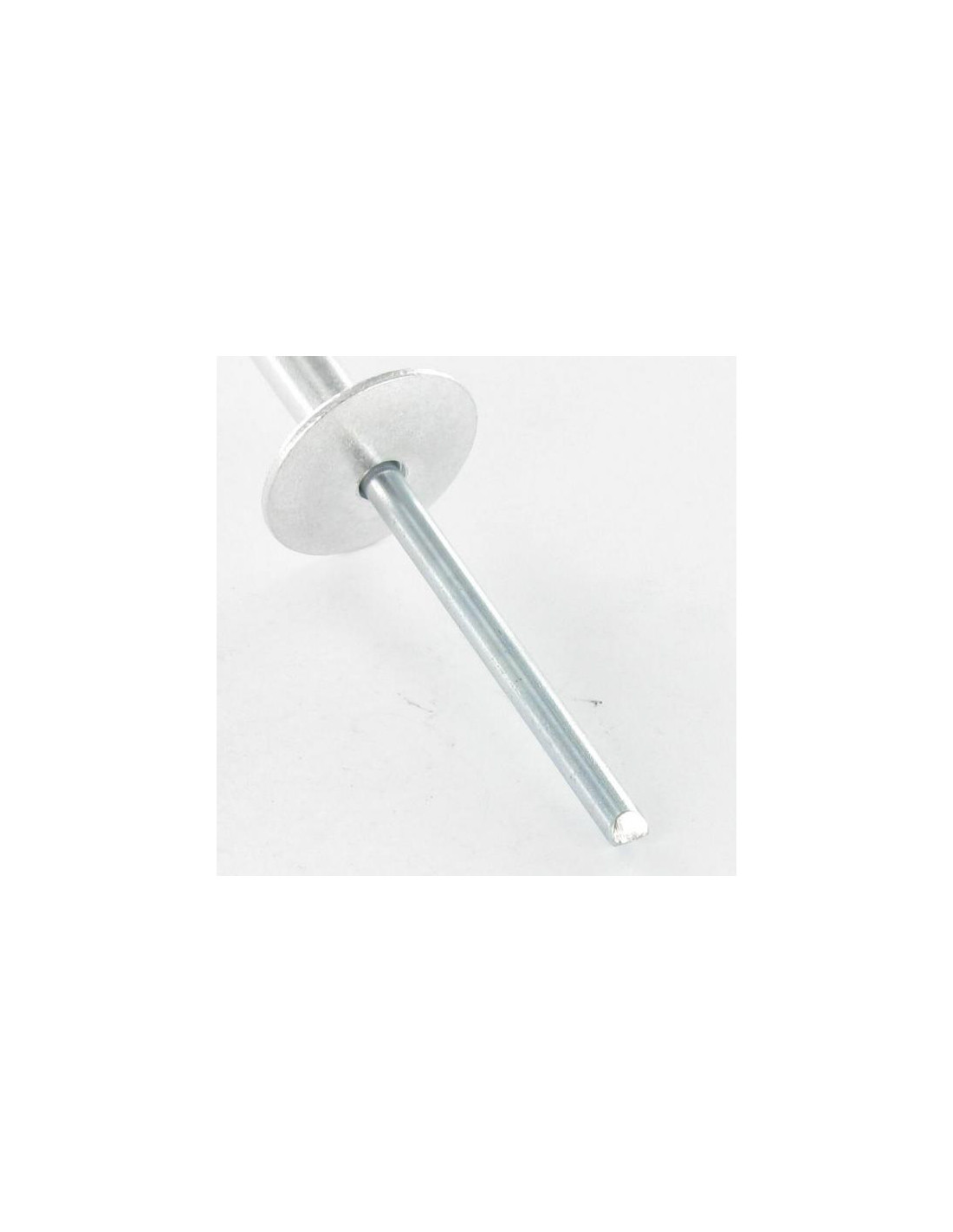

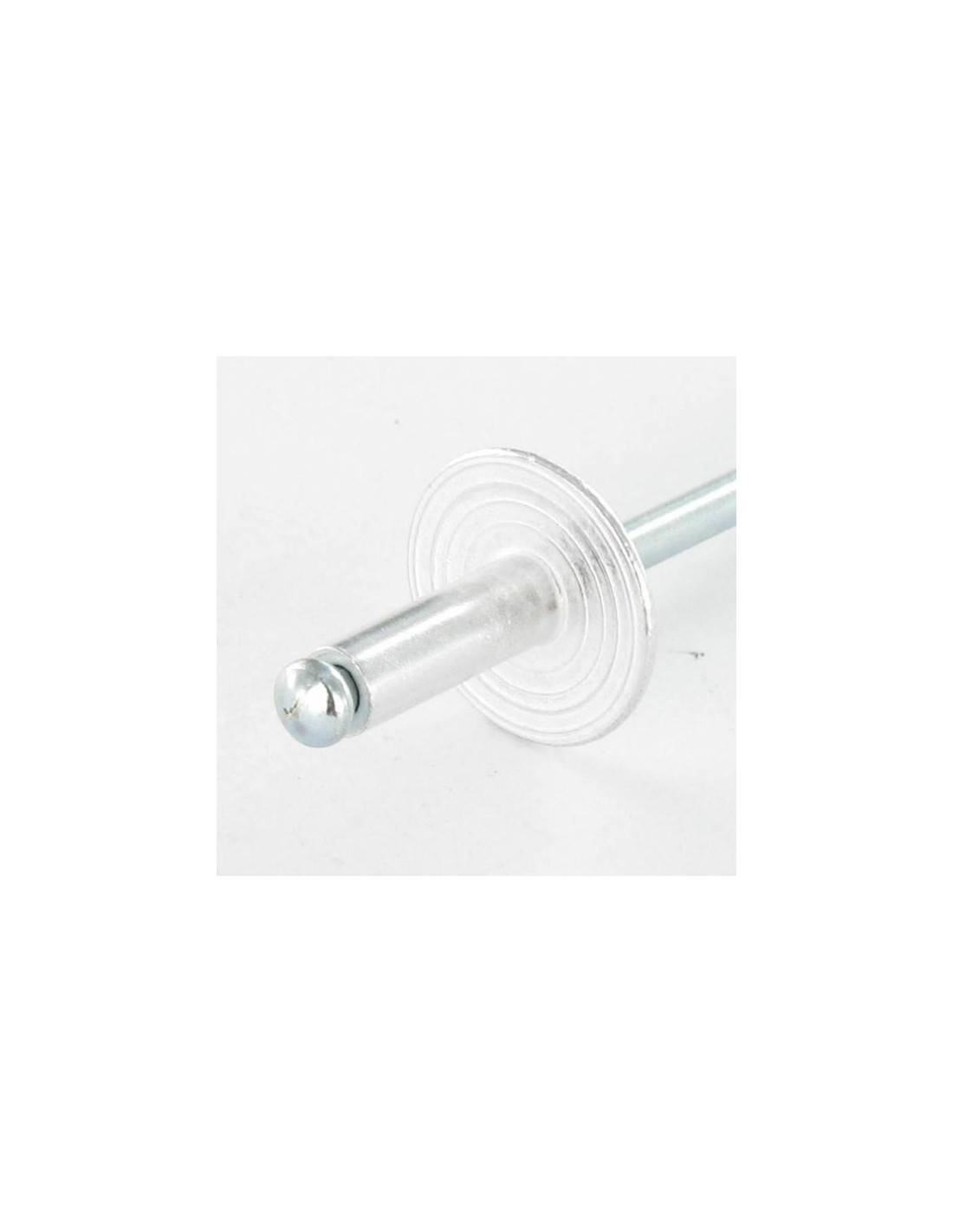

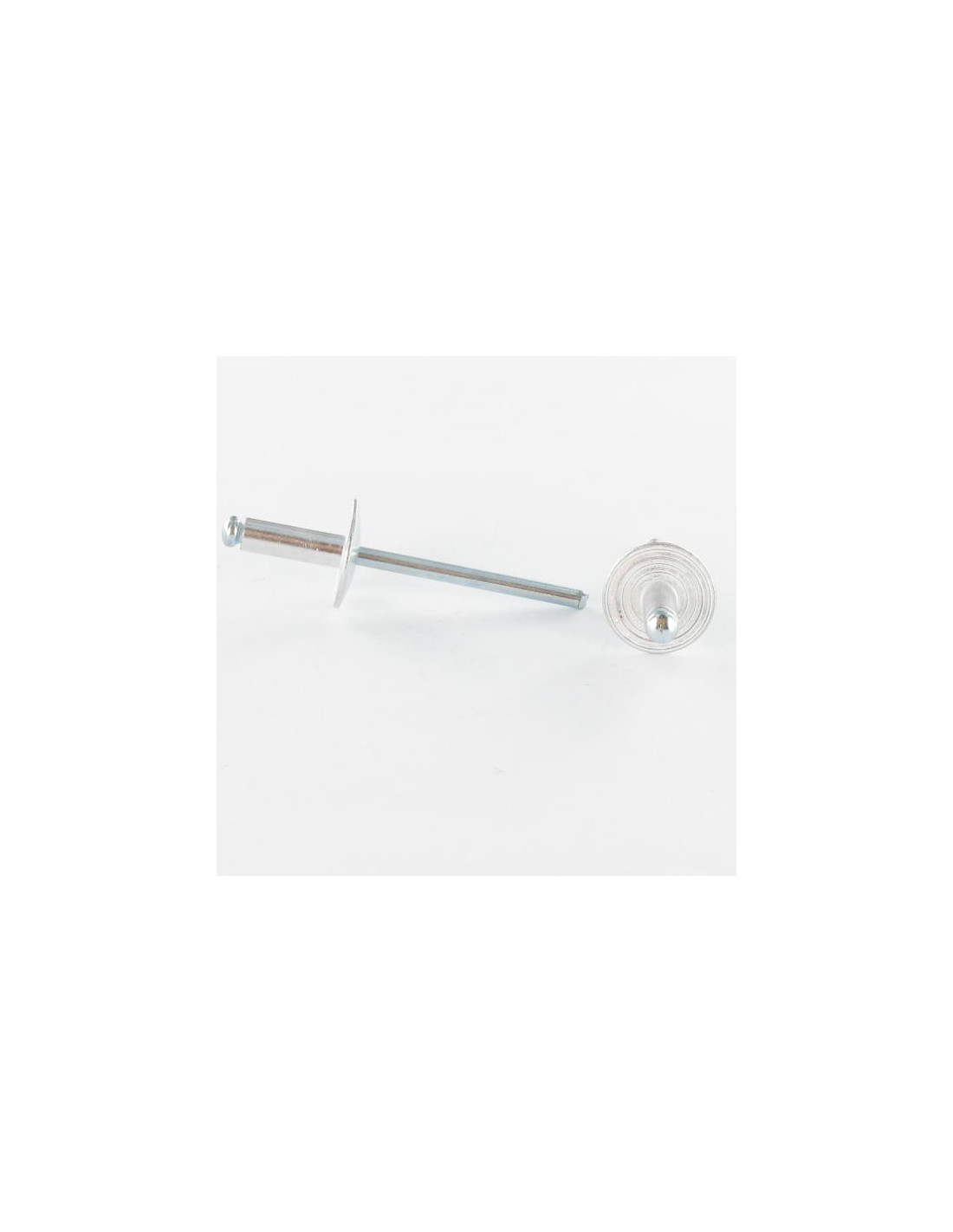

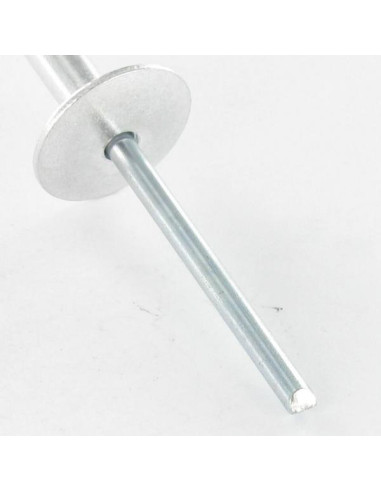

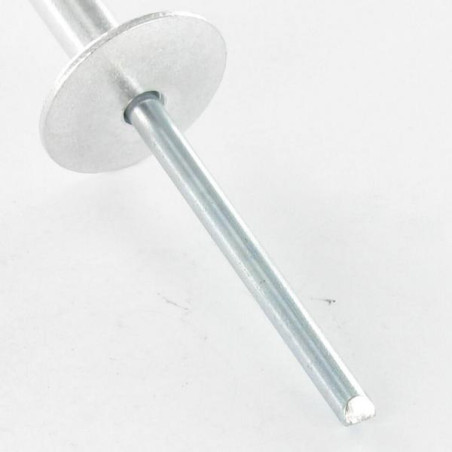

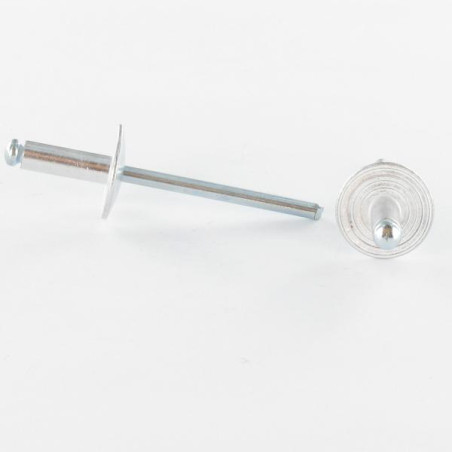

Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
WEIGHT For THERE unit
1.18 GR
Clamping thickness
1 to 3 MM
Rivet body length
6
3588 Items
3663072301634

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Extra Large Head ALX
Diameter = 3.2

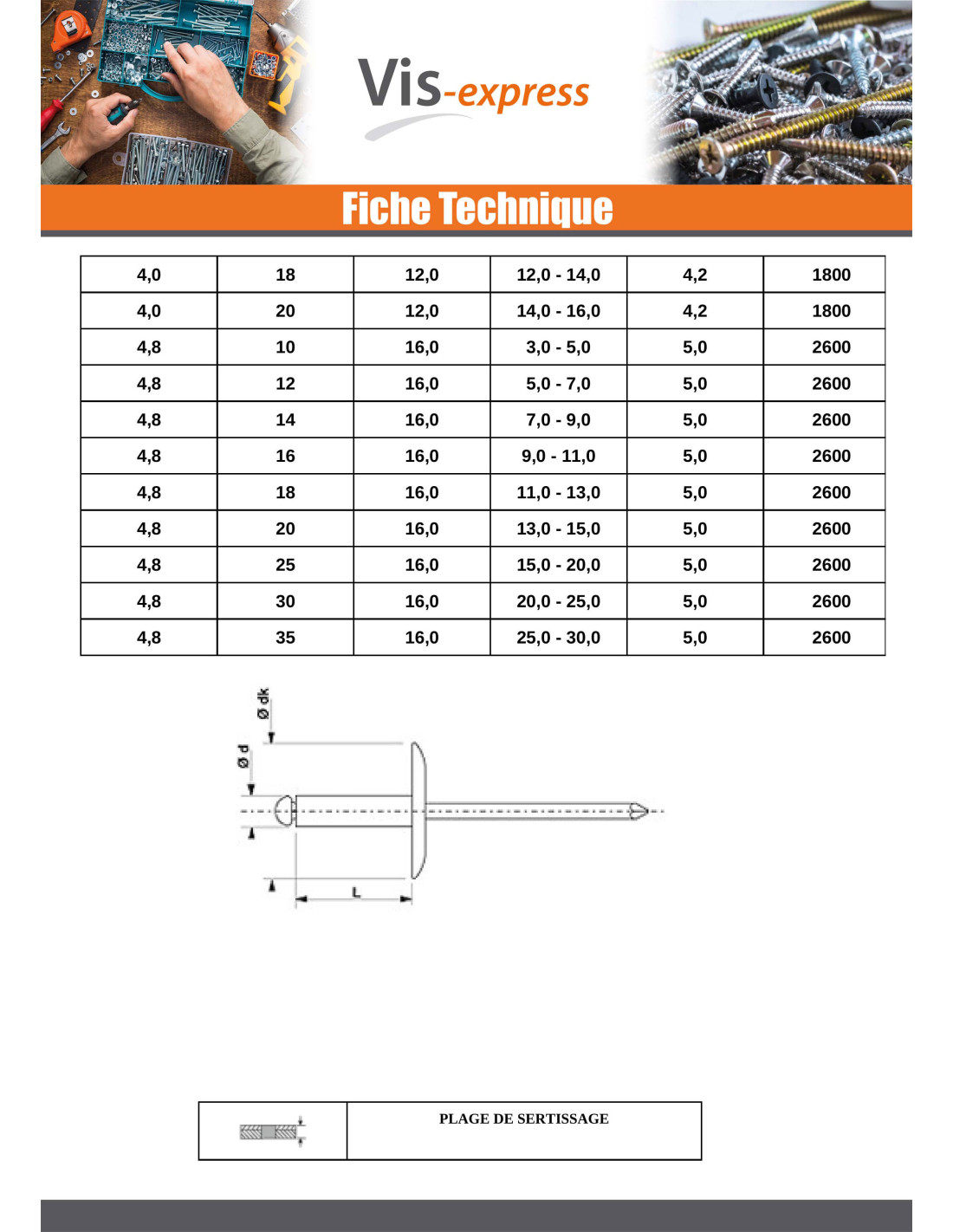

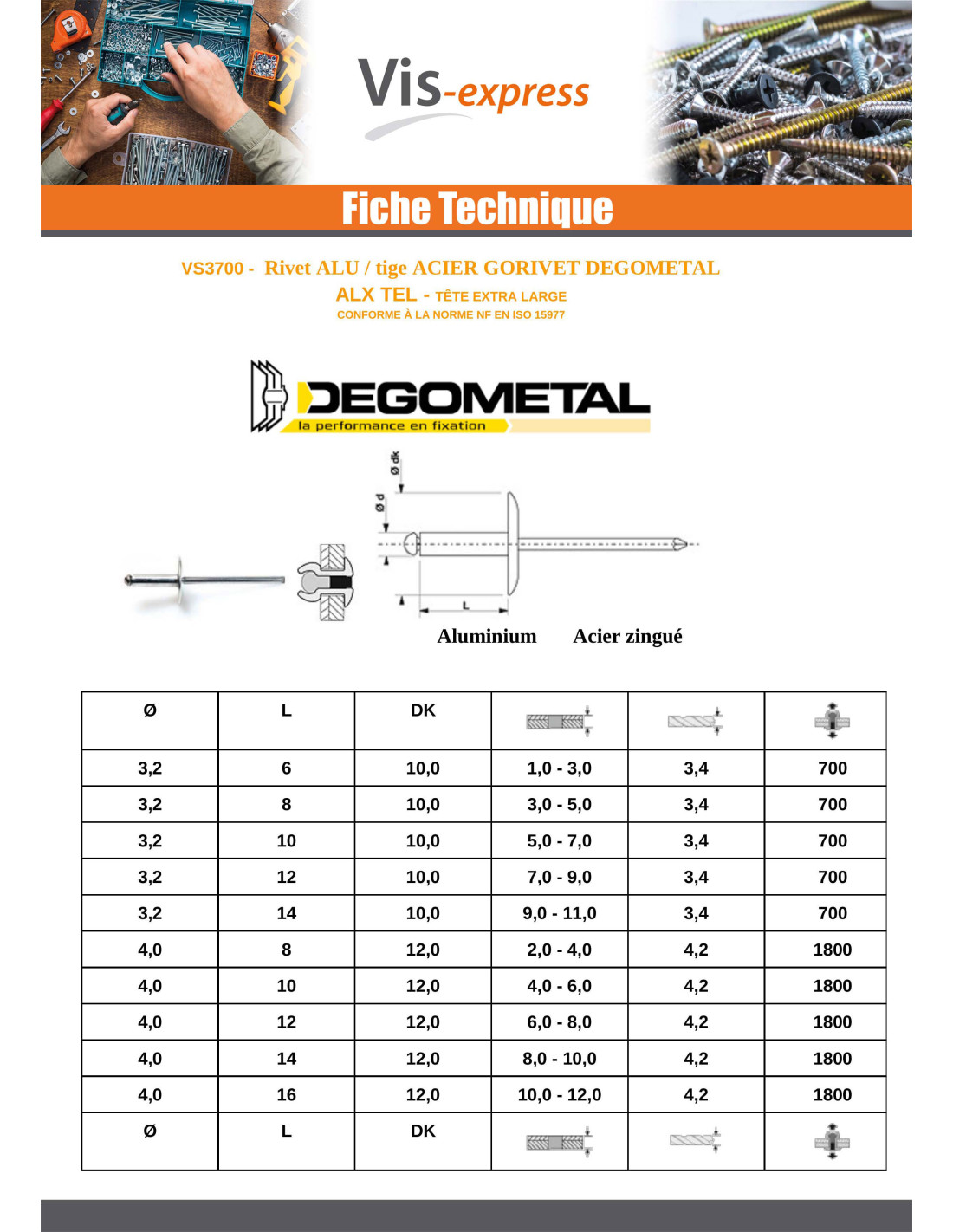

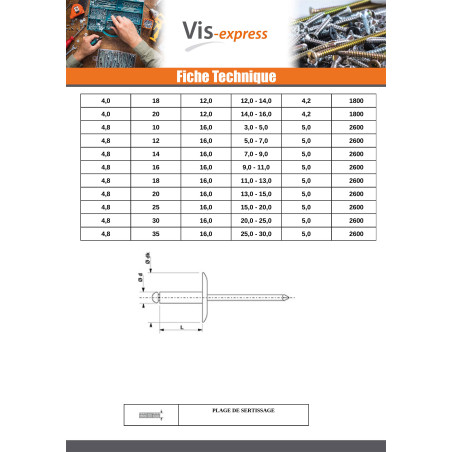

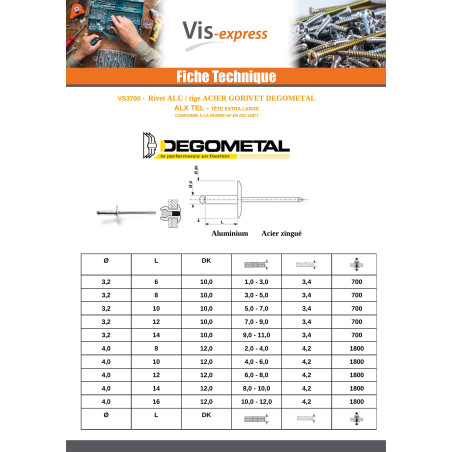

dimensional guide (mm)
Body diameter3.244.8
Head diameter101216
Drilling diameter3.44.25
Tensile strength100016002600
Shear strength85013002100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103332061 RI4 0005 00 3663072301634
