3579000601_1
In stock 22605 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €51.50

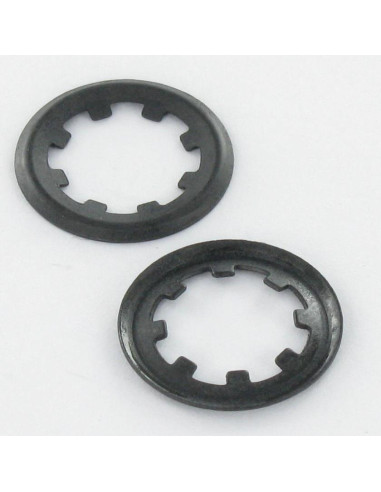

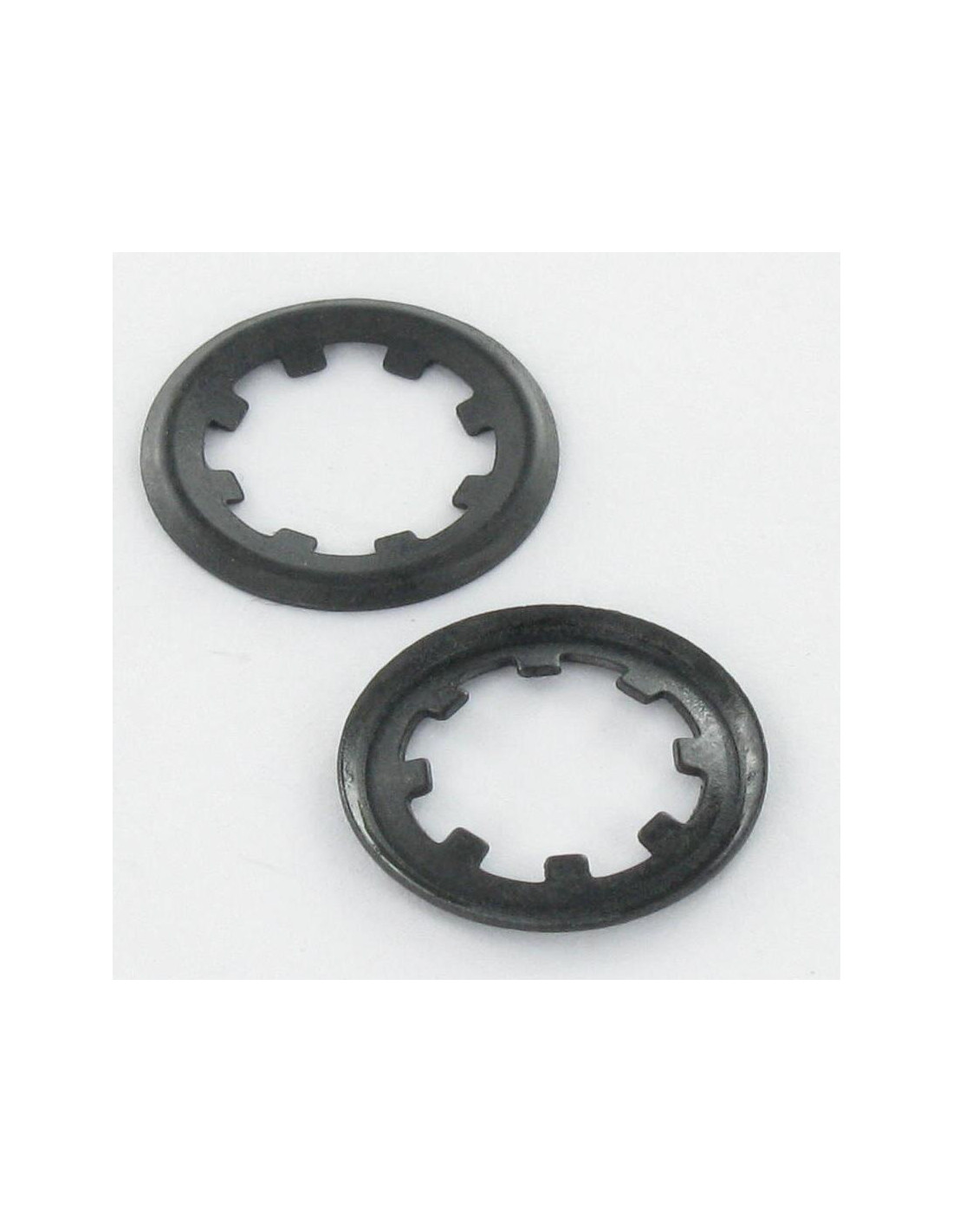

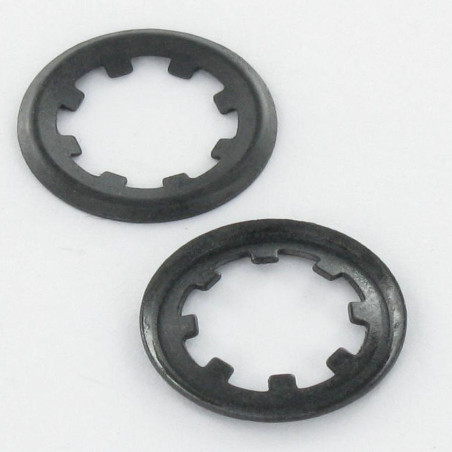

Retaining Rings SELF LOCKING Diameter 6 Steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
6
Material
Steel
COLOR
Grey Steel / Black
Sub product family
Ring SELF LOCKING
Unit weight
0.35 GR
22605 Items
3663072062719
Retaining Rings SELF LOCKING Diameter 6 Steel
Diameter = 6, Sub Product Family = Ring SELF LOCKING, Material = Steel

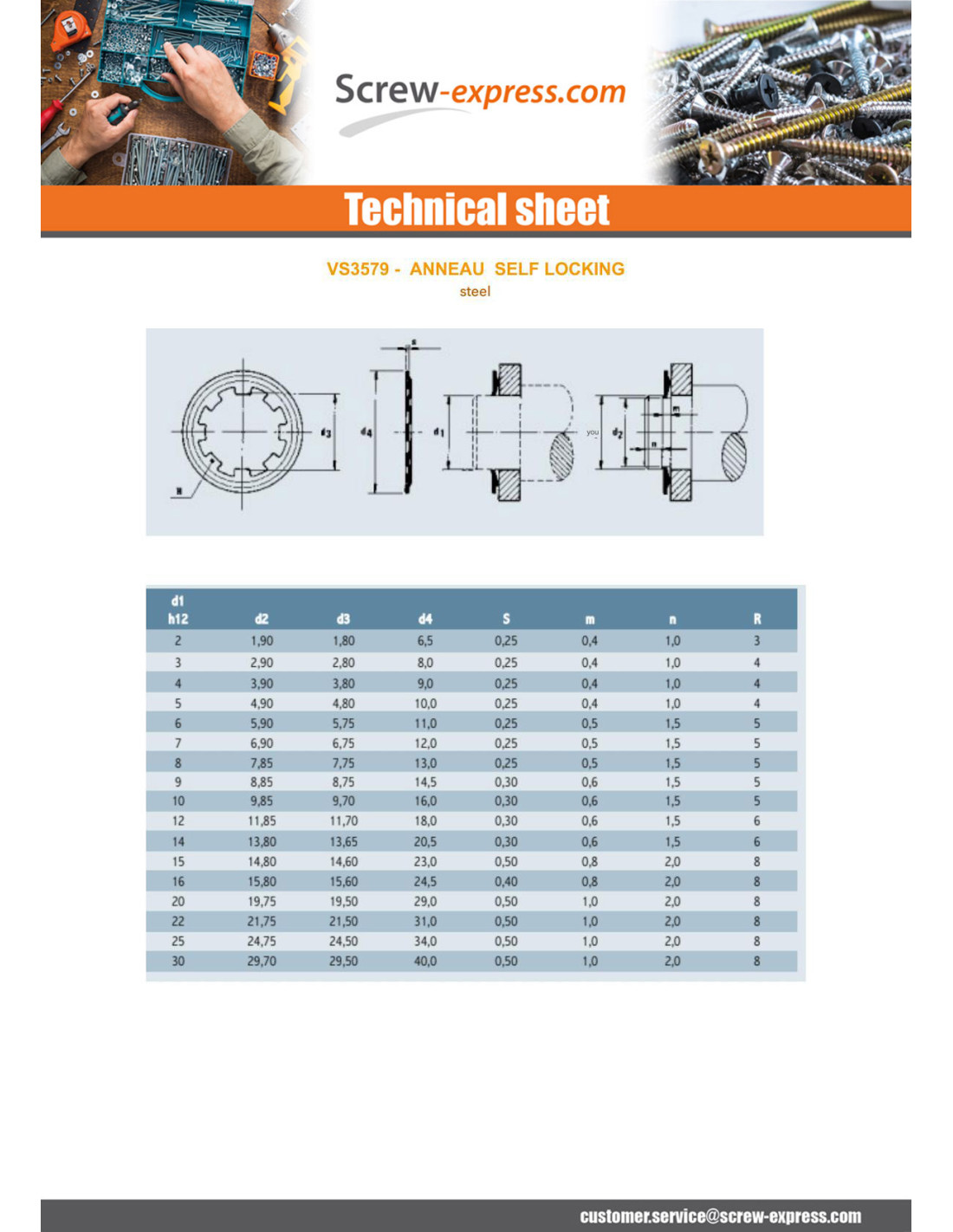

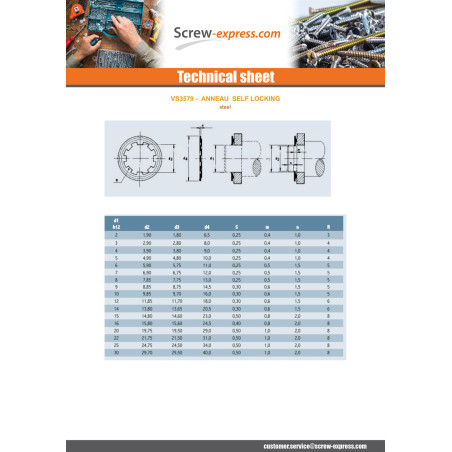

dimensional guide (mm)
DIAMETRE ALESAGE 2 3 4 5 6 8 10 12 14 15 16 17 18 20 22 25 28 30
DIAMETRE EXTERIEUR 6.5 9.1 10.1 11.5 12 14.8 17.2 18 20.5 23 24.5 26 27 29 31 34 37 40
EPAISSEUR 0.25 0.25 0.25 0.25 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5

Other Reference : 3617501902435 8000327R00 3663072062719
Clément C. (vis-express.fr)
2024-05-12

I will use this ring to hold a screw in place in a metal profile during dismantling
