1 x Retaining Rings External Steel Retaining Diameter 38

7088003801_1
In stock 729 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €39.80 €189.10

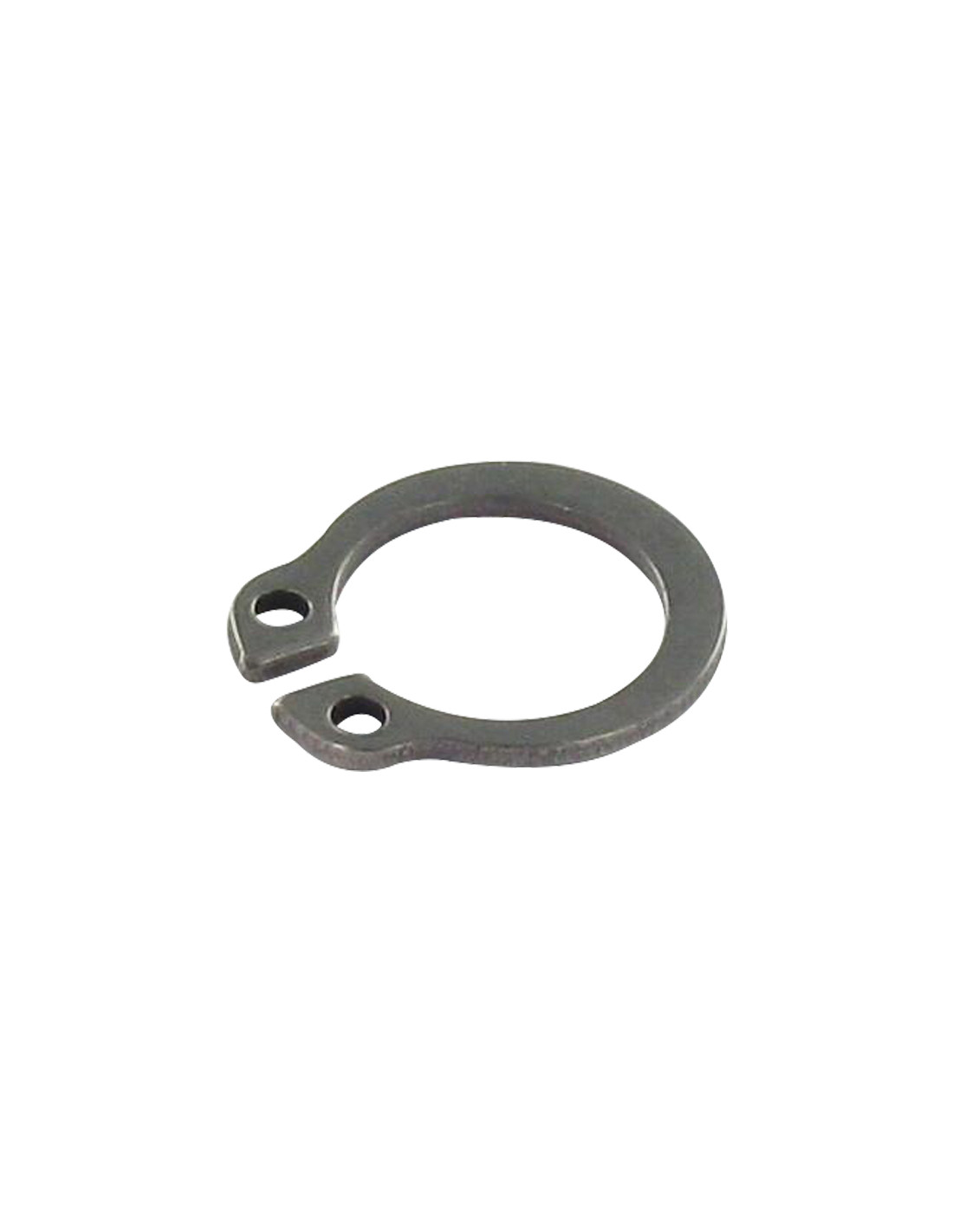

Retaining Rings External Steel Retaining Diameter 38
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
38
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN471
Product Family
Snap Ring
Sub product family
External Snap Ring
Unit weight
5.3 GR
729 Items
3663072125049
Retaining Rings External Steel Retaining Diameter 38
Diameter = 38, Sub Product Family = External Snap Ring, Material = Steel, Norm = VS-DIN471, Product Family = Snap Ring

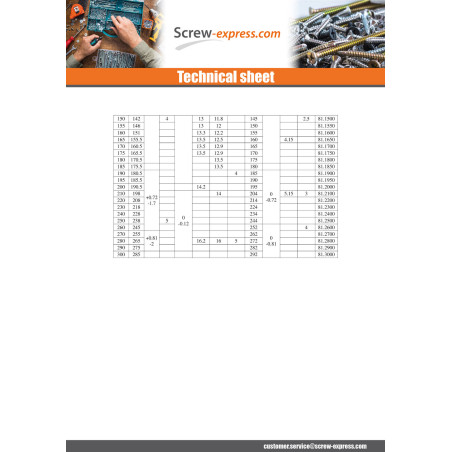

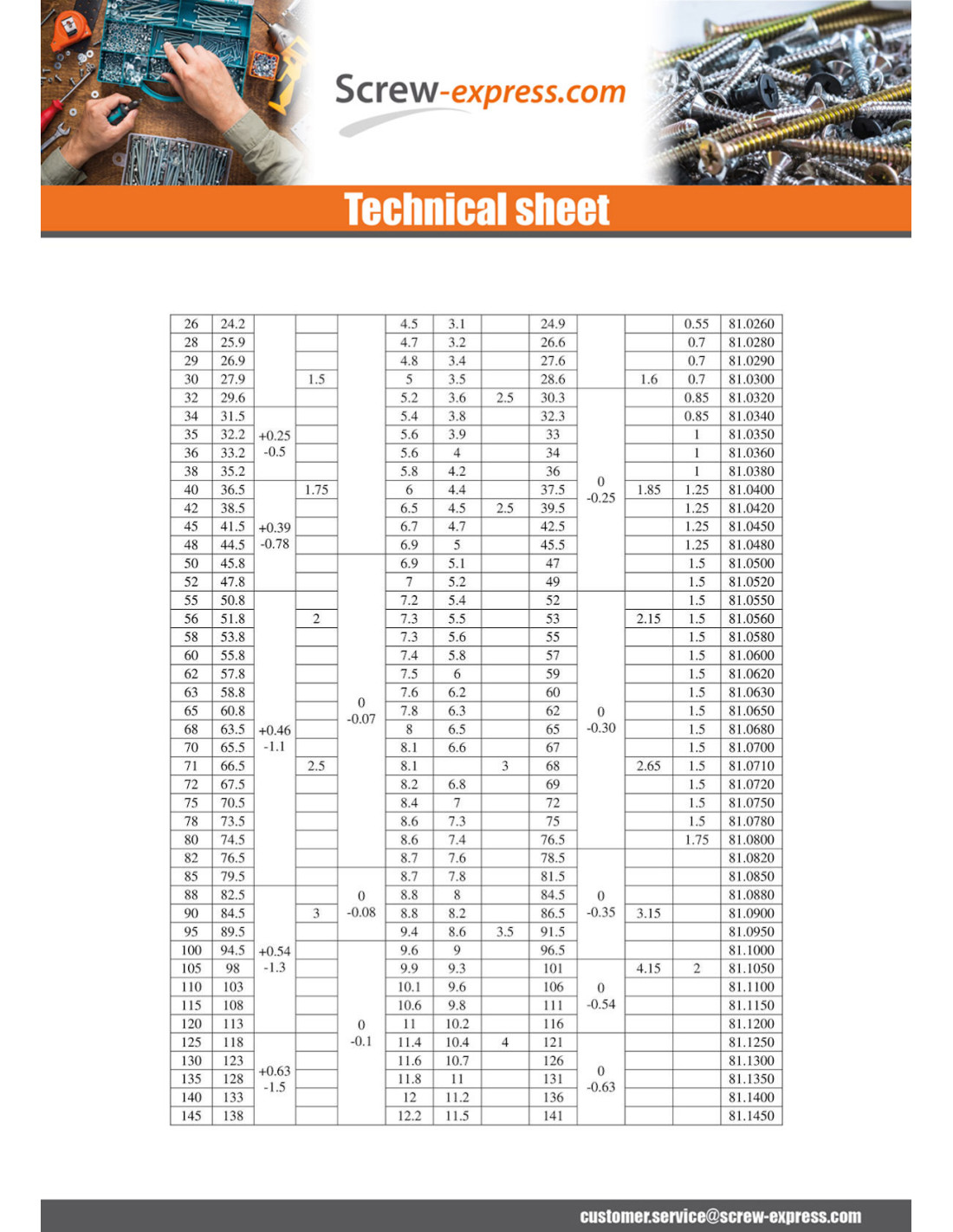

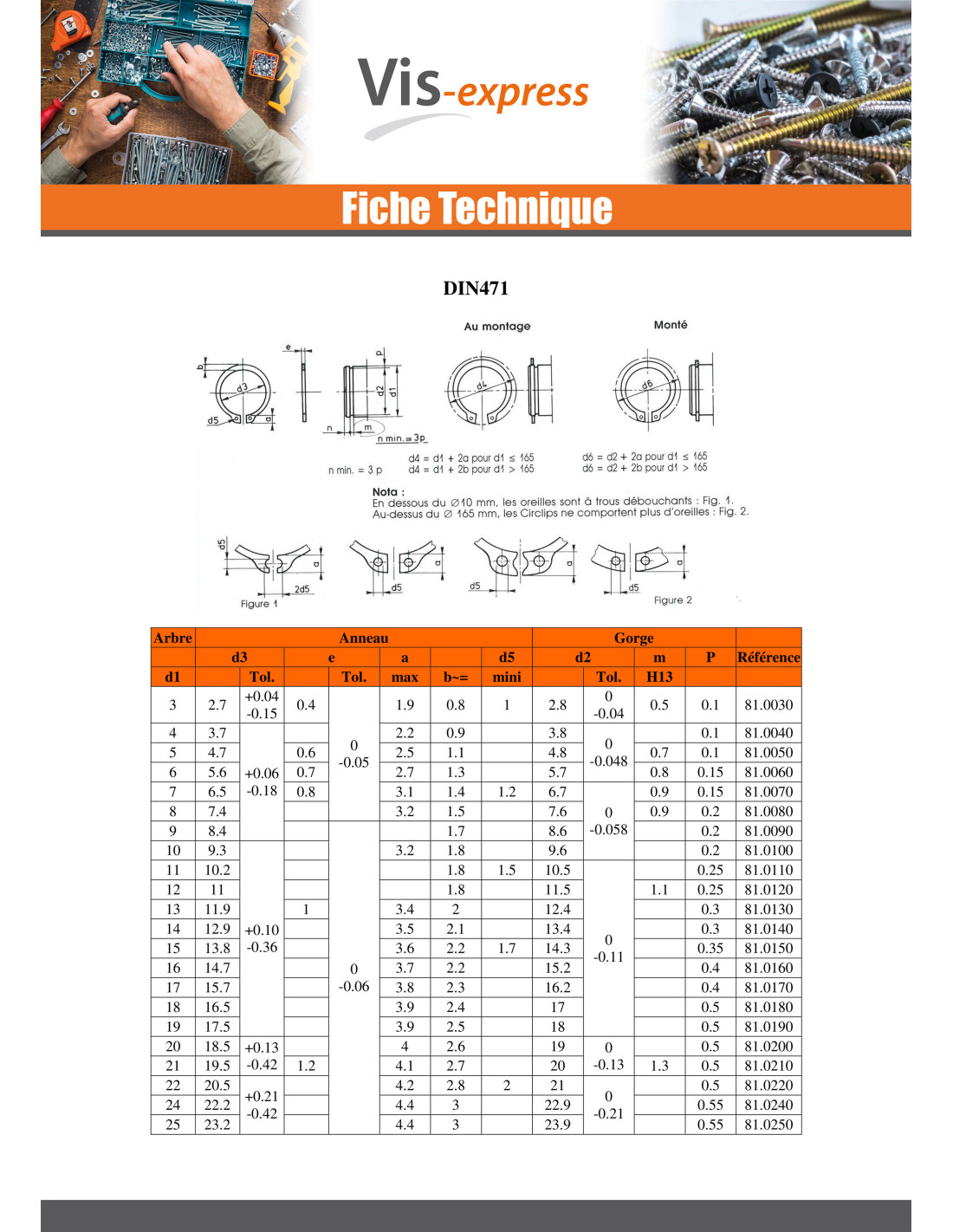

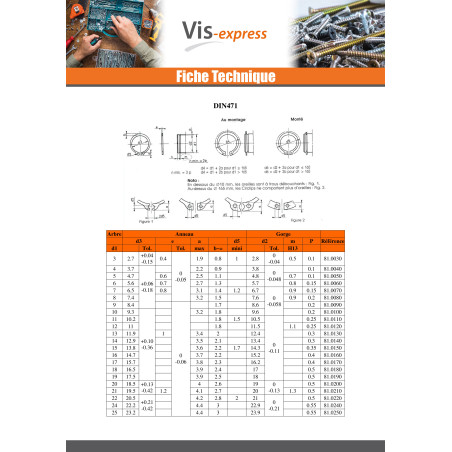

dimensional guide (mm)
DIAMETRE ARBRE 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 50 52 54 55 56 57 60 62 63 65 67 70 72 75 77 78 80 82 85 87 90 92 95 98 100 105 110 115 120 125 130
DIAMETRE INTERIEUR 2.7 3.7 4.7 5.6 6.5 7.4 8.4 9.3 10.2 11 11.9 12.9 13.8 14.7 15.7 16.5 17.5 18.5 19.5 20.5 21.5 22.2 23.2 24.2 24.9 25.9 26.9 27.9 28.6 29.6 30.5 31.5 32.2 33.2 34.2 35.2 36 36.5 37.5 38.5 40.5 41.5 42.5 43.5 44.5 45.8 47.8 49.8 50.8 51.8 52.8 55.8 57.8 58.8 60.8 62.5 65.5 67.5 70.5 72.5 73.5 74.5 76.5 79.5 81.5 84.5 86.5 89.5 92.5 94.5 98 103 108 120 118 123
EPAISSEUR 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 4 4 4 4 4 4

Other Reference : 81.0380 10174500 58513 3663072125049
