7088001501_1
In stock 7740 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €40.80

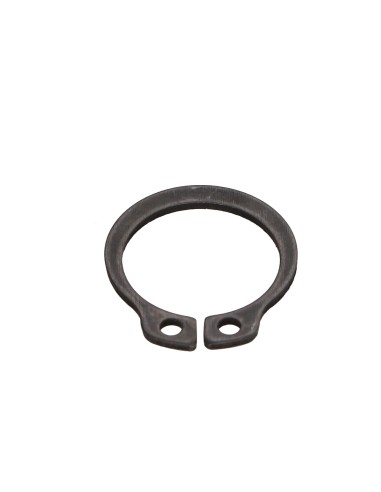

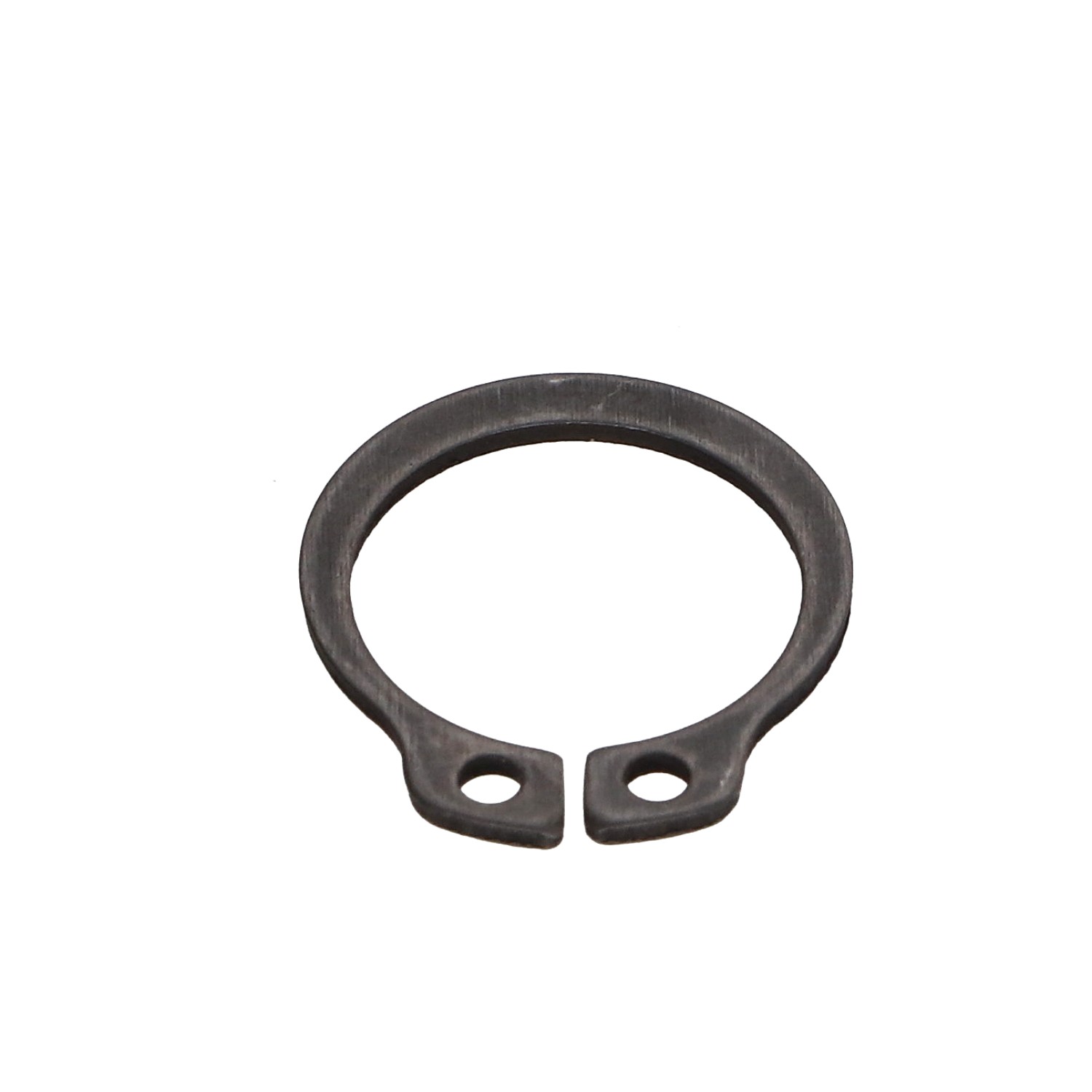

Retaining Rings External Steel Retaining Diameter 15
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
15
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN471
Product Family
Snap Ring
Sub product family
External Snap Ring
Unit weight
0.67 GR
7740 Items
3663072193086
Retaining Rings External Steel Retaining Diameter 15
Diameter = 15, Sub Product Family = External Snap Ring, Material = Steel, Norm = VS-DIN471, Product Family = Snap Ring

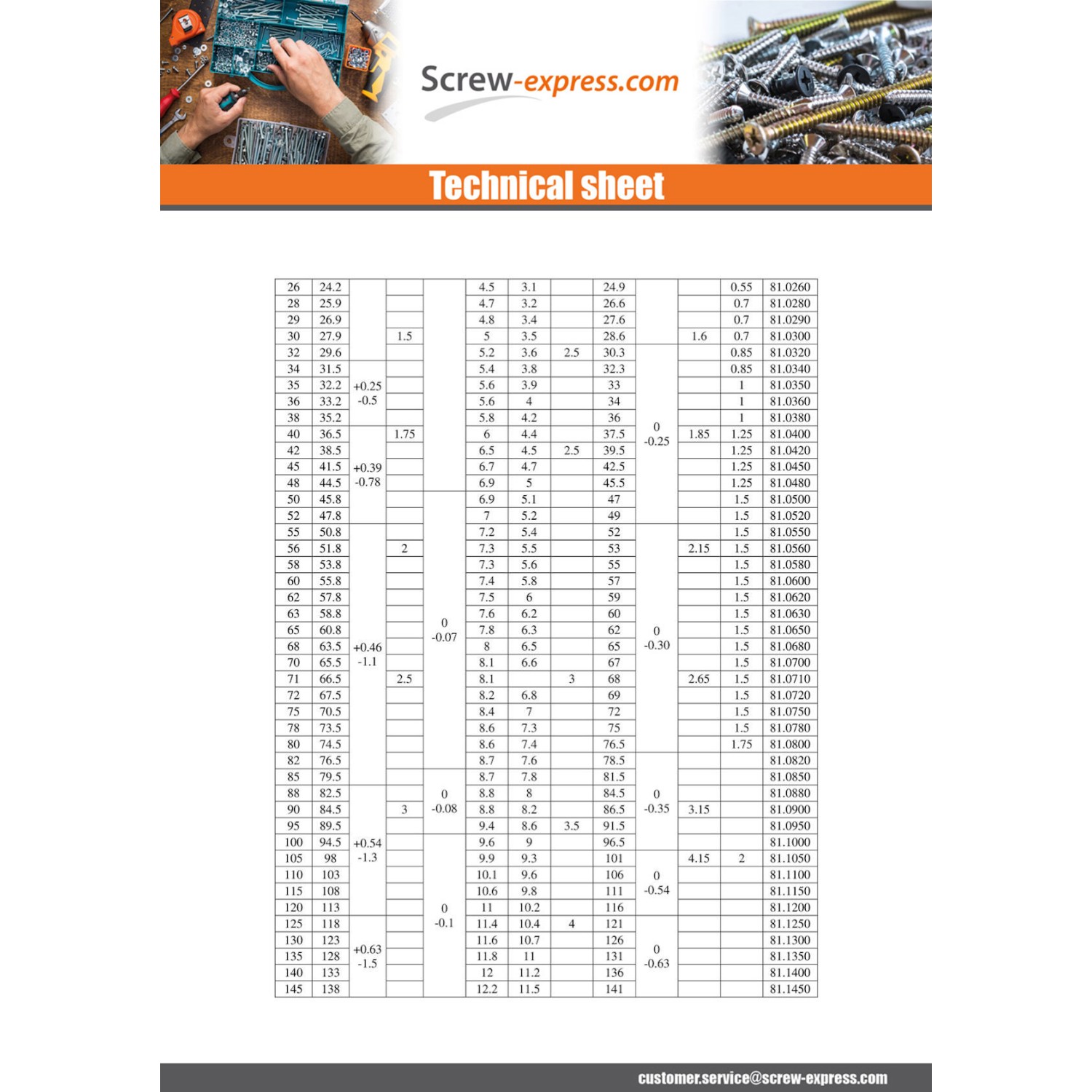

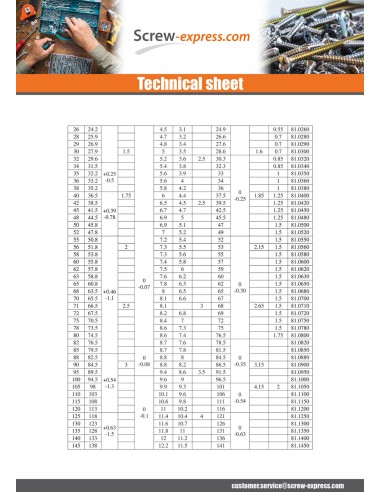

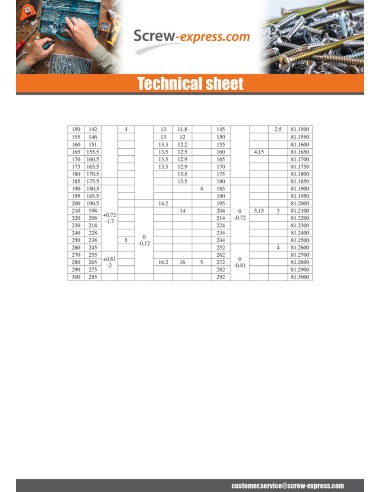

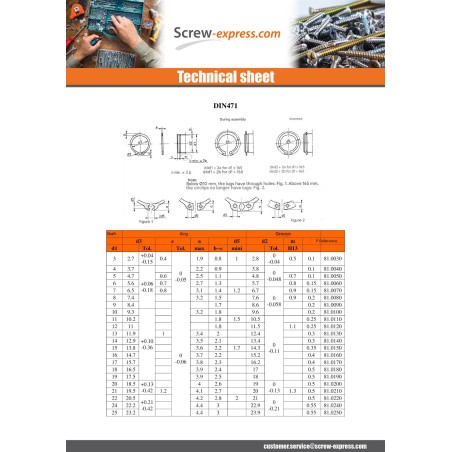

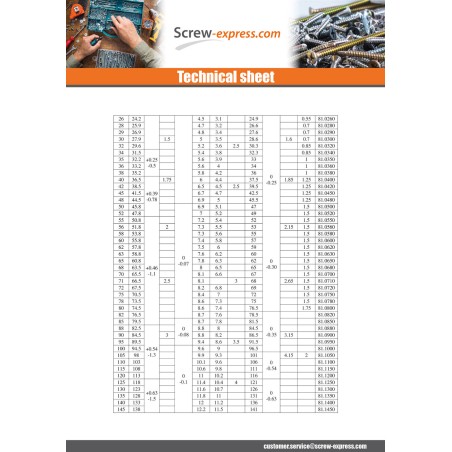

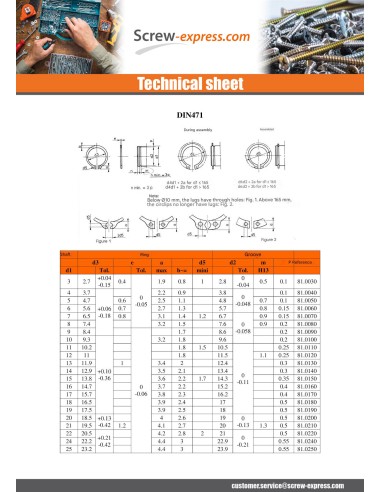

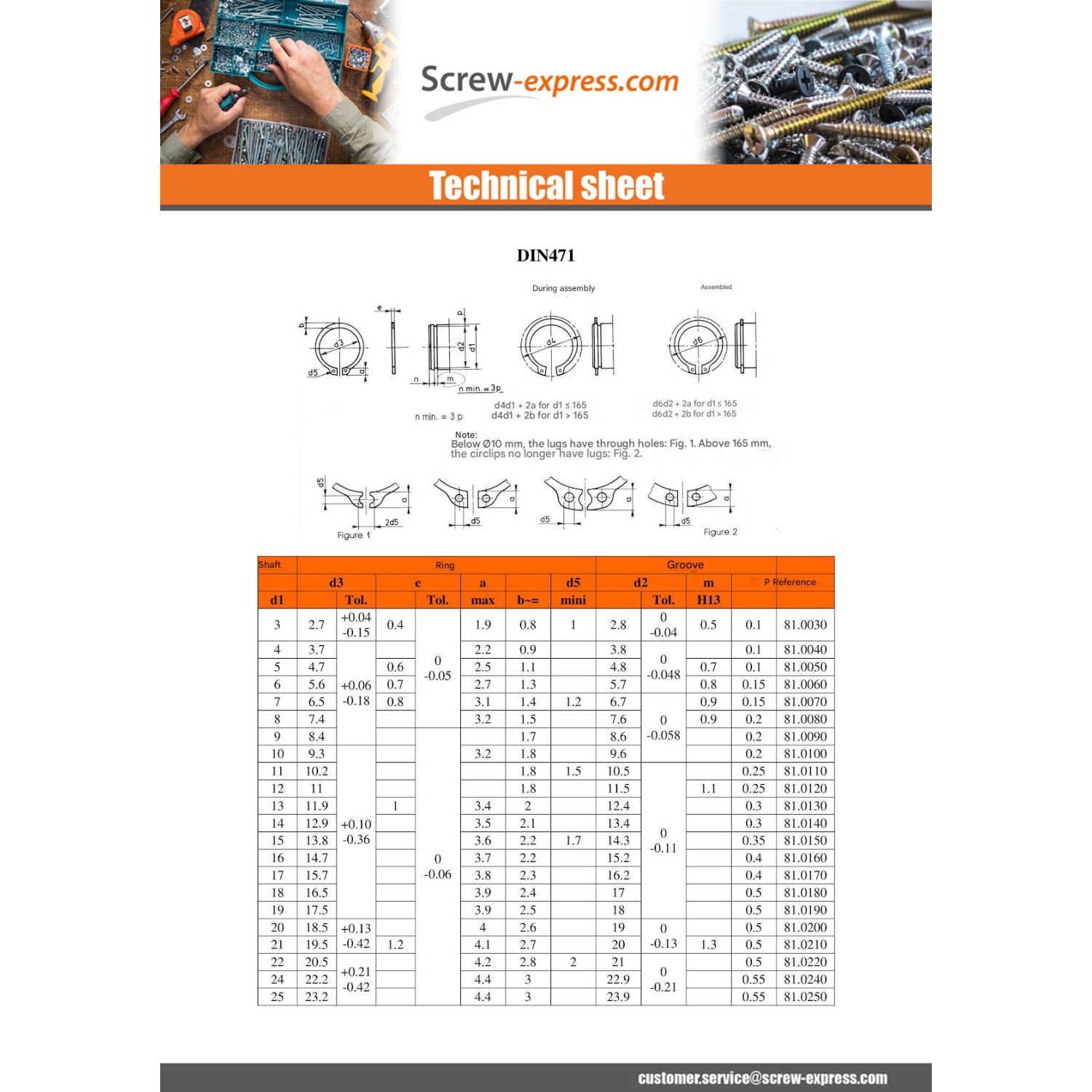

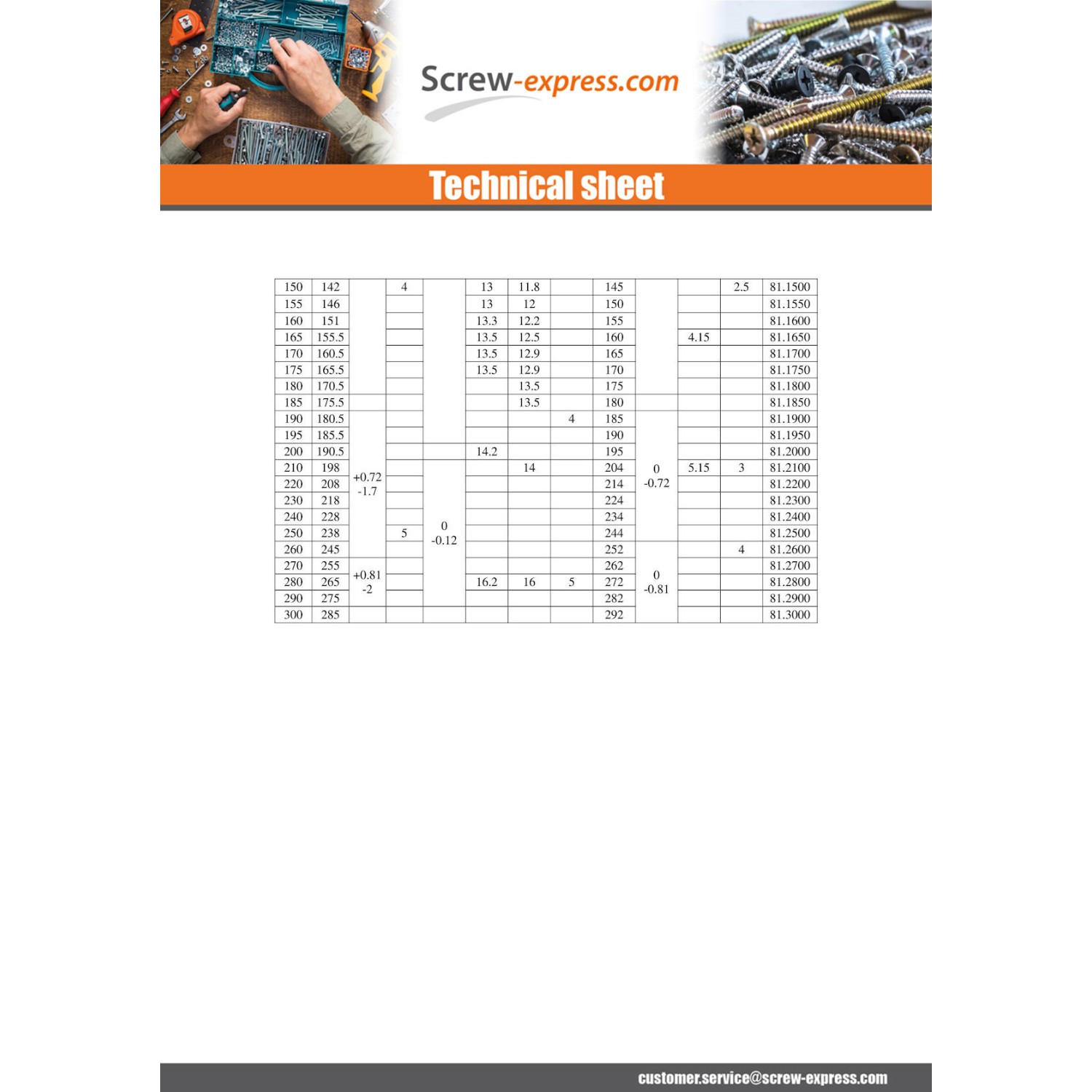

dimensional guide (mm)
DIAMETRE ARBRE 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 50 52 54 55 56 57 60 62 63 65 67 70 72 75 77 78 80 82 85 87 90 92 95 98 100 105 110 115 120 125 130
DIAMETRE INTERIEUR 2.7 3.7 4.7 5.6 6.5 7.4 8.4 9.3 10.2 11 11.9 12.9 13.8 14.7 15.7 16.5 17.5 18.5 19.5 20.5 21.5 22.2 23.2 24.2 24.9 25.9 26.9 27.9 28.6 29.6 30.5 31.5 32.2 33.2 34.2 35.2 36 36.5 37.5 38.5 40.5 41.5 42.5 43.5 44.5 45.8 47.8 49.8 50.8 51.8 52.8 55.8 57.8 58.8 60.8 62.5 65.5 67.5 70.5 72.5 73.5 74.5 76.5 79.5 81.5 84.5 86.5 89.5 92.5 94.5 98 103 108 120 118 123
EPAISSEUR 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 4 4 4 4 4 4

Other Reference : 81.0150 /AN 094036 M193179037 D12515BC0010 VI204 PCIE15/1 0301070002 0301070002 0301070002 OBCIE15 1307346166 ZCIRCLIPEXT1 CIR15EXT 212410 11593112 3663072193086
