4363041002_1
In stock 12664 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 50 500 2000
Lot price VAT included €3.85 €10.95 €94.80 €354.40

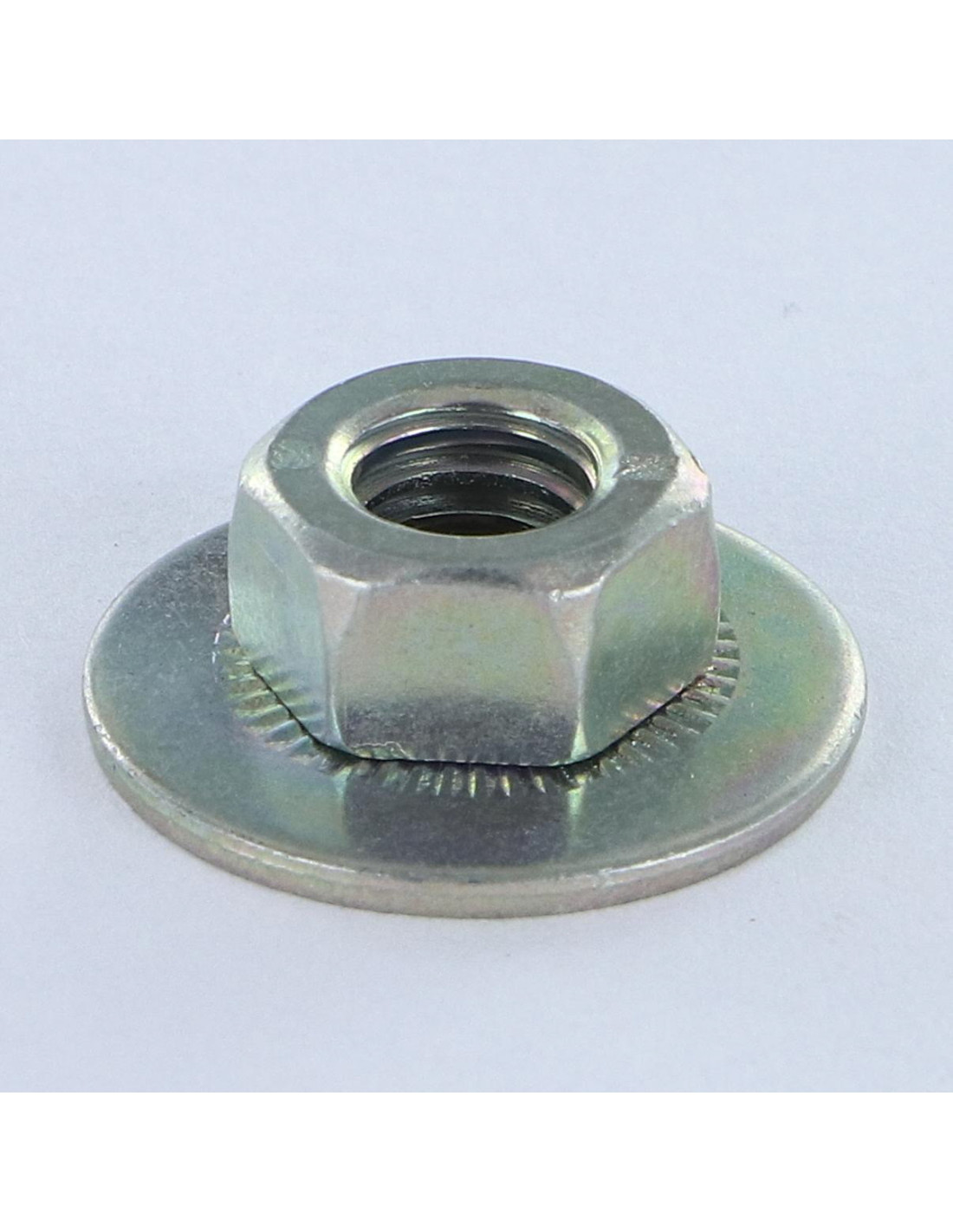

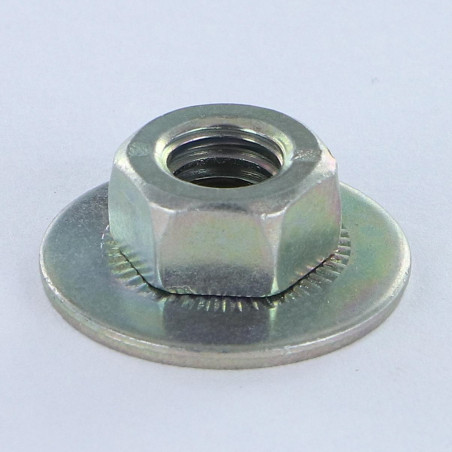

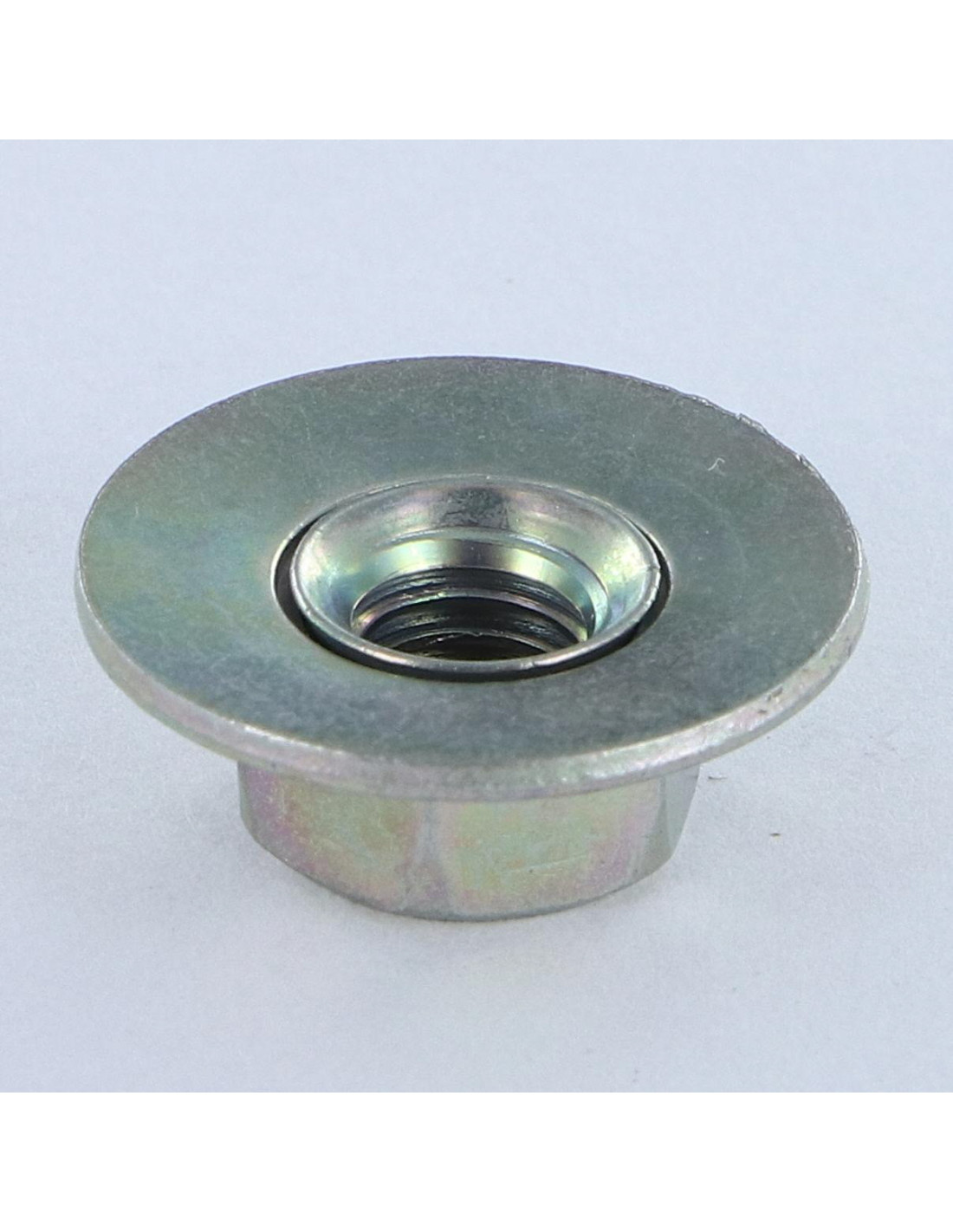

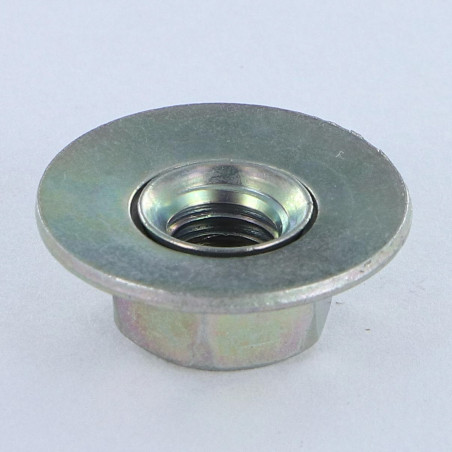

Nut Twolok Cs M4 Washer M4X10.2X4.6 Zinc Plated
Packaging
  • 1 unit
  • 50 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
M4
Pitch
Standard pitch 70
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Product Family
Nut
Diameter in mm
3.17 - 3.27
Unit weight
1.2 GR
12664 Items
3663072181700
Nut Twolok Cs M4 Washer M4X10.2X4.6 Zinc Plated
Diameter = M4, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 70, Product Family = Nut

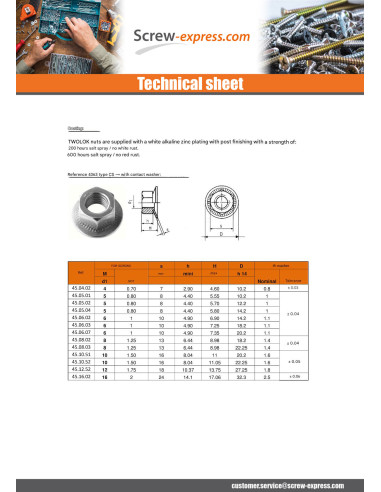

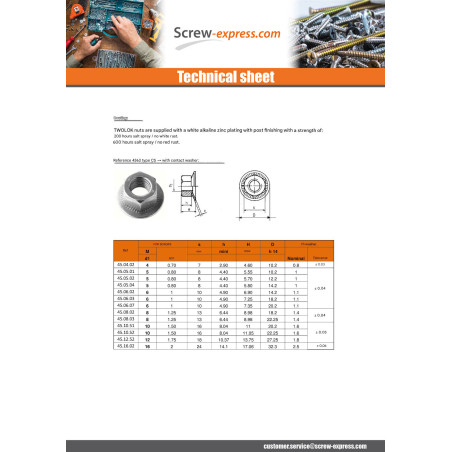

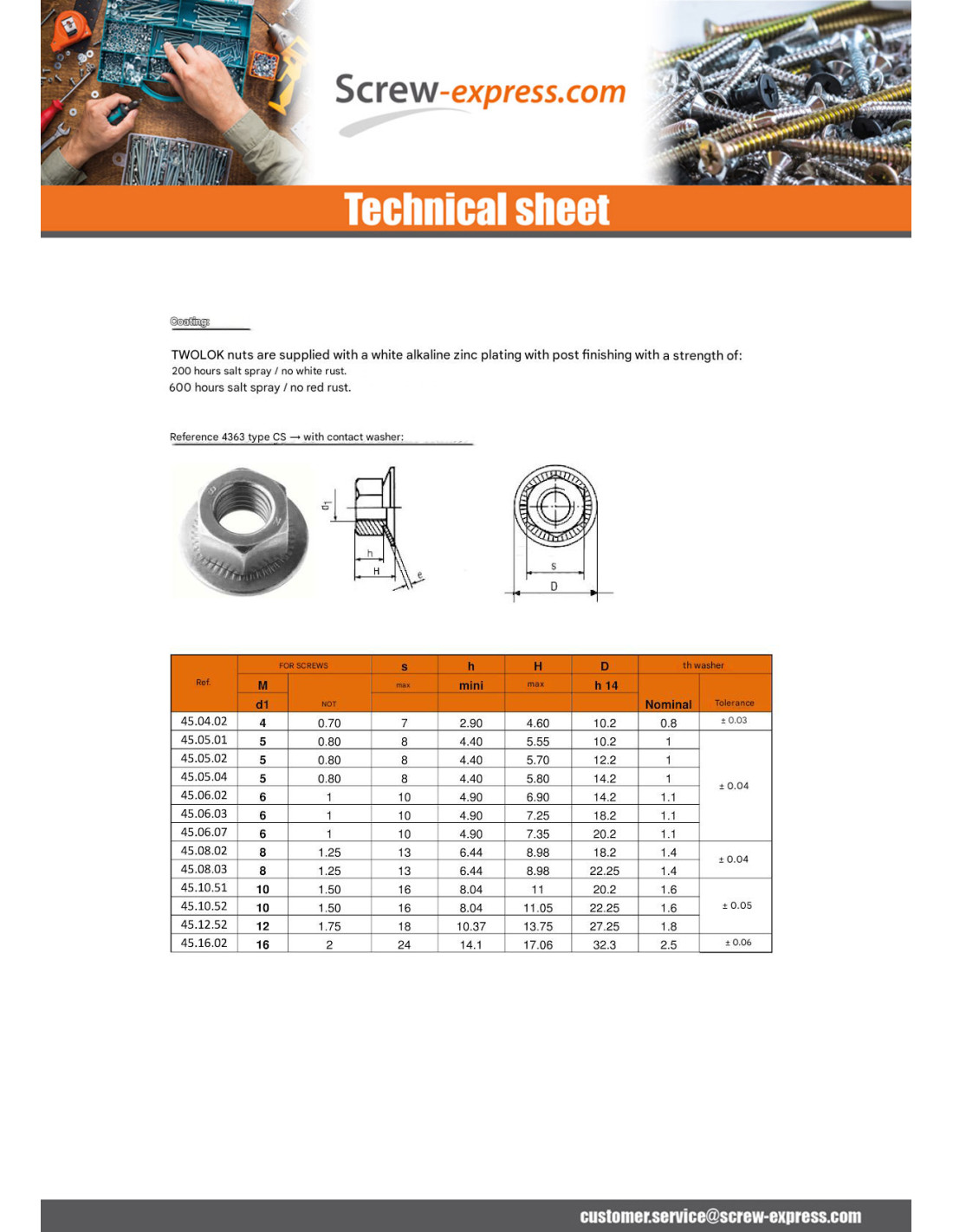

dimensional guide (mm)
REFDIAMETRE DE L'ECROUPAS DE L'ECROUCLEF DEHAUTEUR ECROUHAUTEUR TOTALEDIAMETRE RONDELLEEPAISSEUR RONDELLE
4363041002M47072.94.610.20.8
4363051002M58084.405.5510.21
4363051202M58084.405.7012.21
4363051402M58084.405.8014.21
4363061402M6100104.96.914.21.1
4363061802M6100104.97.2518.21.1
4363062002M6100104.97.3520.21.1
4363072202M7100115.358.1022.21.6
4363081802M8125136.448.9818.21.4
4363082202M8125136.448.9822.251.4
4363102002M10150168.041120.21.6
4363102202M10150168.0411.0522.251.6
4363122702M121751810.3713.7527.251.8
4363163203M162002414.117.0632.32.5
4363204002M202503016.920.7640.33

Other Reference : 45.04.02 LDU21618000 BOS8194886 4089-04 ECRTLM41 LDU21618000 2915040000 3663072181700
