1 x Nut Twolok Cs M10 Washer M10X20.2X11 Zinc Plated

1 x Nut Twolok Cs M10 Washer M10X20.2X11 Zinc...

1 x Nut Twolok Cs M10 Washer M10X20.2X11 Zinc Plated

Name: 1 x Nut Twolok Cs M10 Washer M10X20.2X11 Zinc Plated
Brand: Screw Express
SKU: 4363102002
Price: 1.7 EUR
Availability: InStock

Reference 4363102002_1

In stock 5387 Pièces

€1.70 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	200	800
Lot price VAT included	€1.70	€3.40	€10.05	€66.80	€254.00

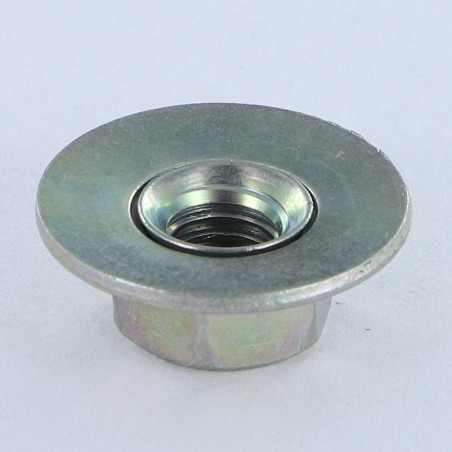

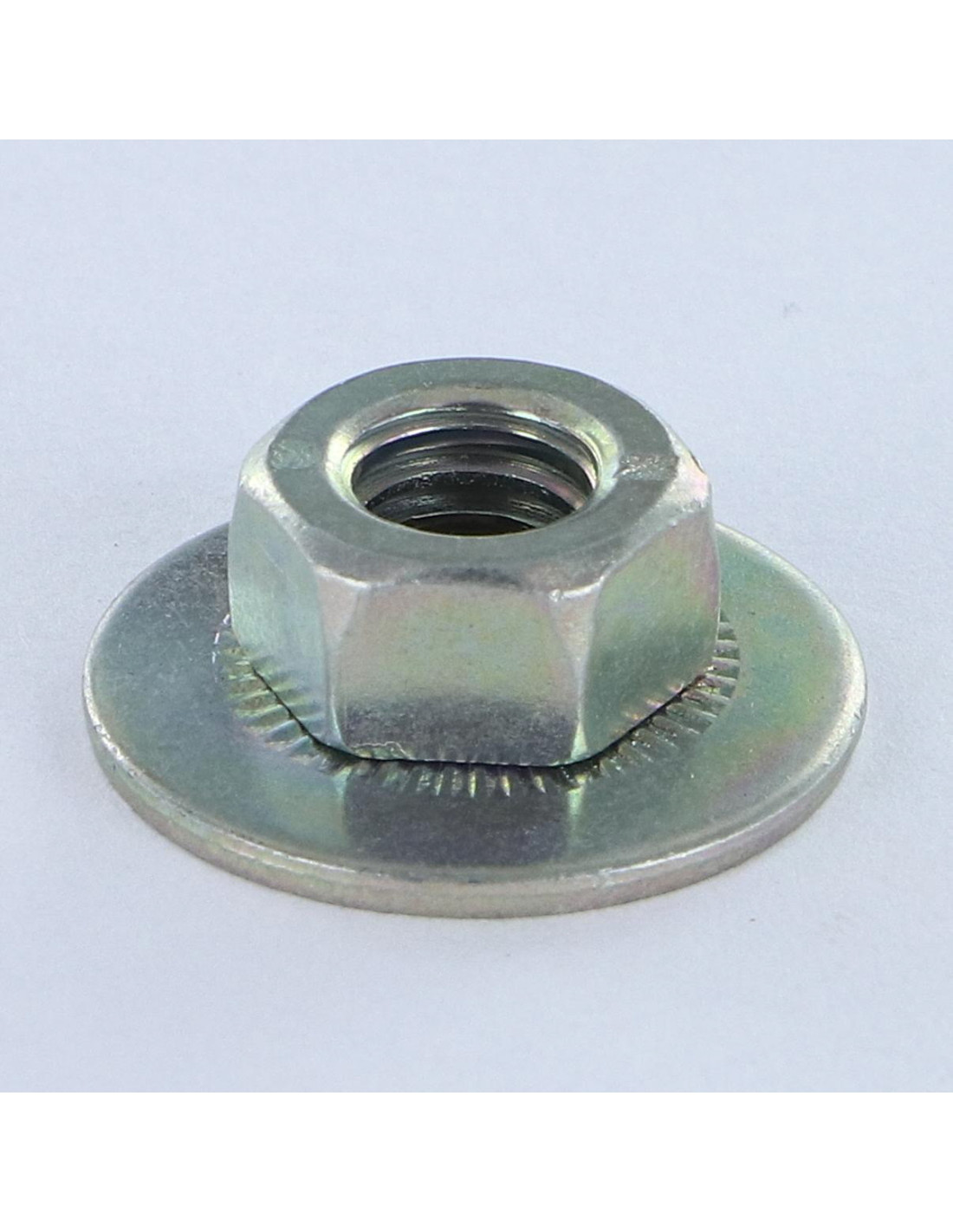

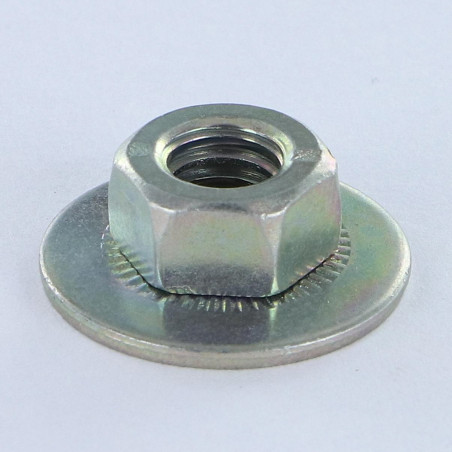

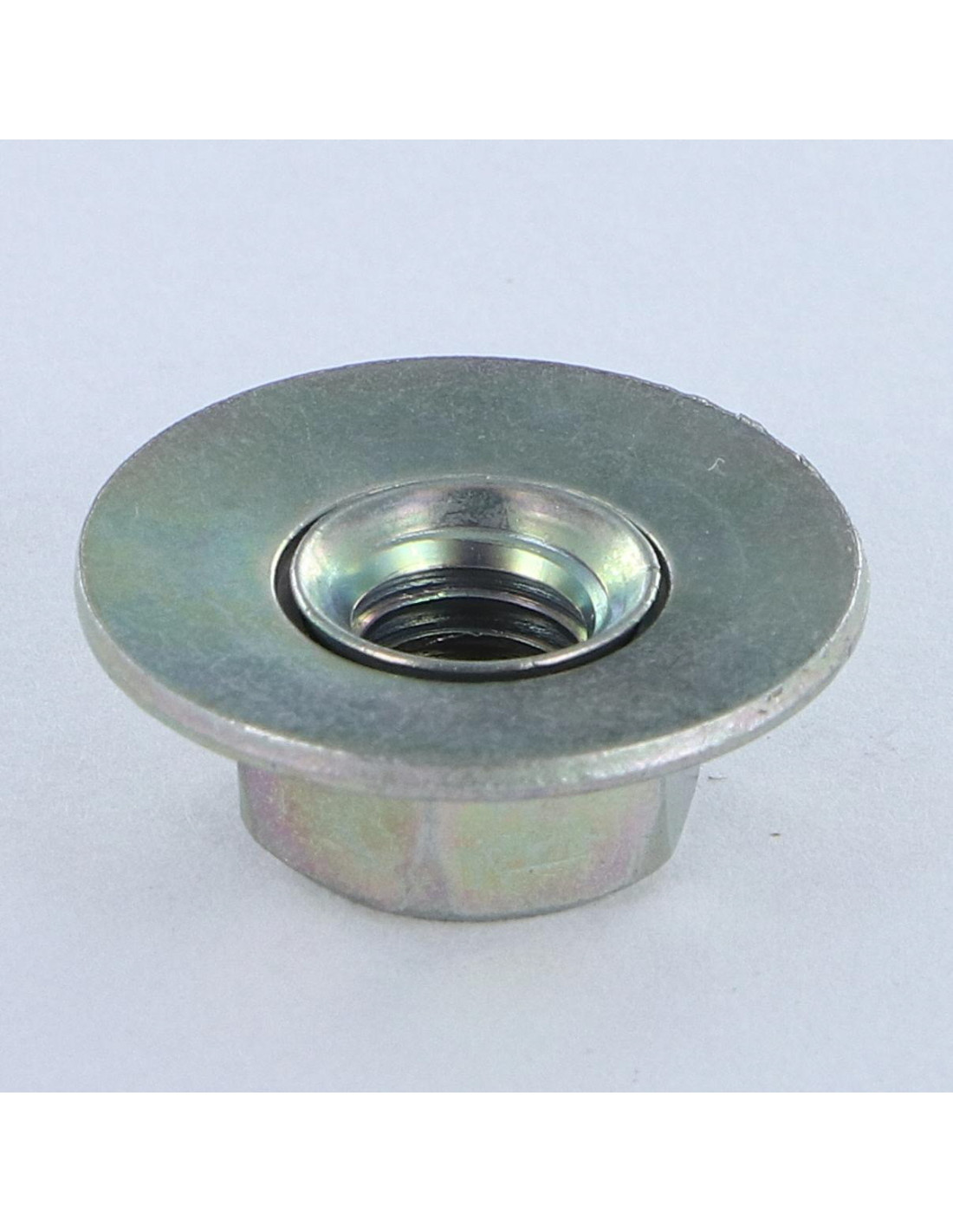

Nut Twolok Cs M10 Washer M10X20.2X11 Zinc Plated

Packaging

1 unit
10 units
30 units
200 units
800 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M10
Pitch: Standard pitch 150
Material: Steel
Coating: ZINGUE White
COLOR: Grey
Product Family: Nut
Diameter in mm: 8.47 - 8.65
Unit weight: 11.7 GR

In stock 5387 Items

ean13 3663072092655

Description

Nut Twolok Cs M10 Washer M10X20.2X11 Zinc Plated
Diameter = M10, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Product Family = Nut

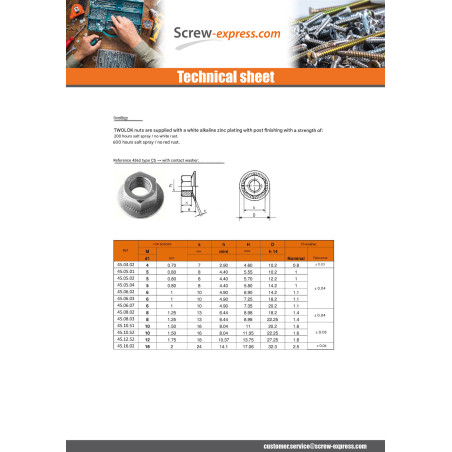

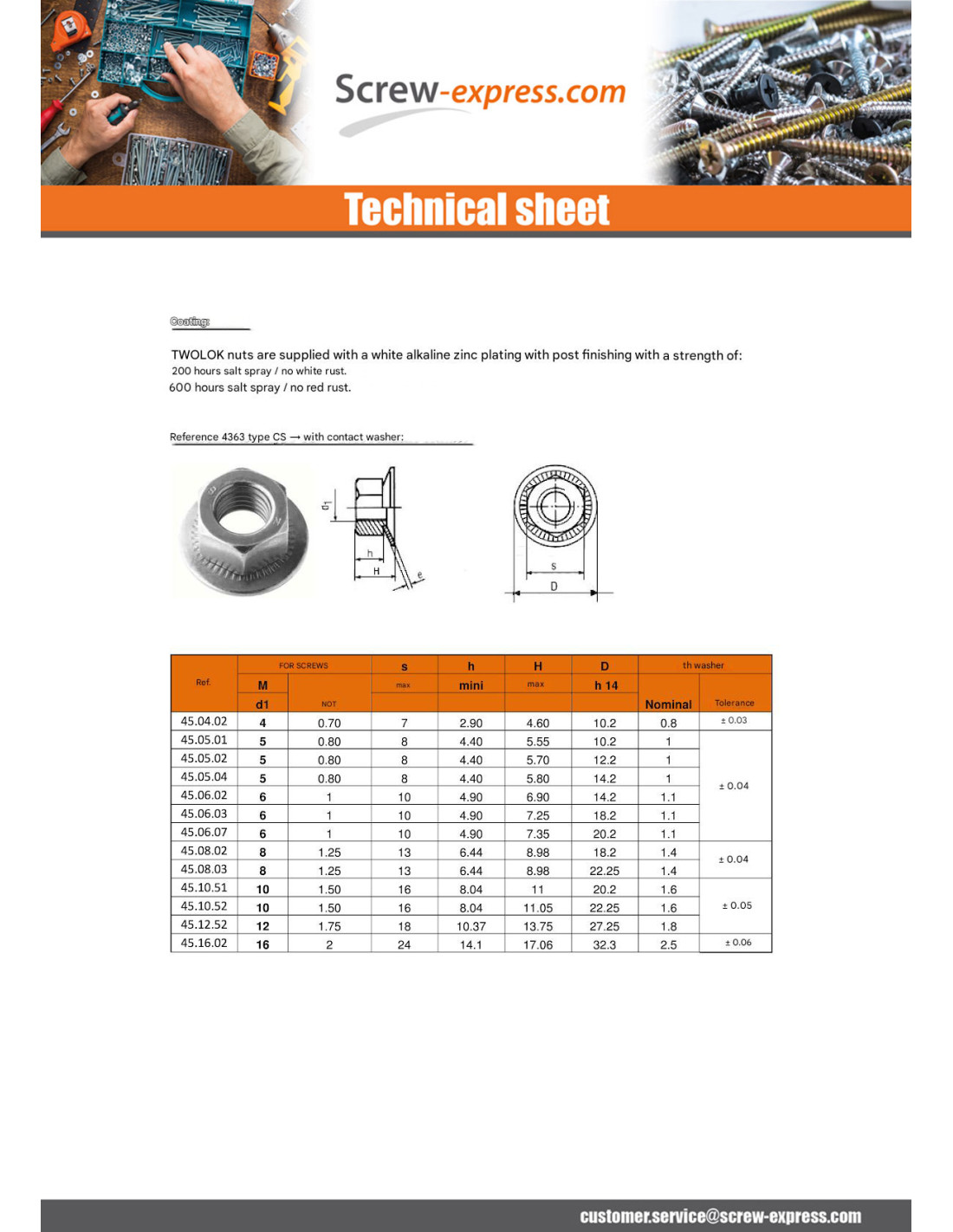

dimensional guide (mm)

REF	DIAMETRE DE L'ECROU	PAS DE L'ECROU	CLEF DE	HAUTEUR ECROU	HAUTEUR TOTALE	DIAMETRE RONDELLE	EPAISSEUR RONDELLE
4363041002	M4	70	7	2.9	4.6	10.2	0.8
4363051002	M5	80	8	4.40	5.55	10.2	1
4363051202	M5	80	8	4.40	5.70	12.2	1
4363051402	M5	80	8	4.40	5.80	14.2	1
4363061402	M6	100	10	4.9	6.9	14.2	1.1
4363061802	M6	100	10	4.9	7.25	18.2	1.1
4363062002	M6	100	10	4.9	7.35	20.2	1.1
4363072202	M7	100	11	5.35	8.10	22.2	1.6
4363081802	M8	125	13	6.44	8.98	18.2	1.4
4363082202	M8	125	13	6.44	8.98	22.25	1.4
4363102002	M10	150	16	8.04	11	20.2	1.6
4363102202	M10	150	16	8.04	11.05	22.25	1.6
4363122702	M12	175	18	10.37	13.75	27.25	1.8
4363163203	M16	200	24	14.1	17.06	32.3	2.5
4363204002	M20	250	30	16.9	20.76	40.3	3

Other Reference : 45.10.51 5170275 2006130000 FECR001 90ECR8020105 TWOLOCK10[00 3663072092655

Use Cases

Christophe C. (vis-express.fr)
2025-11-30

bar fitting with 10x30 bolt and contact washer

Xavier d. (vis-express.fr)
2025-10-05

I use these striated base nuts for fixing the passenger footrests of the BMW R1100 and K100 K1100 motorcycles in association with H M10 8.8 screws in zinc-plated steel e

Jean-Yves M. (vis-express.fr)
2025-08-24

wooden gate assembly
