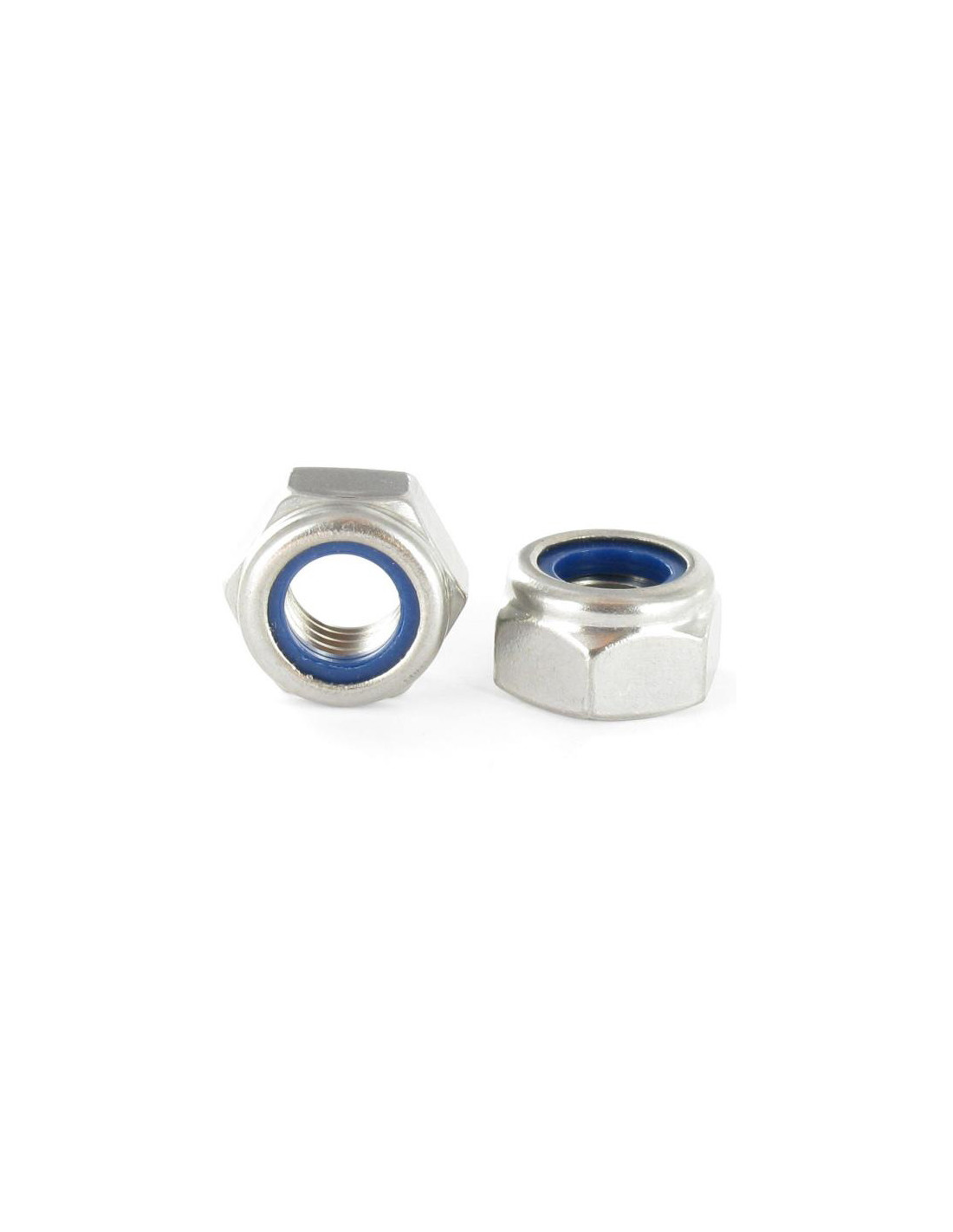

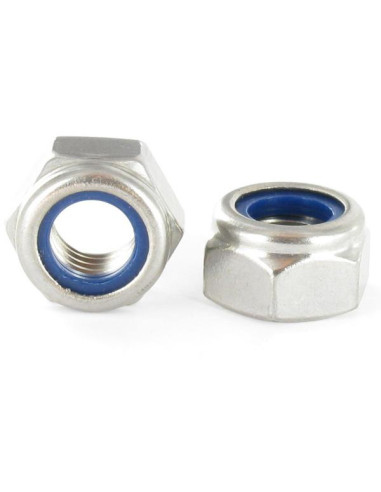

1 x Nut Lock M10 Zinc Plated 10 MICRONS

1 x Nut Lock M10 Zinc Plated 10 MICRONS

4334001097_1
In stock 268150 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 50 500 2000 8000
Lot price VAT included €1.70 €4.05 €31.65 €126.60 €506.40
Nut Lock M10 Zinc Plated 10 MICRONS
Packaging
  • 1 unit
  • 50 units
  • 500 Units
  • 2000 Units
  • 8000 Units

Dimensions shown in millimeters (mm)

Diameter
M10
Pitch
Standard pitch 150
Material
Steel
Coating
Zinc Plated
COLOR
Grey
Norm
VS-DIN985
Product Family
Nut
Sub product family
Lock Nut (RING NYLON)
Tightening torque (N)
40 - 60
Diameter in mm
8.47 - 8.65
Unit weight
9.77 GR
Nut height
10.0 - 10.5
Max. temperature
100 - 120°
268150 Items
3663072436763
Nut Lock M10 Zinc Plated 10 MICRONS
Diameter = M10, Coating = Zinc Plated, Sub Product Family = Lock Nut (RING NYLON), Material = Steel, Pitch = Standard pitch 150, Norm = VS-DIN985, Product Family = Nut


dimensional guide (mm)
DiameterM2M2.5M3M3.5M4M5M6M8M10M12M14M16M18M20M22M24M27M30M33M36M39M42M45M48M52M56M60M64
Tickness2.53.844.555681012141618.5202224273033363942454852566064
Across flats4.555.567810131719222427303236414650556065707580859095

Other Reference : 3617500928924 3663072436763
