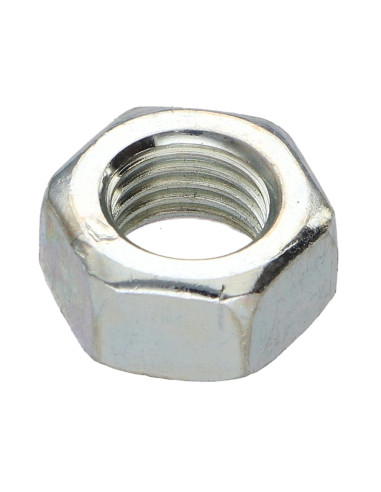

1 x Hexagonal nut M18 Fine Thread Pitch 150...

1 x Hexagonal nut M18 Fine Thread Pitch 150 Zinc Plated

4323001802_1
In stock 230 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.69 £9.37 £28.12 £93.59

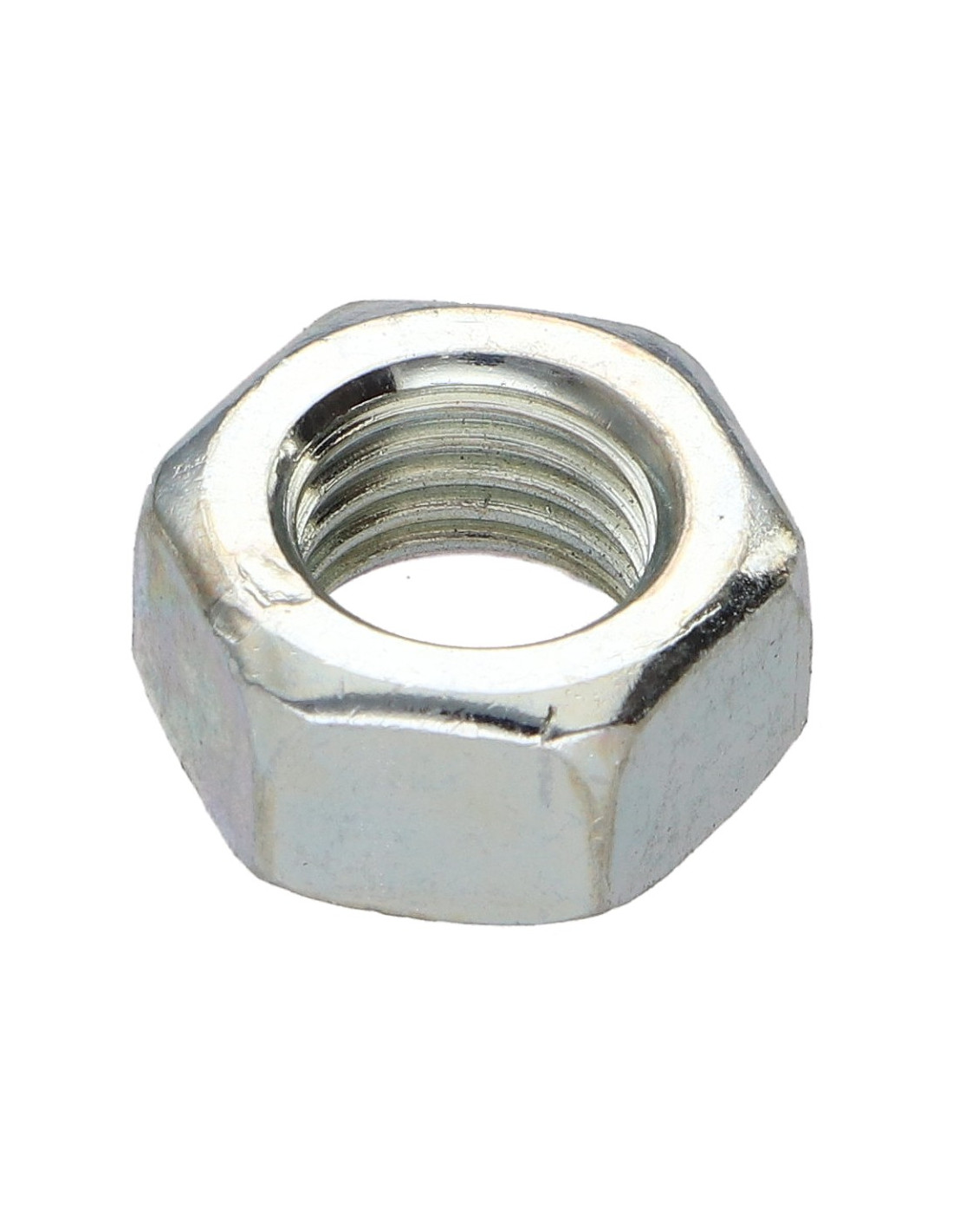

ISO 8673 - Hexagonal nut M18 Fine Thread Pitch 150 Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M18
KEY Of
27
Pitch
Pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
ISO 8673
Product Family
Nut
Sub product family
Nut Hexagon
Diameter in mm
16,440 - 16,530
Unit weight
44.8 GR
230 Items
3663072181533
Hexagonal nut M18 Fine Thread Pitch 150 Zinc Plated
Diameter = M18, Coating = Zinc Plated, Sub Product Family = Nut Hexagon, Material = Steel, Pitch = Pitch 150, Norm = ISO 8673, Product Family = Nut


dimensional guide (mm)
Diameter M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64
Pitch 100 100 ou 125 125 ou 150 150 150 150 150 ou 200 150 200 200 200 200 300 300 300 300 300 400 400 400 400
Max Head Tickness 6.8 8.4 10.8 12.8 14.8 15.8 18 19.4 21.5 23.8 25.6 28.7 31 33.4 34 36 38 42 45 48 51
Min Head Tickness 6.44 8.04 10.37 12.1 14.1 15.1 16.9 18.1 20.2 22.5 24.3 27.4 29.4 31.8 32.4 34.4 36.4 40.4 43.4 46.4 49.1
Across flats 13 16 18 21 24 27 30 34 36 41 46 50 55 60 65 70 75 80 85 90 95

Other Reference : 3617500916051 724127 724127 3663072181533
Fabien R. (vis-express.fr)
2025-11-09

Securing a wheel carrier axle on a 4x4
