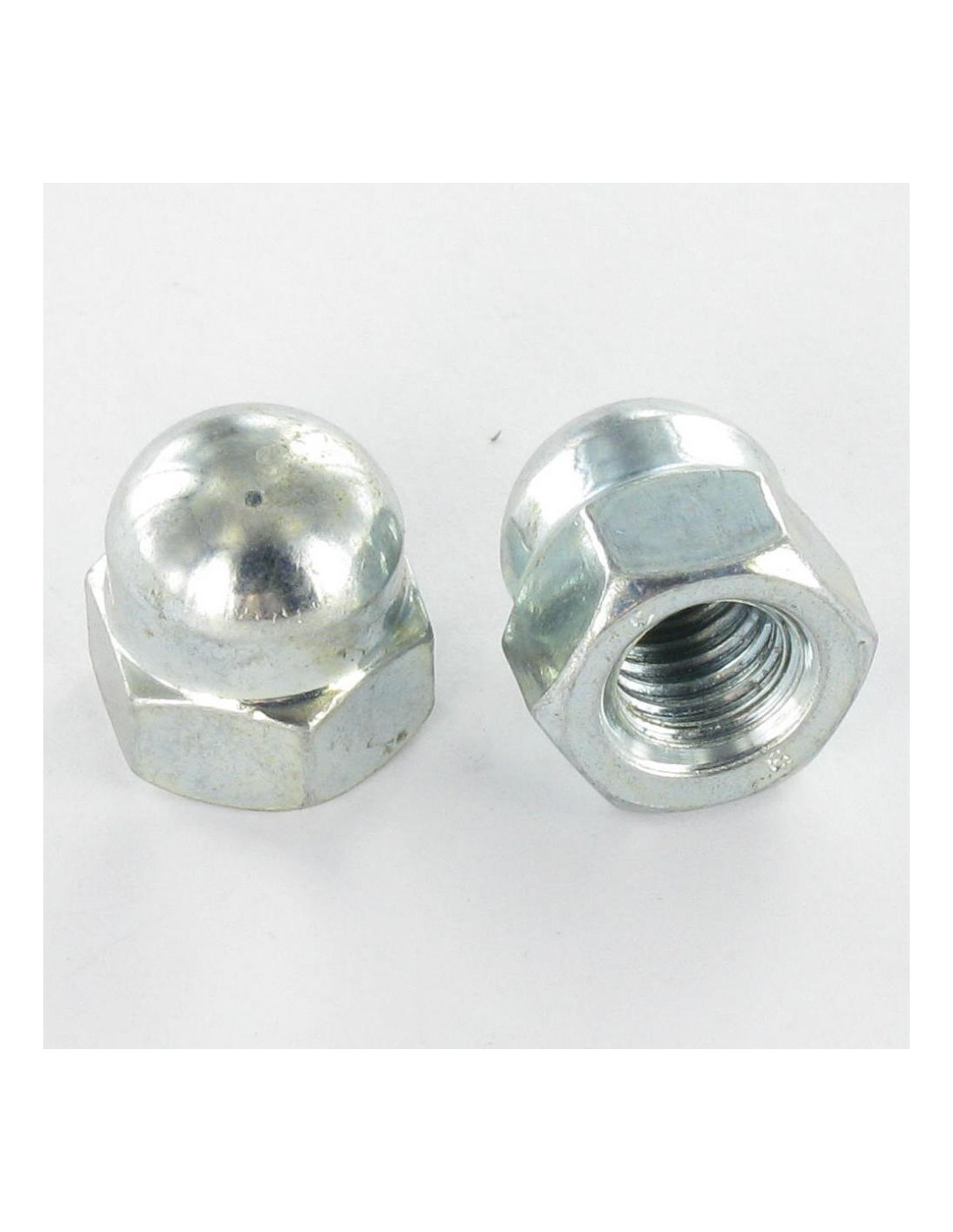

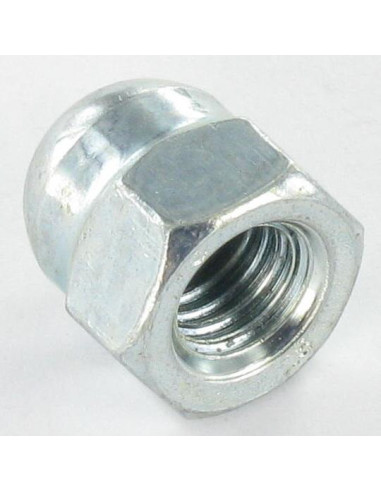

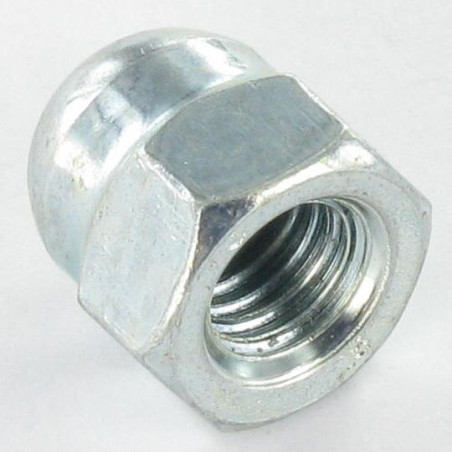

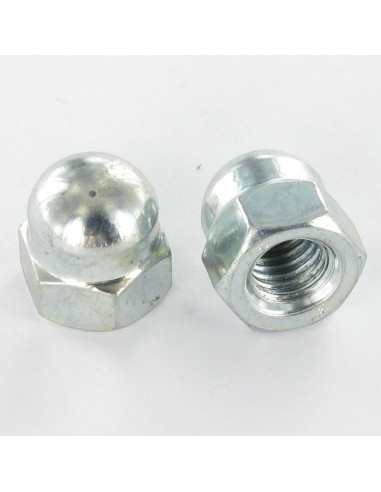

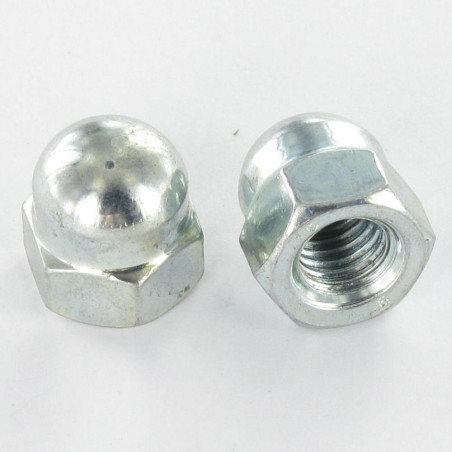

1 x Cap nut M8 Zinc Plated

Name: 1 x Cap nut M8 Zinc Plated
Brand: Screw Express
SKU: 4328000802
Price: 0.5 EUR
Availability: InStock

Reference 4328000802_1

In stock 101071 Pièces

€0.50 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	€0.50	€1.00	€1.20	€2.85	€10.80

DIN 1587 - Cap nut M8 Zinc Plated

Packaging

1 unit
10 units
30 units
100 units
400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: M8
Pitch: Standard pitch 125
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Norm: DIN 1587
Product Family: Nut
Sub product family: Nut Cap
Diameter in mm: 6.66 - 6.82
Unit weight: 8.9 GR

In stock 101071 Items

ean13 3663072089587

Description

Cap nut M8 Zinc Plated
Diameter = M8, Coating = Zinc Plated, Sub Product Family = Cap nut, Material = Steel, Pitch = Standard pitch 125, Norm = DIN 1587, Product Family = Nut

dimensional guide (mm)

Diameter	3	4	5	6	7	8	10	12	14	16	18	20
Tickness	6.5	8	10	12	13.5	15	18	22	25	28	32	34
Height	2.5	3.2	4	5	5.5	6.5	8	10	11	13	15	16
Across flats	5.5	7	8	10	11	13	17	19	22	24	27	30

Other Reference : 3617501024588 133008 ECRHBOM08Z 2574 M320663 YECRBOR8Z ECRBRGNZ08 EBH8Z EZB 08 0411073 021.EBZ8 0441639900 EBH8Z ECZB100008 ECRBG8ZN DIN1587VZ 91905 VVS115 EC8 524208 VSECBORGNE08 1079 AC001436 3VIS1EC026 E.HUBO.M08 72ZN08 HB8AZ 2402407 VI 500B / AN 32EAO08B QEBORG08 ECK008001 2402407 EB08 36265 VI2076 EC/ZL/BO/M08 156999560 M320663 401812 SAV DIV 0302 46212819 10101 601550 2808130 AM56 080118 ZQE3M8AZ ECR022 3055 AN ARECRB8 42000801 1403000018 304371 C0870 41189 0172Z00080 EHB8 0172Z00080 36265 VI2076 VI2071 VI2076 0188958100 30520272 1889581 20637 101072 203552 GP00100 K300220802 201405 VISSER0400 002149805 EBZ0800P MAVISECR001 MP021007 E0017 7052320800 AEHNM8BORGNE EZB 08 BVECROUAZ920 7052320800 26.2.2 EBH8Z 901000052 ECRB08 LN02 23 2201762 0300220801 0300220801 5234001 A002163 453603 453603 0300220801 EB000002 7163300 2402407 9VISS0845 5234001 ECZB100008 133008 YVIS277A G00124 EBH8Z 03C002 000830 266171 ECR08B HMB8 EZB-M-8H15 C0870 0201204 1321315 AMVE00005 04EBZ08 863208 005155 MVEHM8B ECROUB8 33-30416 EBOR08 CO230038 C0870 CO81120.005 4917 0601118 1309315LV /EB009 DMECRA018 EBH8Z 0441639900 133008 16510.080.00 36265 200986 200986 581011 0441639900 020.0823 CA10-00167 3663072089587

Use Cases

nicolas D. (vis-express.fr)
2026-04-12

Manufacturing of diving equipment support A gantry composed of 4 round grids, one meter high with a circumference of 600 mm in diameter. A 500 x 2000 mm support consisting of a grid to serve as a drying rack.

Dominique R. (vis-express.fr)
2026-03-22

To protect from stems

Kevin B. (vis-express.fr)
2025-07-13

Nut and screw for fixing and assembling the gazebo Nut and screw for fixing and assembling the gazebo

Jean-Marc J. (vis-express.fr)
2025-04-13

Reflection chairs Replacing the blind nuts on a set of 6 wrought iron chairs

Mathieu C. (vis-express.fr)
2024-05-26

stair construction site assembly of a stair stringer
