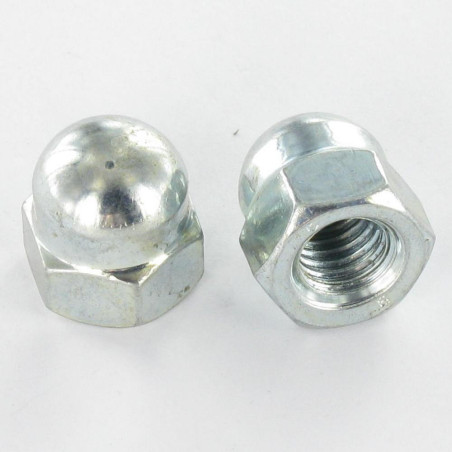

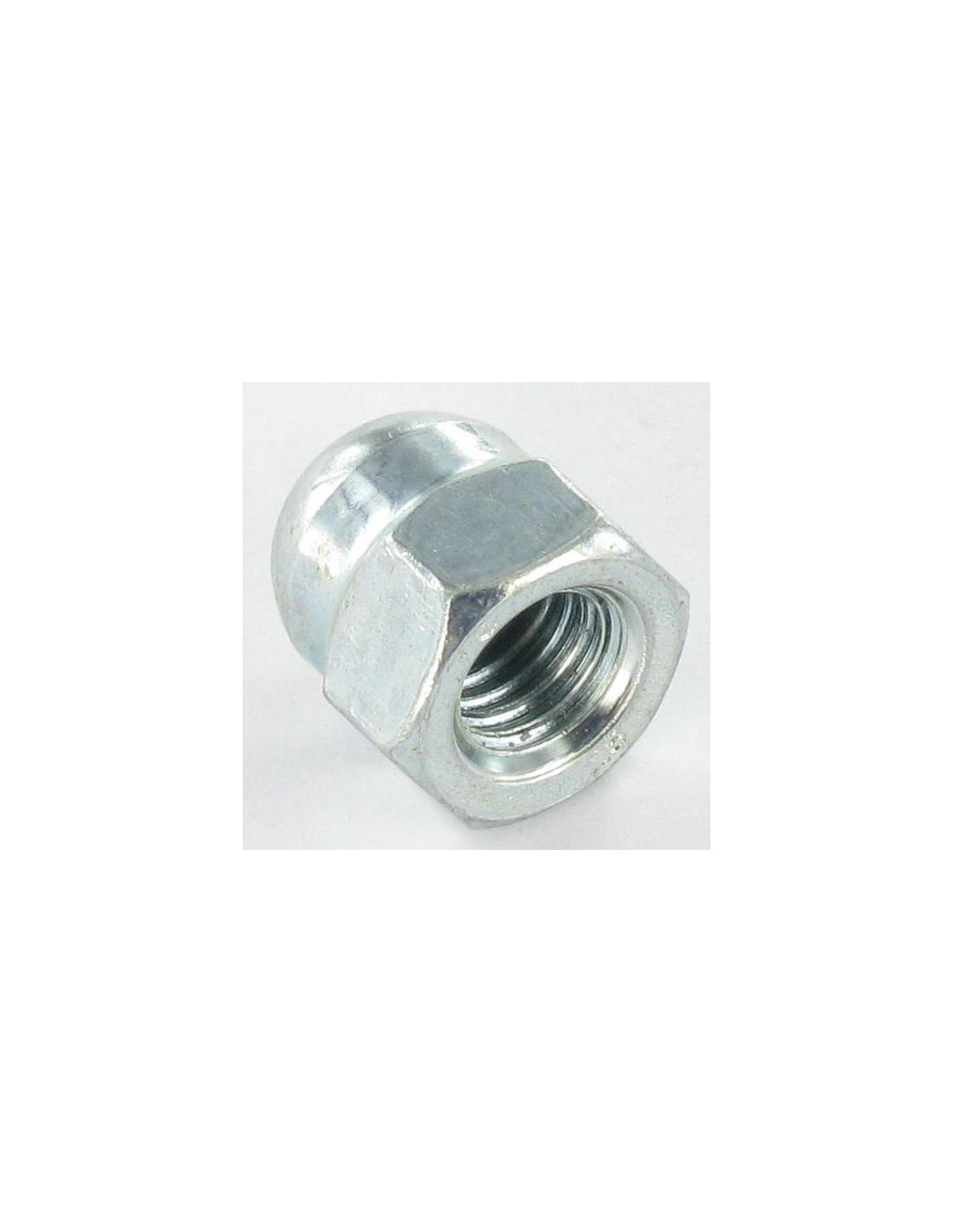

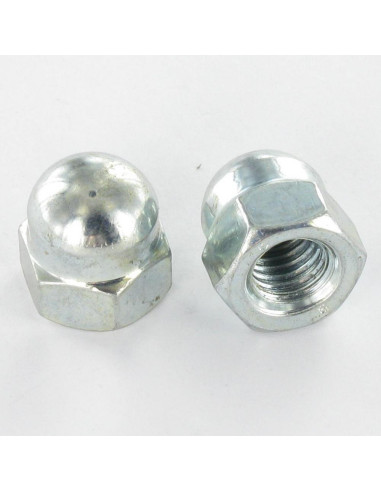

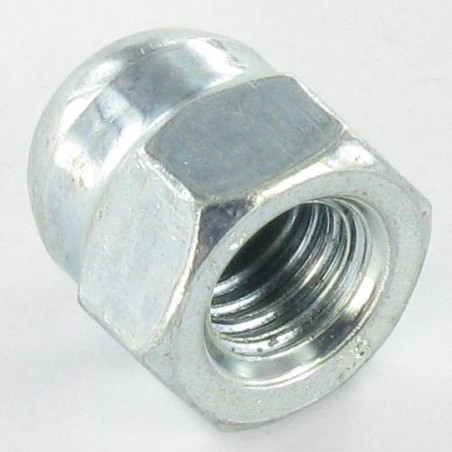

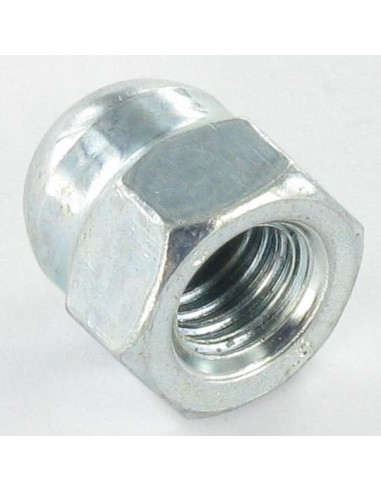

1 x Cap nut M14 Zinc Plated

Name: 1 x Cap nut M14 Zinc Plated
Brand: Screw Express
SKU: 4328001402
Price: 1.7 EUR
Availability: InStock

Reference 4328001402_1

In stock 10326 Pièces

€1.70 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50	200
Lot price VAT included	€1.70	€3.40	€3.50	€8.75	€35.00

DIN 1587 - Cap nut M14 Zinc Plated

Packaging

1 unit
5 units
20 units
50 units
200 units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M14
Pitch: Standard pitch 200
Material: Steel
Coating: ZINGUE White
COLOR: Grey
Norm: DIN 1587
Product Family: Nut
Sub product family: Nut Cap
Diameter in mm: 12.04 - 12.26
Unit weight: 57.2 GR

In stock 10326 Items

ean13 3663072089662

Description

Cap nut M14 Zinc Plated
Diameter = M14, Coating = Zinc Plated, Sub Product Family = Cap nut, Material = Steel, Pitch = Standard pitch 200, Norm = DIN 1587, Product Family = Nut

dimensional guide (mm)

Diameter	3	4	5	6	7	8	10	12	14	16	18	20
Tickness	6.5	8	10	12	13.5	15	18	22	25	28	32	34
Height	2.5	3.2	4	5	5.5	6.5	8	10	11	13	15	16
Across flats	5.5	7	8	10	11	13	17	19	22	24	27	30

Other Reference : 3617501553293 ECRBOR14 4ECBO0922 524214 1082 2402410 156999305 DIVLEGA ECRBORGNEM14 301538 CPAG00005 EZB-M14H25 A01307 3663072089662

Use Cases

Jean Louis H. (vis-express.fr)
2025-06-15

Installing sliding doors Fixing the rail supports

Muhammet C. (vis-express.fr)
2024-10-27

Screws for anchoring the posts of my sliding gate 5m70 sliding gate

Vincent V. (vis-express.fr)
2023-12-17

Fixing 3 wood awnings + tiles + zinc 2m05 wide x 1m deep in a steel support with ITE insulation (External Thermal Insulation) PSE Graphit 18cm thick. The threaded rods are sealed in the drill bit to a depth of 25cm using chemical sealing. There are 4 M10 rods for the horizontal purlin and 4 M14 rods for the 2 corbels. the pieces of wood are sandwiched between two nuts and two extra large washers to prevent the frame from compressing the ITE (External Thermal Insulation) and creating a break in the coating. Fixing the load of the awning in this way has no impact on the ITE insulation. M14 and M10 acorn nuts used as "nut to nut" while hiding the end of the threaded rod and creating a clean finish.
