3166230502_1
In stock 4606 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €3.50 €15.15 €30.30 €143.80

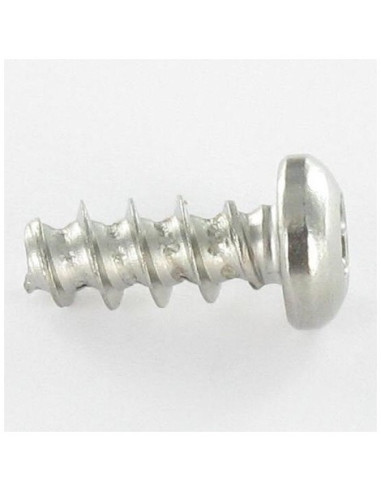

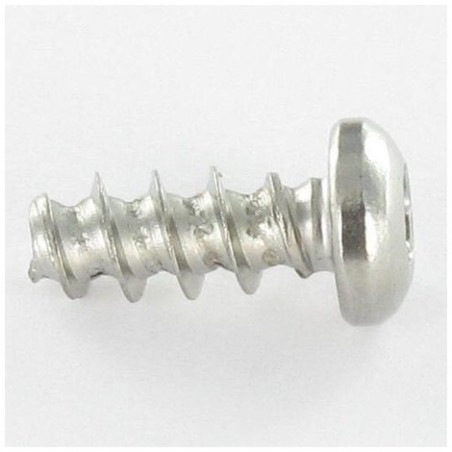

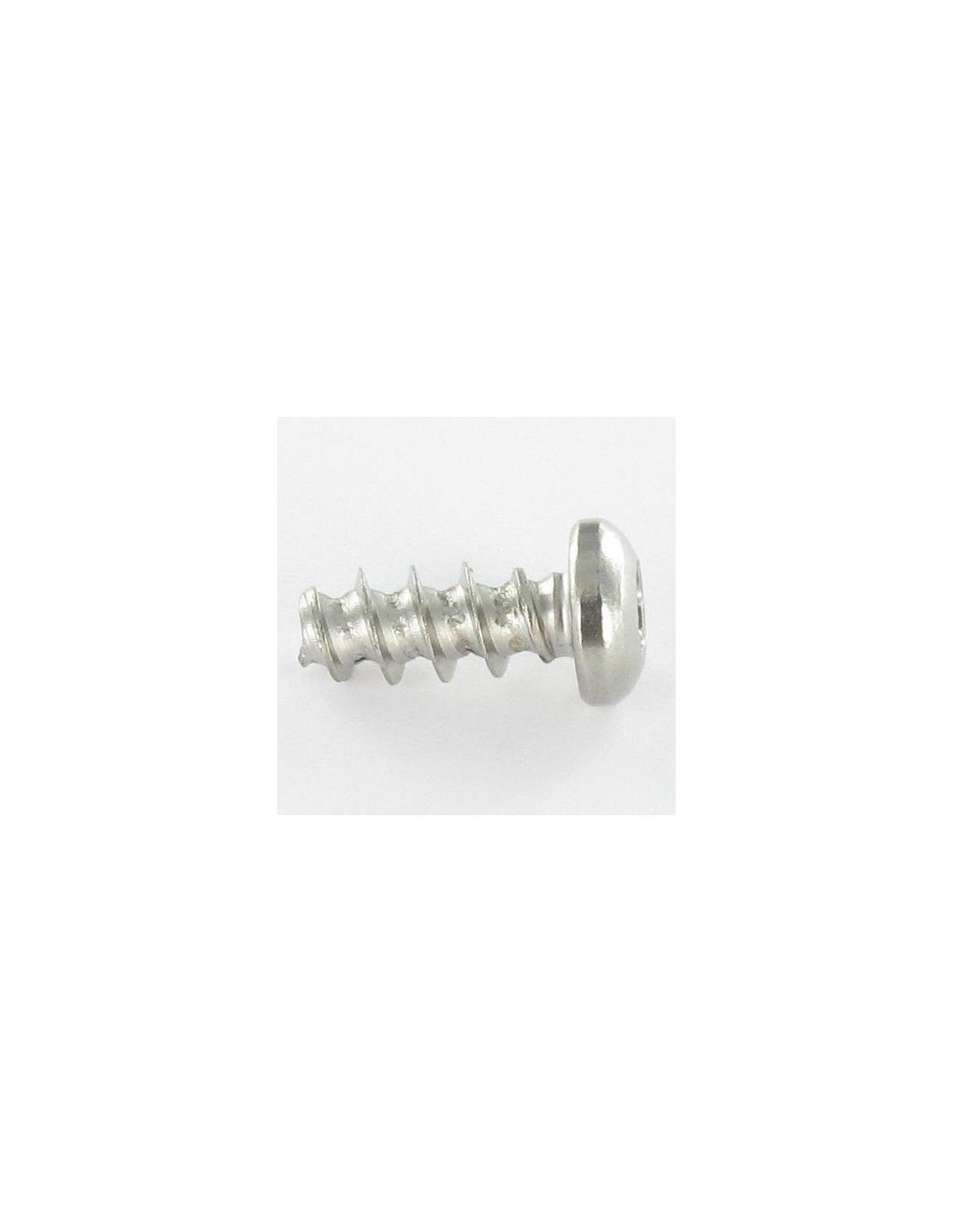

Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2.3X5 Zinc Plated micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
2.3
Length
5
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Sub product family
Cylindrical Head
WEIGHT For THERE unit
0.13 GR
4606 Items
3663072258051
Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2.3X5 Zinc Plated micro screw
Diameter = 2.3, Length = 5, Coating = ZINGUE White, Sub Product Family = Cylindrical Head, Material = Steel

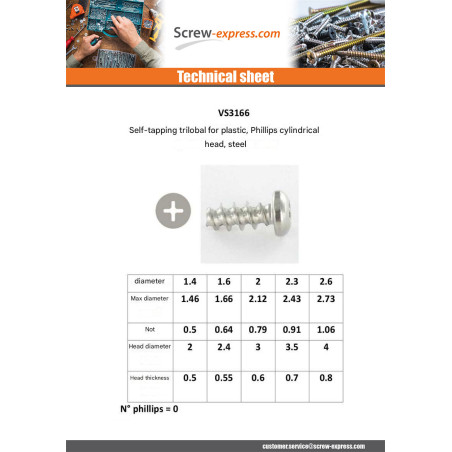

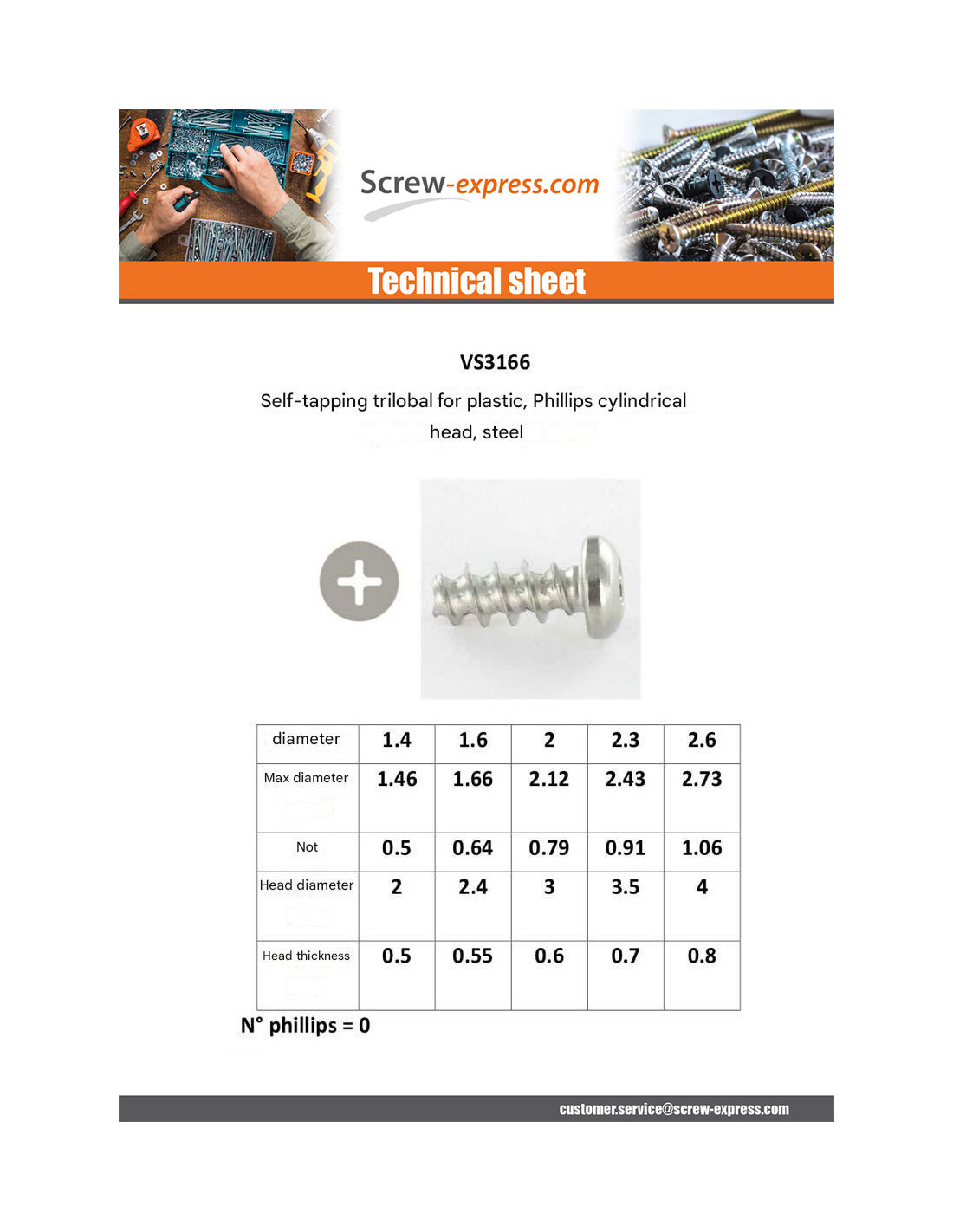

dimensional guide (mm)
Diameter 1.4 1.6 2 2.3 2.6
Pitch 0.5 0.64 0.79 0.91 1.06
Max diameter 1.46 1.66 2.12 2.43 2.73
diam tete 2 2.4 3 3.5 4
Head tickness 0.5 0.55 0.6 0.7 0.8

Other Reference : 3617500036681 3663072258051
Benjamin S. (vis-express.fr)
2024-07-21

For the assembly of plastic cases These are cases that we design at Ovadesign
