3166160402_1
In stock 5700 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €3.50 €18.40 €33.60 €159.60

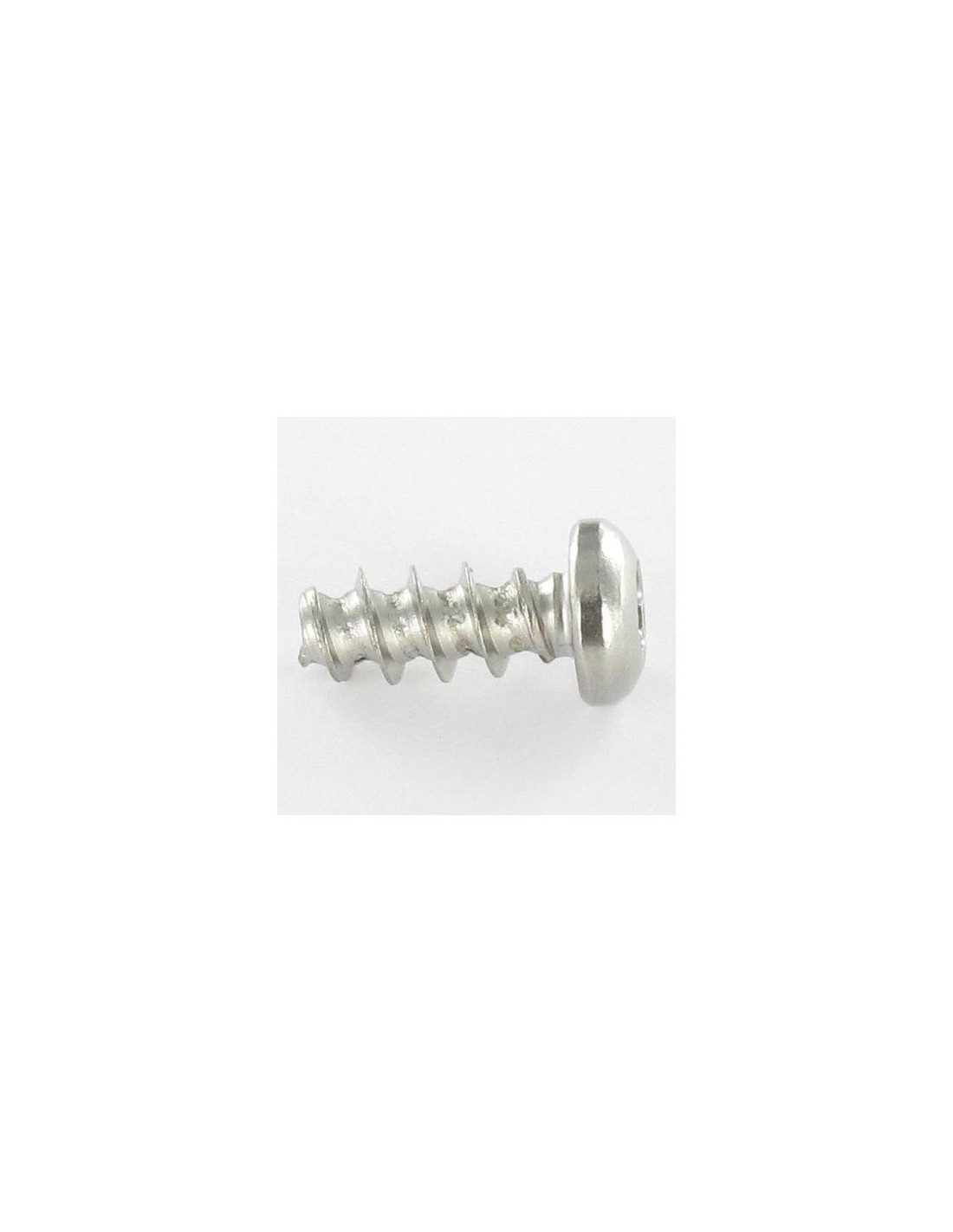

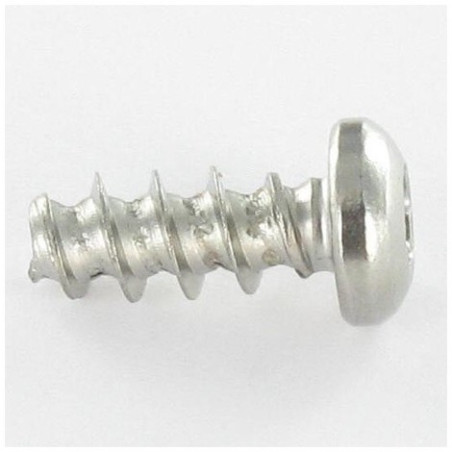

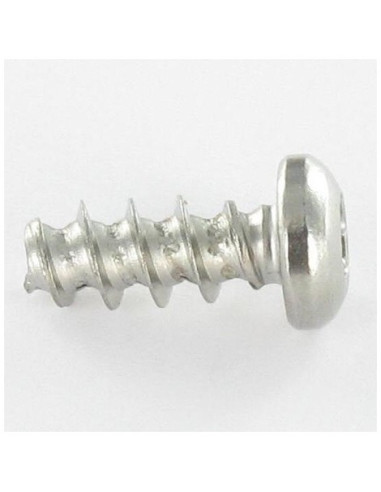

Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 1.6X4 Zinc Plated micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
1.6
Length
4
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Sub product family
Cylindrical Head
WEIGHT For THERE unit
0.06 GR
5700 Items
3663072257085
Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 1.6X4 Zinc Plated micro screw
Diameter = 1.6, Length = 4, Coating = ZINGUE White, Sub Product Family = Cylindrical Head, Material = Steel

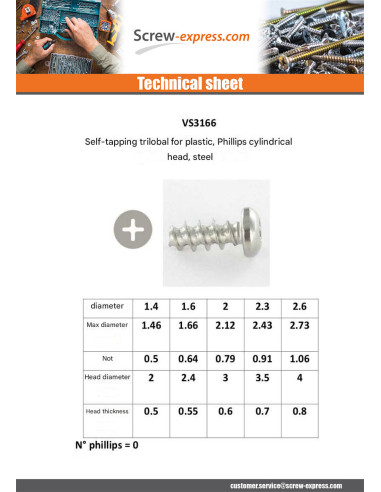

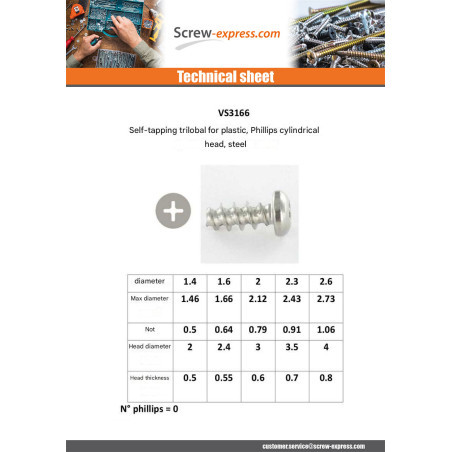

dimensional guide (mm)
Diameter 1.4 1.6 2 2.3 2.6
Pitch 0.5 0.64 0.79 0.91 1.06
Max diameter 1.46 1.66 2.12 2.43 2.73
diam tete 2 2.4 3 3.5 4
Head tickness 0.5 0.55 0.6 0.7 0.8

Other Reference : 3617500066275 N114A168 3663072257085
Alexandre H. (vis-express.fr)
2025-12-14

Plastic casing closure Prototyping for validation before series production
