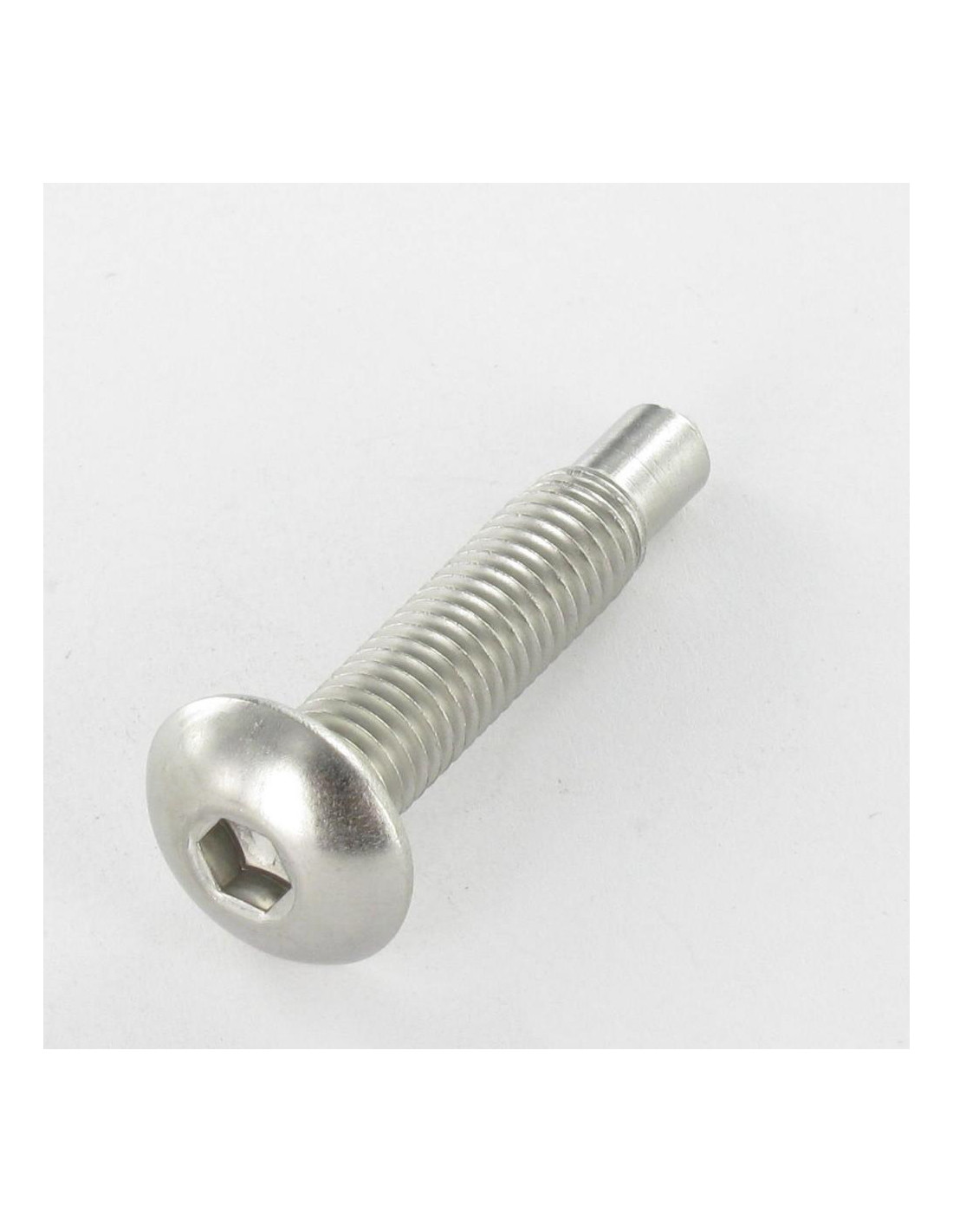

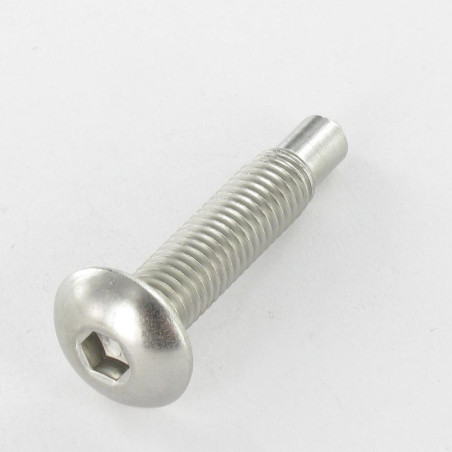

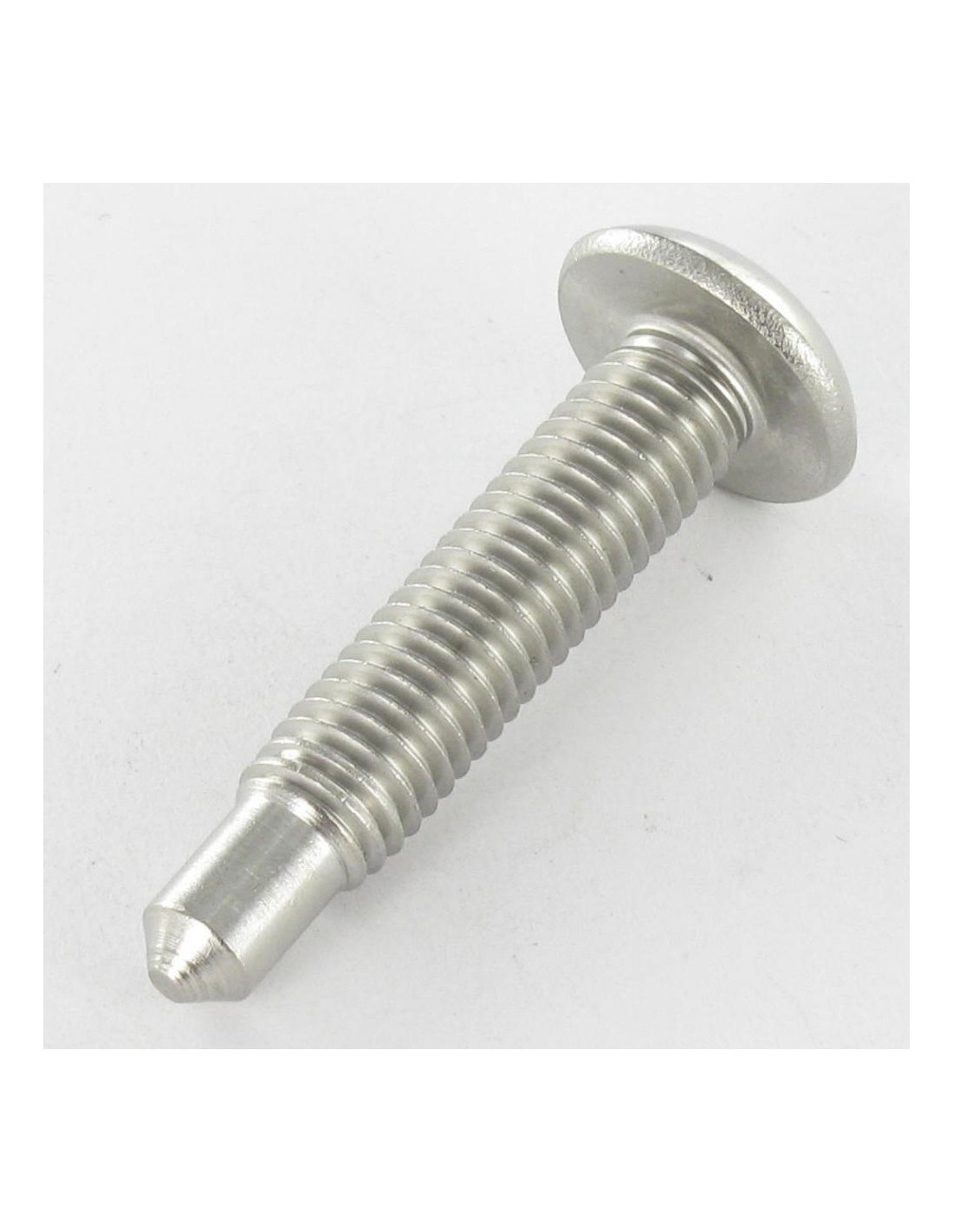

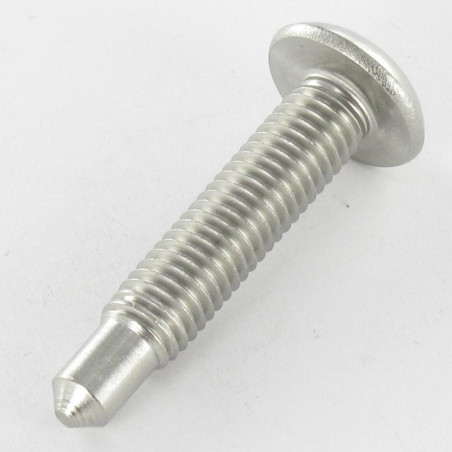

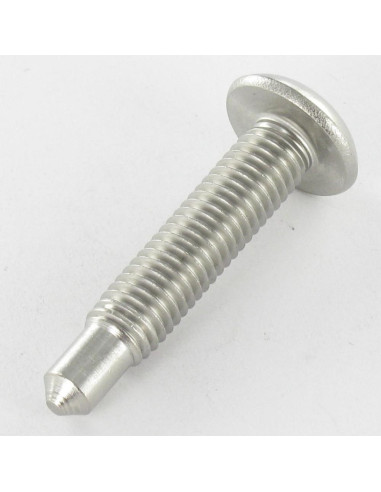

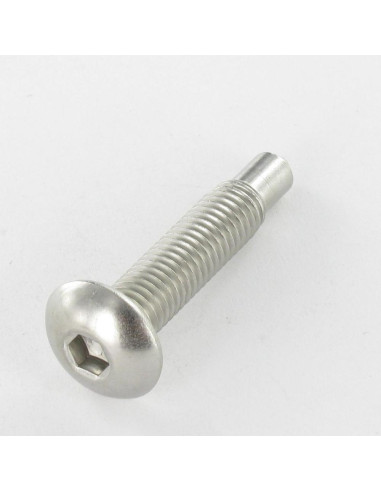

1 x Machine Screw Mushroom Hexagon Recess Stainless Steel A2 M8X40 Point 6X9 Hexagon Socket 5
1 x Machine Screw Mushroom Hexagon Recess Stainless Steel A2 M8X40 Point 6X9 Hexagon Socket 5
1 x Machine Screw Mushroom Hexagon Recess...
1 x Machine Screw Mushroom Hexagon Recess...

1 x Machine Screw Mushroom Hexagon Recess Stainless Steel A2 M8X40 Point 6X9 Hexagon Socket 5

8421804118_1
In stock 7733 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €4.25 €9.30 €27.90 €92.95
ISO 7380 FILETAGE TOTAL - Machine Screw Mushroom Hexagon Recess Stainless Steel A2 M8X40 Point 6X9 Hexagon Socket 5
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
40
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 5
Pitch
Standard pitch 125
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
ISO 7380 Total Thread
Product Family
Machine Screw
Diameter in mm
7.972 - 7,772
Unit weight
16.5 GR
7733 Items
3663072210103
Machine Screw Mushroom Hexagon Recess Stainless Steel A2 M8X40 Point 6X9 Hexagon Socket 5
Diameter = M8, Length = 40, Material = Stainless Steel A2, Pitch = Standard pitch 125, Drive Type = Socket Cap, Norm = ISO 7380 Total Thread, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 5


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M16
Across flats 2 2.5 3 4 5 6 8 10
Head diameter 5.7 7.6 9.5 10.50 14 17.50 21 28
EPAISSEUR 1.65 2.2 2.75 3.3 4.4 5.5 6.6 8.8

Other Reference : 3617500223678 VIS8X40 VIS8X40 3663072210103
