1 x Machine Screw Socket Head Thin Head Hexagon...

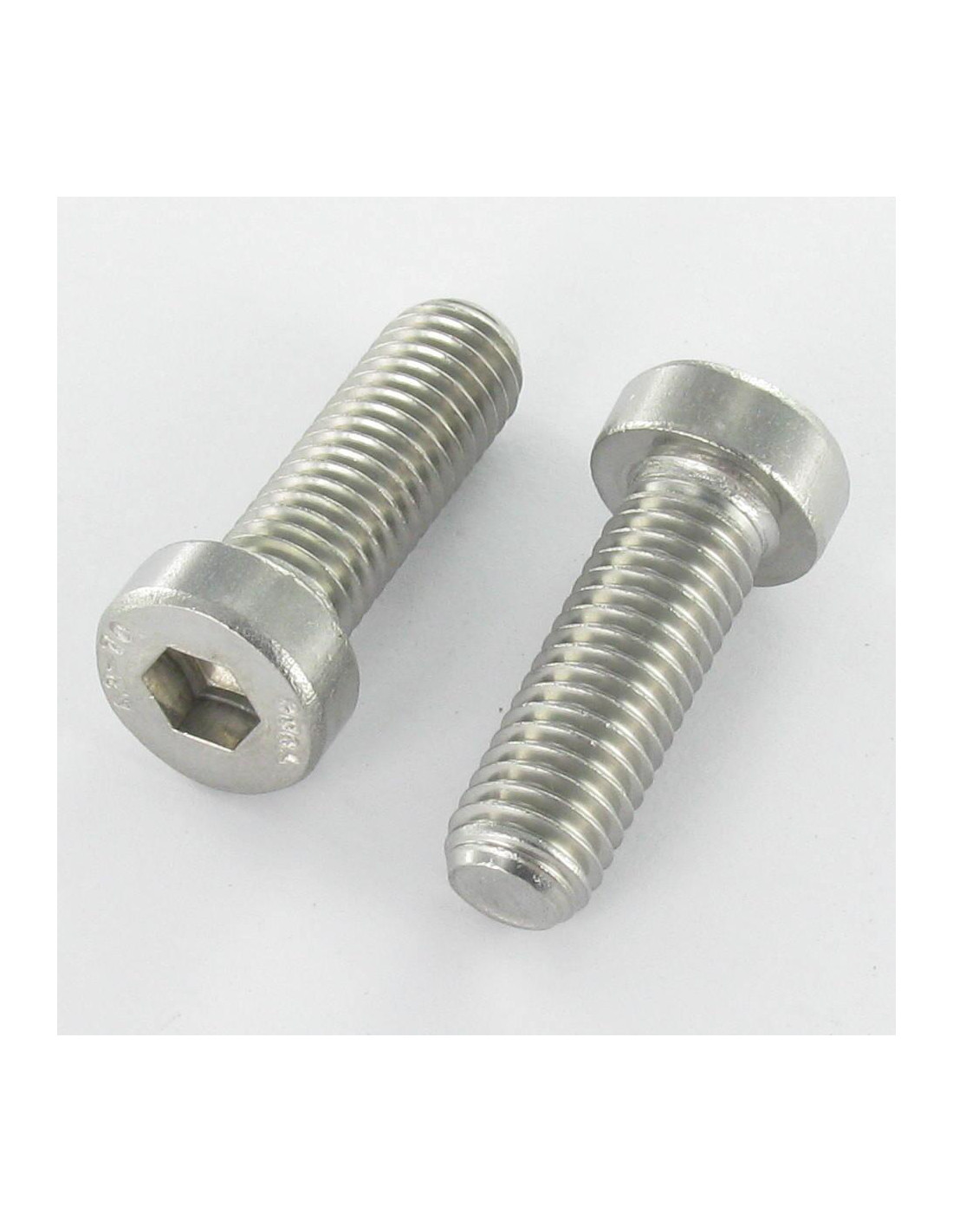

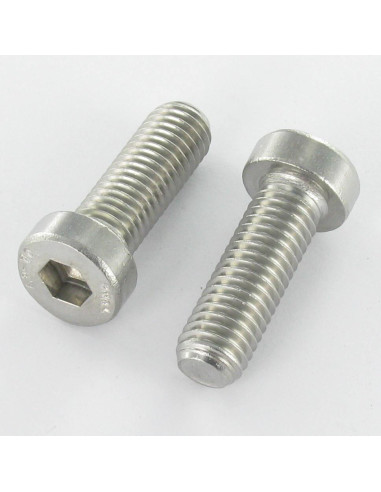

1 x Machine Screw Socket Head Thin Head Hexagon Socket 3 M5X50 Thread Length: 50 Stainless Steel A2

8411505118_1
In stock 30 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €41.10
DIN 7984 - Machine Screw Socket Head Thin Head Hexagon Socket 3 M5X50 Thread Length: 50 Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

30 Items
3663072022744
Machine Screw Socket Head Thin Head Hexagon Socket 3 M5X50 Thread Length: 50 Stainless Steel A2
Diameter = M5, Length = 50, Sub Product Family = Head Socket Head BTR, Material = Stainless Steel A2, Pitch = Standard pitch 80, Drive Type = Socket Cap, Norm = DIN 7984, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 3


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M16
PAS 0.5 0.7 0.8 1 1.25 1.5 1.75 2
Head diameter 5.5 7 8.5 10 13 16 18 24
Head tickness 2 2.8 3.5 4 5 6 7 9
cle 2 2.5 3 4 5 7 8 12
profondeur empreinte 1.5 2.3 2.7 3 3.8 4.5 5 5.5
partie filetee 12 14 16 18 22 26 30 38

Other Reference : 3617501995765 3663072022744
