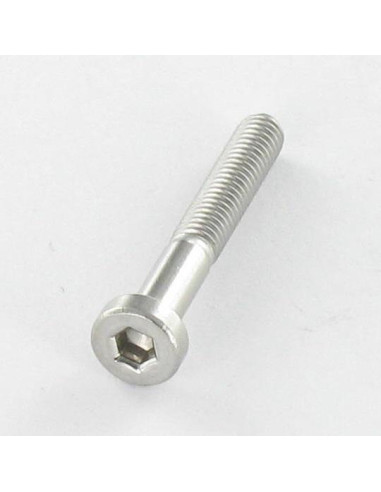

1 x Machine Screw Socket Head Thin Head Hexagon...

1 x Machine Screw Socket Head Thin Head Hexagon Socket 2 M3X16 Thread Length: 12 Stainless Steel A2 micro screw

8411301618_1
In stock 33603 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.04 £6.12 £7.29 £7.98
DIN 7984 - Machine Screw Socket Head Thin Head Hexagon Socket 2 M3X16 Thread Length: 12 Stainless Steel A2 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
16
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 2
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7984
Product Family
Machine Screw / MICROVIS
Sub product family
Head Socket Head BTR
Diameter in mm
2.974 - 2.835
Unit weight
8 GR
33603 Items
3663072196230
Machine Screw Socket Head Thin Head Hexagon Socket 2 M3X16 Thread Length: 12 Stainless Steel A2 micro screw
Diameter = M3, Length = 16, Sub Product Family = Head Socket Head BTR, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Socket Cap, Norm = DIN 7984, Product Family = Machine Screw / MICROVIS, Size Drive Type = Hexagon Socket 2


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M16
PAS 0.5 0.7 0.8 1 1.25 1.5 1.75 2
Head diameter 5.5 7 8.5 10 13 16 18 24
Head tickness 2 2.8 3.5 4 5 6 7 9
cle 2 2.5 3 4 5 7 8 12
profondeur empreinte 1.5 2.3 2.7 3 3.8 4.5 5 5.5
partie filetee 12 14 16 18 22 26 30 38

Other Reference : 3617500377319 3663072196230
