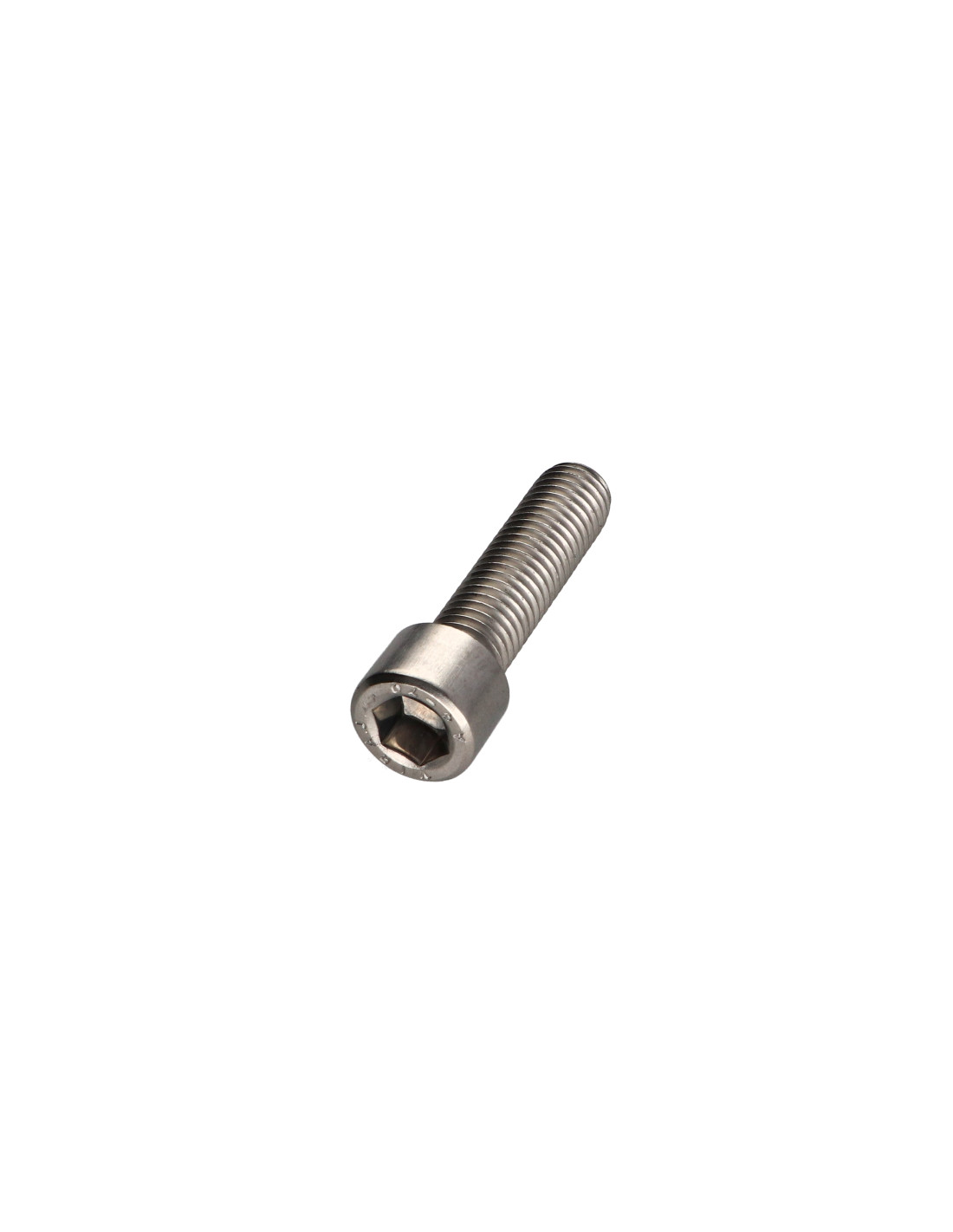

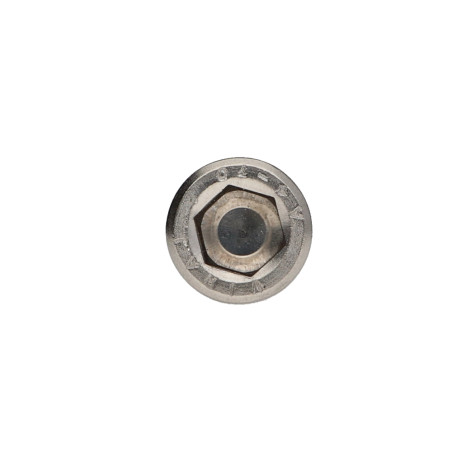

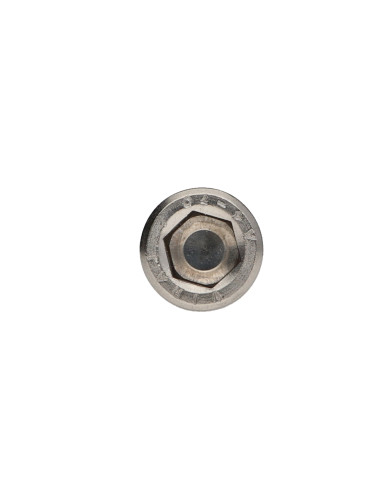

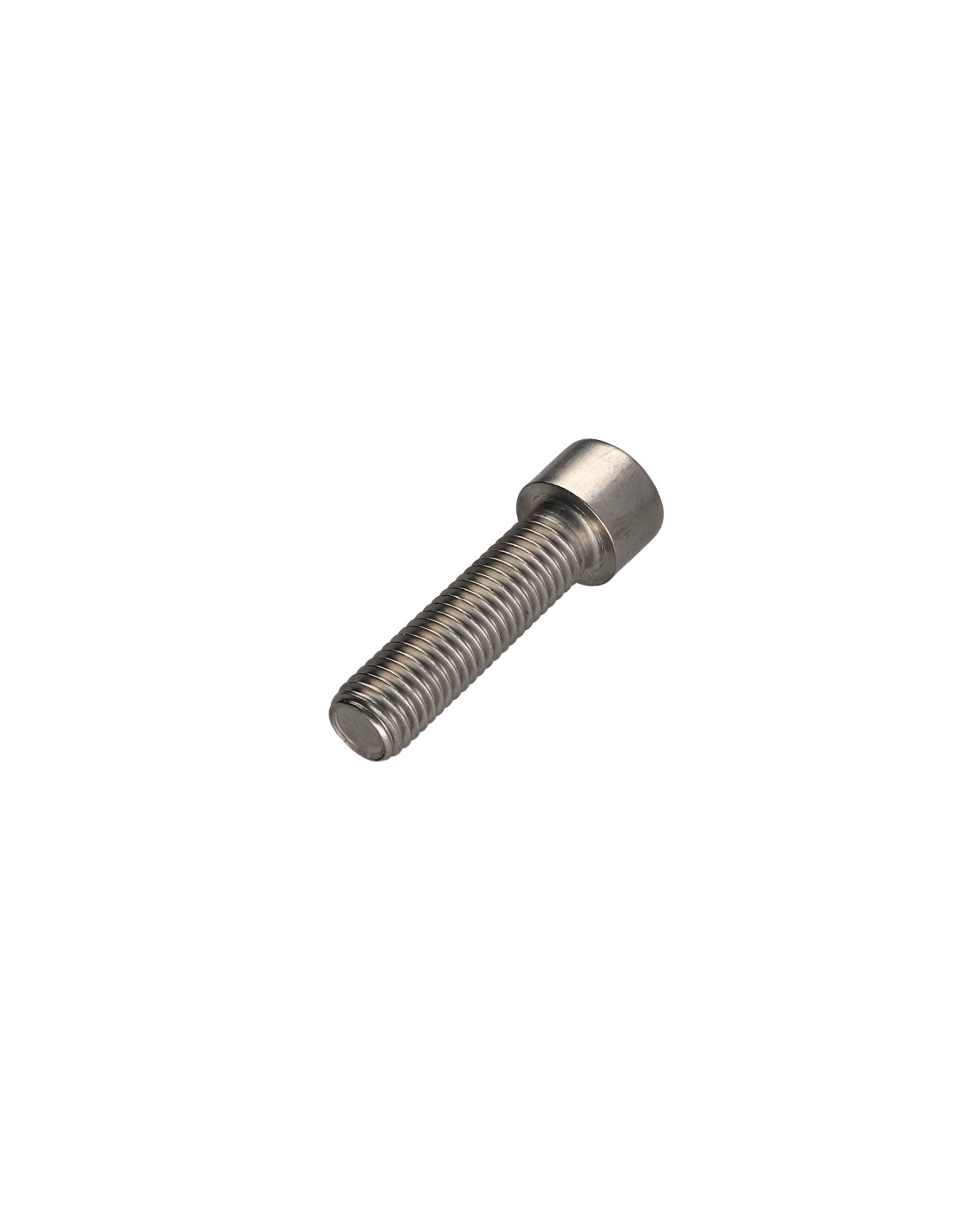

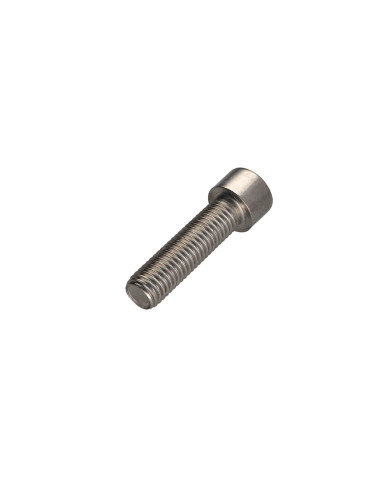

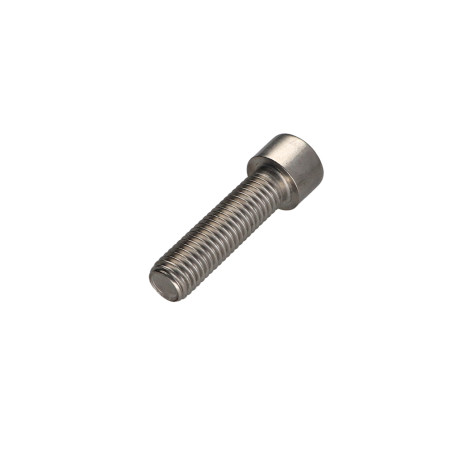

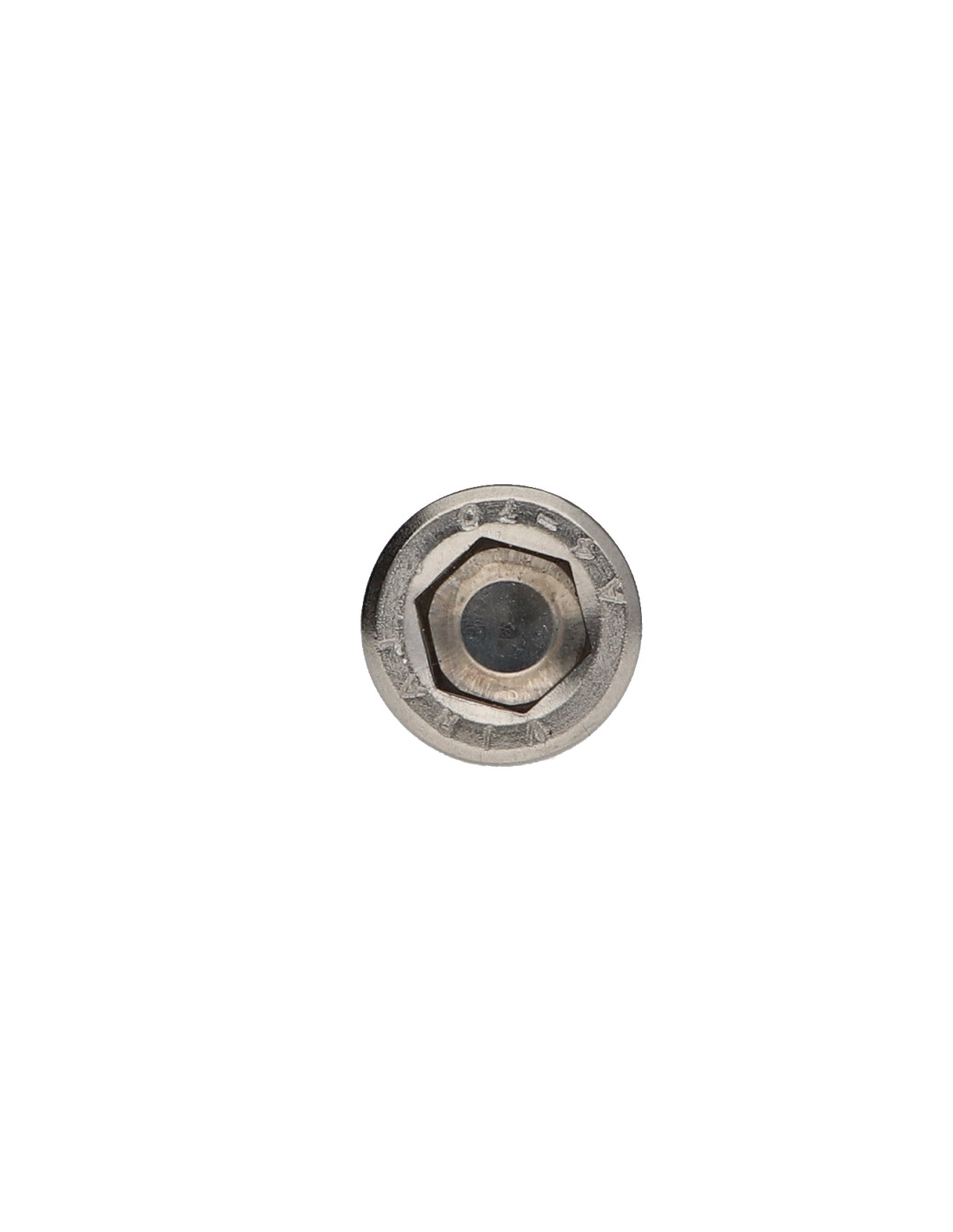

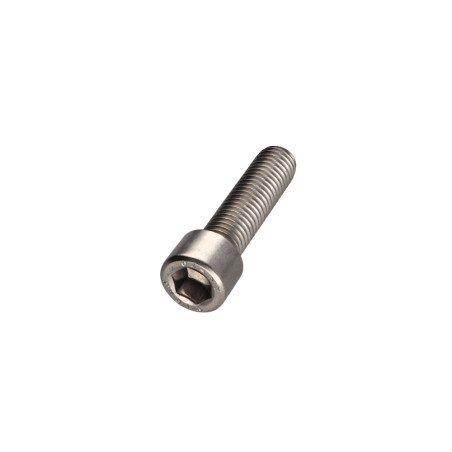

1 x Machine Screw Socket Head M12X40 Full Thread Hexagon Socket 10 Stainless Steel A4
1 x Machine Screw Socket Head M12X40 Full Thread Hexagon Socket 10 Stainless Steel A4
1 x Machine Screw Socket Head M12X40 Full Thread Hexagon Socket 10 Stainless Steel A4
1 x Machine Screw Socket Head M12X40 Full...
1 x Machine Screw Socket Head M12X40 Full...
1 x Machine Screw Socket Head M12X40 Full...

1 x Machine Screw Socket Head M12X40 Full Thread Hexagon Socket 10 Stainless Steel A4

8820124018_1
In stock 27 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.50 €7.05 €17.70 €44.30
DIN 912 ISO 4762 - Machine Screw Socket Head M12X40 Full Thread Hexagon Socket 10 Stainless Steel A4
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M12
Length
40
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 10
Pitch
Standard pitch 175
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 912 ISO 4762
Product Family
Machine Screw
Sub product family
Head Socket Head BTR
Diameter in mm
11,966 - 11,718
Unit weight
46.5 GR
27 Items
3663072227149
Machine Screw Socket Head M12X40 Full Thread Hexagon Socket 10 Stainless Steel A4
Diameter = M12, Length = 40, Sub Product Family = Head Socket Head BTR, Material = Stainless Steel A4, Pitch = Standard pitch 175, Drive Type = Socket Cap, Norm = DIN 912 ISO 4762, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 10


dimensional guide (mm)
Diameter M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56
Across flats 1.3 1.5 1.5 2 2.5 3 4 5 6 6 8 10 12 14 14 17 17 19 19 22 24 27 32 36 41
Head diameter 2.6 3 3.8 4.5 5.5 7 8.5 10 12 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84
Head tickness 1.4 1.6 2 2.5 3 4 5 6 7 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56
Thread length 14 15 16 17 18 20 22 24 26 28 32 36 40 44 48 52 56 60 66 72 78 84 96 108 124

Other Reference : 6420112X40 QUCD-0091 ACH7929 3663072227149
