1 x Machine Screw Socket Head M3X12 Full Thread...

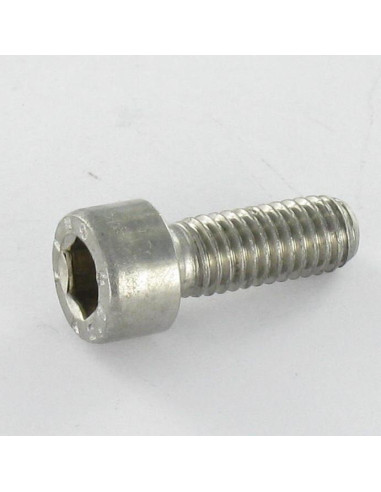

1 x Machine Screw Socket Head M3X12 Full Thread Hexagon Socket 2.5 Stainless Steel A4 micro screw

8820301218_1
In stock 25877 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £1.39 £2.78 £3.38 £4.69
DIN 912 ISO 4762 - Machine Screw Socket Head M3X12 Full Thread Hexagon Socket 2.5 Stainless Steel A4 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
12
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 2.5
Pitch
Standard pitch 50
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 912 ISO 4762
Product Family
Machine Screw / MICROVIS
Sub product family
Head Socket Head BTR
Diameter in mm
2.974 - 2.835
Unit weight
0.96 GR
25877 Items
3663072379619
Machine Screw Socket Head M3X12 Full Thread Hexagon Socket 2.5 Stainless Steel A4 micro screw
Diameter = M3, Length = 12, Sub Product Family = Head Socket Head BTR, Material = Stainless Steel A4, Pitch = Standard pitch 50, Drive Type = Socket Cap, Norm = DIN 912 ISO 4762, Product Family = Machine Screw / MICROVIS, Size Drive Type = Hexagon Socket 2.5


dimensional guide (mm)
Diameter M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56
Across flats 1.3 1.5 1.5 2 2.5 3 4 5 6 6 8 10 12 14 14 17 17 19 19 22 24 27 32 36 41
Head diameter 2.6 3 3.8 4.5 5.5 7 8.5 10 12 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84
Head tickness 1.4 1.6 2 2.5 3 4 5 6 7 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56
Thread length 14 15 16 17 18 20 22 24 26 28 32 36 40 44 48 52 56 60 66 72 78 84 96 108 124

Other Reference : 642013X12 V17081.00 32TC0312I AH4010021 CHC003X012A4 3663072379619
Tommy E. (vis-express.fr)
2026-01-04

They will be useful for a 3D printer design project. This reference will be used specifically for the module that will be used to tension a belt.
