1 x Machine Screw Large Pan Head Slotted...

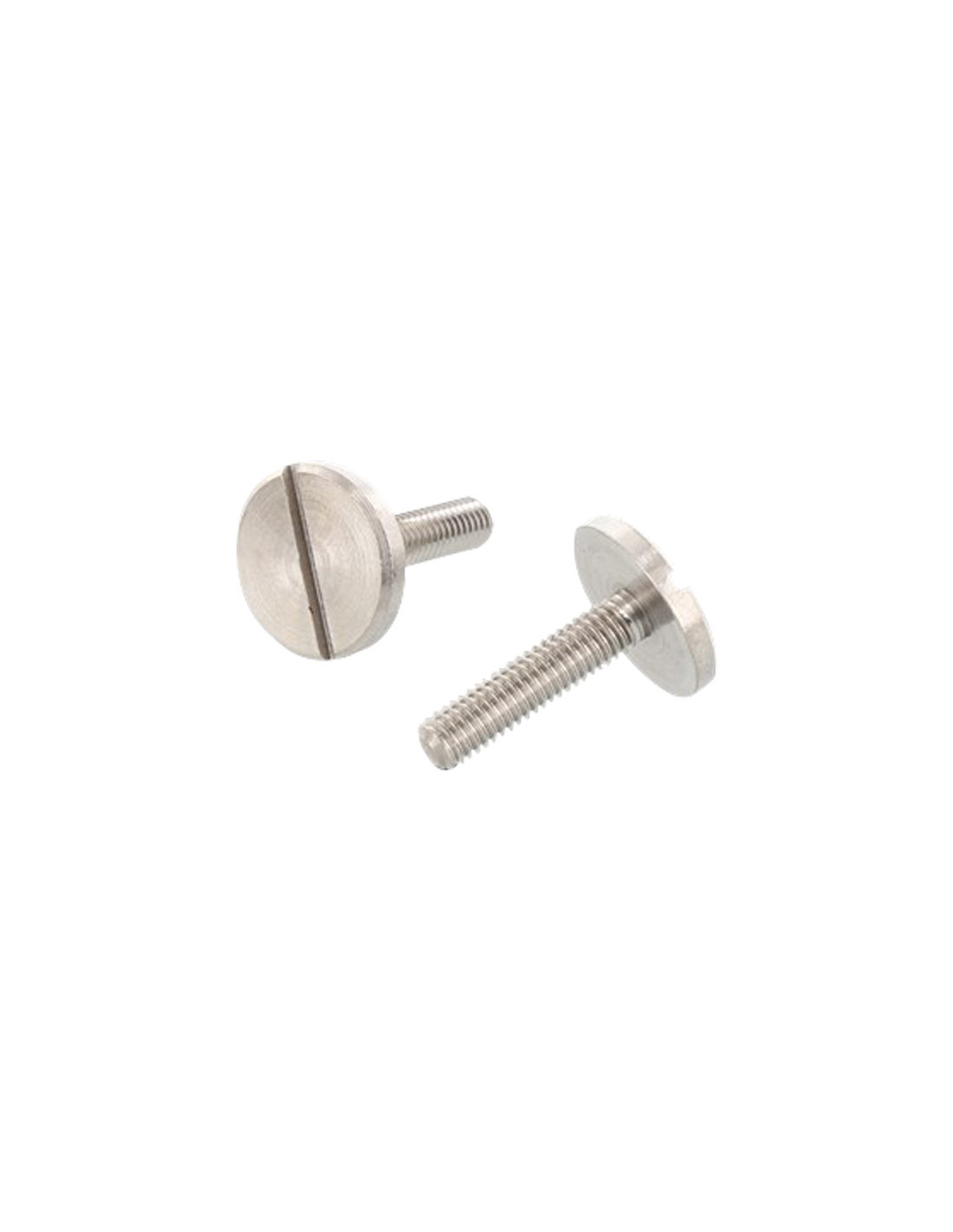

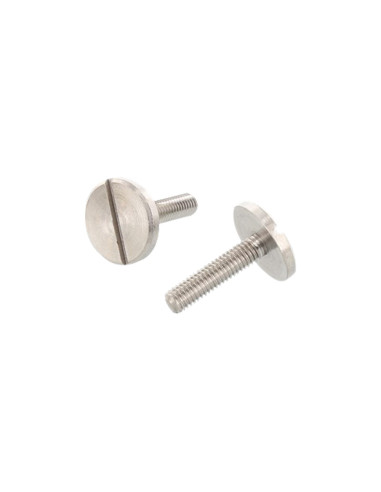

1 x Machine Screw Large Pan Head Slotted Stainless Steel A1 M2X5 Full Thread micro screw

8296200518_1
In stock 1433 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.04 £6.12 £10.41 £34.80
DIN921 - Machine Screw Large Pan Head Slotted Stainless Steel A1 M2X5 Full Thread micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M2
Length
5
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 40
Material
Stainless Steel Stainless Steel A1
Norm
DIN921
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head Large
Diameter in mm
1.509 - 1.567
Unit weight
0.3 GR
1433 Items
3663072494435
Machine Screw Large Pan Head Slotted Stainless Steel A1 M2X5 Full Thread micro screw
Diameter = M2, Length = 5, Sub Product Family = Cylindrical Head Large, Material = Stainless Steel Stainless Steel A1, Pitch = Standard pitch 40, Drive Type = Slotted, Norm = DIN921, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter M2 M3 M4 M5 M6 M8
PAS - 0.5 0.7 0.8 1 1.25
PARTIE LISSE SOUS TETE - 1 1.4 1.6 2 2.5 3
Head diameter 8 12 16 20 25 30
Head Tickness - 1.8 2.4 2.7 3.1 3.8 4.6
largeur fente 0.8 1 1.2 1.6 2 2.5
profondeur fente 1.15 1.5 1.6 1.9 2.4 2.8

Other Reference : 0921225 3663072494435
