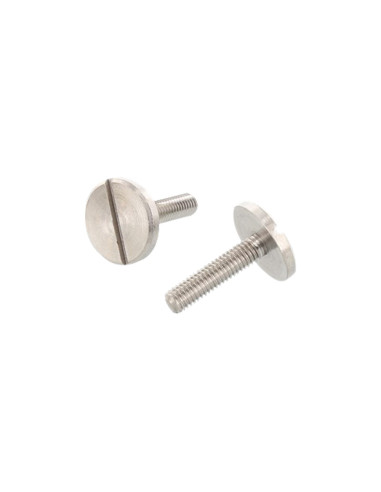

1 x Machine Screw Large Pan Head Slotted...

1 x Machine Screw Large Pan Head Slotted Stainless Steel A1 M3X8 Full Thread micro screw

8296300818_1
In stock 4894 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.50 €7.05 €9.15 €30.60
DIN921 - Machine Screw Large Pan Head Slotted Stainless Steel A1 M3X8 Full Thread micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
8
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A1
Norm
DIN921
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head Large
Diameter in mm
2.974 - 2.835
Unit weight
0.9 GR
4894 Items
3663072489615
Machine Screw Large Pan Head Slotted Stainless Steel A1 M3X8 Full Thread micro screw
Diameter = M3, Length = 8, Sub Product Family = Cylindrical Head Large, Material = Stainless Steel Stainless Steel A1, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN921, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter M2 M3 M4 M5 M6 M8
PAS - 0.5 0.7 0.8 1 1.25
PARTIE LISSE SOUS TETE - 1 1.4 1.6 2 2.5 3
Head diameter 8 12 16 20 25 30
Head Tickness - 1.8 2.4 2.7 3.1 3.8 4.6
largeur fente 0.8 1 1.2 1.6 2 2.5
profondeur fente 1.15 1.5 1.6 1.9 2.4 2.8

Other Reference : 0921238 3663072489615
Jean-Christophe S. (vis-express.fr)
2024-03-31

Fix cos on thick leather. Metal screw Wide rounded head cylindrical head TCBL Slotted Stainless steel A1 M3X8 Total thread


Jean-Christophe S. (vis-express.fr)
2024-03-10

To replace screws that are too short on metal conchos on leather items. Metal screws Wide rounded cylindrical head TCBL Slotted Stainless steel A1 M3X8 Full thread
