1 x Bolt Partial Thread Hexagonal Head 5/8X 3 1/2" Partial Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2

8413169018_1
In stock 7 Pièces
€6.90 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €6.90 €34.40 €68.80 €172.05

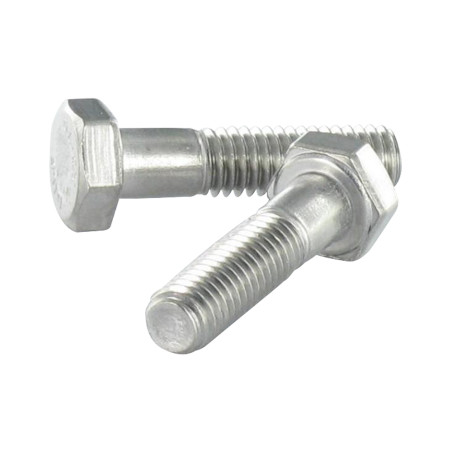

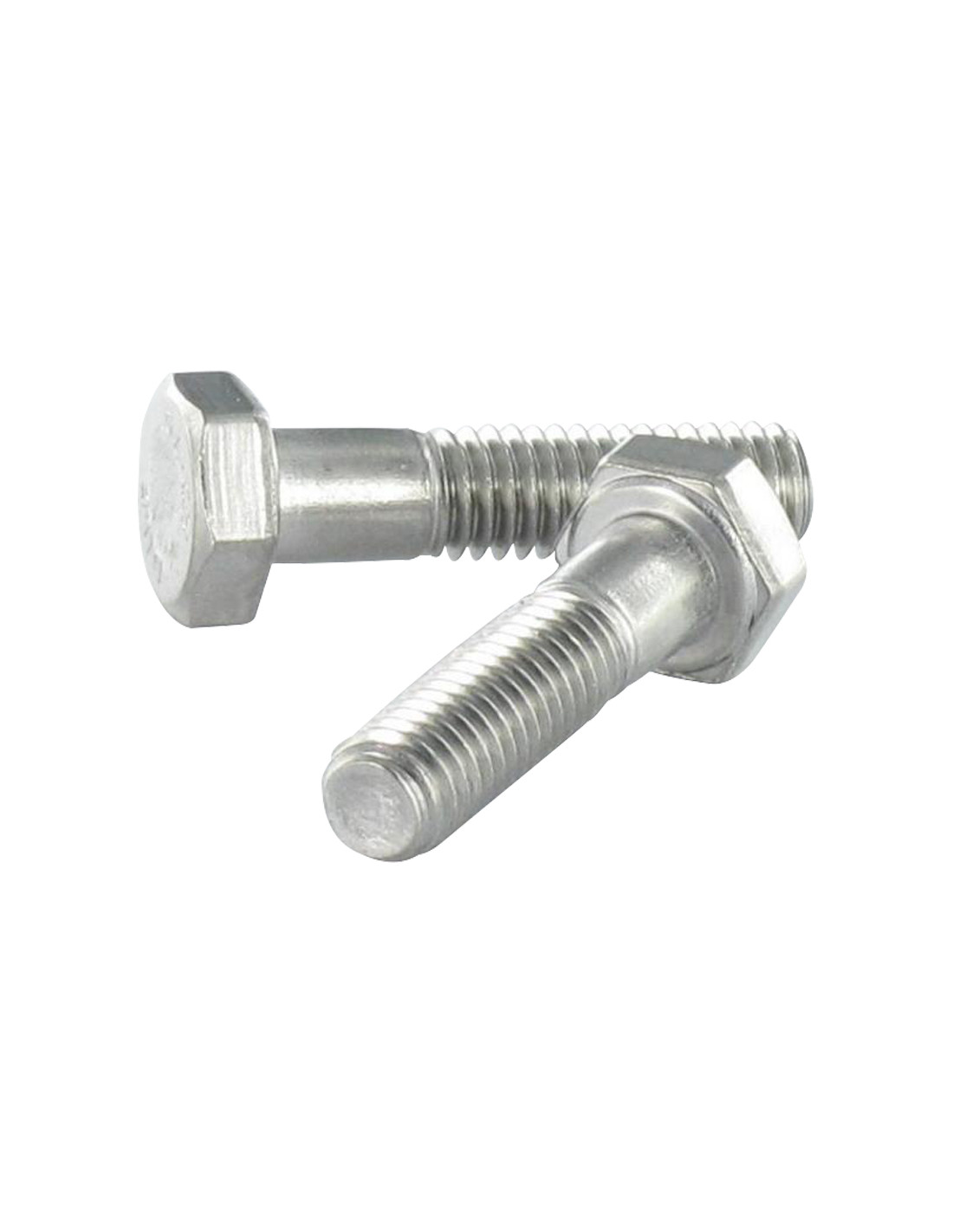

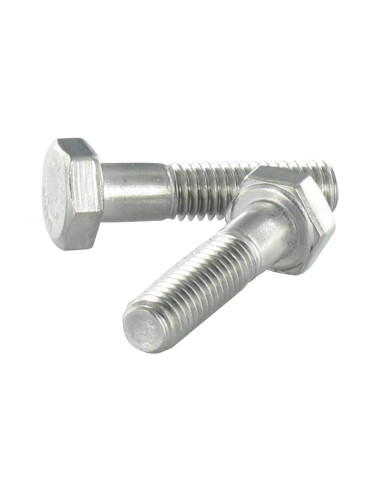

ANSI B18-2-1,VS 4126 - Bolt Partial Thread Hexagonal Head 5/8X 3 1/2" Partial Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2
1 inch = 25.4mm
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

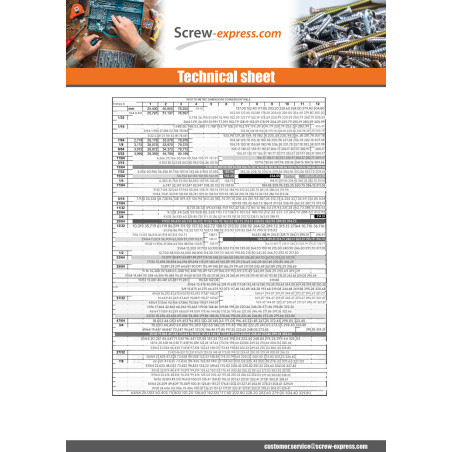

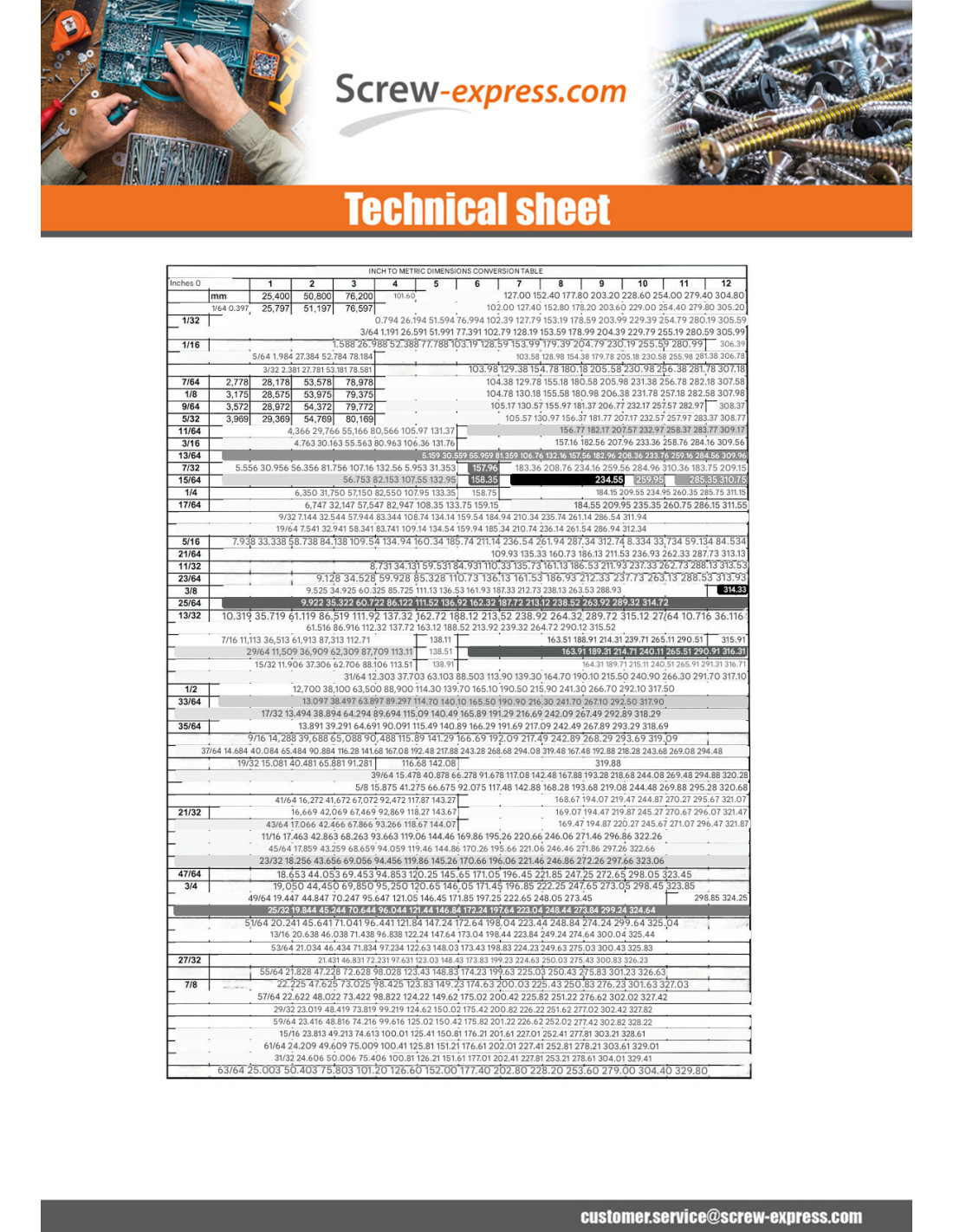

Correspondence table inches and mm

Diameter
5/8
Length
3"1/289
Thread
Partial Thread
Pitch
Pitch Unc EQUIVALENT BSW
Material
Stainless Steel A2
COLOR
Grey
Product Family
Bolts Hexagonal Head
Number of threads per inch
11
Diameter in mm
15,875
Unit weight
145.81 GR
Head shape
Hex Head
7 Items
3663072162181
Bolt Partial Thread Hexagonal Head 5/8X 3 1/2" Partial Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2
Diameter = 5/8, Length = 3"1/289, Material = Stainless Steel A2, Pitch = Pitch Unc EQUIVALENT BSW, Product Family = Bolts Hexagonal Head


dimensional guide (mm)
Diameter 1/4 5/16 3/8 1/2
e 12.8 14.6 16.5 21.7
Head Tickness 4 5 6 8
Across flats 11 12.5 14.3 19
Pitch 20 18 16 13
1 pouce = 25.4 mm - pour calculer le longueur 1-1/2 = 25.4+1/2x25.4

Other Reference : 3617500277046 3663072162181
Quentin C. (vis-express.fr)
2024-03-03

Replacement of screws for a backhoe loader Replacement of screws for a Massey Ferguson 50H backhoe loader and its Dowty hydraulic motor!
