1 x Machine Screw Hexagonal Head M3X16 Stainless Steel A4 micro screw
1 x Machine Screw Hexagonal Head M3X16 Stainless Steel A4 micro screw
1 x Machine Screw Hexagonal Head M3X16...
1 x Machine Screw Hexagonal Head M3X16...

1 x Machine Screw Hexagonal Head M3X16 Stainless Steel A4 micro screw

8722391618_1
In stock 28 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €9.20

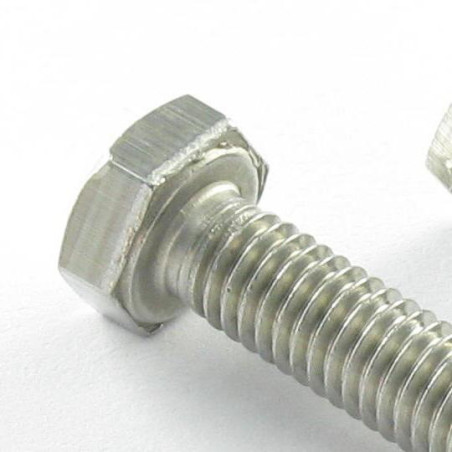

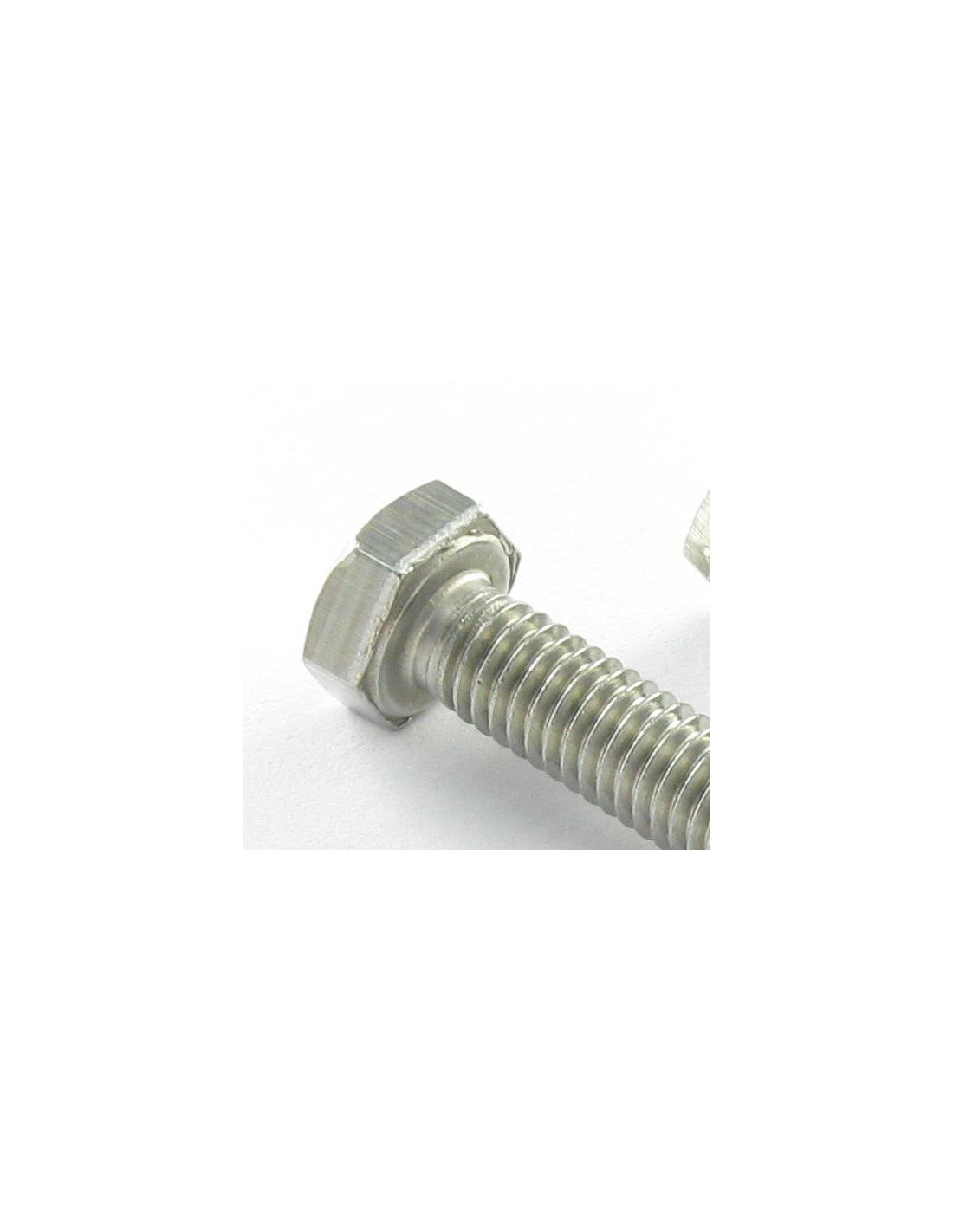

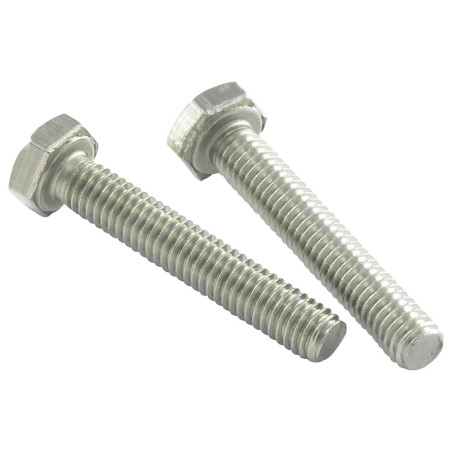

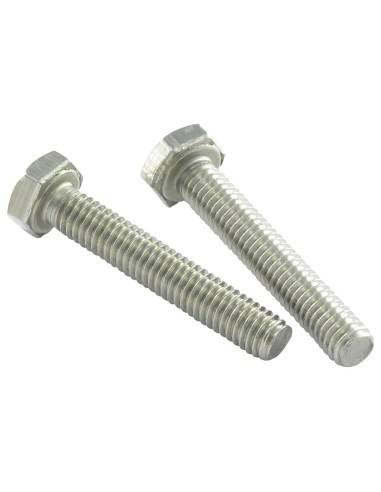

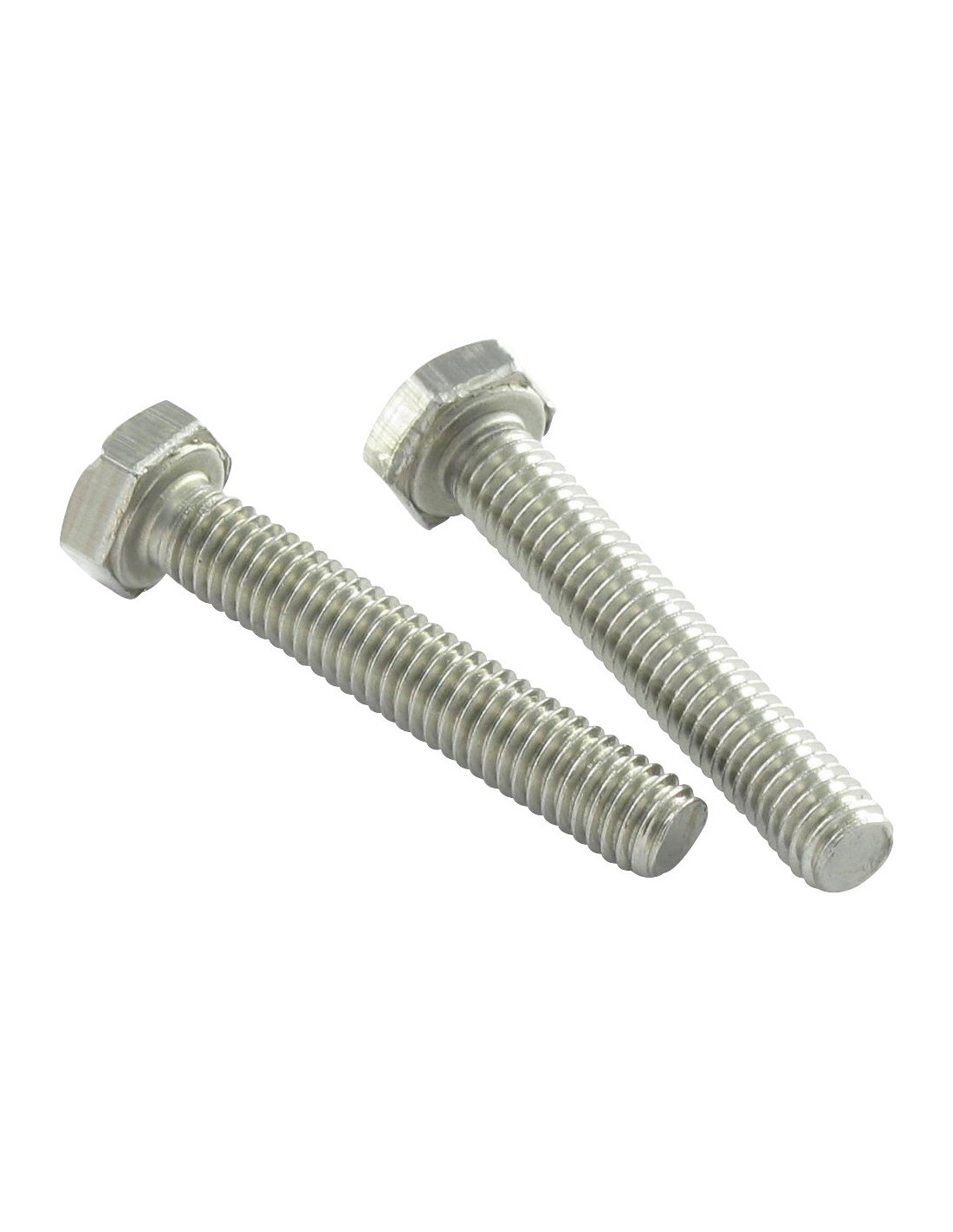

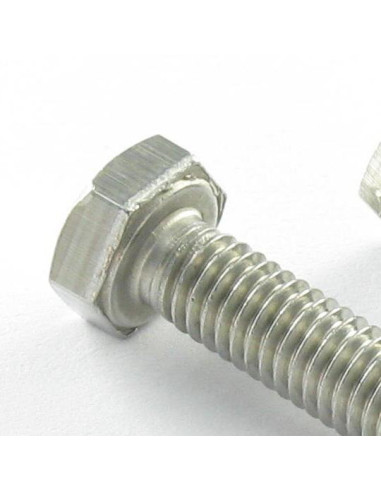

DIN 933 - Machine Screw Hexagonal Head M3X16 Stainless Steel A4 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
16
Thread
Metal
KEY Of
5.5
Pitch
Standard pitch 50
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 933
Product Family
Machine Screw / MICROVIS
Sub product family
Hex Head
Diameter in mm
2.974 - 2.835
Unit weight
1 GR
28 Items
3663072193215
Machine Screw Hexagonal Head M3X16 Stainless Steel A4 micro screw
Diameter = M3, Length = 16, Sub Product Family = Hex Head, Material = Stainless Steel A4, Pitch = Standard pitch 50, Norm = DIN 933, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 3 4 5 6 8 10 12 14 16 18 20 24
Head Tickness 2 2.8 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15
Across flats 5.5 7 8 10 13 17 19 22 24 27 30 36

Other Reference : 641013X16 3663072193215
