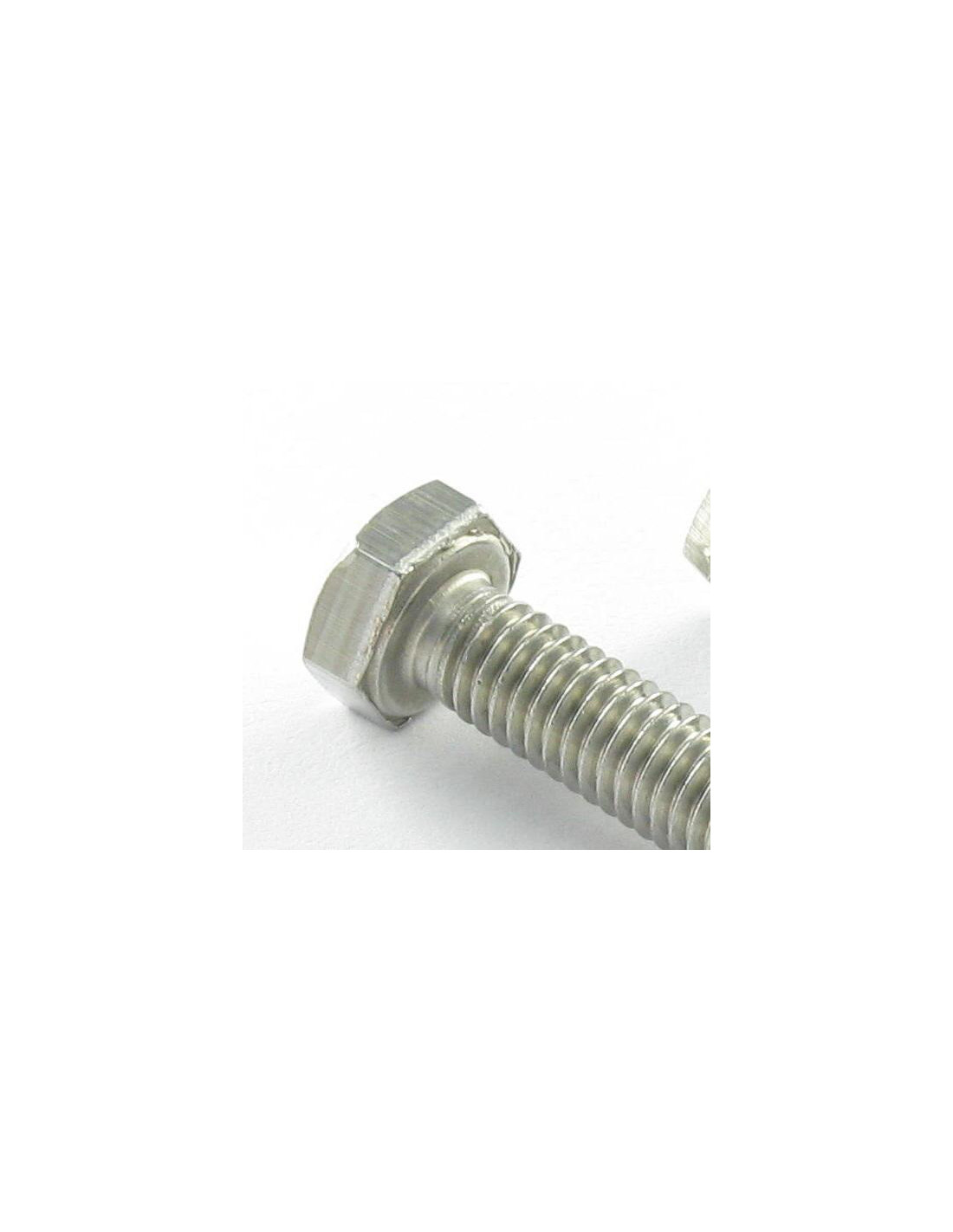

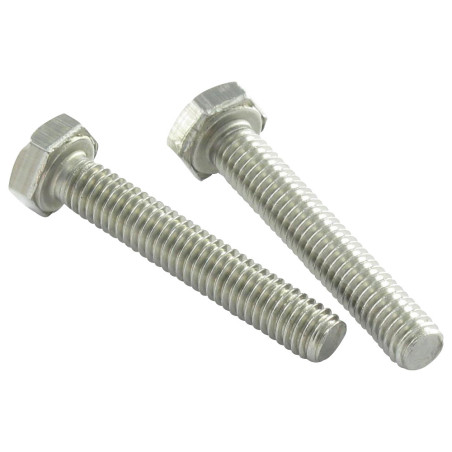

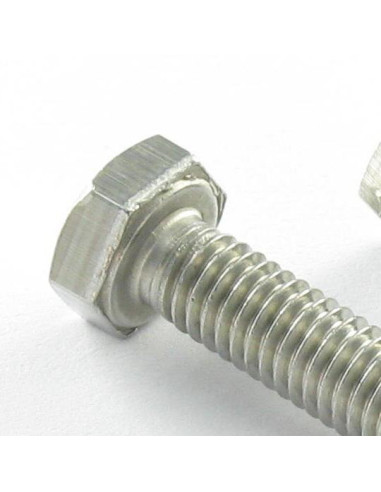

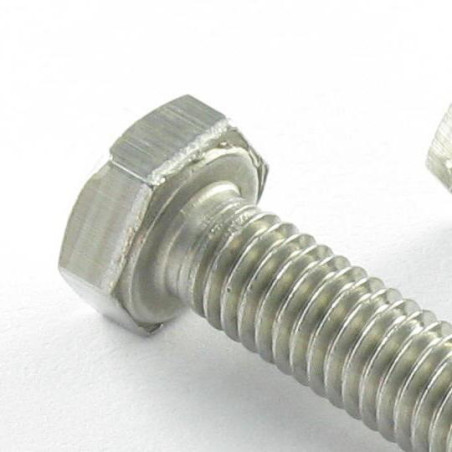

1 x Machine Screw Hexagonal Head M3X8 Stainless Steel A4 micro screw
1 x Machine Screw Hexagonal Head M3X8 Stainless Steel A4 micro screw
1 x Machine Screw Hexagonal Head M3X8 Stainless...
1 x Machine Screw Hexagonal Head M3X8 Stainless...

1 x Machine Screw Hexagonal Head M3X8 Stainless Steel A4 micro screw

8722390818_1
In stock 1061 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €9.20
DIN 933 - Machine Screw Hexagonal Head M3X8 Stainless Steel A4 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
8
Thread
Metal
KEY Of
5.5
Pitch
Standard pitch 50
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 933
Product Family
Machine Screw / MICROVIS
Sub product family
Hex Head
Diameter in mm
2.974 - 2.835
Unit weight
0.66 GR
1061 Items
3663072173705
Machine Screw Hexagonal Head M3X8 Stainless Steel A4 micro screw
Diameter = M3, Length = 8, Sub Product Family = Hex Head, Material = Stainless Steel A4, Pitch = Standard pitch 50, Norm = DIN 933, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 3 4 5 6 8 10 12 14 16 18 20 24
Head Tickness 2 2.8 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15
Across flats 5.5 7 8 10 13 17 19 22 24 27 30 36

Other Reference : 641013X8 AH4010018 3663072173705
