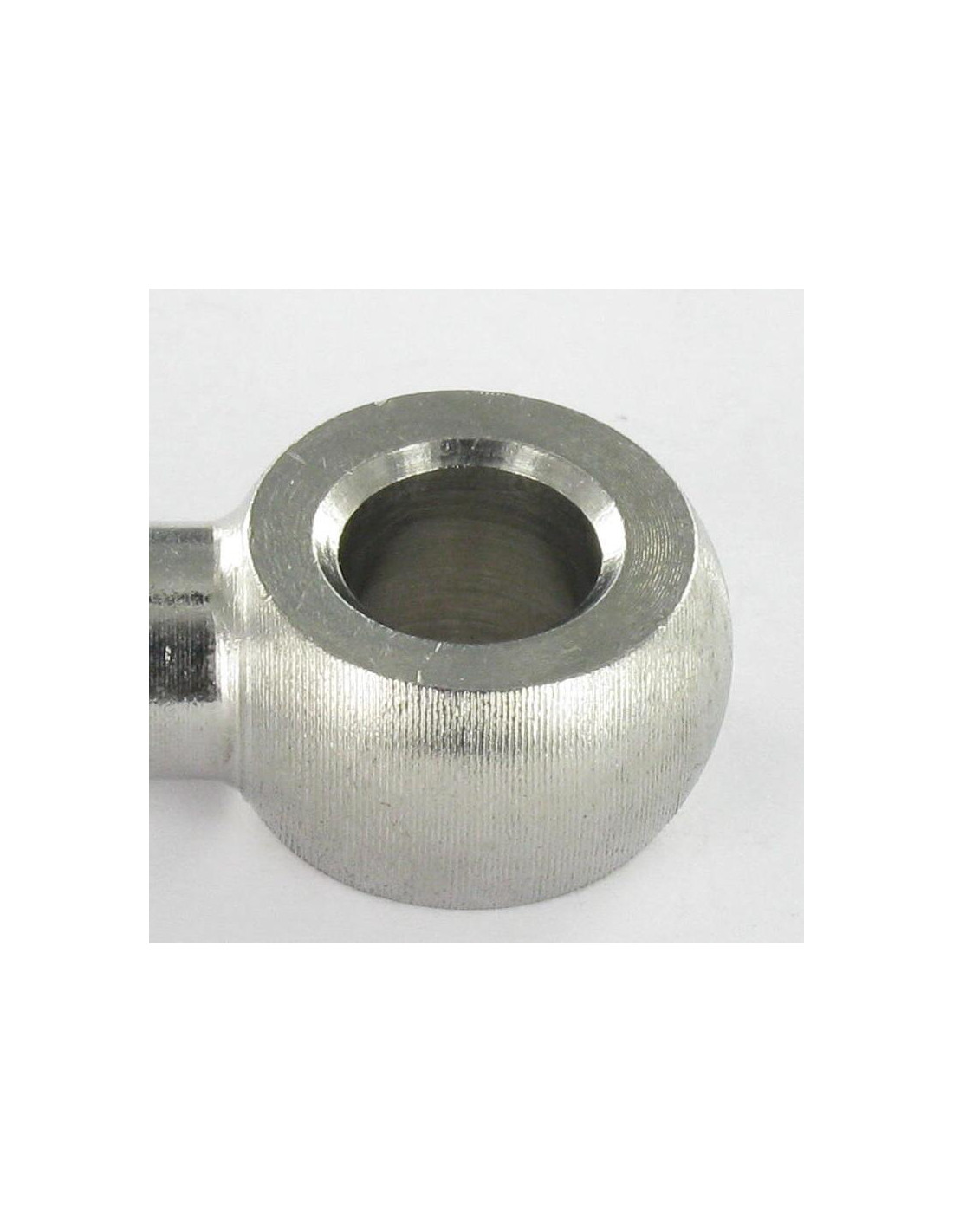

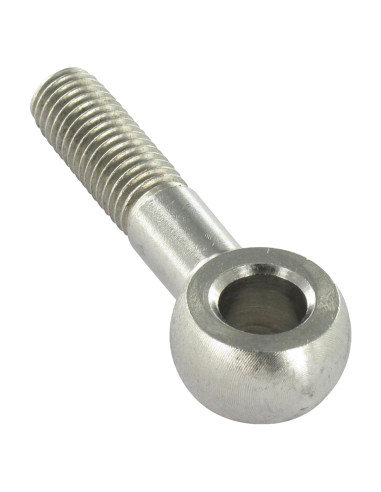

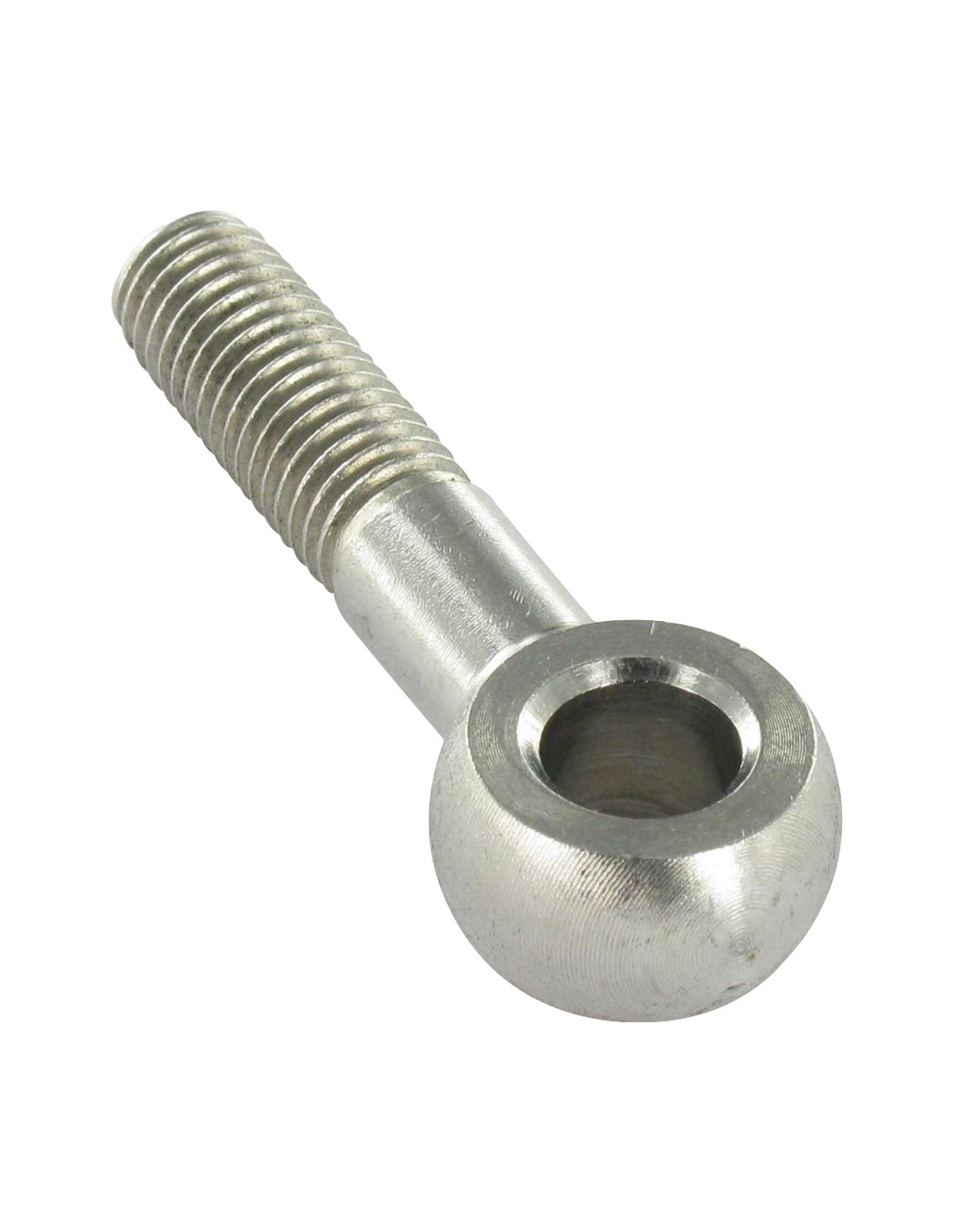

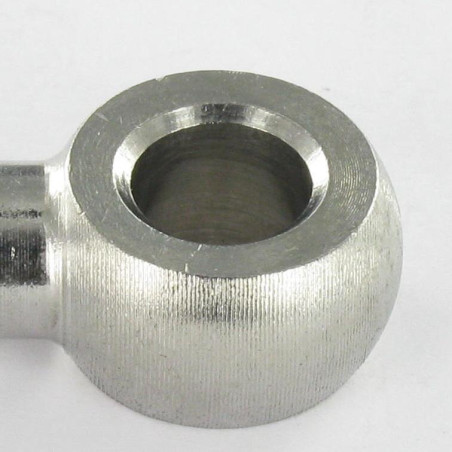

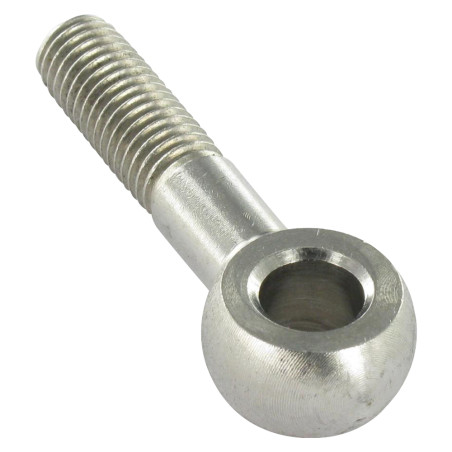

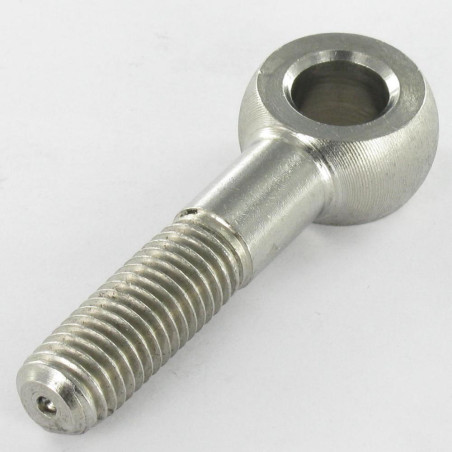

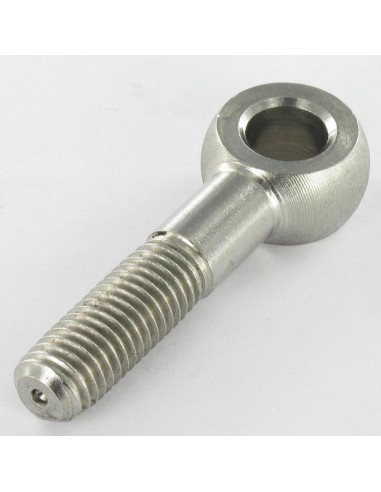

1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2
1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2
1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2
1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2
1 x Machine Screw to Eye M16X100 Eye 16...
1 x Machine Screw to Eye M16X100 Eye 16...
1 x Machine Screw to Eye M16X100 Eye 16...
1 x Machine Screw to Eye M16X100 Eye 16...

1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2

8675171018_1
In stock 14 Pièces
€22.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 3 5 10
Lot price VAT included €22.50 €67.50 €112.50 €225.00
DIN 444B,VS8675 - Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2
Packaging
  • 1 unit
  • 3 units
  • 5 units
  • 10 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M16
Length
100
Thread
Metal
Pitch
Standard pitch 200
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 444B,VS8675
Product Family
Machine Screw
Eye
16
Diameter in mm
15,962 - 15,692
Unit weight
196 GR
14 Items
3663072170957

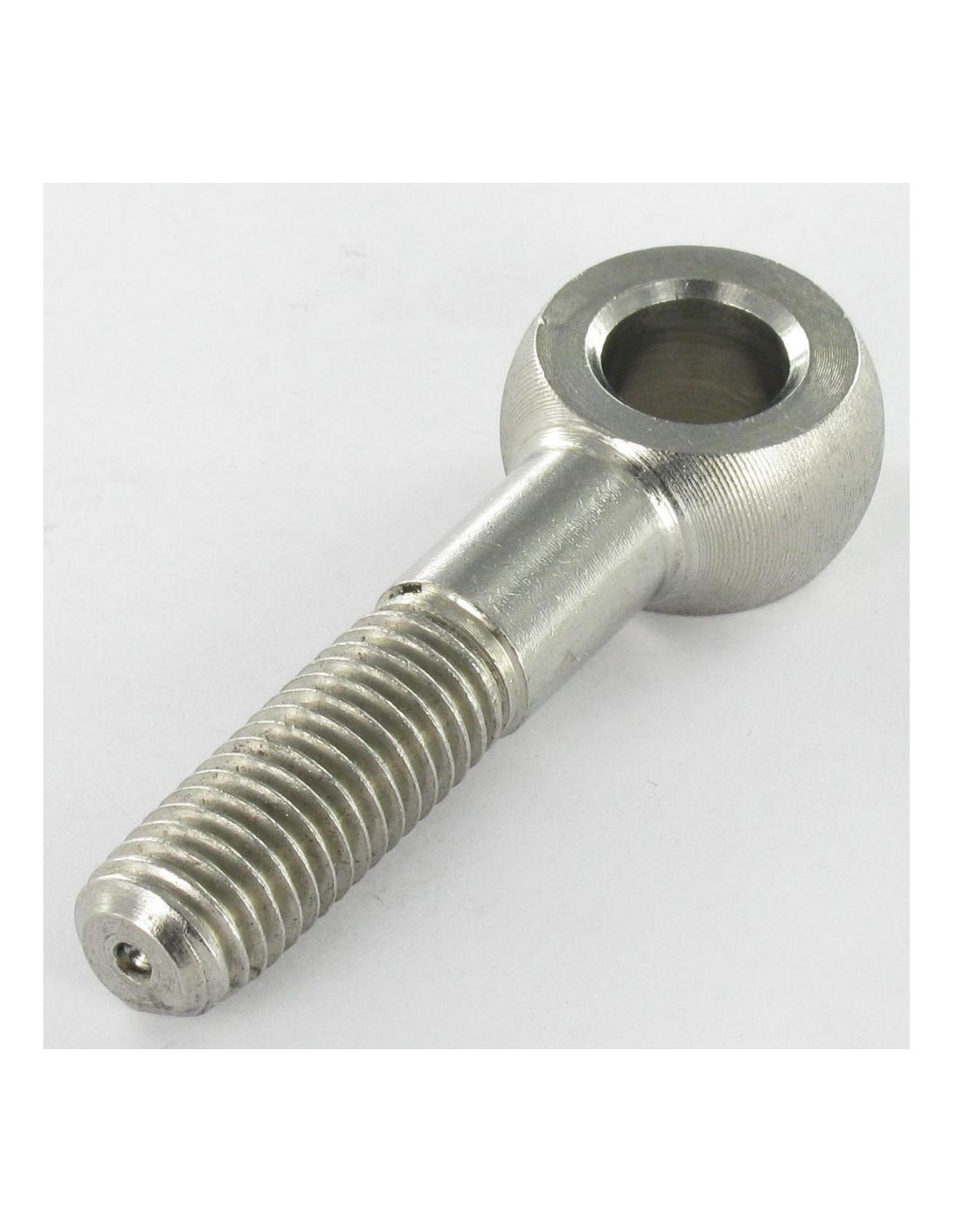

Machine Screw to Eye M16X100 Eye 16 Stainless Steel A2
Diameter = M16, Length = 100, Material = Stainless Steel A2, Pitch = Standard pitch 200, Norm = DIN 444B,VS8675, Product Family = Machine Screw

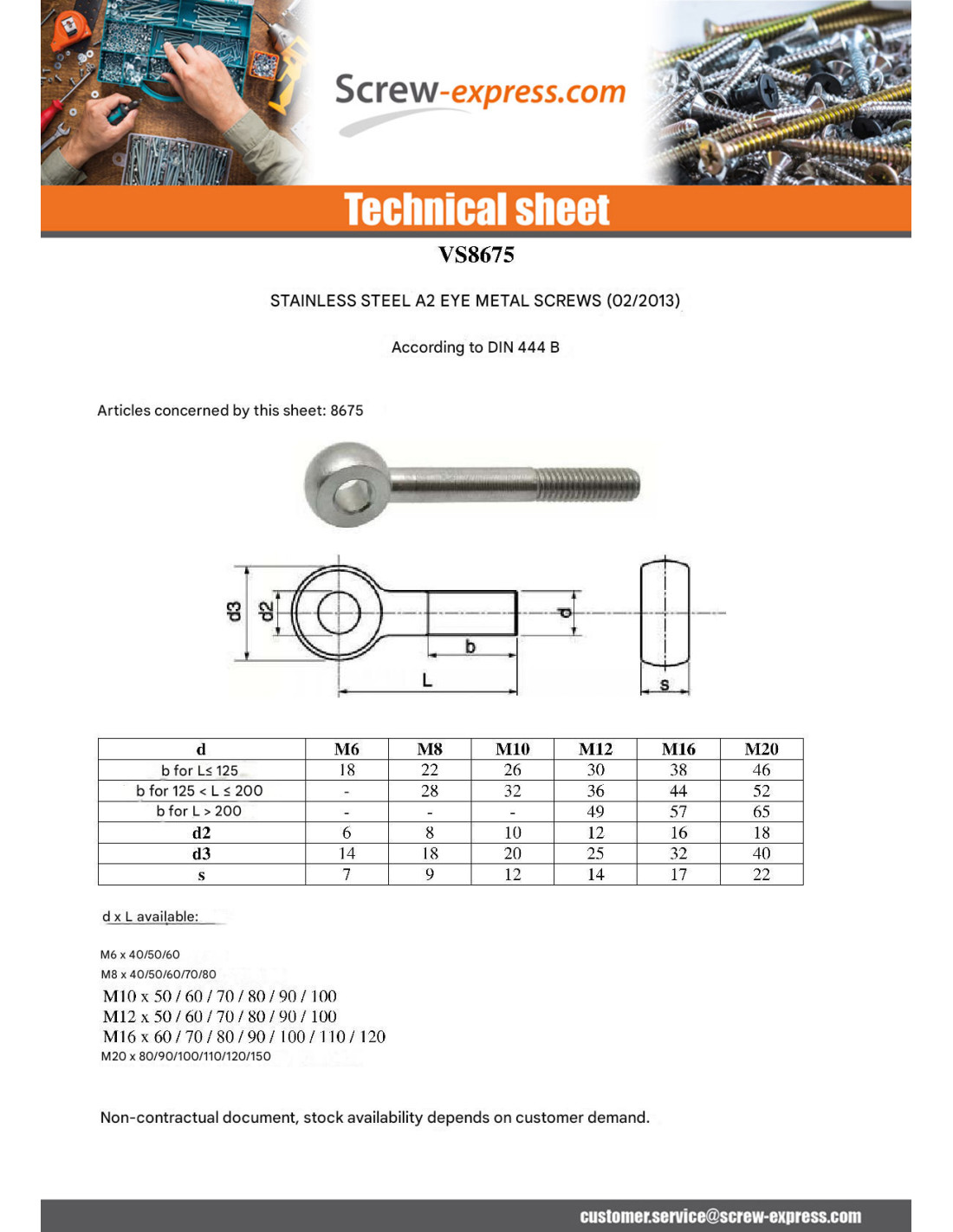

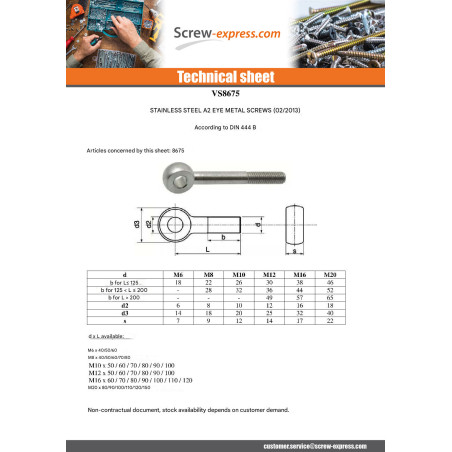

dimensional guide (mm)
Diameter M6 M8 M10 M12 M16 M20
DIAMETRE INTERIEUR OEIL 6 8 10 12 16 18
DIAMETRE EXTERIEUR OEIL 14 18 20 25 32 40
EPAISSEUR OEIL 7 9 12 14 17 22
Thread length for screw L<125 18 22 26 30 38 46
Thread length for screw 125 - 28 32 36 44 52
PARTIE FILETEE POUR L>200 - - - 49 57 65
L=longueur de la vis (milieu oeil)

Other Reference : 0444216 100 3663072170957
