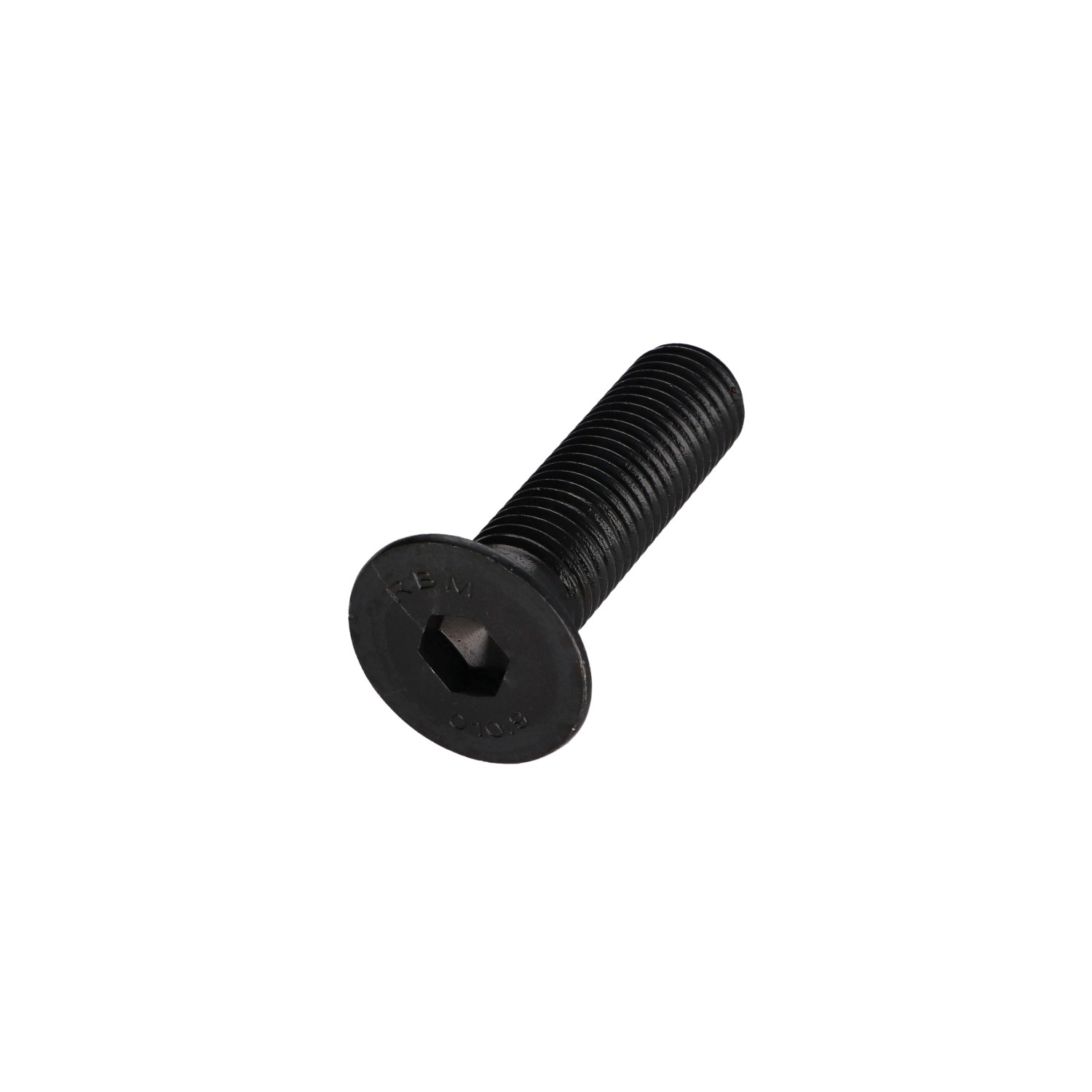

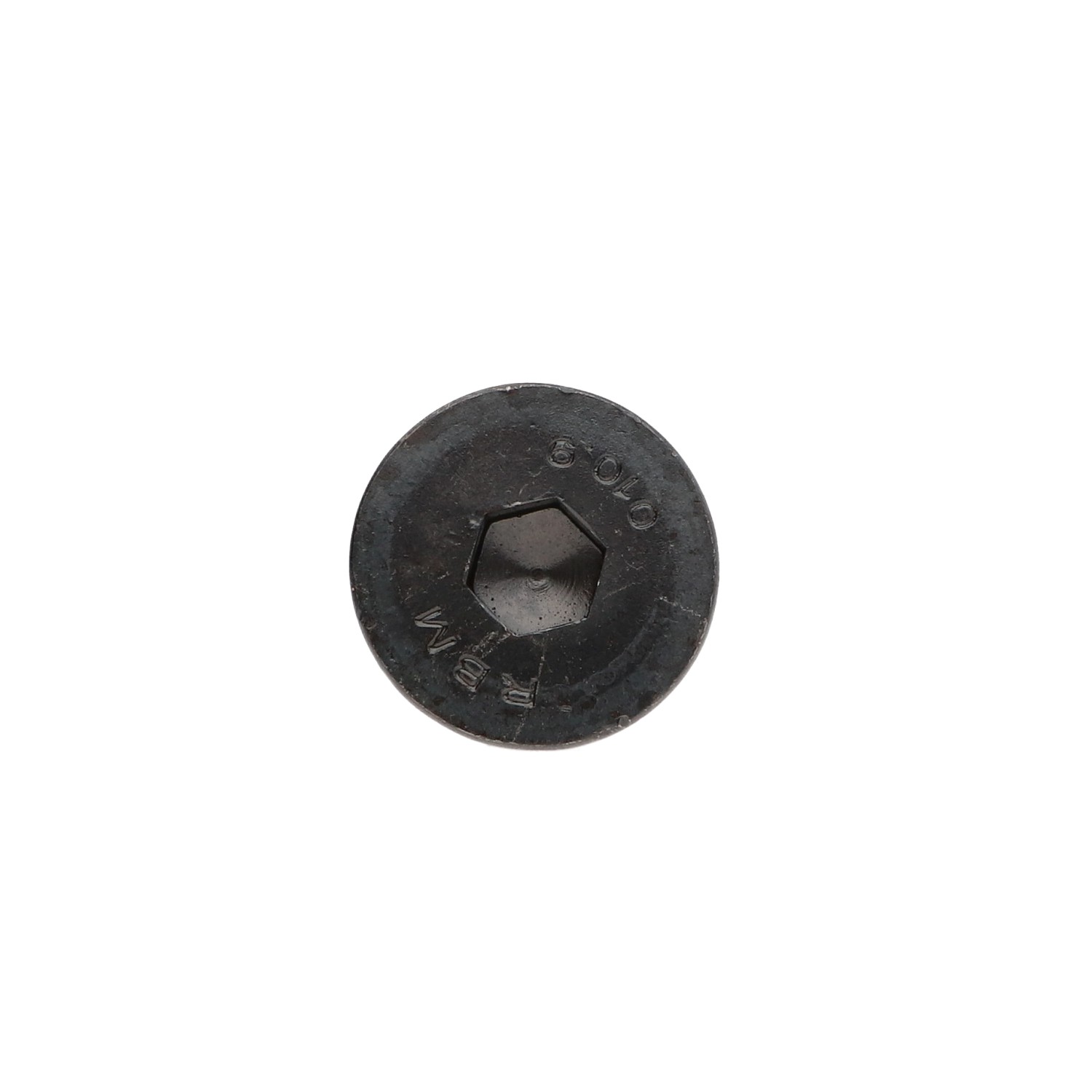

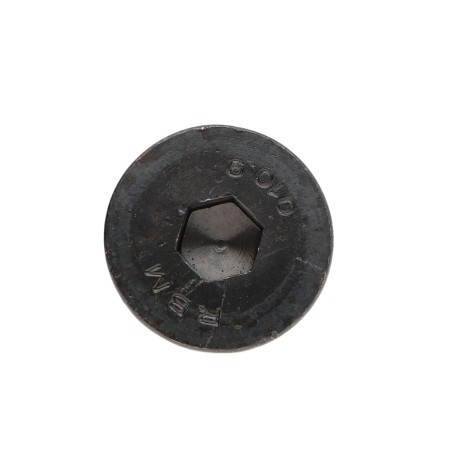

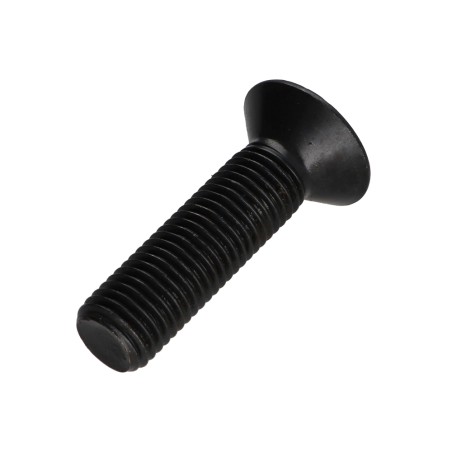

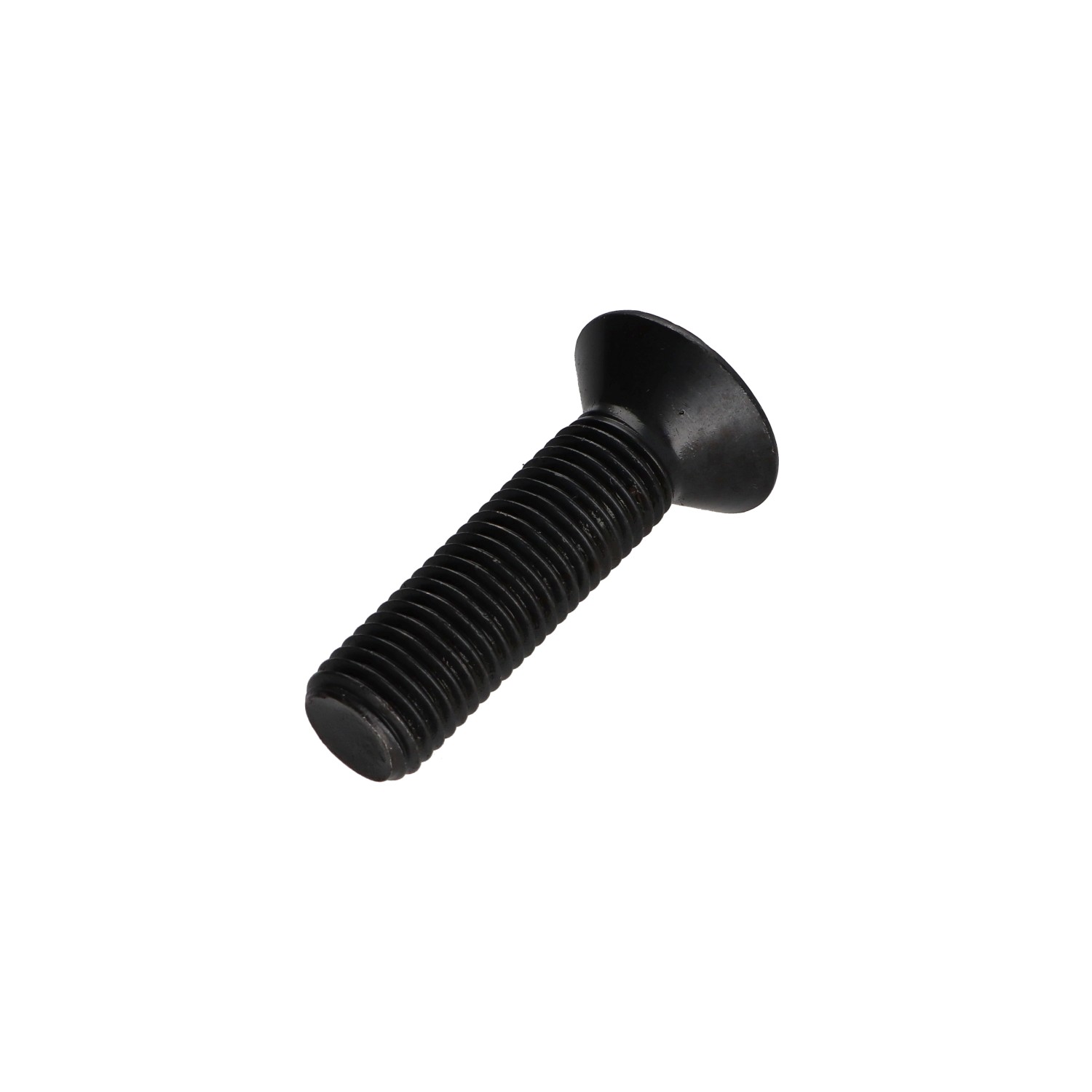

1 x Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel
1 x Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel
1 x Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel
1 x Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel
  • New
1 x Machine Screw Flat Head Hexagon Recess...
1 x Machine Screw Flat Head Hexagon Recess...
1 x Machine Screw Flat Head Hexagon Recess...
1 x Machine Screw Flat Head Hexagon Recess...

1 x Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel

4721146001_1
In stock 100 Pièces
€0.95 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €0.95 €4.75 €17.35 €43.35
iso10642,VS4721 - Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

100 Items
3663072021273
Machine Screw Flat Head Hexagon Recess Hexagon Socket 10 M14X60 Full Thread Class 10.9 Steel
Diameter = M14, Length = 60, Class = Class 10.9, Material = Steel, Pitch = Standard pitch 200, Drive Type = Socket Cap, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 10


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 M20
Pitch 50 70 80 100 125 150 175 200 200 250
Max Head diameter 6.72 8.96 11.2 13.44 17.92 22.4 26.88 30.8 33.6 40.32
Min Head diameter 5.54 7.53 9.43 11.34 15.24 19.22 23.12 26.52 29.01 35.05
Head Tickness 1.86 2.48 3.1 3.72 4.96 6.2 7.44 8.4 8.8 10.16
Across flats 2 2.5 3 4 5 6 8 10 10 12

Other Reference : 3617502061070 3663072021273
