8578003918_1
In stock 9 Pièces
£7.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 3 5 10
Lot price VAT included £7.25 £21.74 £36.27 £72.59

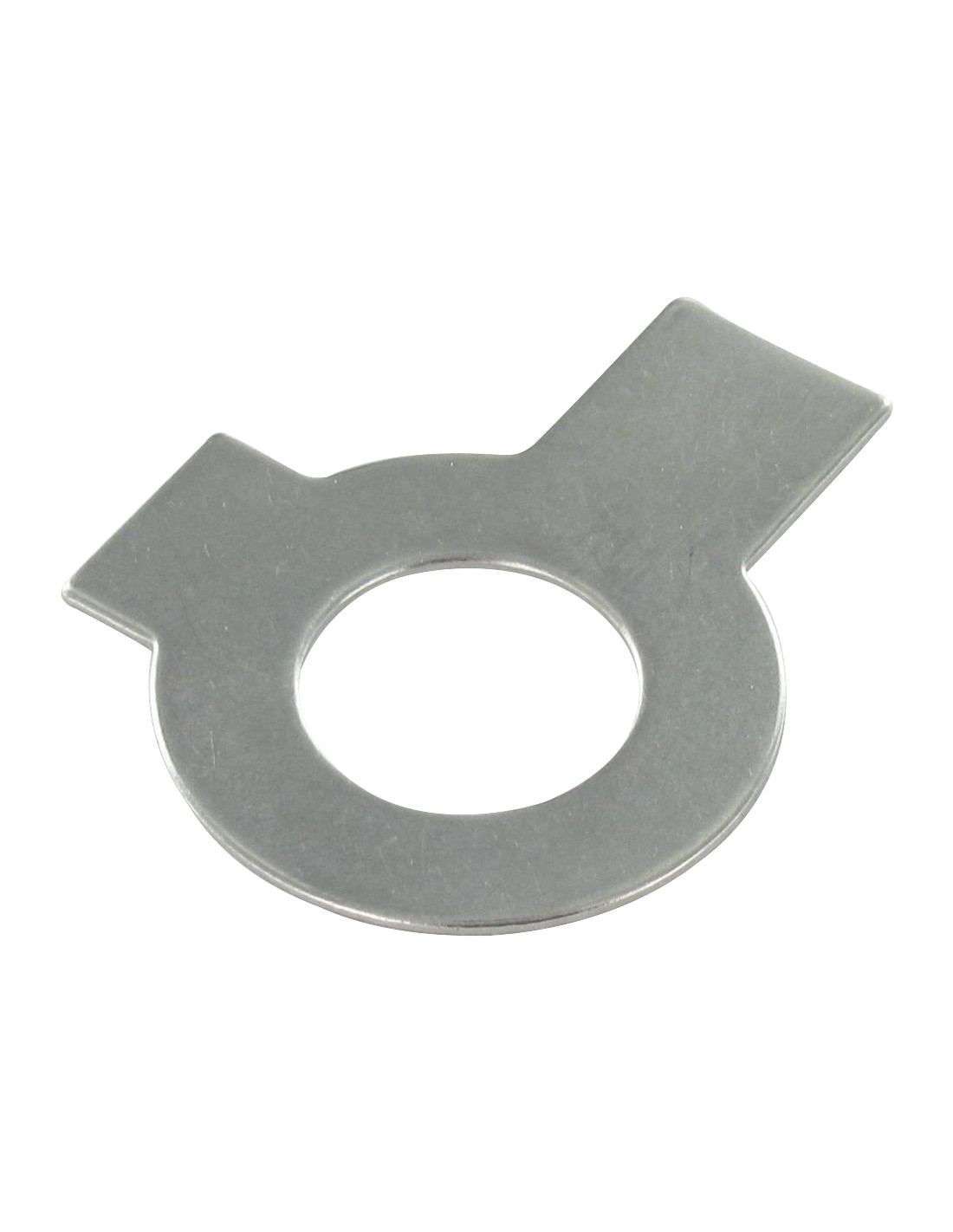

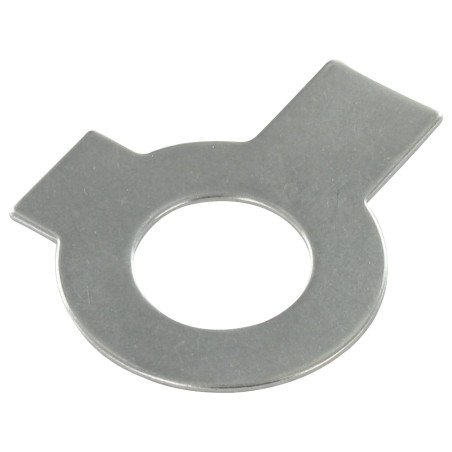

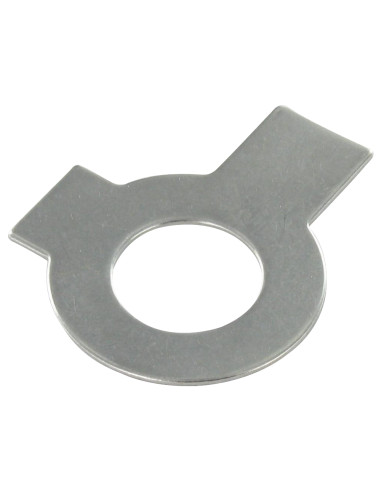

NFE25-540 - Lock D Nut Bracket Of Diameter M39 Stainless Steel A2
Packaging
  • 1 unit
  • 3 units
  • 5 units
  • 10 units

Dimensions shown in millimeters (mm)

Diameter
M39
Pitch
Standard pitch 400
Material
Stainless Steel A2
COLOR
Grey
Norm
NFE25-540
Product Family
Nut
Sub product family
Lock Nut
Unit weight
54.6 GR
9 Items
3663072212695

Application

  • Prevents nuts from loosening due to vibrations

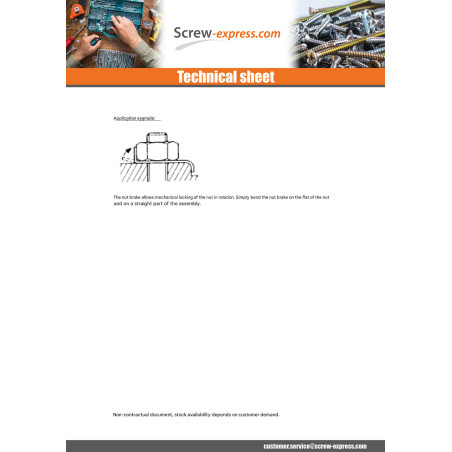

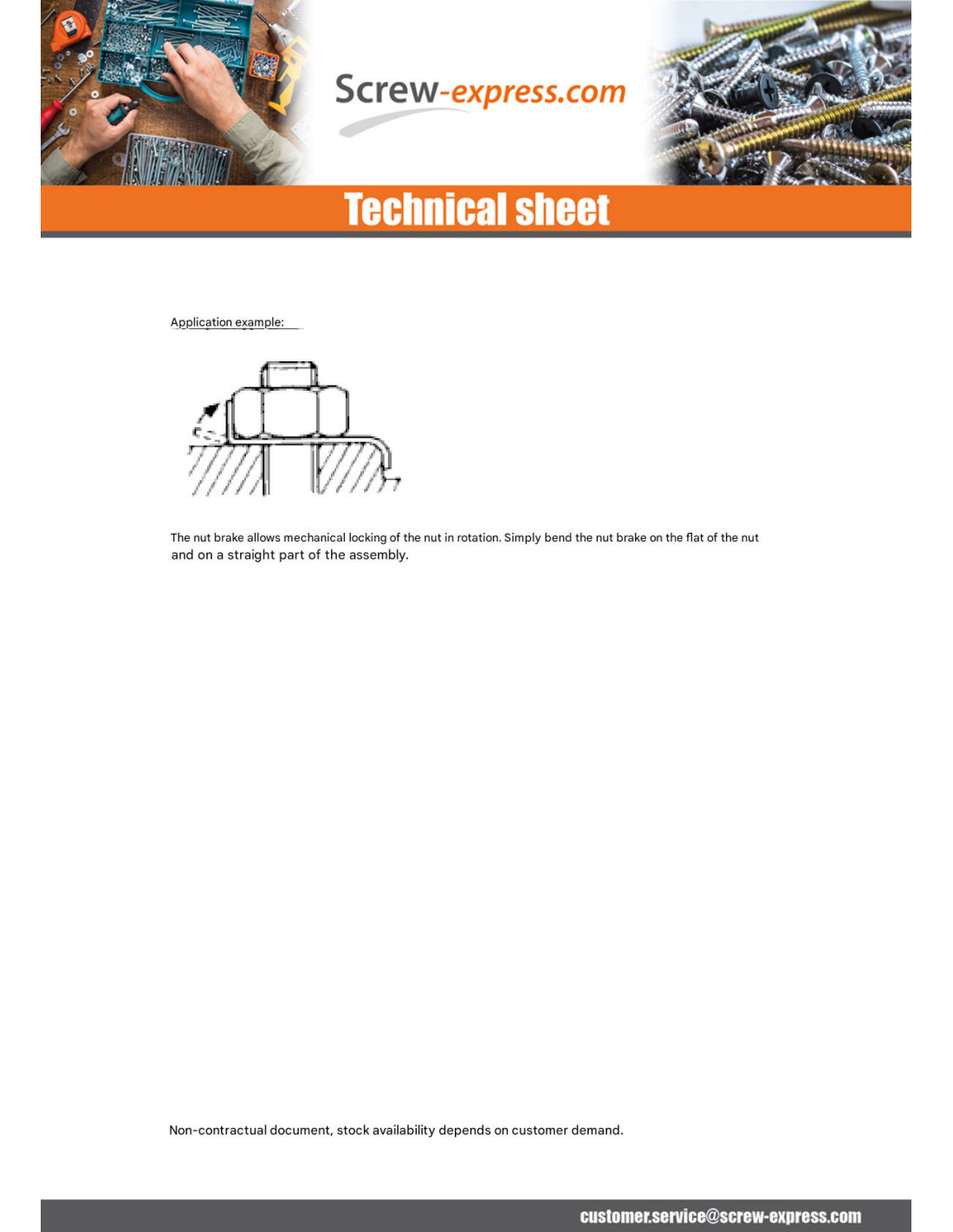

  • The washer is placed under the nut, then the tab folds against one face of the nut to lock it in place.
  • Used in mechanics, metal assemblies, machines, supports and structures
Lock D Nut Bracket Of Diameter M39 Stainless Steel A2
Diameter = M39, Sub Product Family = Lock Nut, Material = Stainless Steel A2, Pitch = Standard pitch 400, Norm = NFE25-540, Product Family = Nut

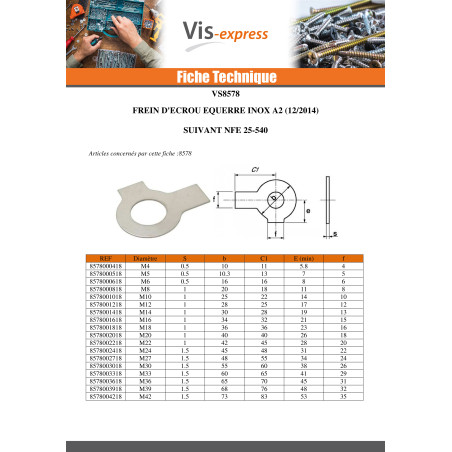

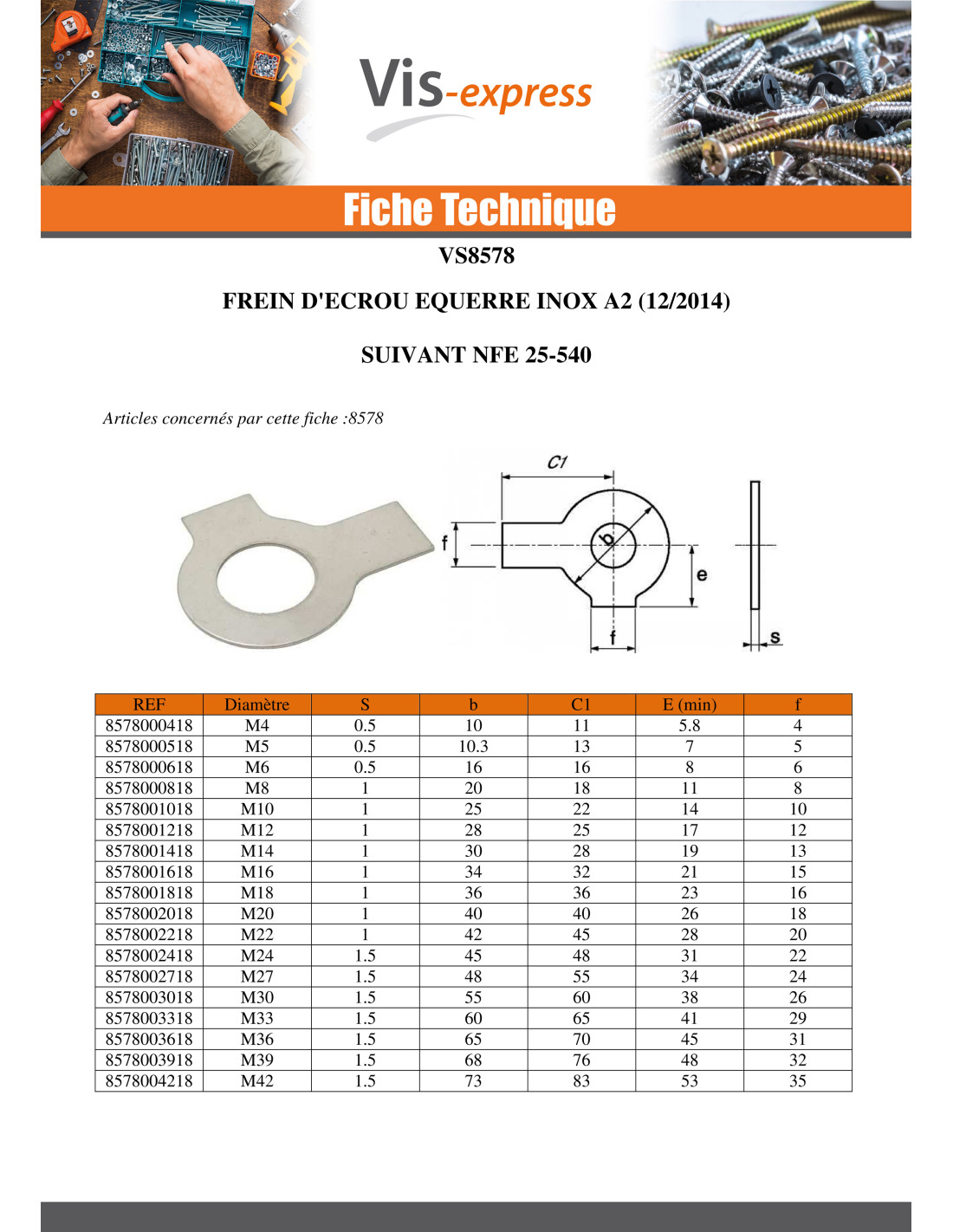

dimensional guide (mm)
DIAMETRE DU TROU 4 5 6 8 10 12 14:16 18 20 22 24 27 30 33 36 39 42
LARGEUR DES PATTES 4 5 6 8 10 12 13 15 16 18 20 22 24 26 29 31 32 35
DIAMETRE EXTERIEUR RONDELLE 10 10.3 16 20 25 28 30 34 36 40 42 45 48 55 60 65 68 73
EPAISSEUR 0.5 0.5 0.5 1 1 1 1 1 1 1 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5

Other Reference : 3617501589988 3663072212695
