1 x Framing screws TEKOR Countersunk Head With Serration T40 8X300 Thread Length: 100 cut Type 17 Drilling Point Zinc

2040830002_1
In stock 20083 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included €1.70 €5.05 €20.25 €46.15 €184.60

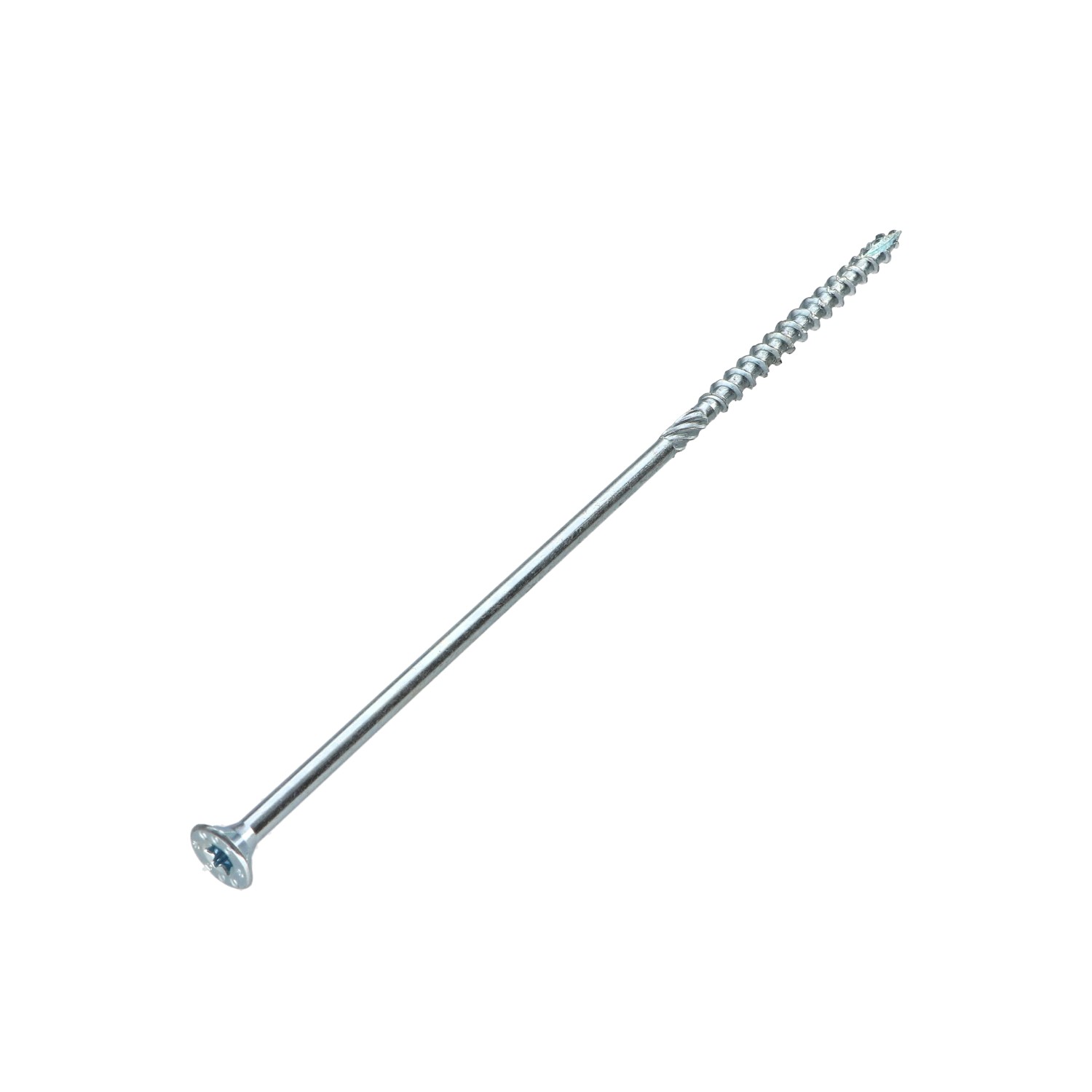

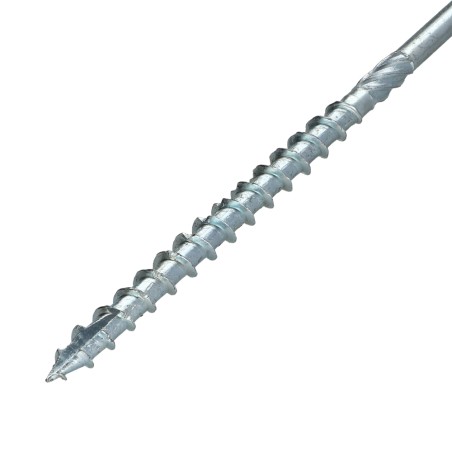

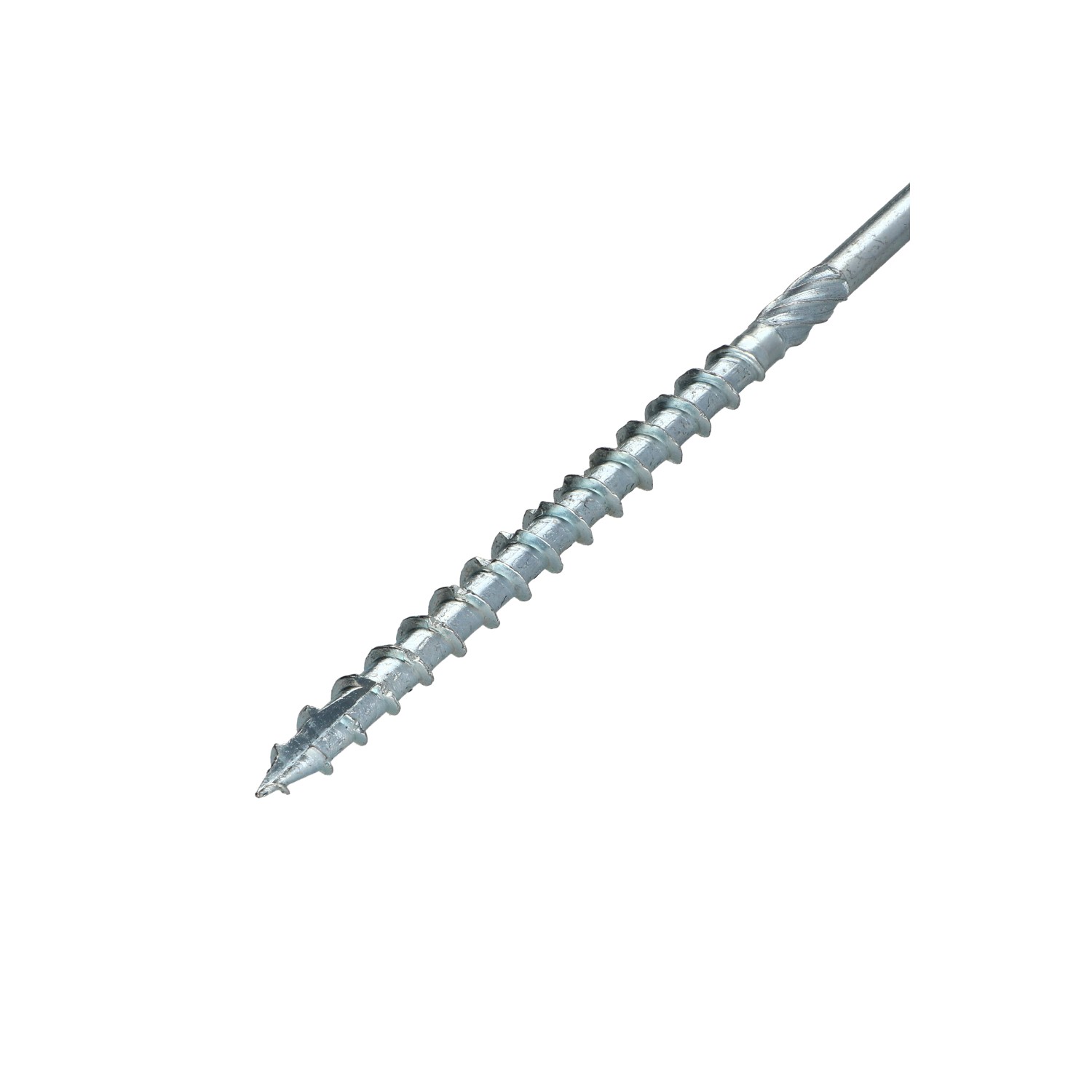

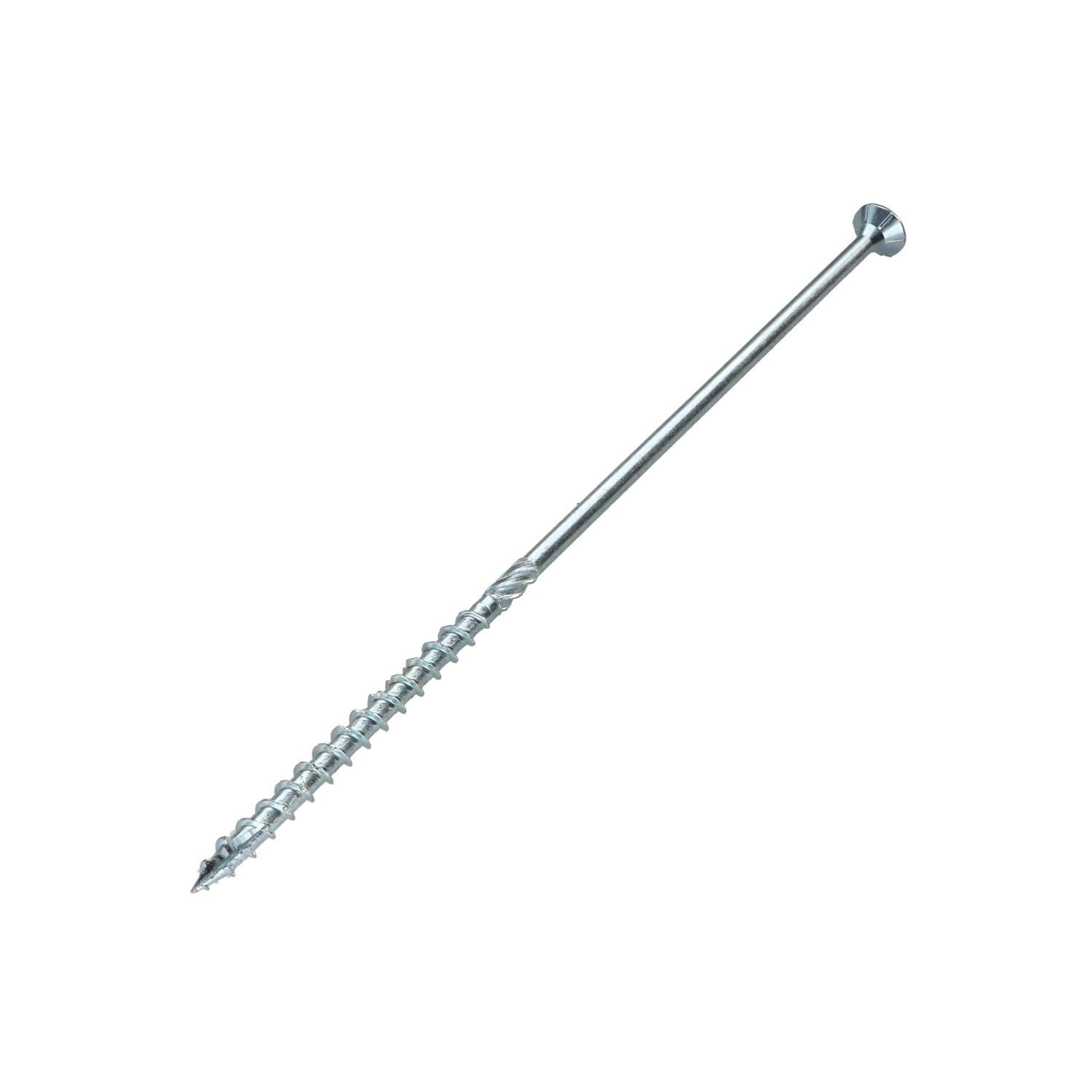

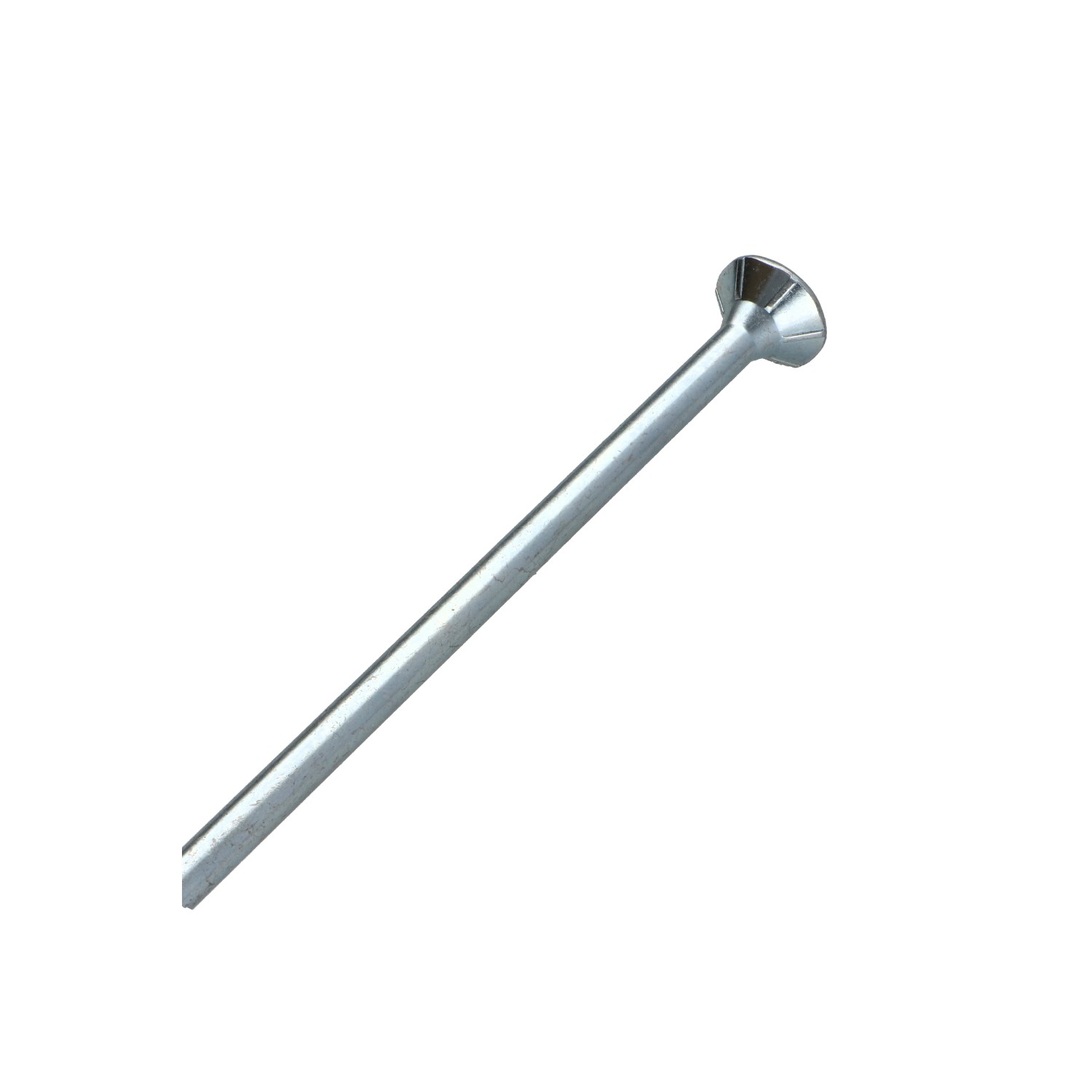

Framing screws TEKOR Countersunk Head With Serration T40 8X300 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

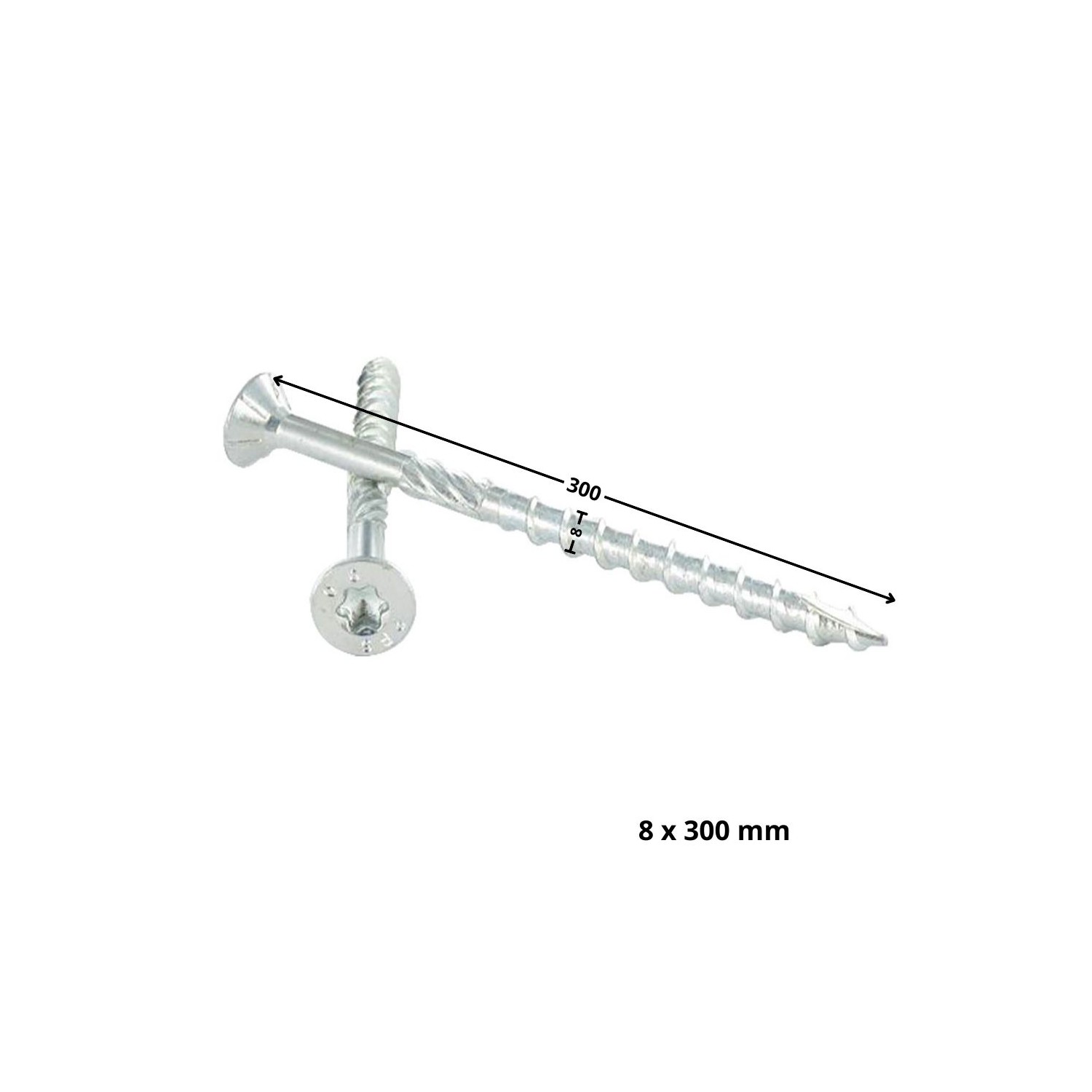

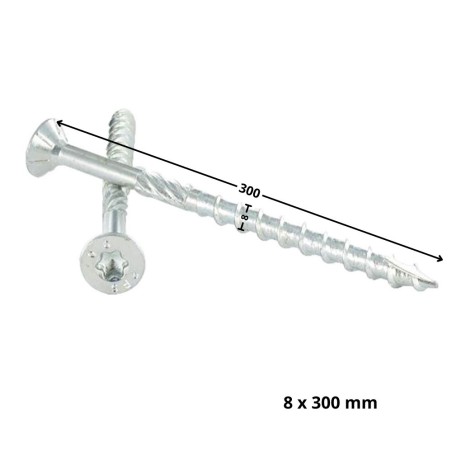

Dimensions shown in millimeters (mm)

Diameter
8
Length
300
Drive Type
Torx
Size Drive Type
T40
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Brand
Chipboard Screw Tekor
Product Family
Wood Screws
Sub product family
Countersunk Head
Tip
Drilling Point Type 17
Unit weight
64 GR
20083 Items
3663072202306

Application

  • Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
  • Timber frame construction: fixing of frame components and bracing
  • Assembly of pergolas, carports, shelters, wooden frames
  • Fixing panels to a wooden structure (OSB/CTBX)
Framing screws TEKOR Countersunk Head With Serration T40 8X300 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 300, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor


dimensional guide (mm)
Diameter 5 6 8 10
Head diameter 10 12 14 18

Other Reference : 3617500558633 08328 3663072202306
Gerard D. (vis-express.fr)
2026-05-03

Assemblage de planches en chêne


Julien C. (vis-express.fr)
2026-04-26

Assemblage d'une pergola Jonction entre deux pannes de 250mm


Julien B. (vis-express.fr)
2026-04-19

Fixation de poutre sur ferme


Manuel T. (vis-express.fr)
2026-04-12

This product will be used to screw horizontal purlins with a 15 x 15 cm cross-section onto vertical posts. It will also be used to fix rafters onto these horizontal purlins.


Arnaud B. (vis-express.fr)
2026-04-05

For supporting rafters, thickness 200
