1 x Framing screws TEKOR Countersunk Head With Serration T30 6X280 Thread Length: 100 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T30 6X280 Thread Length: 100 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T30 6X280 Thread Length: 100 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040628002
Price: 1.85 EUR
Availability: InStock

Reference 2040628002_1

In stock 1949 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	€1.85	€10.25	€30.75	€102.65	€390.20

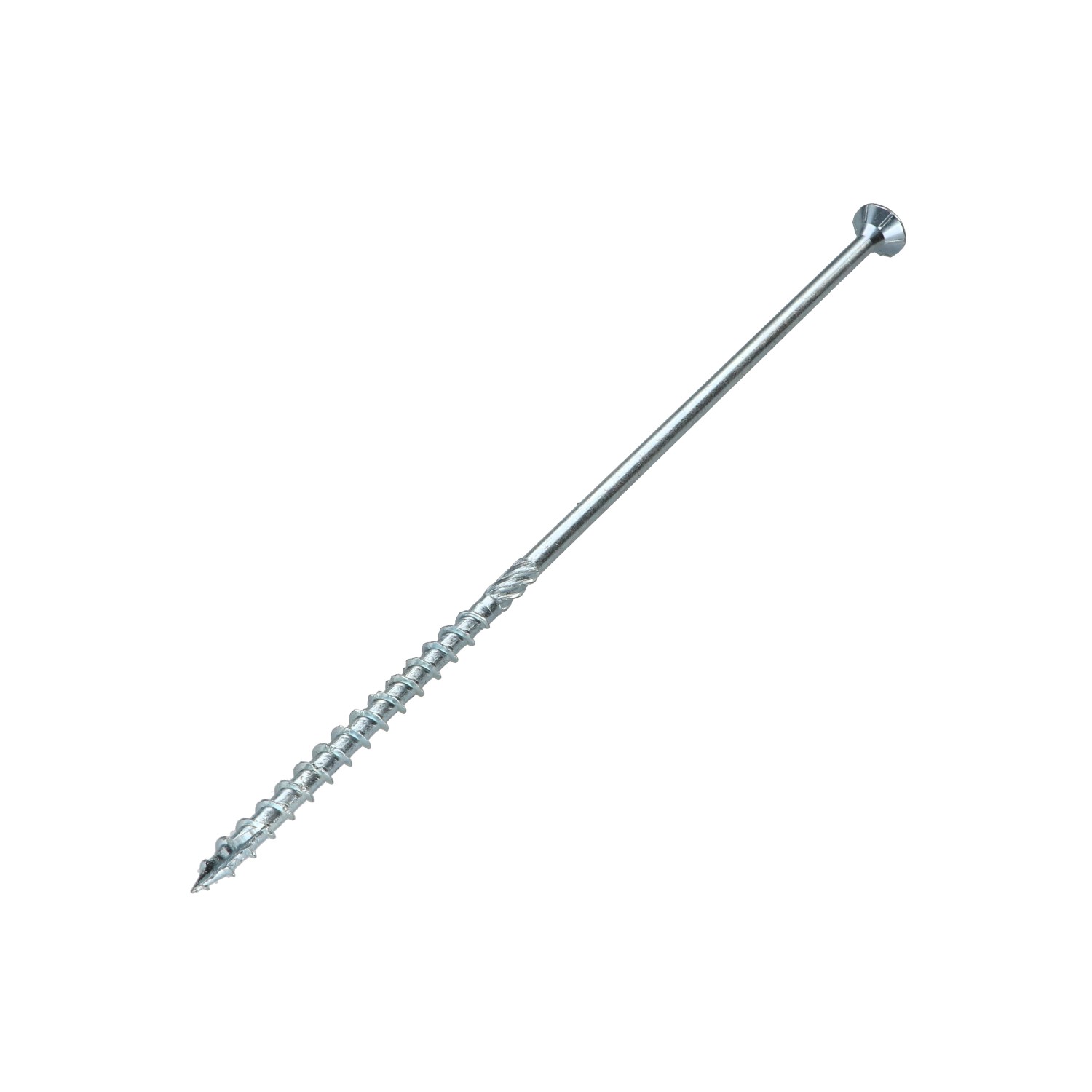

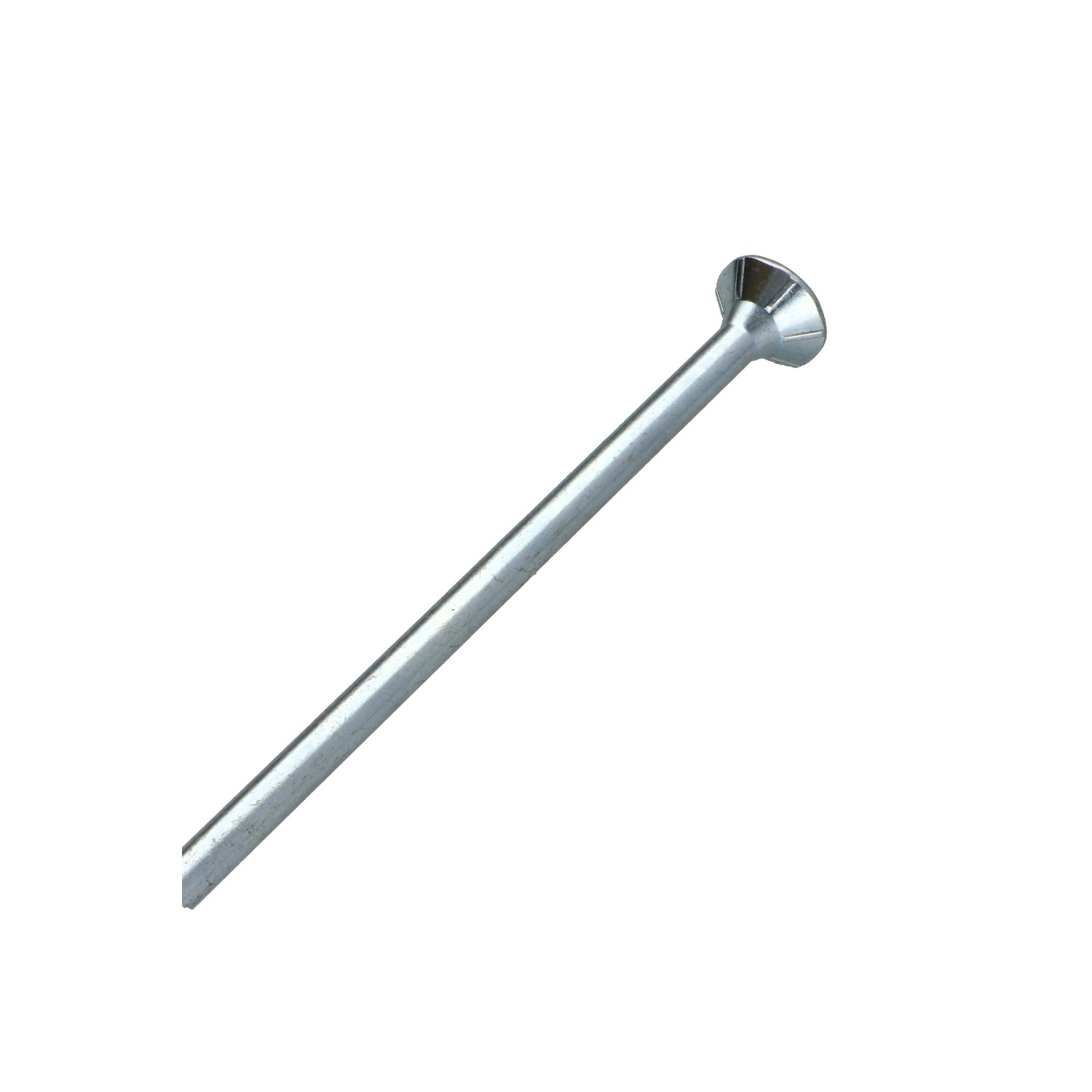

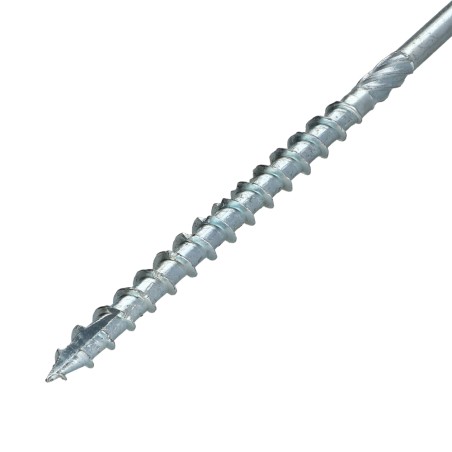

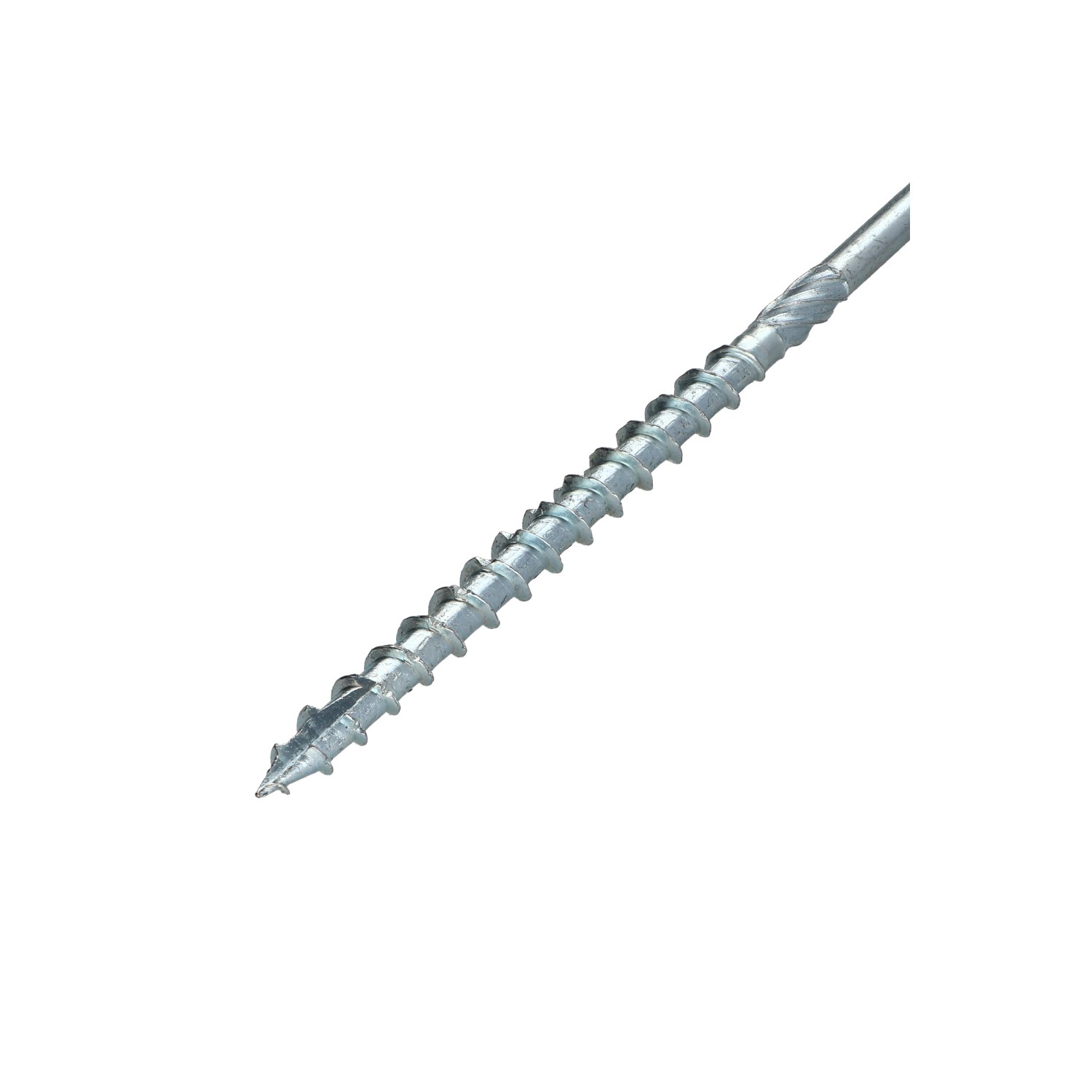

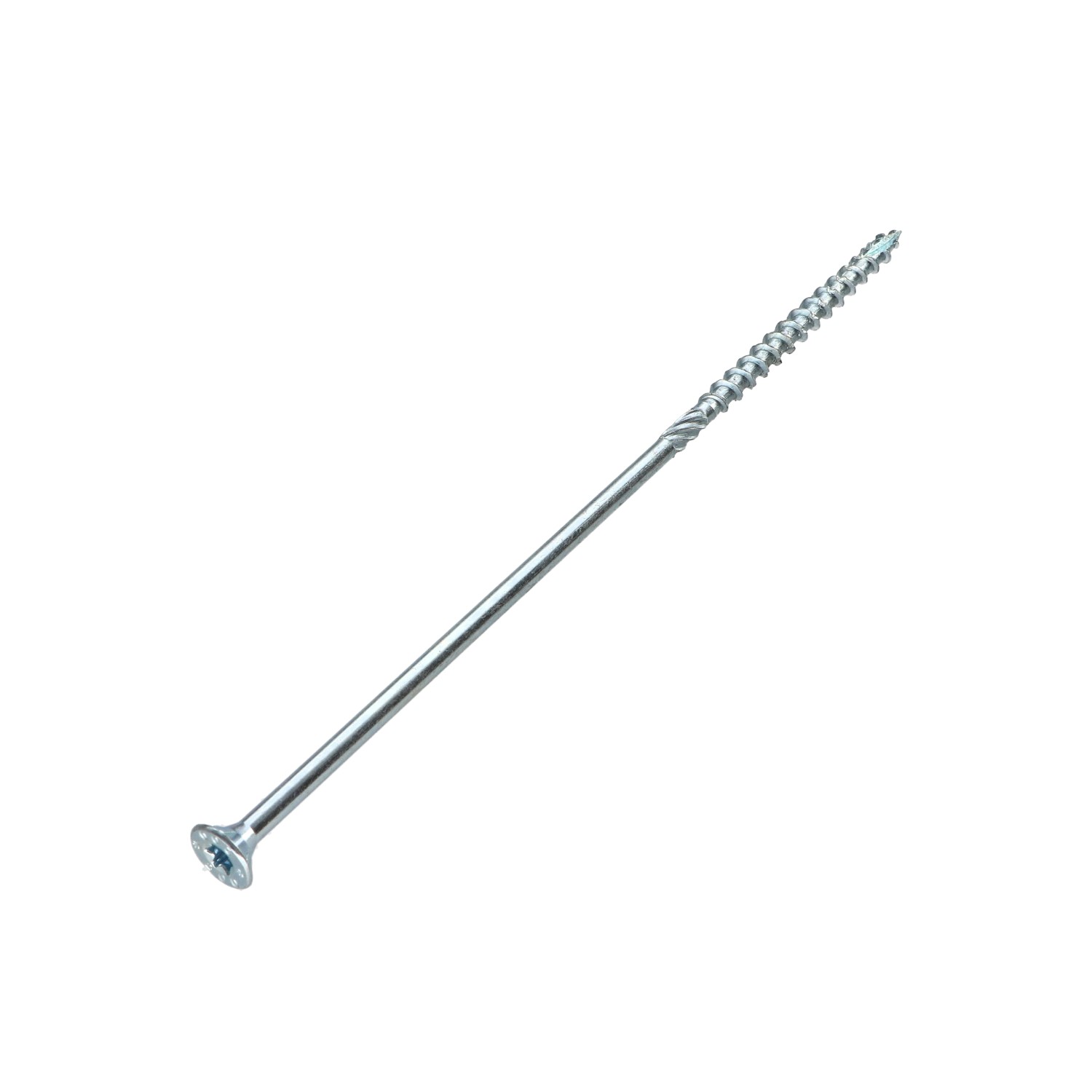

Framing screws TEKOR Countersunk Head With Serration T30 6X280 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
10 units
30 units
100 units
400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 6
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 280
Drive Type: Torx
Size Drive Type: T30
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head
Tip: Drilling Point Type 17
Unit weight: 34 GR

In stock 1949 Items

ean13 3663072227071

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T30 6X280 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 6, Length = 280, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T30, Brand = Chipboard Screw Tekor

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500813534 3663072227071

Use Cases

Rémi A. (vis-express.fr)
2026-04-12

Screwing battens into a frame with sandwich insulation Screwing battens into a frame with sandwich insulation

ReXoT R. (vis-express.fr)
2026-03-15

Starking roof batten fixing

valentin c. (vis-express.fr)
2026-03-15

Rafter fixing Rafters 200mm wide

Arnaud D. (vis-express.fr)
2025-09-21

insulation fixing rock wool fixing 2x130mm

Arnaud D. (vis-express.fr)
2025-09-21

Insulation panel fixing Rock wool insulation panel fixing 2x130mm

Amandine C. (vis-express.fr)
2025-08-31

Repairing a frame 10x10 wood

Amandine C. (vis-express.fr)
2025-08-31

Repairing a frame 10x10 wood

william d. (vis-express.fr)
2025-06-01

beam fixing Fixing an old 30x10 section frame to transform it into a pétanque playing area.

David B. (vis-express.fr)
2024-06-23

Fa tier fixing Fa tier monier tile
