3535001057_1
In stock 122827 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included £1.61 £3.21 £3.91 £23.00 £87.47
NFE 25513,NFE 25513 GRADE C - Washer Flat M10X36X2 LL ACIGEOM500A
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M10 (10,5 à 10,77 mm)
Diameter External
36 mm
Thickness
2 mm
Series (Washer)
Extra Large Serie
Material
Steel
Coating
GEOMET
COLOR
Grey Steel / Black
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
15 GR
122827 Items
3663072059023

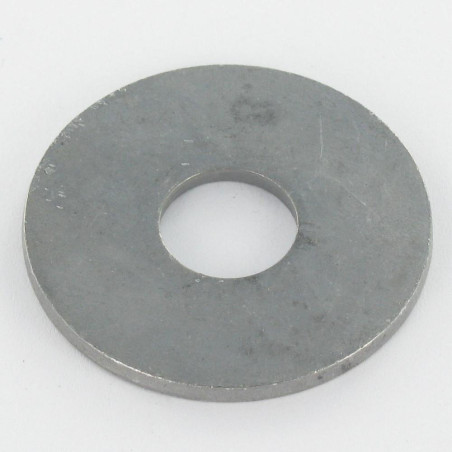

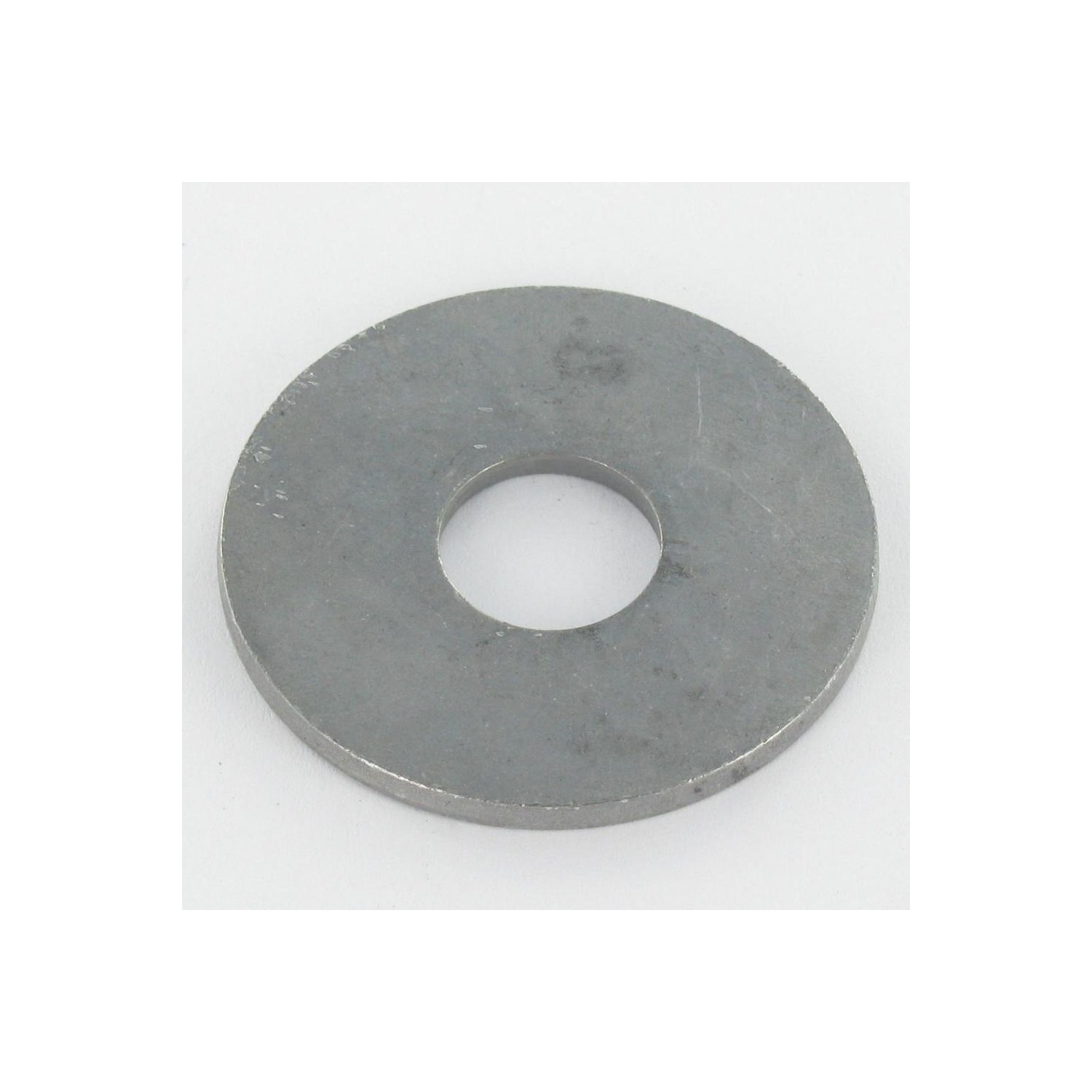

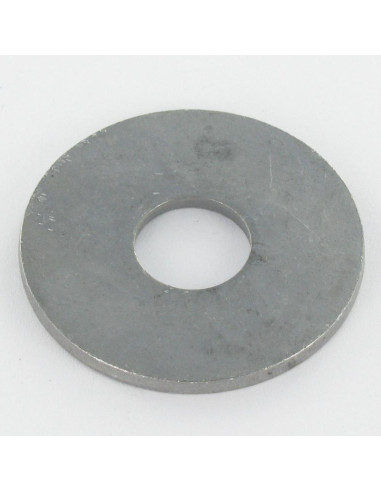

Washer Flat M10X36X2 LL ACIGEOM500A
Thickness = 2 MM, Norm = NFE 25513,VS-NFE25513 GRADE C

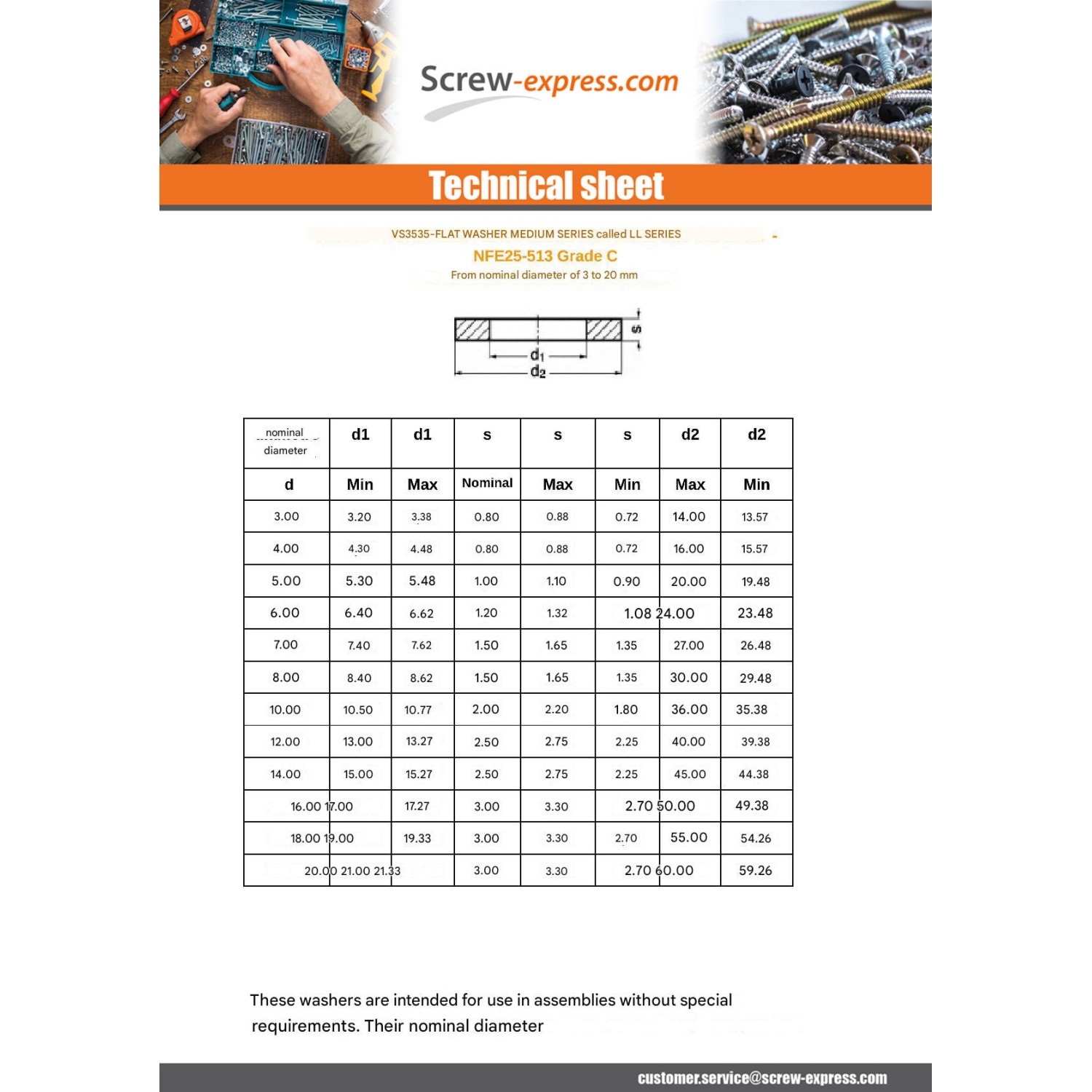

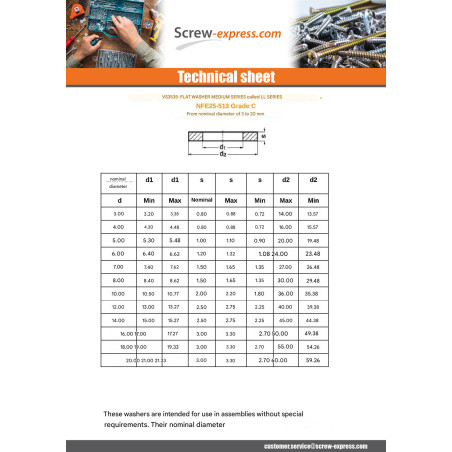

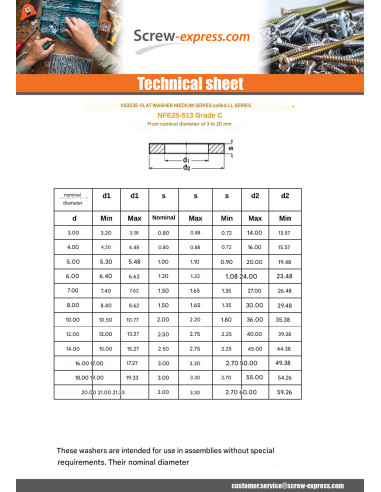

dimensional guide (mm)
Diameter M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20
Interior diameter 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21
Exterior diameter 16 20 24 27 30 36 40 45 50 55 60
Tickness 08 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3

Other Reference : 3617500069221 8651701 34-60196-11 3663072059023
