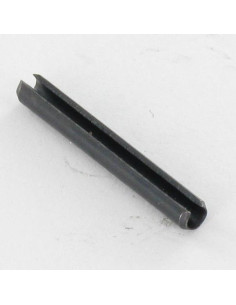

1 x Elastic Pin Steel 3X20 Thick Series

1 x Elastic Pin Steel 3X20 Thick Series

7090302001_1
In stock 13400 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €15.90
Elastic Pin Steel 3X20 Thick Series
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
3
Length
20
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN1481
Product Family
Pin
Sub product family
Elastic Pin
Unit weight
0.68 GR
13400 Items
3663072126015

Application

  • Assembly of mechanical parts
  • Positioning of shafts and hubs
  • Industrial machinery
  • General mechanics and maintenance
Elastic Pin Steel 3X20 Thick Series
Diameter = 3, Length = 20, Sub Product Family = Elastic Pin, Material = Steel, Norm = VS-DIN1481, Product Family = Pin


dimensional guide (mm)
diam tre du trou de per age 1 1.5 2 2.5 3 3.5 4 4.5 5 6 7 8 10 12 13 14 16 18 20 21 25 28 30 32 35 38 40
diam tre mini 1.2 1.7 2.3 2.8 3.3 4.4 4.9 5.4 6.4 7.45 8.5 8.5 10.5 12.5 13.4 14.5 16.5 18.5 20.5 21.5 25.5 28.5 30.5 32.5 35.5 38.5 40.5
diam rtre maxi 1.3 1.8 2.4 2.9 3.5 4 4.6 5.1 5.6 6.7 7.8 8.8 10.8 12.8 13.8 14.8 16.8 18.9 20.9 21.9 25.9 - - - - - -
paisseur 0.2 0.3 0.4 0.5 0.6 0.75 0.8 1 1 1.2 1.2 1.5 2 2.5 2.5 3 3 3.5 4 4 5 5.5 6 6 7 7.5 7.5

Other Reference : 3473576905661 GPIMECAN3/20 115/G002 GE3X20A /AN 11895 A1300061 33700 52103020 L301020006 A810264 A538726000 A1300061 GM3320 100160 0014371/100 QUGOUP.ME.03 35090 9627 003112 G3X20E B60.09674 086123 086123 103875 3663072126015
