4515815002_1
In stock 374 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.85 €7.70 €11.10 €25.30

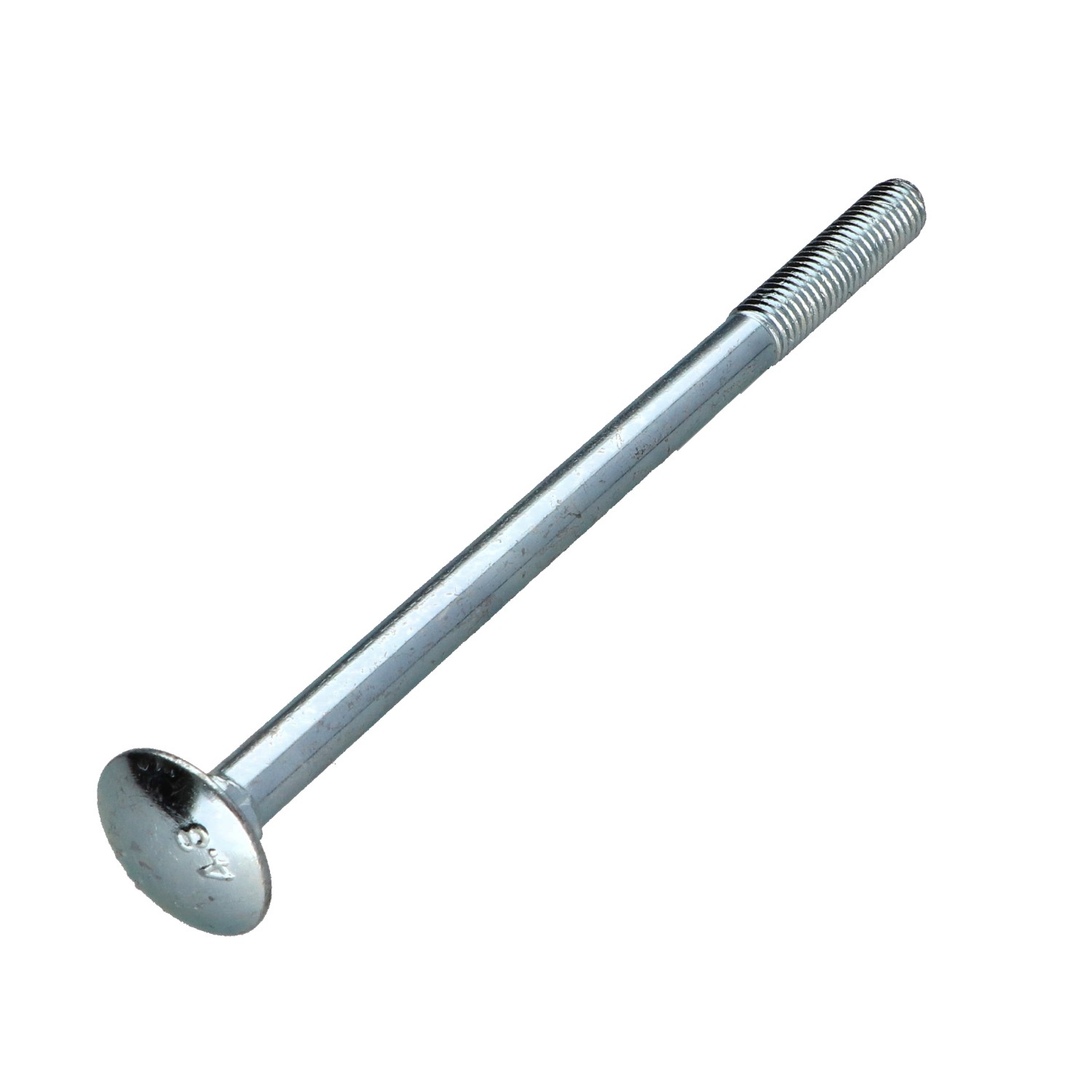

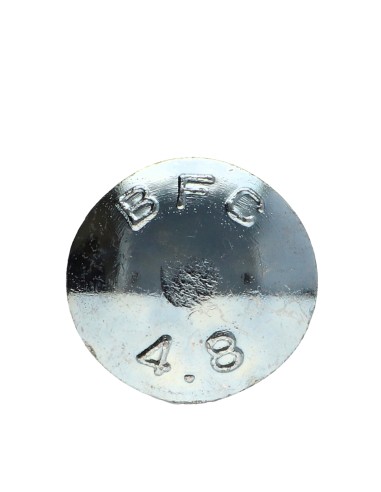

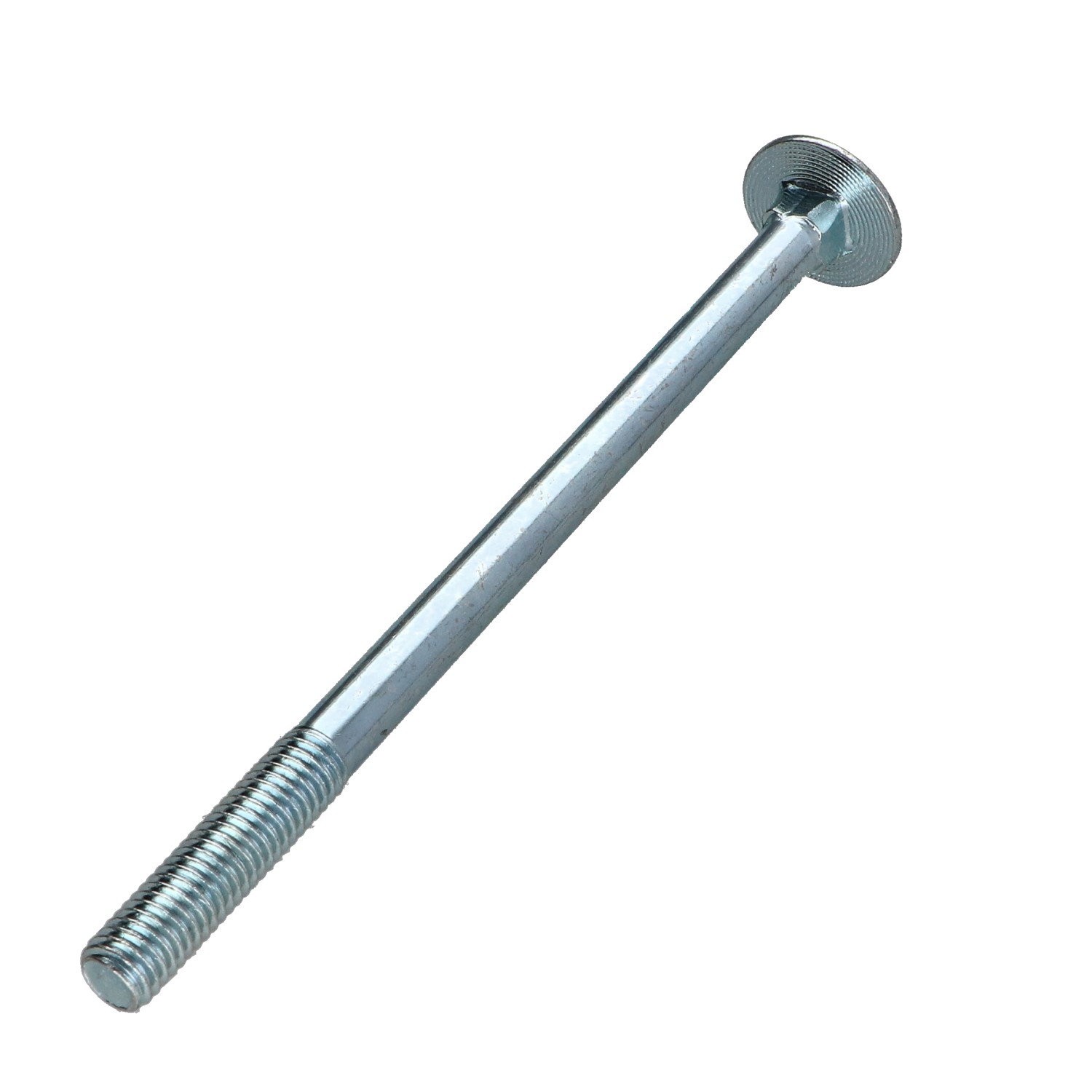

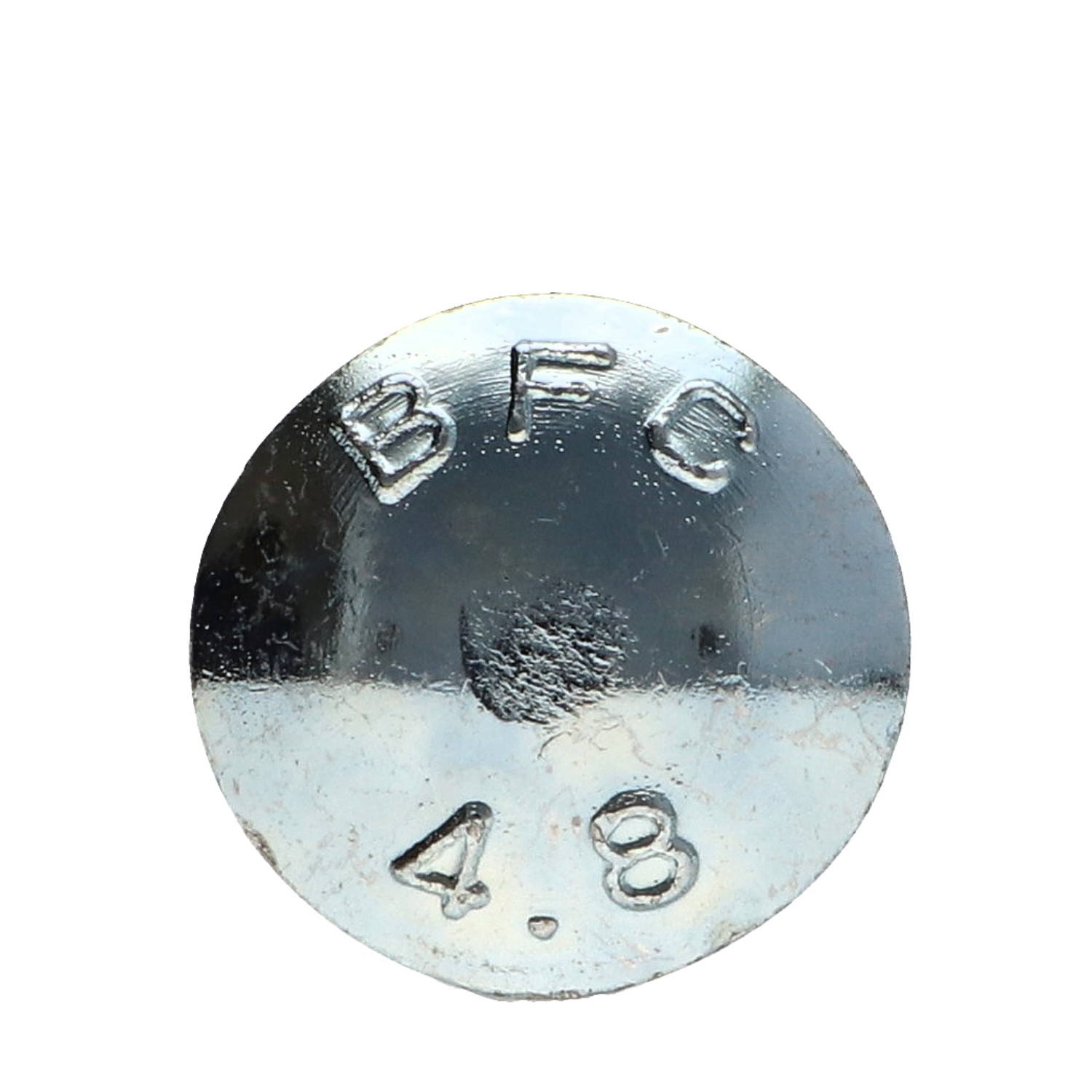

DIN603 FP VS4515 - Carriage Bolt M8X150 Thread Length: 28 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
150
Thread
Partial Thread
Pitch
Standard pitch 125
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
54 GR
374 Items
3663072177321
Carriage Bolt M8X150 Thread Length: 28 Partial Thread Zinc Plated
Diameter = M8, Length = 150, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 8056689382946 3663072177321
