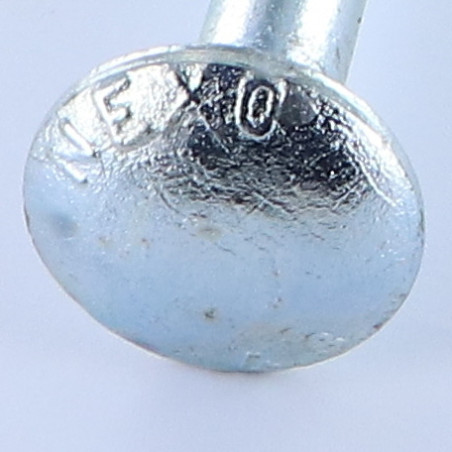

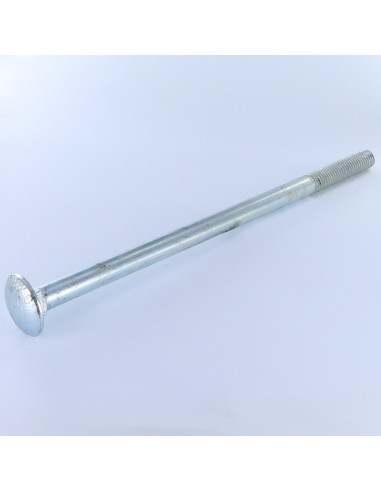

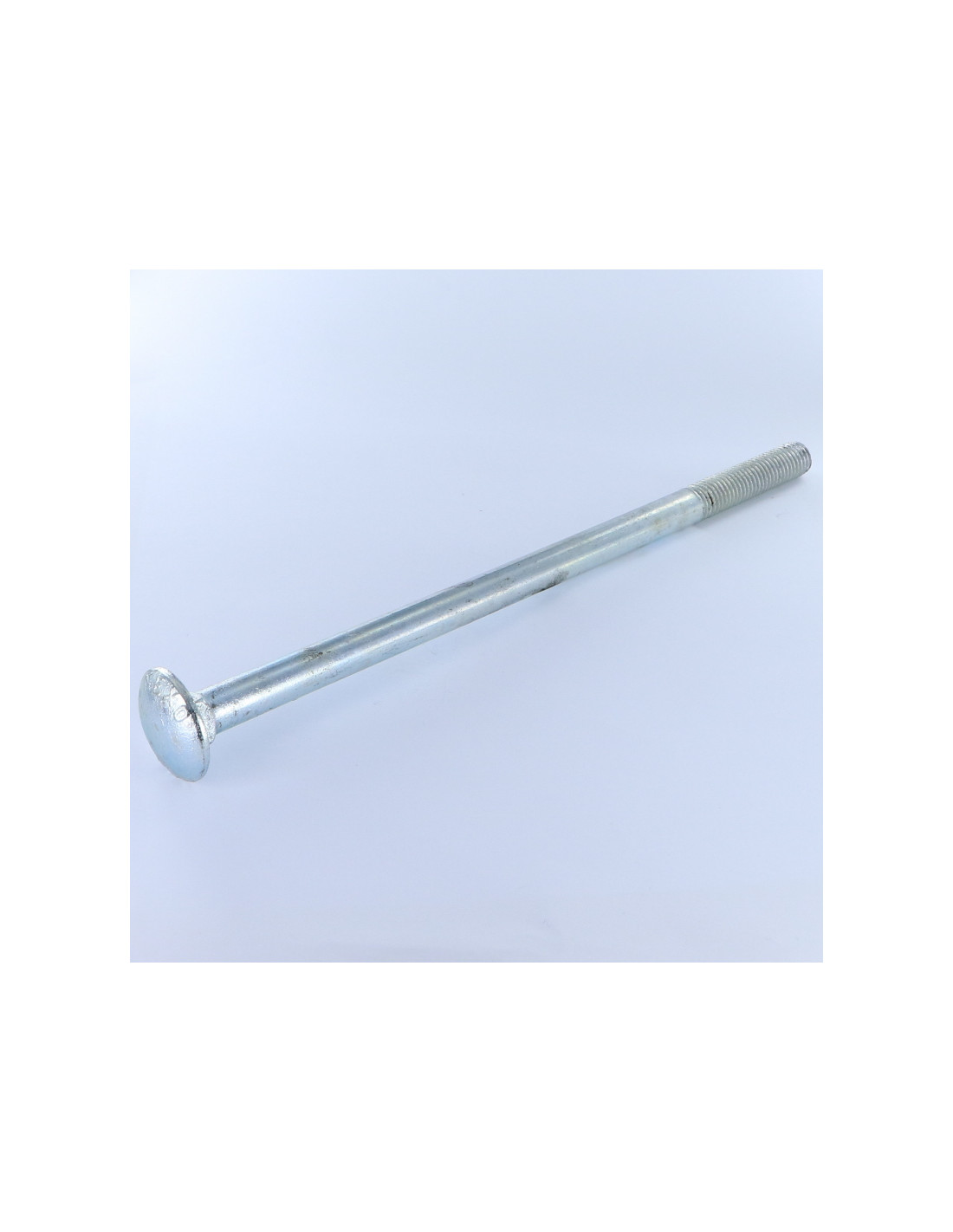

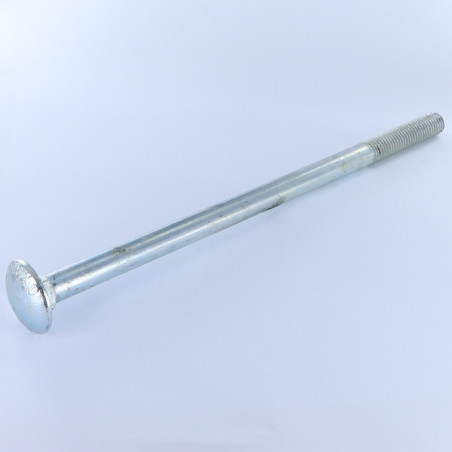

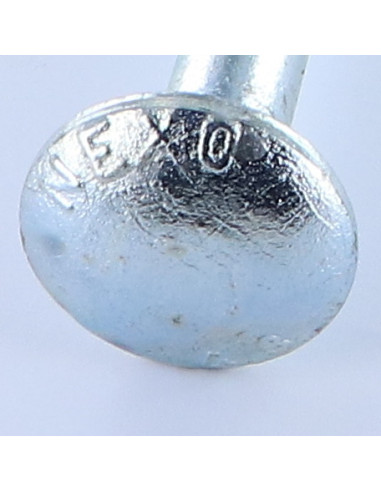

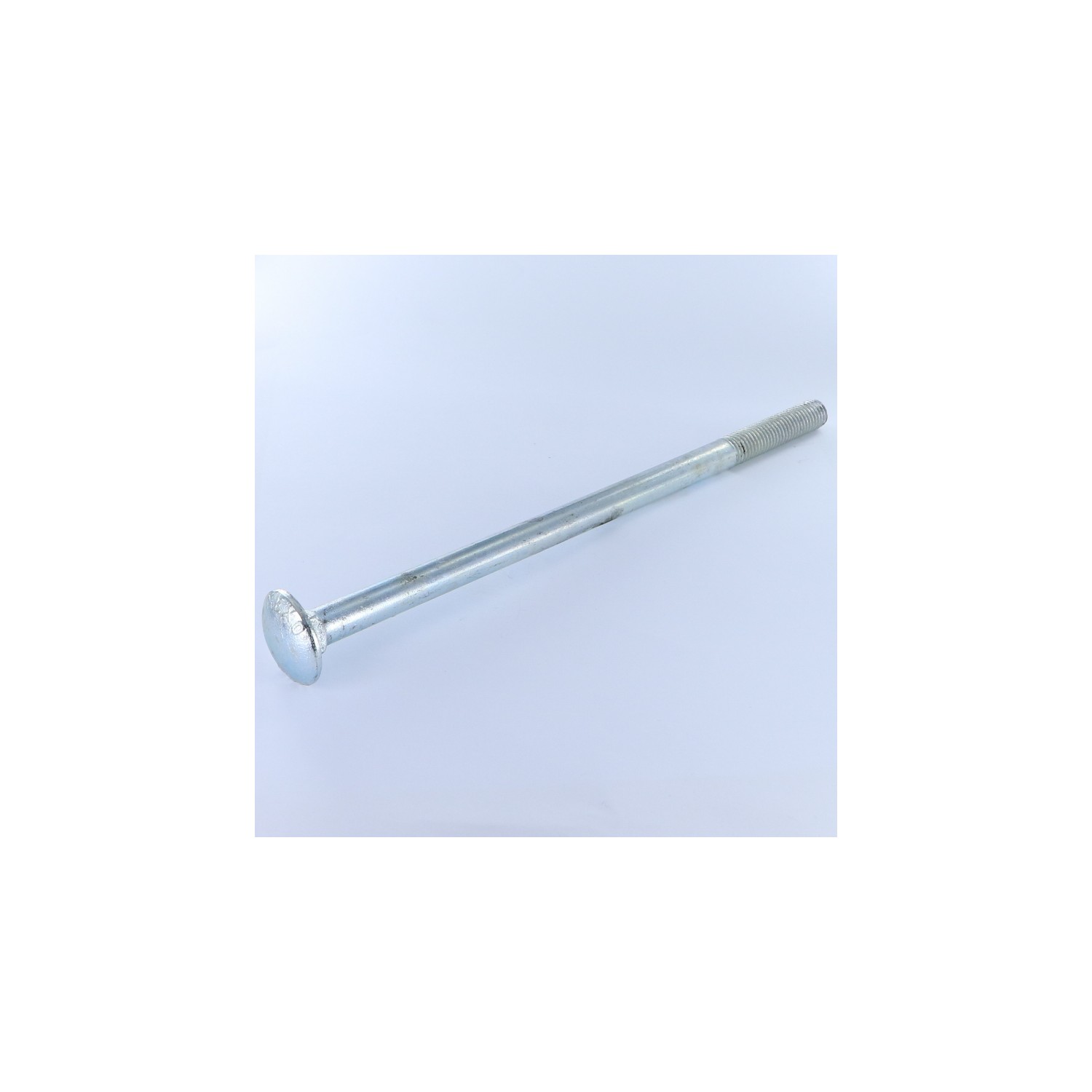

1 x Carriage Bolt M12X325 Partial Thread Zinc Plated
1 x Carriage Bolt M12X325 Partial Thread Zinc Plated
1 x Carriage Bolt M12X325 Partial Thread Zinc Plated
1 x Carriage Bolt M12X325 Partial Thread Zinc...
1 x Carriage Bolt M12X325 Partial Thread Zinc...
1 x Carriage Bolt M12X325 Partial Thread Zinc...

1 x Carriage Bolt M12X325 Partial Thread Zinc Plated

4515133202_1
Available within 10 working days
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 12
Lot price VAT included €3.85 €7.70 €12.75 €15.30
DIN603 FP VS4515 - Carriage Bolt M12X325 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 12 units

Dimensions shown in millimeters (mm)

Diameter
M12
Length
325
Thread
Partial Thread
Pitch
Standard pitch 175
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
12X12X8.75
Diameter in mm
11,966 - 11,718
Unit weight
290 GR
3663072057647
Carriage Bolt M12X325 Partial Thread Zinc Plated
Diameter = M12, Length = 325, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 175, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter567810121416
Head diameter13.516.51820.524.530.53239
Head Tickness3.33.94.855.47109

Other Reference : 3617501233652 FIX000017 3663072057647
