4515611002_1
In stock 624 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €4.25 €8.45 €10.20 €26.10

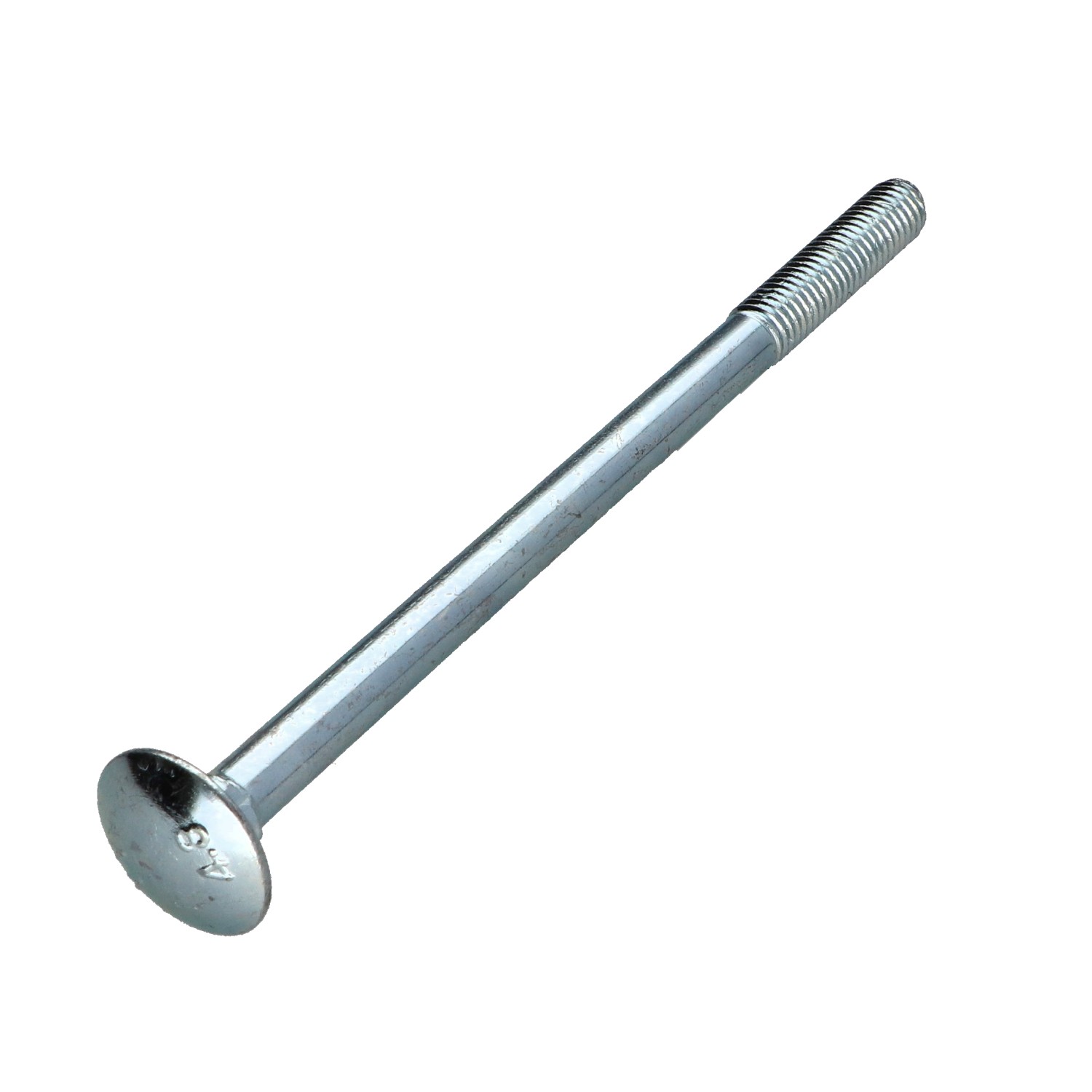

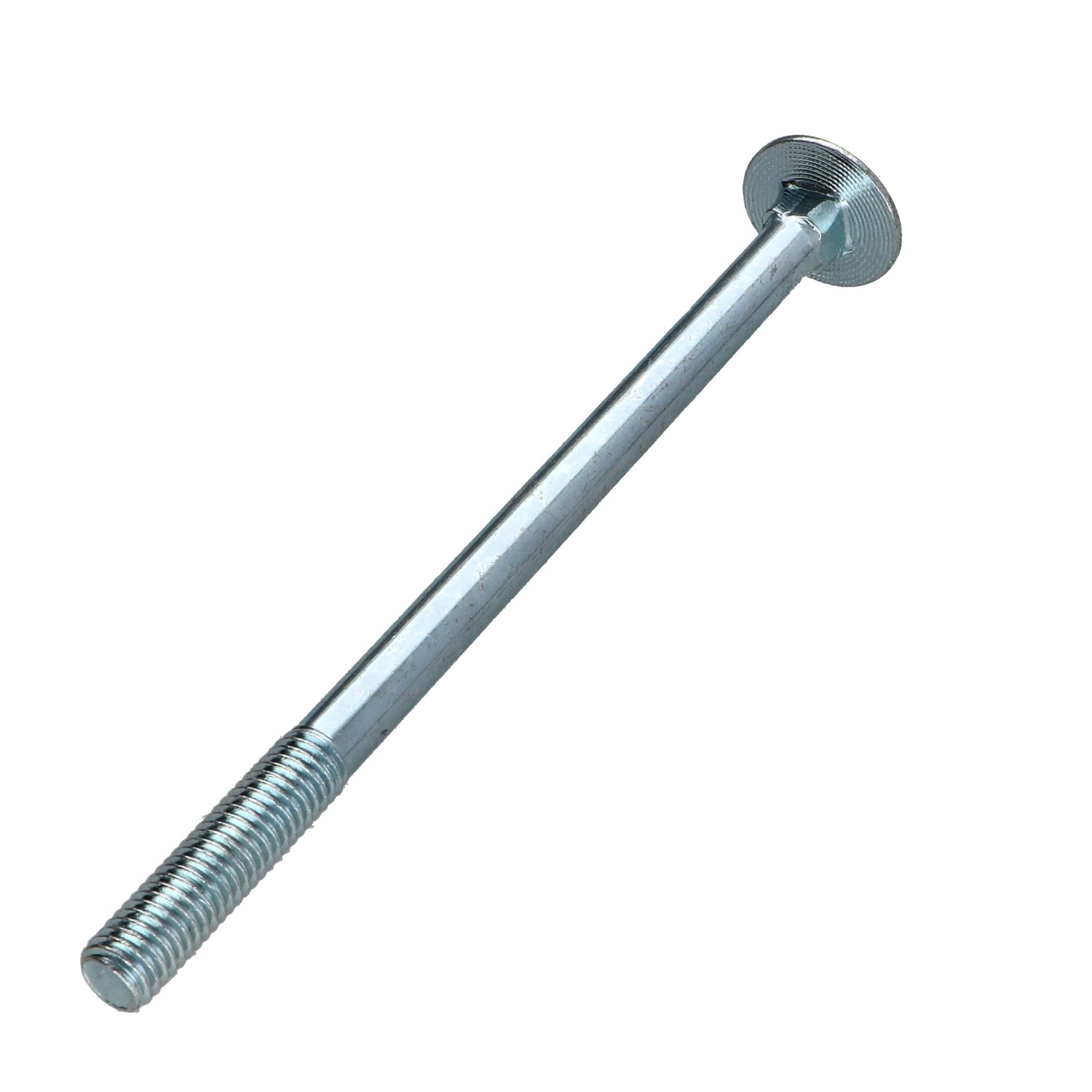

DIN603 FP VS4515 - Carriage Bolt M6X110 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M6
Length
110
Thread
Partial Thread
Pitch
Standard pitch 100
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
6X6X4.6
Diameter in mm
5,974 - 5,794
Unit weight
22.3 GR
624 Items
3663072336117
Carriage Bolt M6X110 Partial Thread Zinc Plated
Diameter = M6, Length = 110, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 100, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 0000058653 3663072336117
