1 x Carriage Bolt M12X150 Partial Thread Zinc Plated
1 x Carriage Bolt M12X150 Partial Thread Zinc Plated
1 x Carriage Bolt M12X150 Partial Thread Zinc Plated
1 x Carriage Bolt M12X150 Partial Thread Zinc...
1 x Carriage Bolt M12X150 Partial Thread Zinc...
1 x Carriage Bolt M12X150 Partial Thread Zinc...

1 x Carriage Bolt M12X150 Partial Thread Zinc Plated

4515131502_1
In stock 198 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €3.85 €7.70 €11.40 €28.55
DIN603 FP VS4515 - Carriage Bolt M12X150 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

Dimensions shown in millimeters (mm)

Diameter
M12
Length
150
Thread
Partial Thread
Pitch
Standard pitch 175
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
12X12X8.75
Diameter in mm
11,966 - 11,718
Unit weight
133.4 GR
198 Items
3663072457089

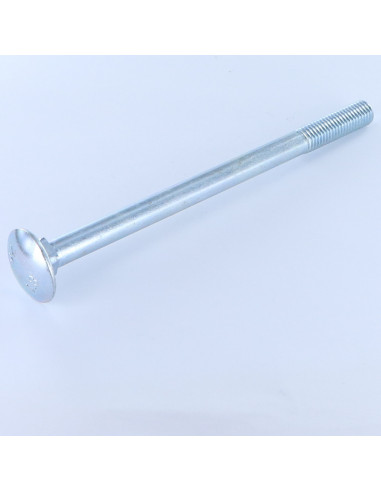

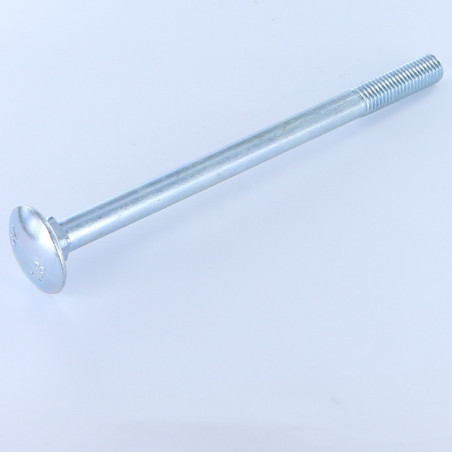

Carriage Bolt M12X150 Partial Thread Zinc Plated
Diameter = M12, Length = 150, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 175, Norm = DIN603 Partial Thread VS4515

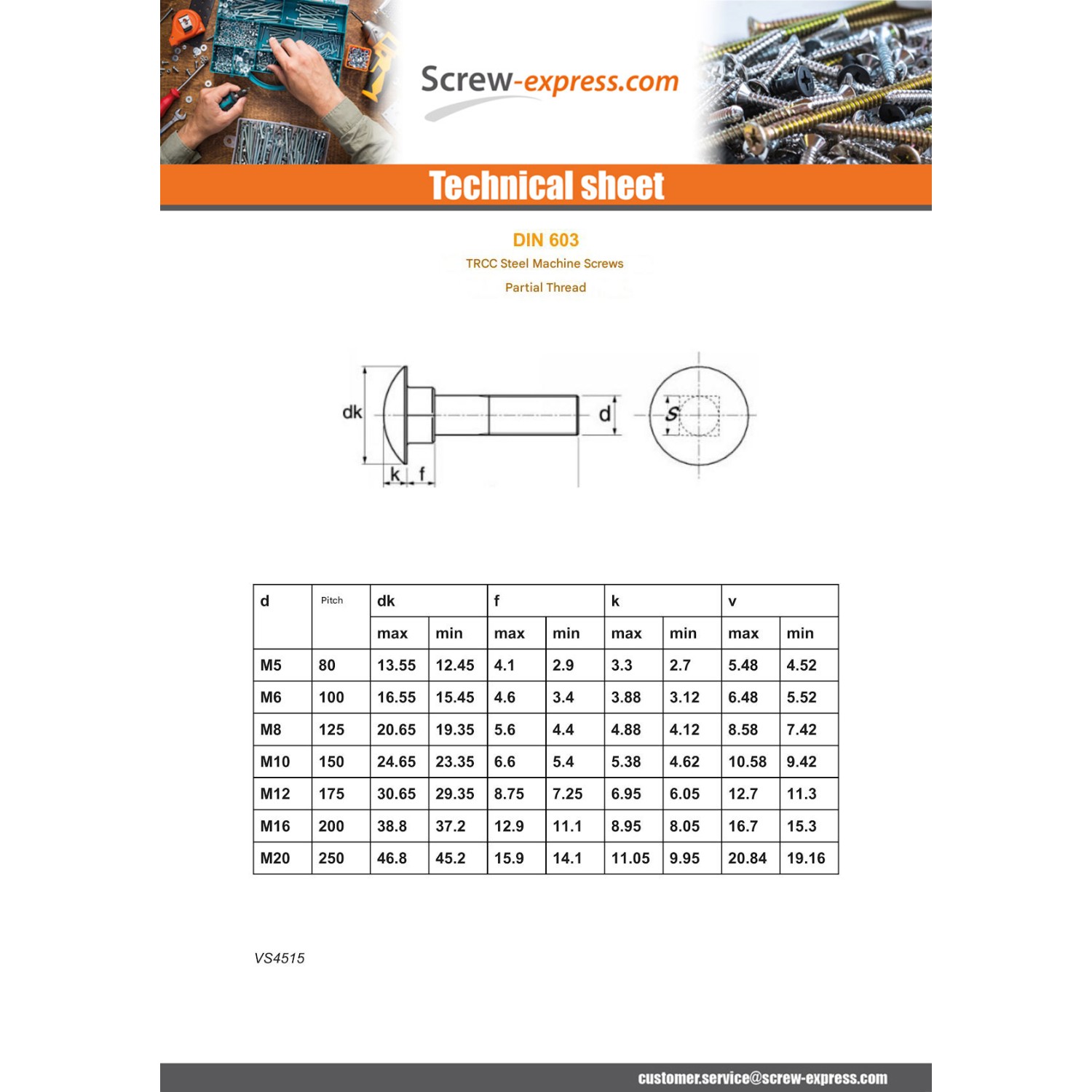

dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501111127 3663072457089
Guillaume M. (vis-express.fr)
2026-07-19

This product is for assembling the uprights for an outdoor table An outdoor table made of oak


Guillaume B. (vis-express.fr)
2026-01-25

Screws for attaching the wheels to the e Ransome mp493 ride-on mower
