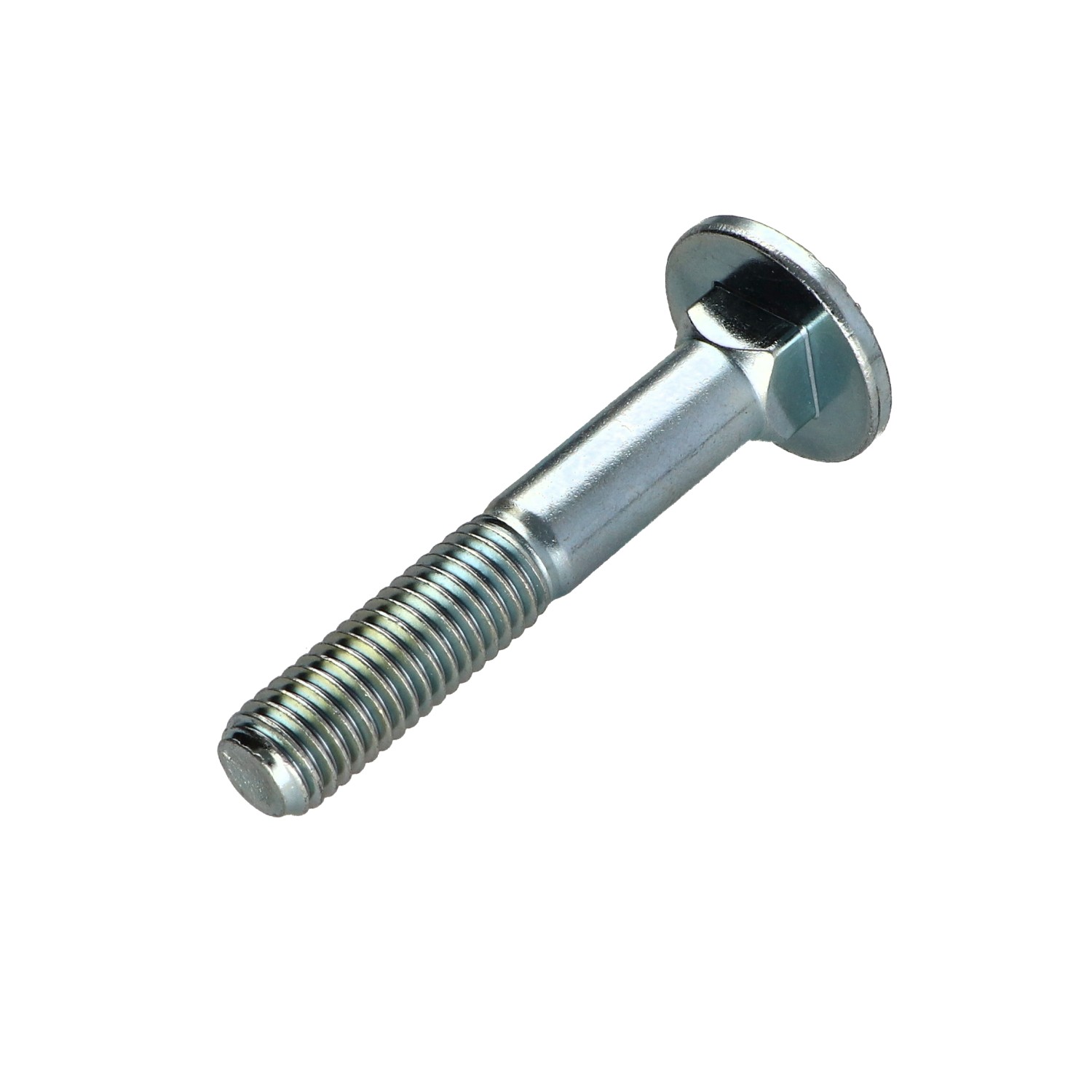

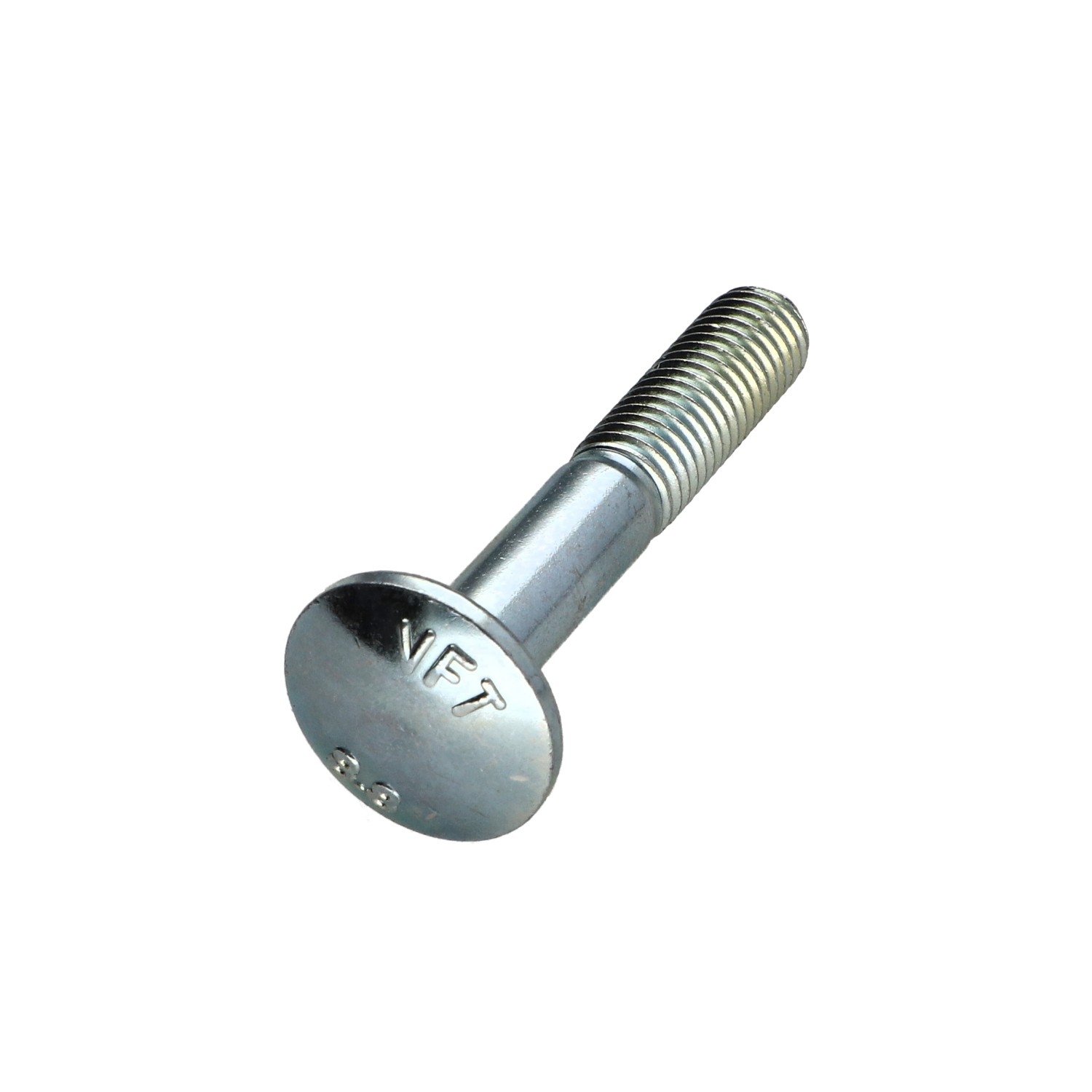

1 x Carriage Bolt M16X70 Partial Thread Zinc Plated
1 x Carriage Bolt M16X70 Partial Thread Zinc Plated
1 x Carriage Bolt M16X70 Partial Thread Zinc Plated
1 x Carriage Bolt M16X70 Partial Thread Zinc...
1 x Carriage Bolt M16X70 Partial Thread Zinc...
1 x Carriage Bolt M16X70 Partial Thread Zinc...

1 x Carriage Bolt M16X70 Partial Thread Zinc Plated

4515167002_1
In stock 73 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €4.25 €10.70 €21.40 €53.55
DIN603 FP VS4515 - Carriage Bolt M16X70 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M16
Length
70
Thread
Partial Thread
Pitch
Standard pitch 200
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
16X16X12.9
Diameter in mm
15,962 - 15,692
Unit weight
147 GR
73 Items
3663072061378
Carriage Bolt M16X70 Partial Thread Zinc Plated
Diameter = M16, Length = 70, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 200, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501098480 VTRCC10X70 3663072061378
