4515809002_1
In stock 1790 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.85 €7.70 €7.70 €18.70

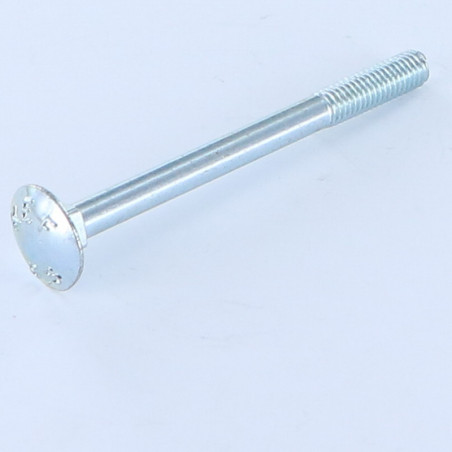

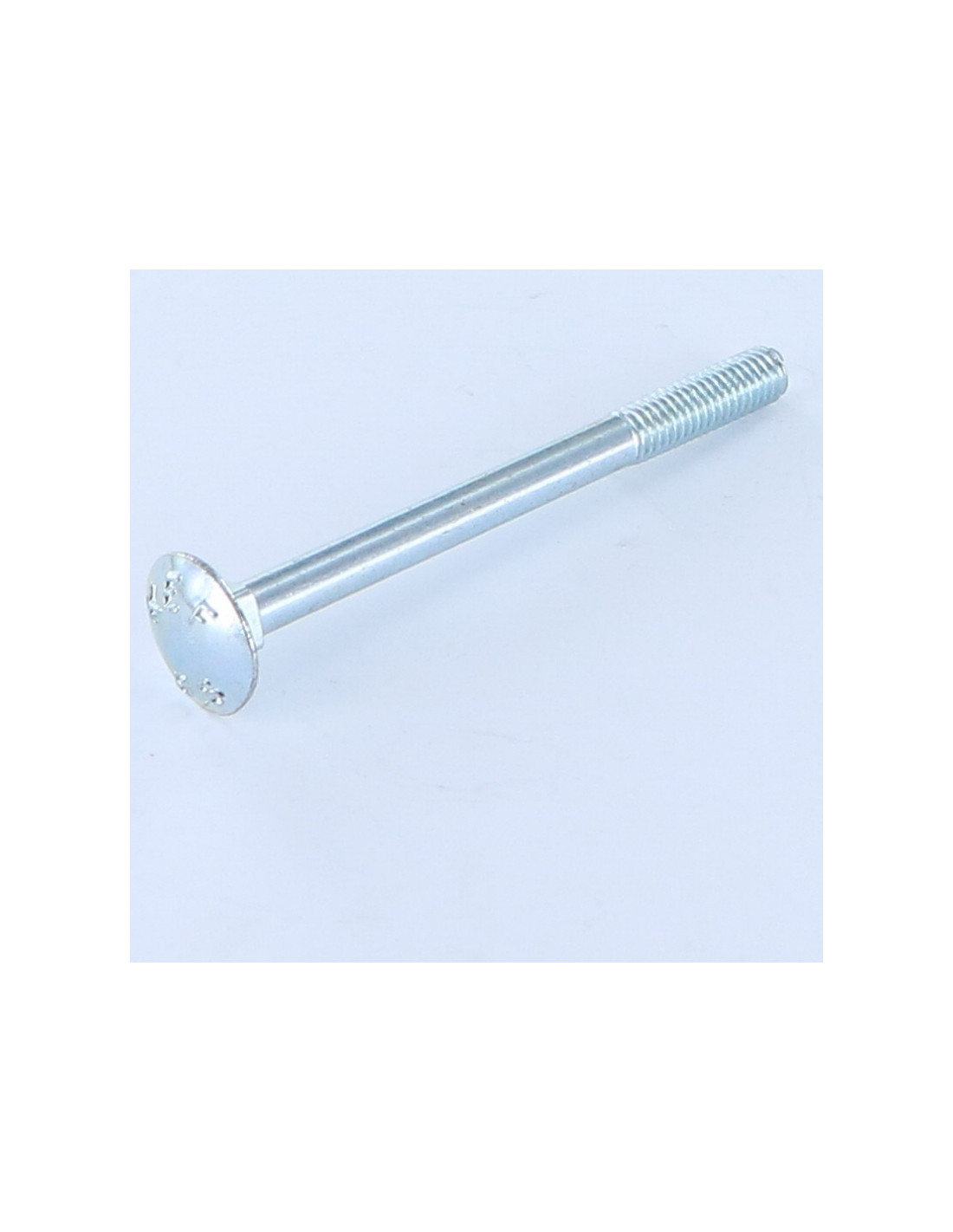

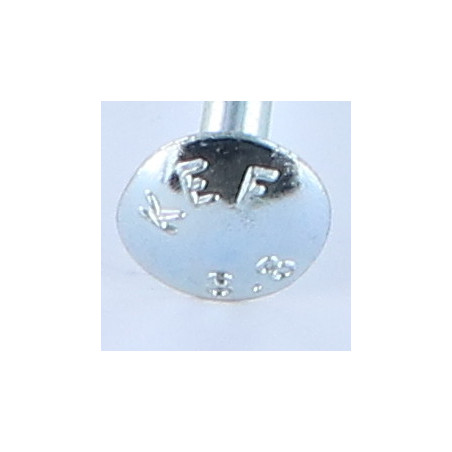

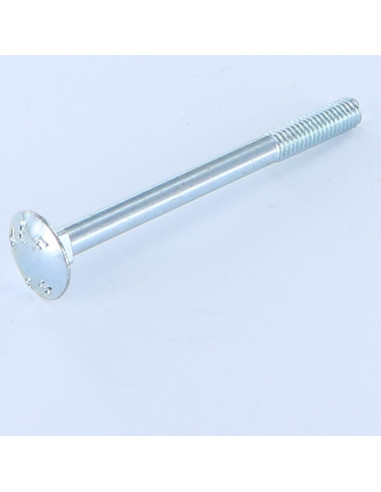

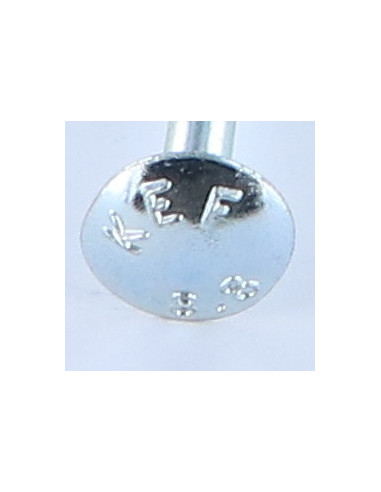

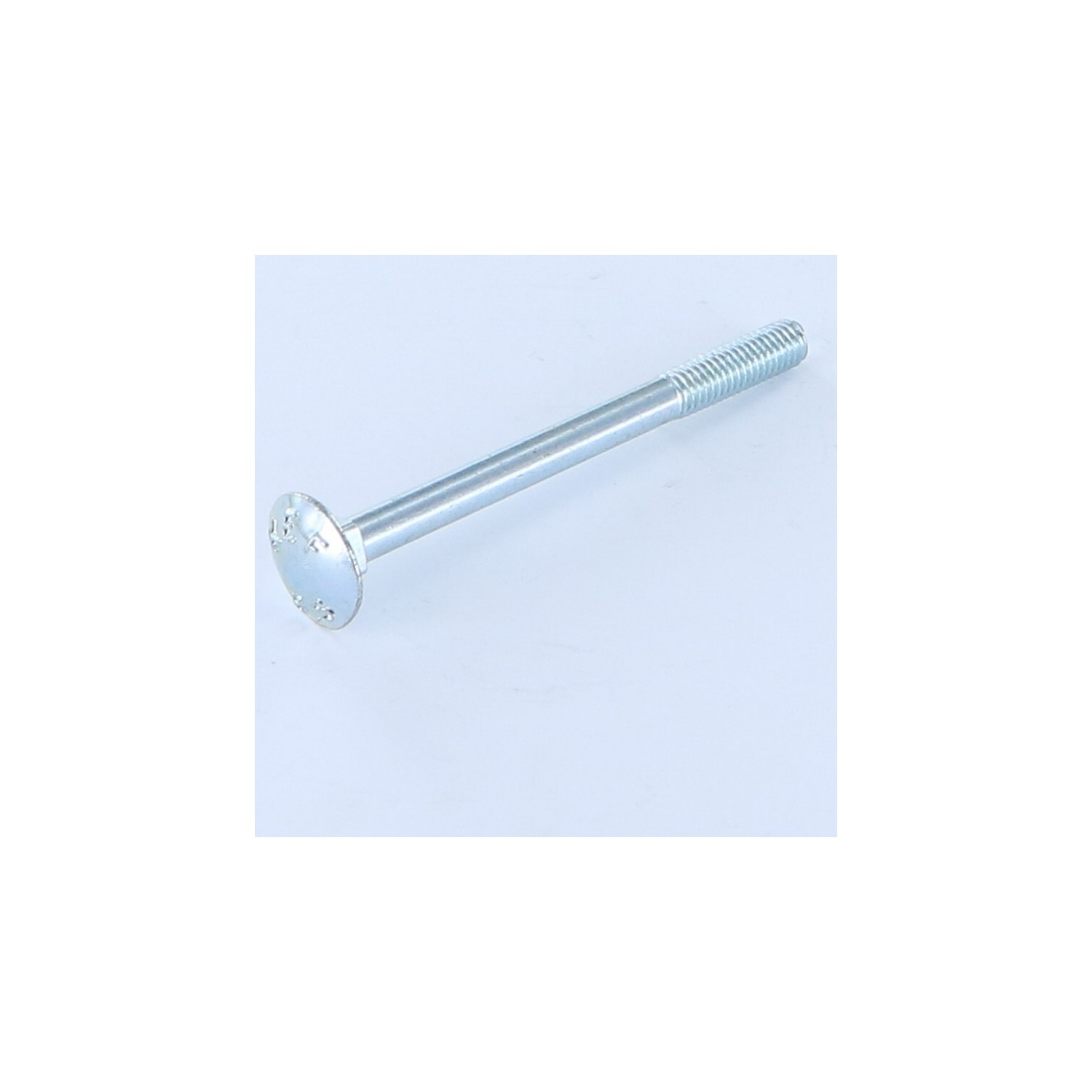

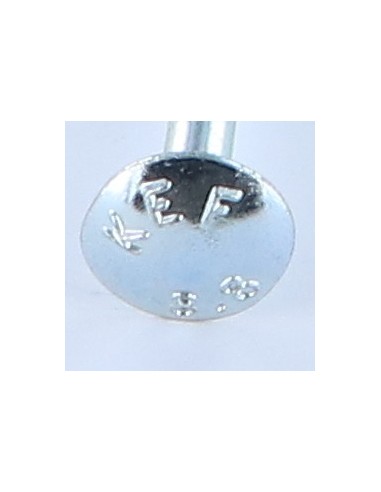

DIN603 FP VS4515 - Carriage Bolt M8X90 Thread Length: 22 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
90
Thread
Partial Thread
Pitch
Standard pitch 125
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
35.62 GR
1790 Items
3663072122208
Carriage Bolt M8X90 Thread Length: 22 Partial Thread Zinc Plated
Diameter = M8, Length = 90, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501650114 3663072122208
Salamandre A. (vis-express.fr)
2026-04-12

These screws will be used to fix a wooden railing to ground mounting plates. TRCC JAPY round head square neck M8X90 Thread on 22 Partial thread Zinc-plated steel
