4515111602_1
In stock 28953 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25 100
Lot price VAT included €1.85 €3.70 €4.90 €12.30 €44.75
DIN603 FP VS4515 - Carriage Bolt M10X160 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
160
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
104.9 GR
28953 Items
3663072243460

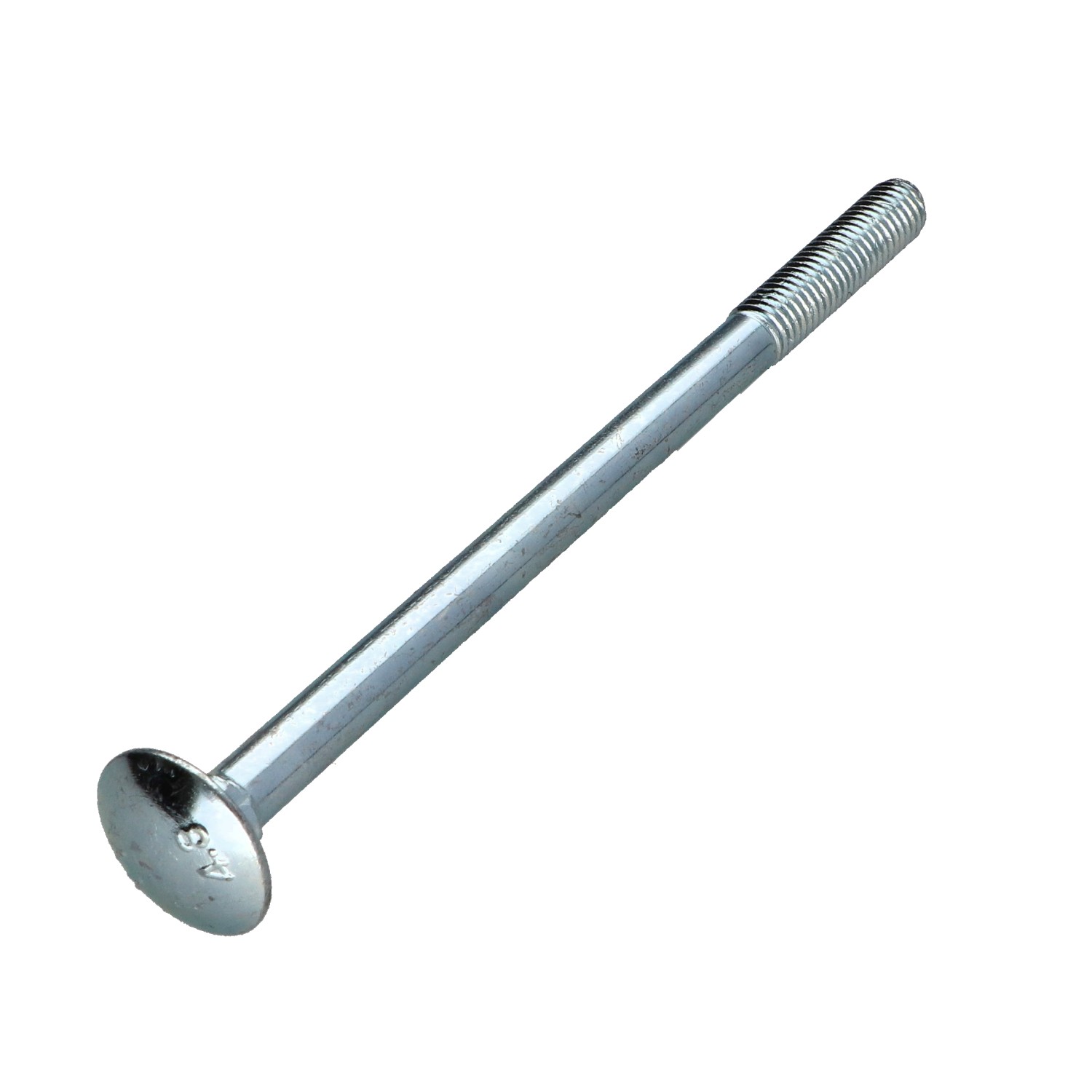

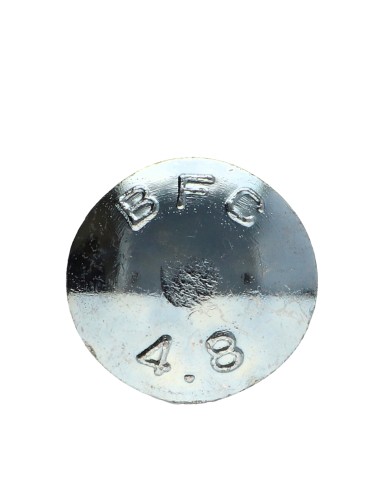

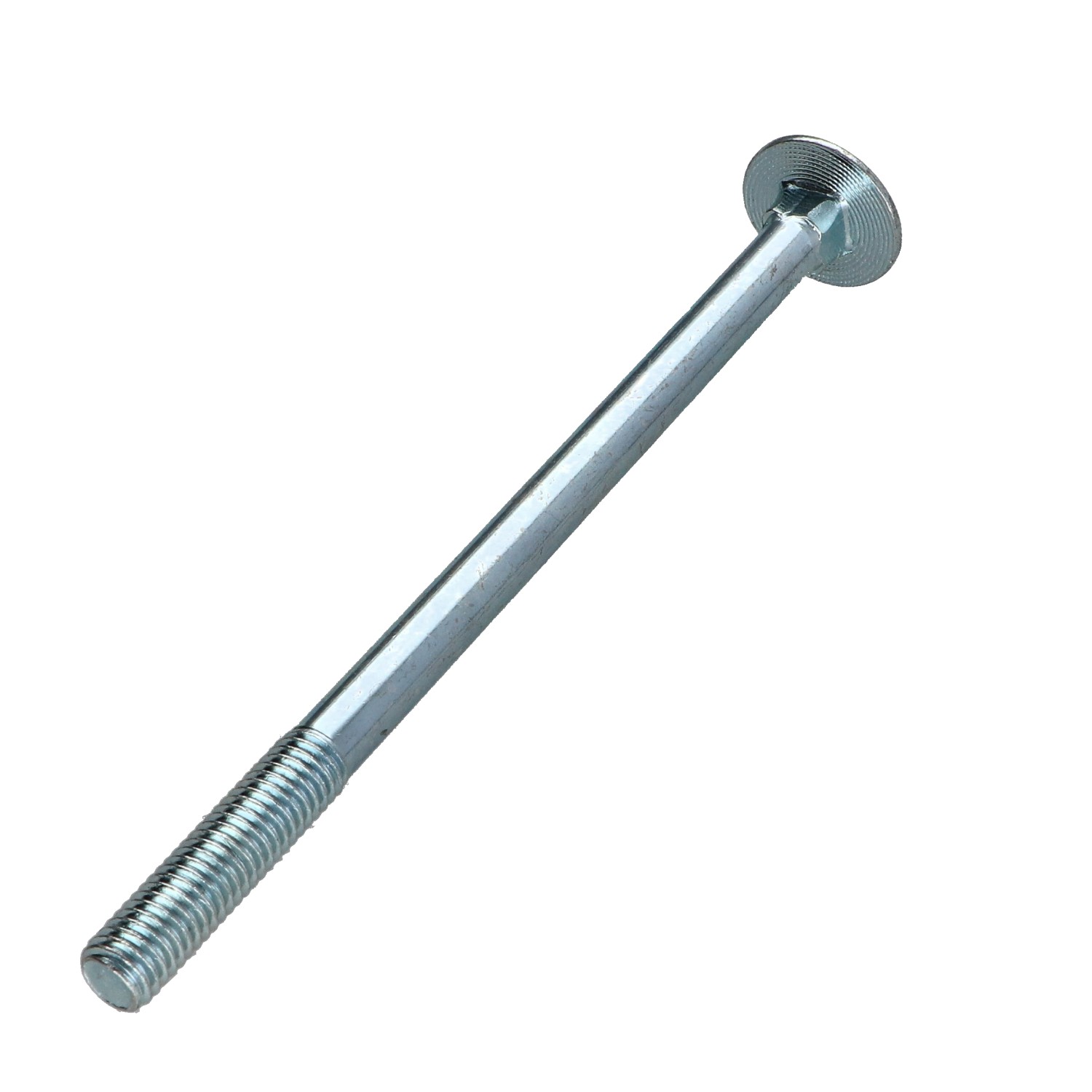

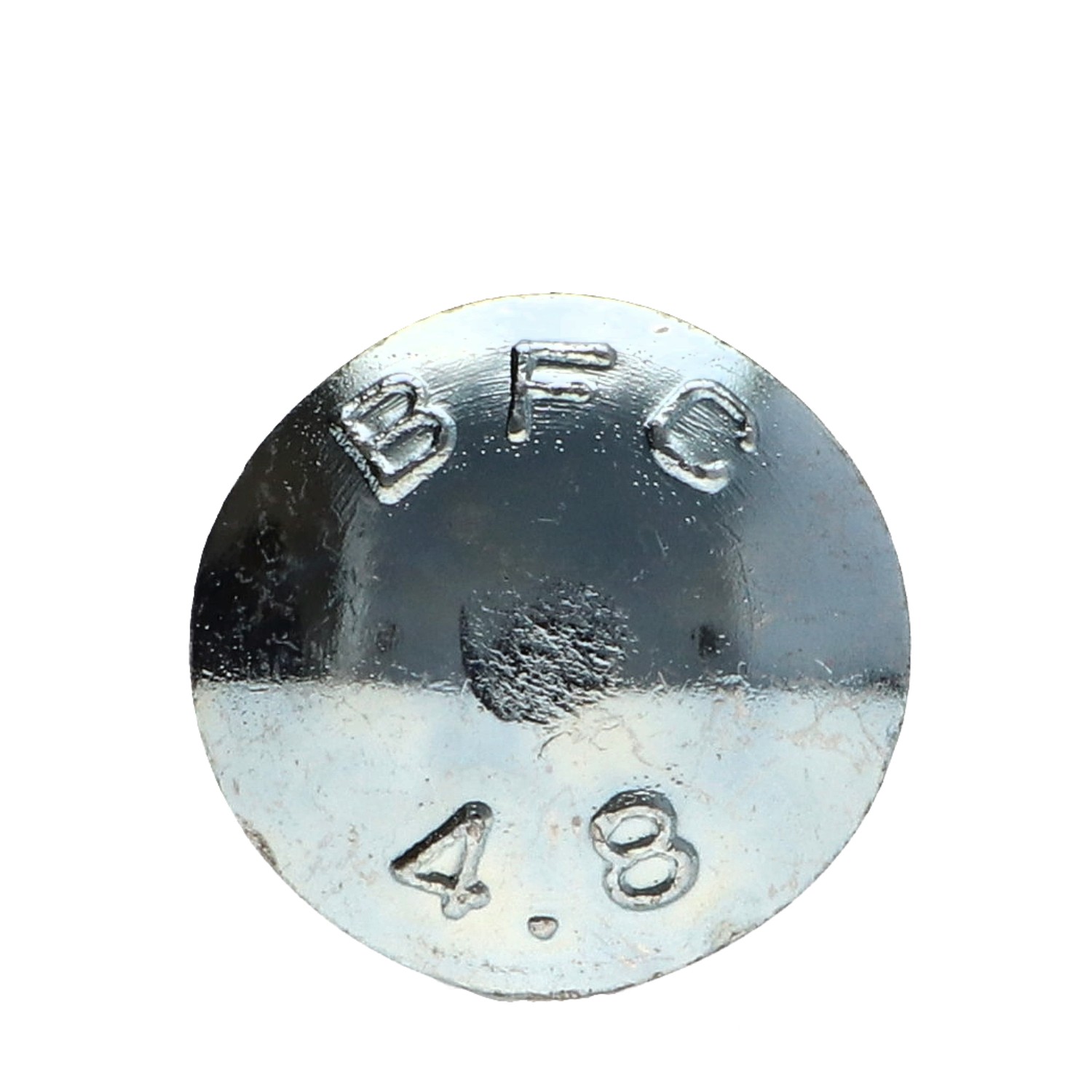

Carriage Bolt M10X160 Partial Thread Zinc Plated
Diameter = M10, Length = 160, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501121713 H.M10X160.Z 3663072243460
Yann P. (vis-express.fr)
2026-07-19

This is for building a gazebo Dimensions 300x300 and height 240


Guitton A. (vis-express.fr)
2026-05-03

montage table picnic


Patrick D.
2024-02-19

building a horse shelter and need to make it strong it's local wood from the lumberyard and is 2.5x20cm and 12x12cm posts that need joining
