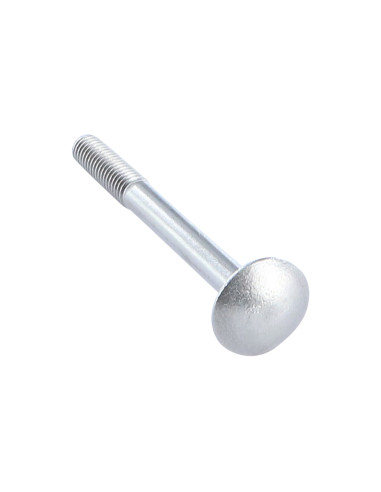

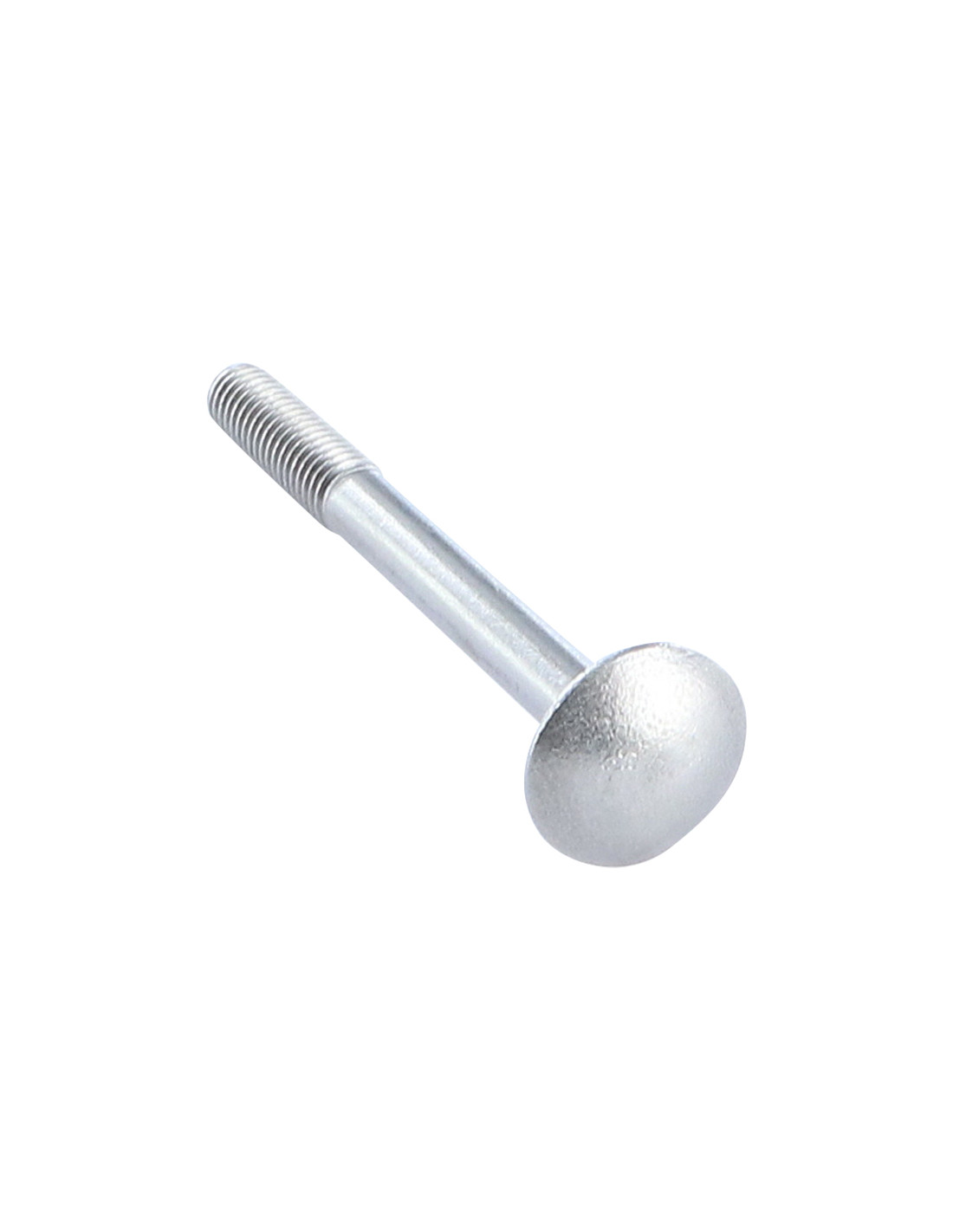

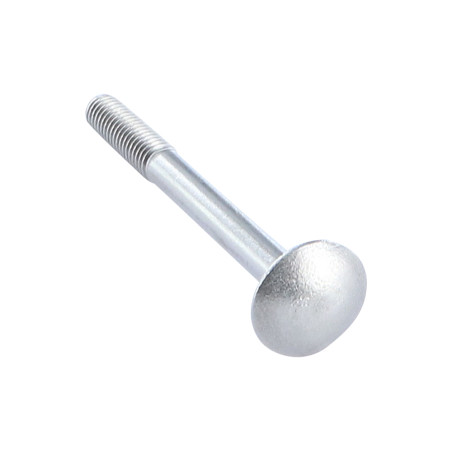

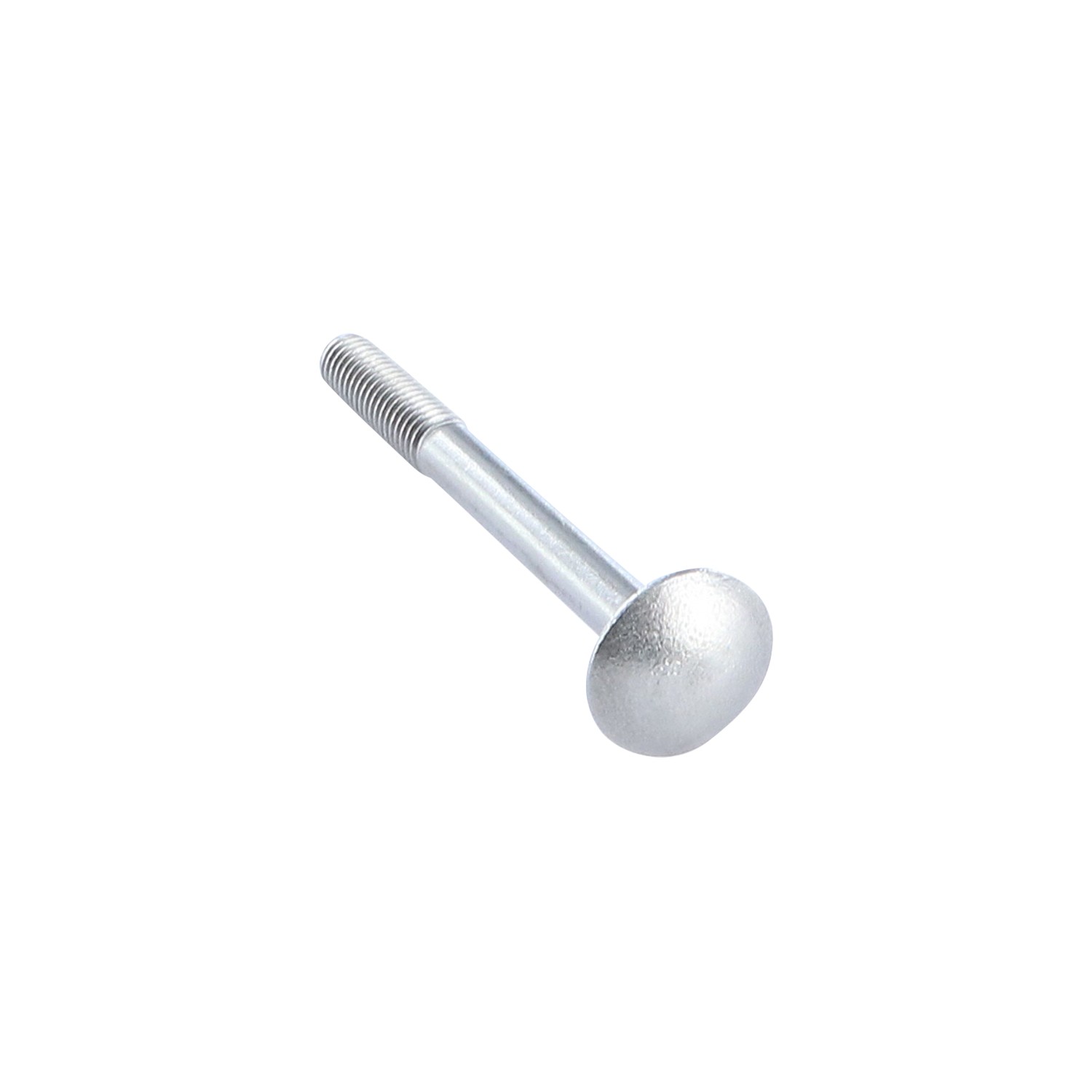

1 x Carriage Bolt M16X120 Partial Thread Zinc Plated
1 x Carriage Bolt M16X120 Partial Thread Zinc Plated
1 x Carriage Bolt M16X120 Partial Thread Zinc...
1 x Carriage Bolt M16X120 Partial Thread Zinc...

1 x Carriage Bolt M16X120 Partial Thread Zinc Plated

4515171252_1
Last items in stock 2 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €4.25 €9.70 €19.35 €48.40
DIN603 FP VS4515 - Carriage Bolt M16X120 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M16
Length
120
Thread
Partial Thread
Pitch
Standard pitch 200
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
16X16X12.9
Diameter in mm
15,962 - 15,692
Unit weight
213.6 GR
2 Items
3663072062832
Carriage Bolt M16X120 Partial Thread Zinc Plated
Diameter = M16, Length = 120, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 200, Norm = DIN603 Partial Thread VS4515

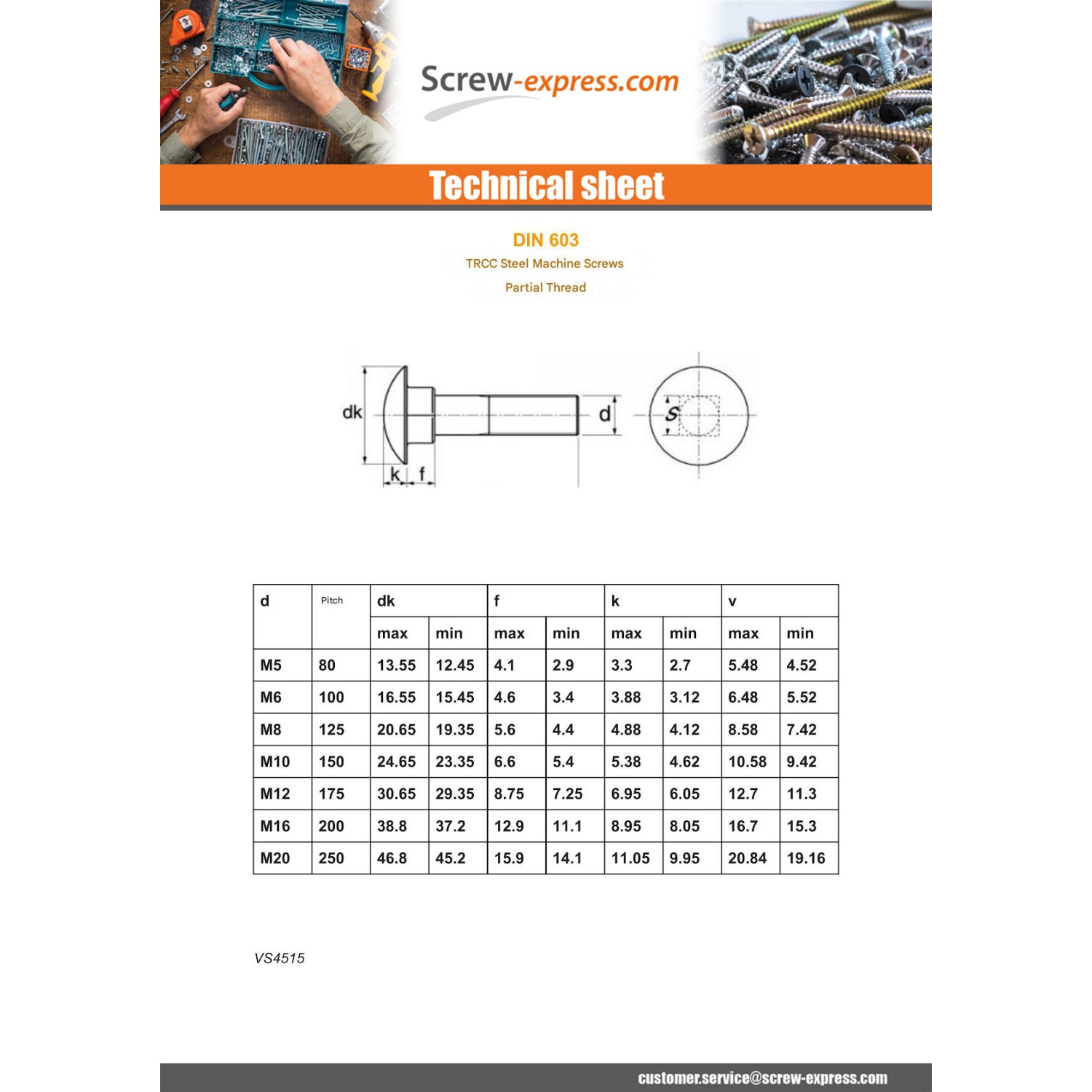

dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501120310 V0075 3663072062832
