4516810006_1
In stock 11278 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included €1.85 €3.70 €7.85 €19.65 €68.70
DIN603 FT VS4516 - Carriage Bolt M8X100 Full Thread Black Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M8
Length
100
Thread
Full Thread
Pitch
Standard pitch 125
Material
Steel
Coating
ZINGUE Black
COLOR
Black
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
36.91 GR
11278 Items
3663072097827

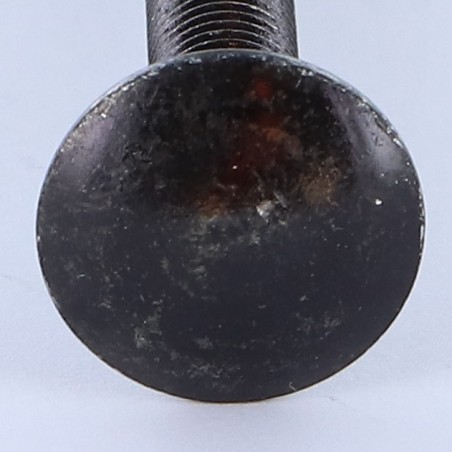

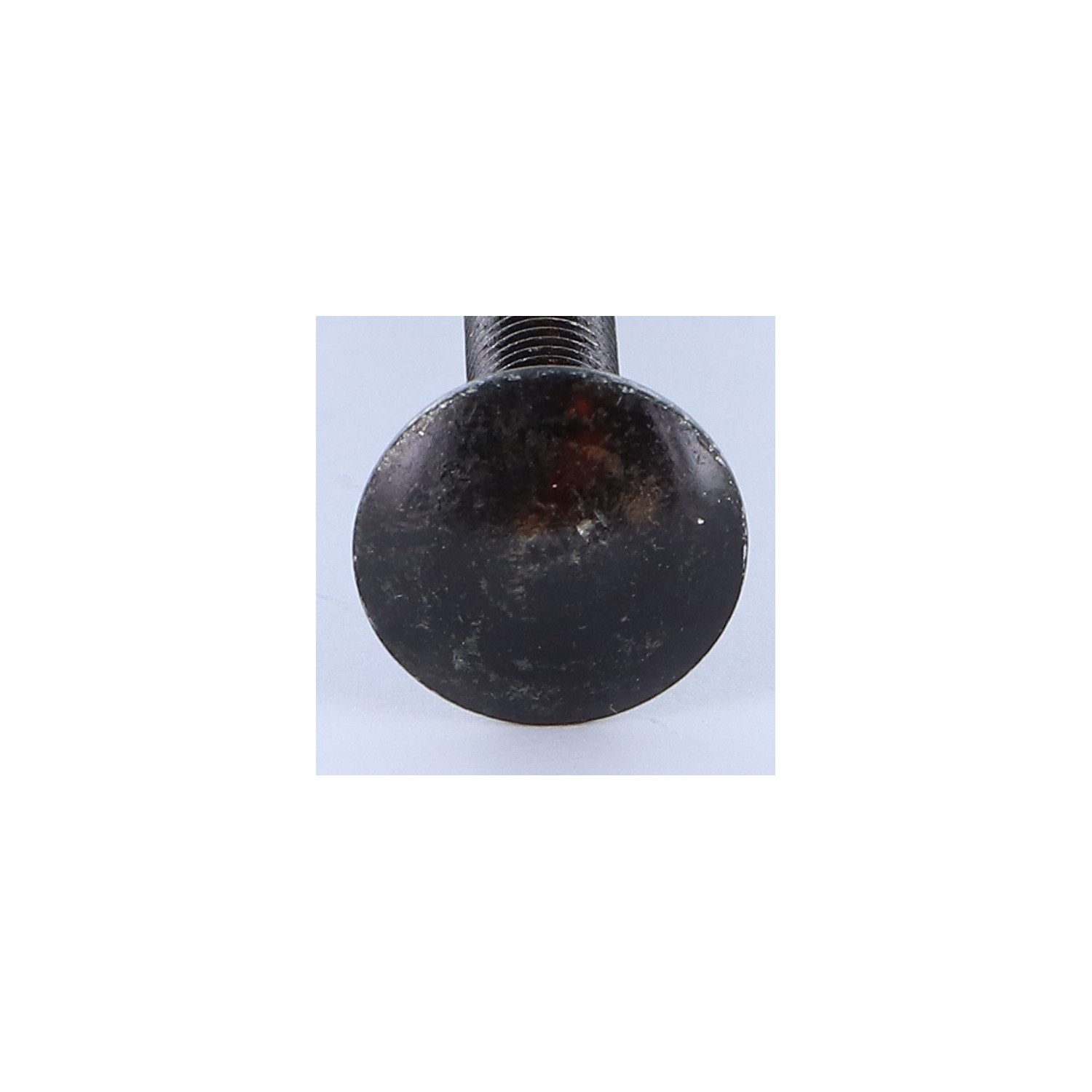

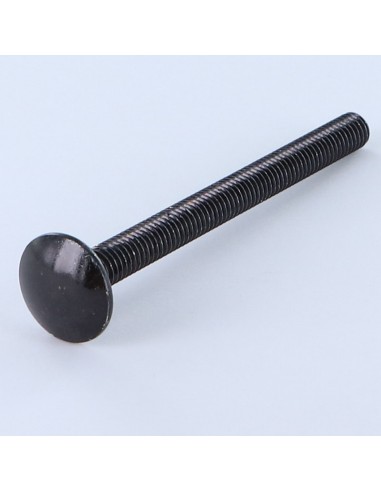

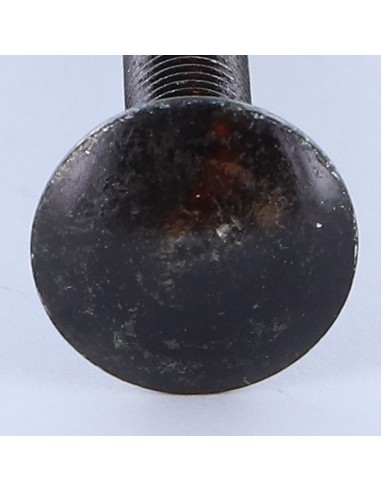

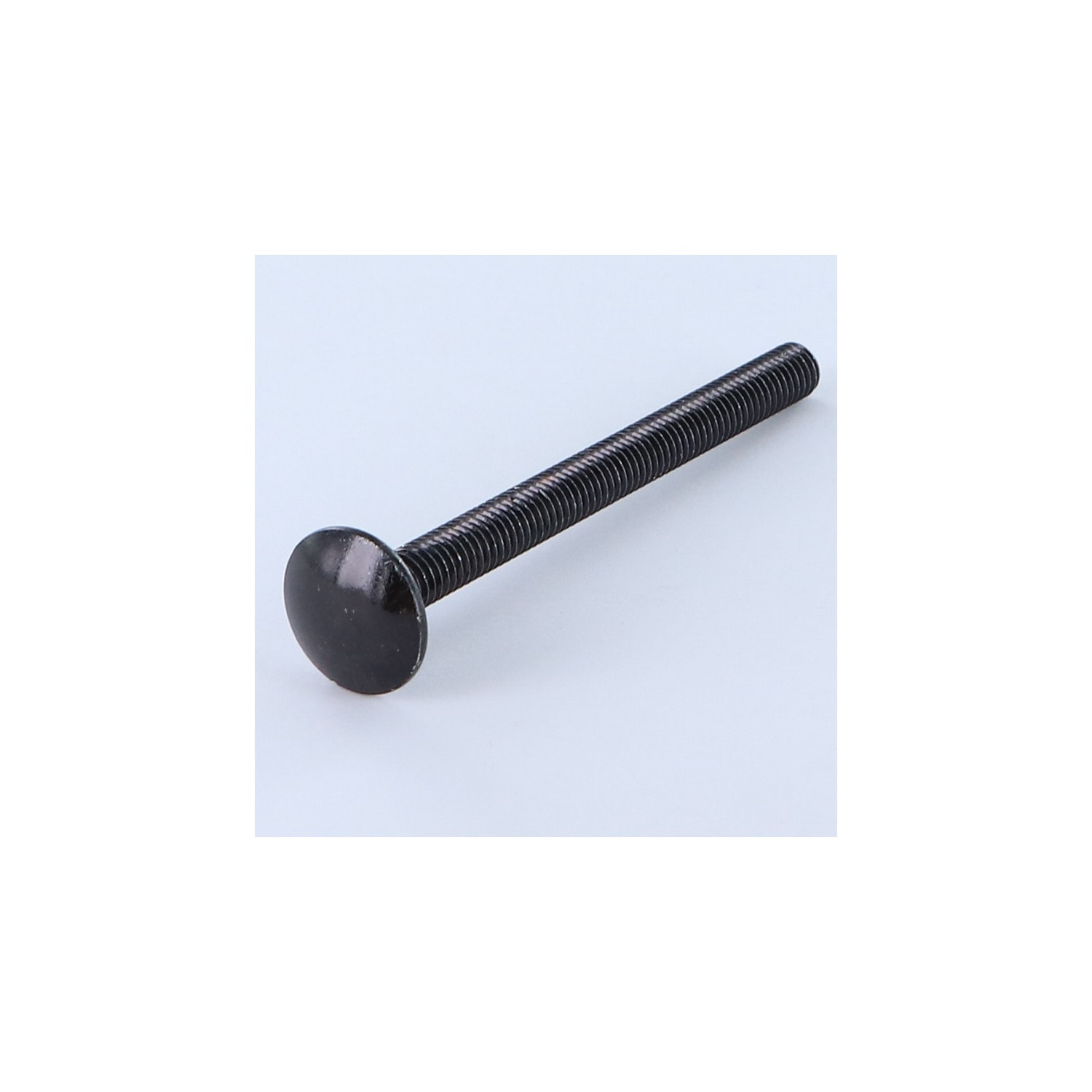

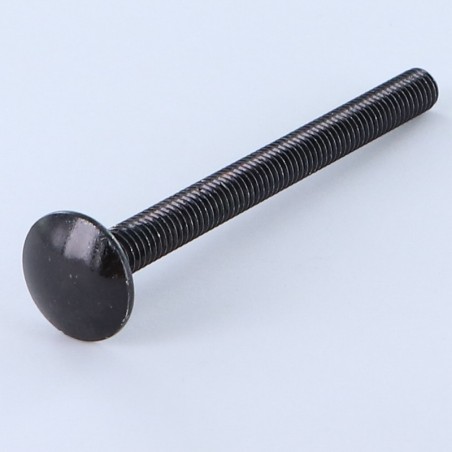

Carriage Bolt M8X100 Full Thread Black Zinc Plated
Diameter = M8, Length = 100, Coating = Black Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 Full Thread VS4516


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501313453 006149 006149 MP026099 3006149 3663072097827
Christophe G. (vis-express.fr)
2026-09-13

Workshop door reinforcement Reinforcement of a wooden door n 25715 with a lock from the brand L'apercevoir.


Guillaume P. (vis-express.fr)
2026-08-30

DIY flower press creation 30cm x 20cm with 4 bolts, 4 wing nuts, 2 wooden boards, corrugated cardboard and A4 blotting paper


Nicolas B. (vis-express.fr)
2024-05-12

To attach an exotic wood headboard to the frame of a wooden bed base M8x100 screws
