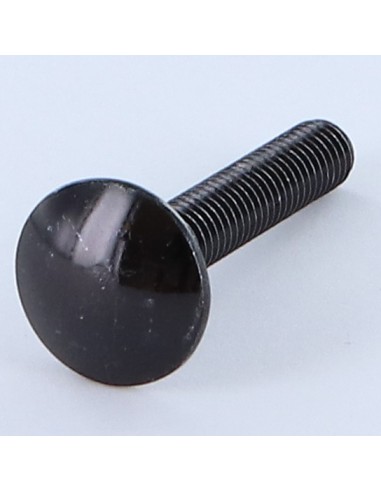

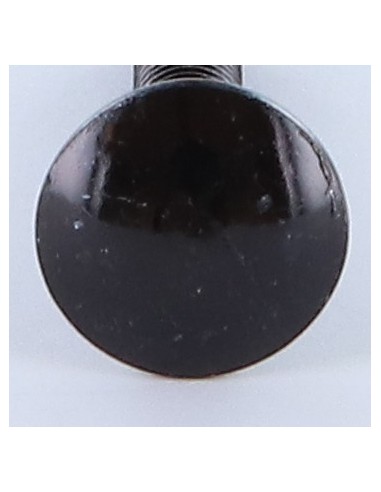

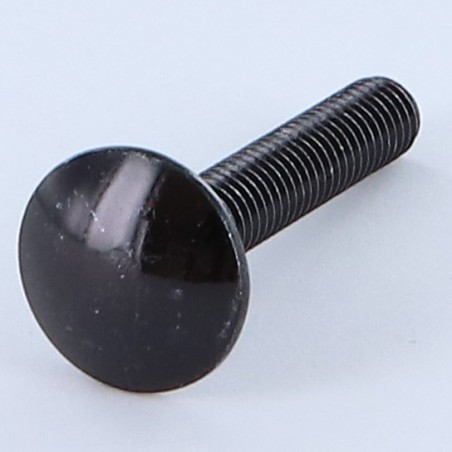

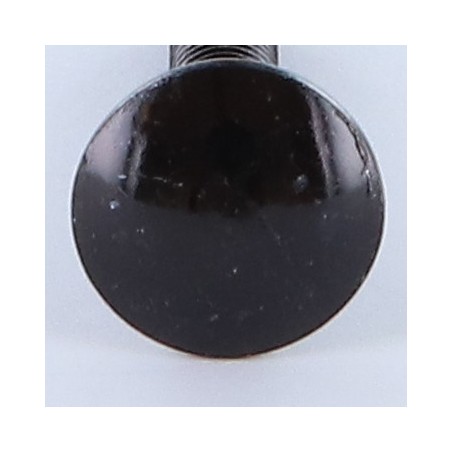

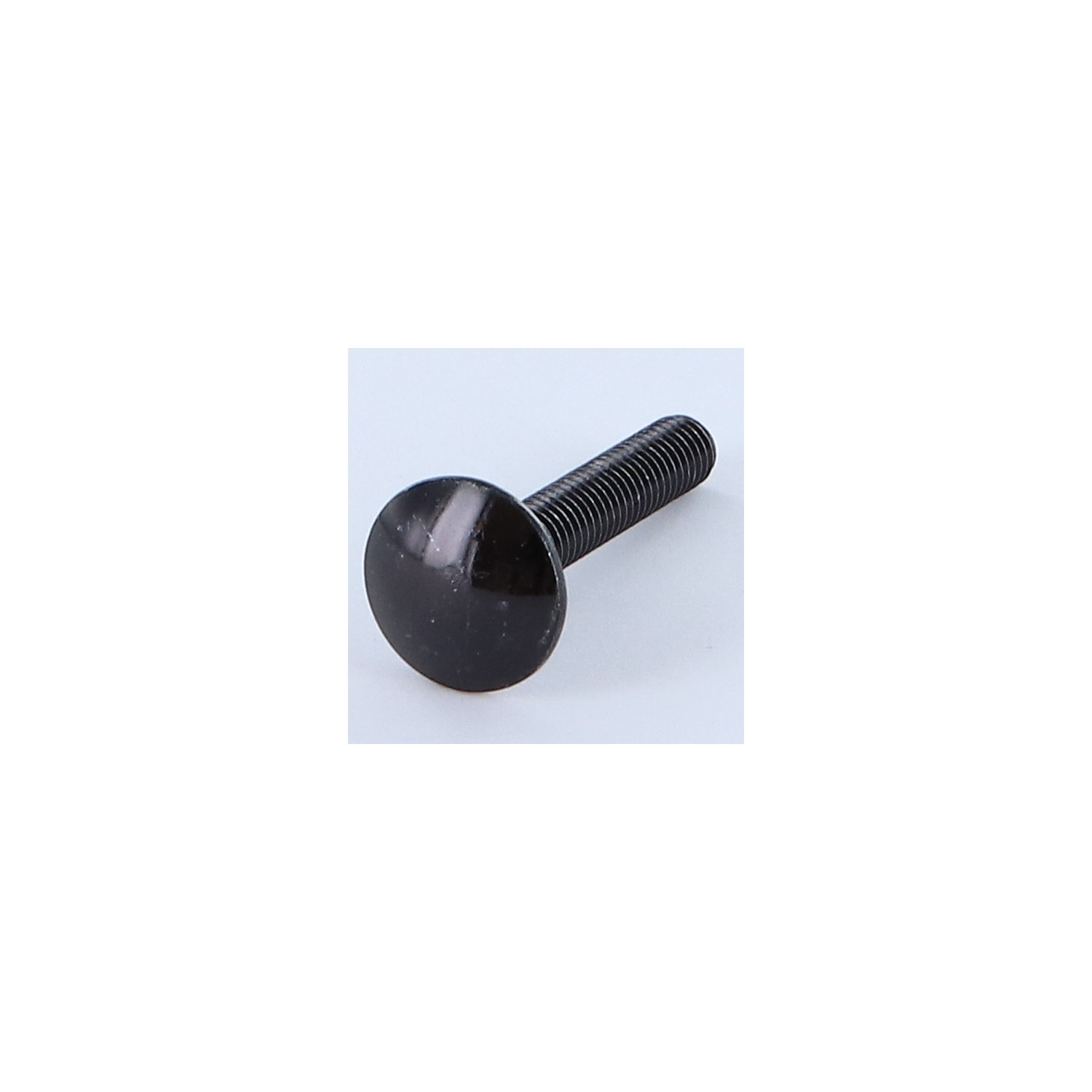

1 x Carriage Bolt M6X45 Full Thread Black Zinc Plated
1 x Carriage Bolt M6X45 Full Thread Black Zinc Plated
1 x Carriage Bolt M6X45 Full Thread Black Zinc Plated
1 x Carriage Bolt M6X45 Full Thread Black Zinc Plated
1 x Carriage Bolt M6X45 Full Thread Black Zinc...
1 x Carriage Bolt M6X45 Full Thread Black Zinc...
1 x Carriage Bolt M6X45 Full Thread Black Zinc...
1 x Carriage Bolt M6X45 Full Thread Black Zinc...

1 x Carriage Bolt M6X45 Full Thread Black Zinc Plated

4516604506_1
In stock 24319 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included €1.85 €3.70 €7.20 €41.90 €159.20
DIN603 FT VS4516 - Carriage Bolt M6X45 Full Thread Black Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M6
Length
45
Thread
Full Thread
Pitch
Standard pitch 100
Material
Steel
Coating
ZINGUE Black
COLOR
Black
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
6X6X4.6
Diameter in mm
5,974 - 5,794
Unit weight
11.77 GR
24319 Items
3663072096592
Carriage Bolt M6X45 Full Thread Black Zinc Plated
Diameter = M6, Length = 45, Coating = Black Zinc Plated, Material = Steel, Pitch = Standard pitch 100, Norm = DIN603 Full Thread VS4516


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3473571370440 8606-35 0270A06045 AN 8801 P2004501 VRCCZN06045 AN PA012008 3663072096592
Laurent R. (vis-express.fr)
2026-01-11

Securing the arms of a motorized swing shutter system to wooden shutters where the screws pull out during opening/closing in windy conditions. SOMFY Synapsia 1000 swing shutter motor


Marc S. (vis-express.fr)
2024-03-24

Restoration of an old press
