4516102003_1
In stock 166492 Pièces
€2.55 Incl VAT €4.25 -40%

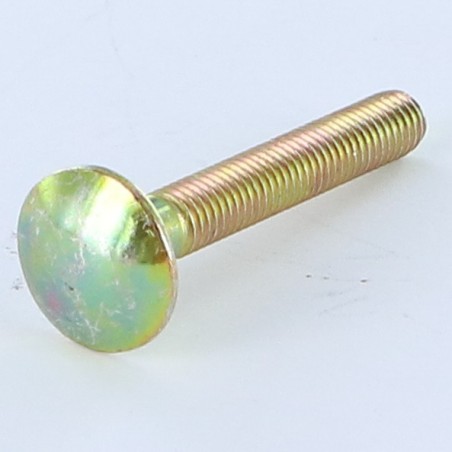

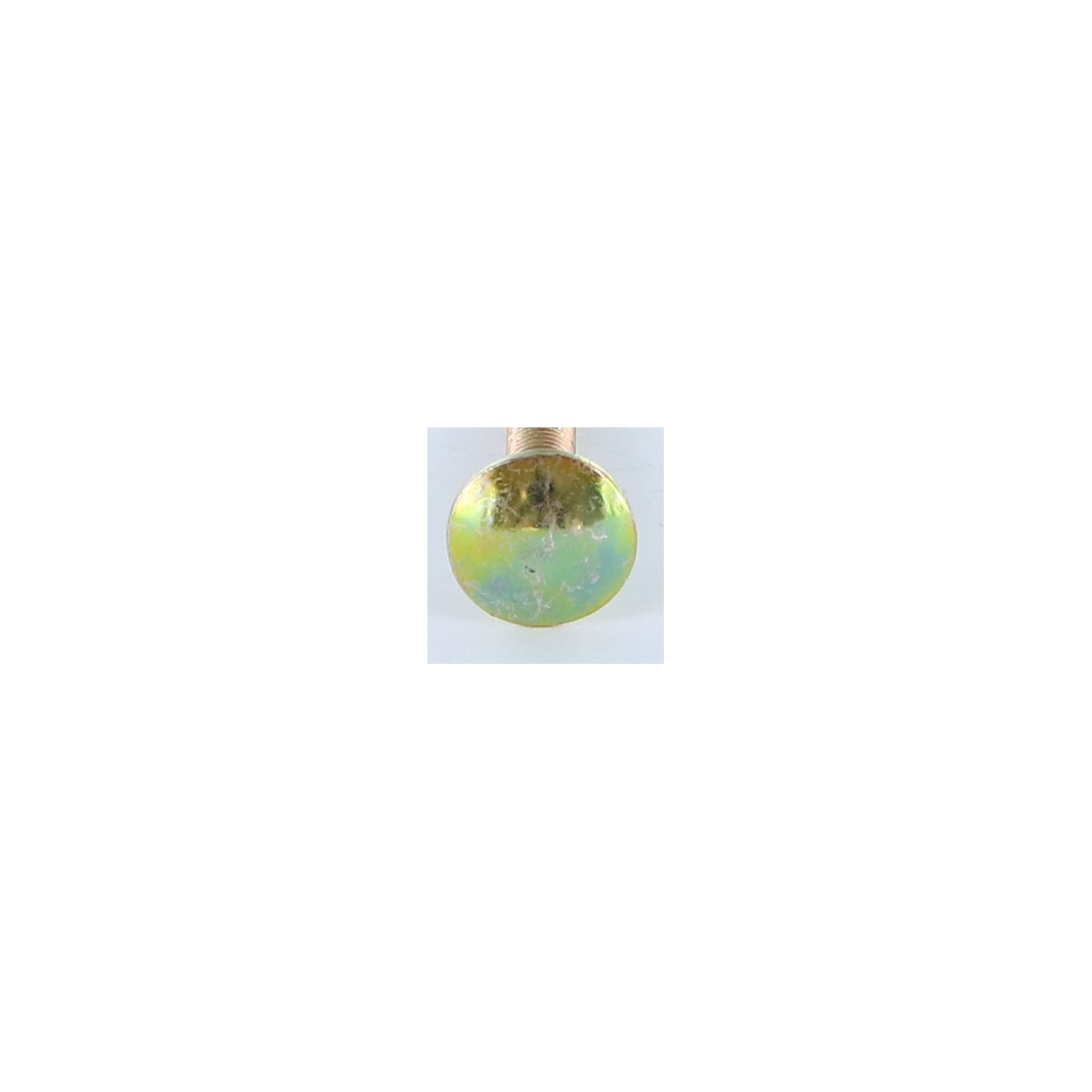

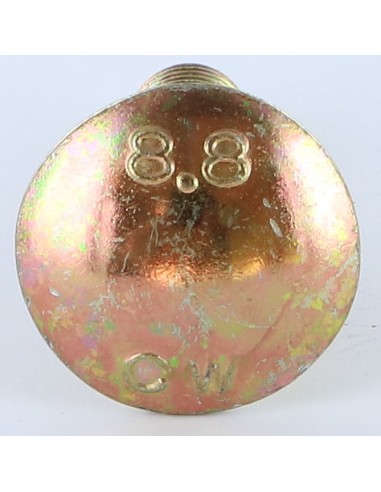

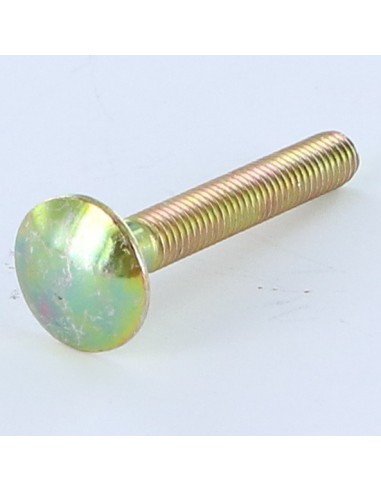

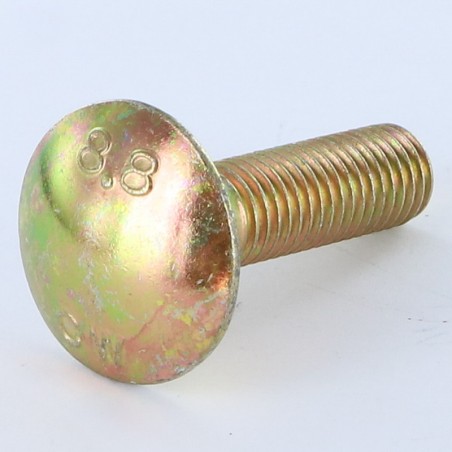

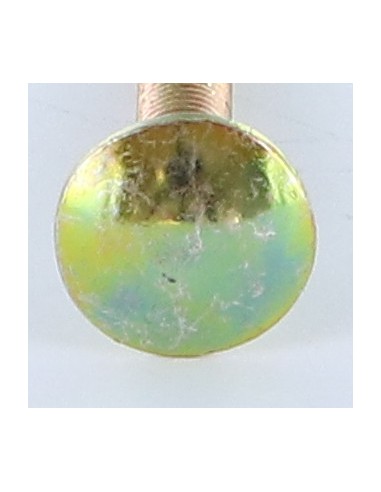

DIN603 FT VS4516 - Carriage Bolt M10X20 Full Thread Yellow Zinc
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
20
Thread
Full Thread
Pitch
Standard pitch 150
Material
Steel
Coating
Yellow Zinc
COLOR
Yellow
Norm
DIN603 Full Thread VS4516
Width X Width X Thickness of square collar
10X10X6,6
Diameter in mm
9.968 - 9.752
Unit weight
23 GR
Head shape
Carriage Bolt
166492 Items
3663072095069
Carriage Bolt M10X20 Full Thread Yellow Zinc
Diameter = M10, Length = 20, Coating = Yellow Zinc, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Full Thread VS4516

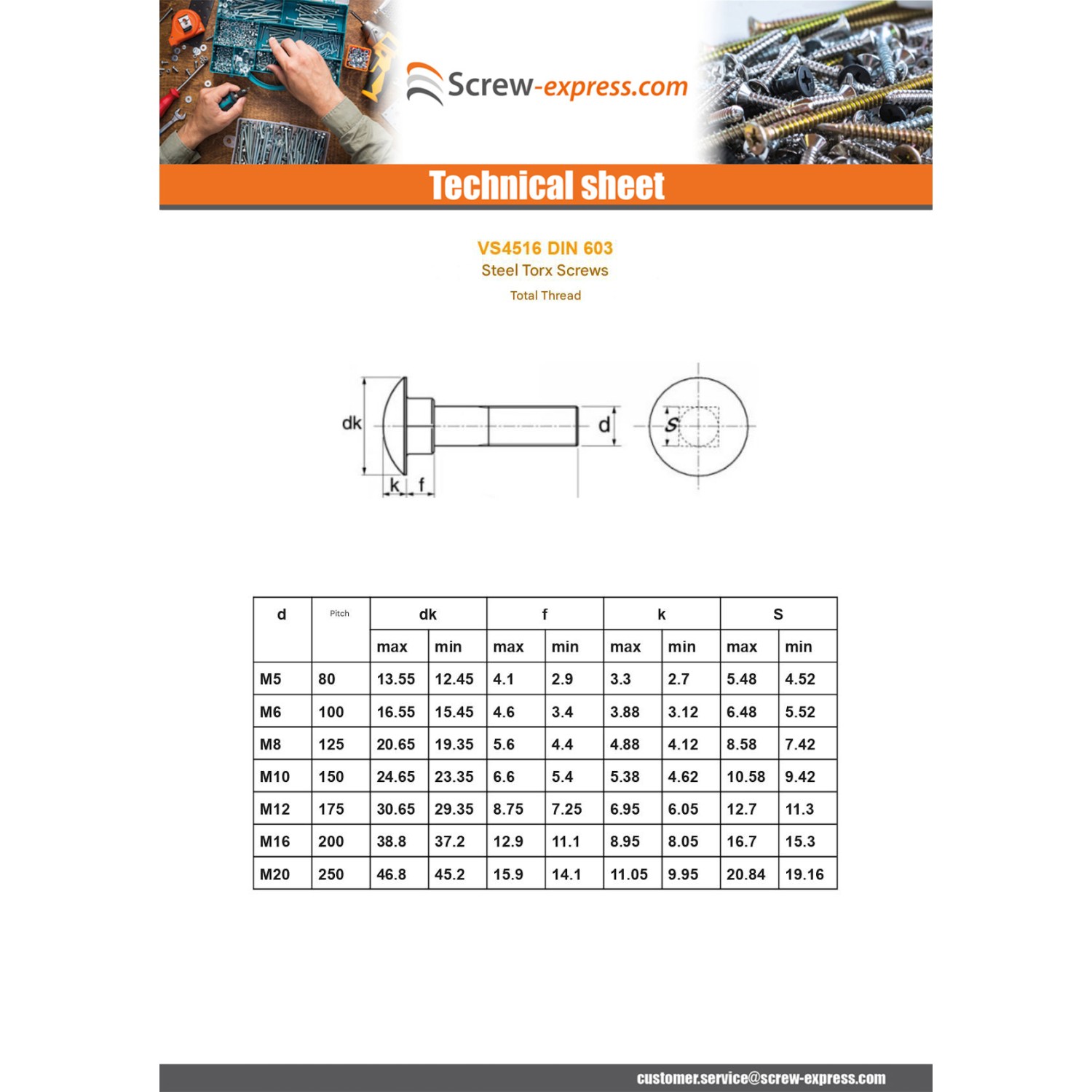

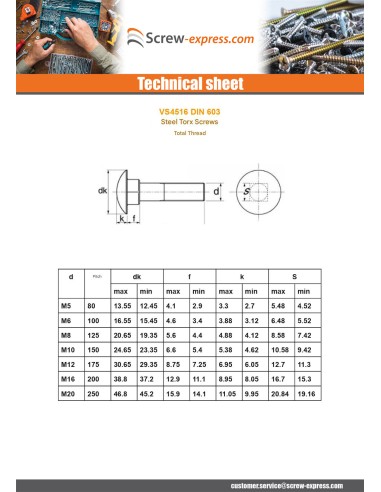

dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501114425 60171V1RCC10 3663072095069
