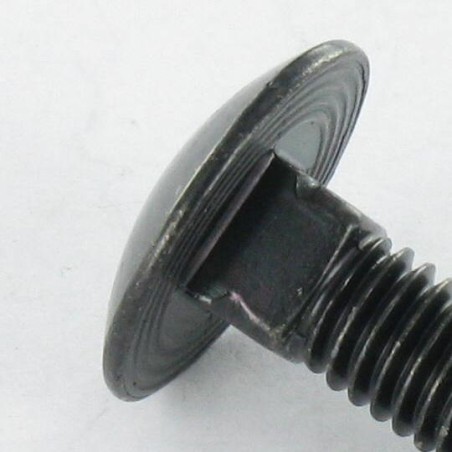

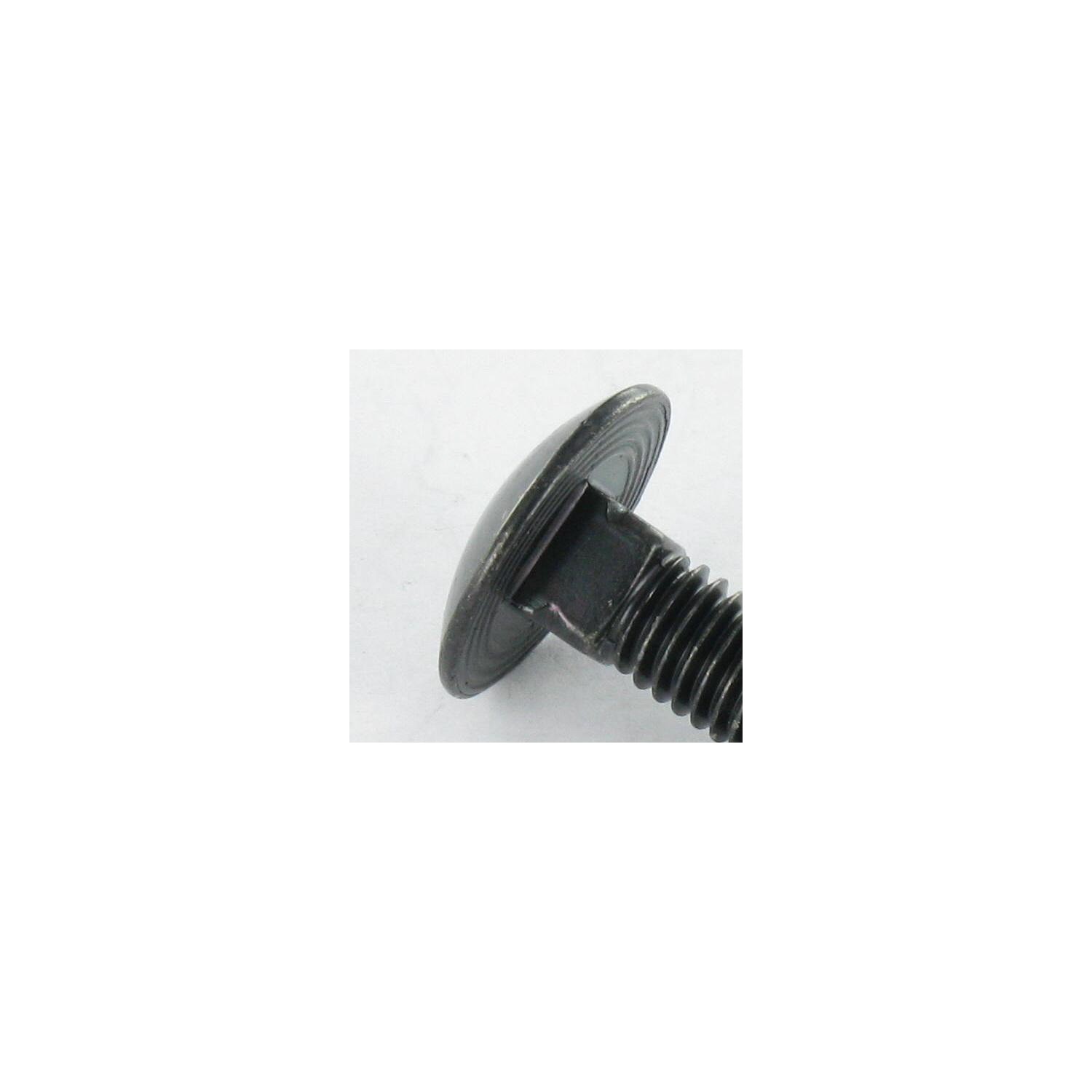

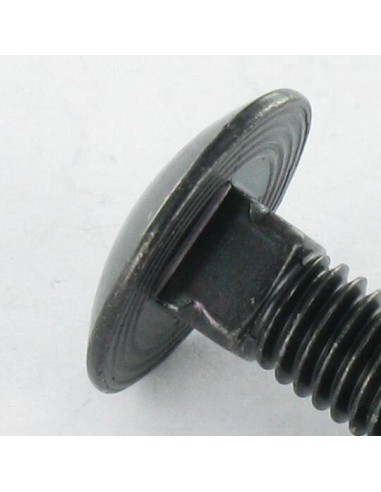

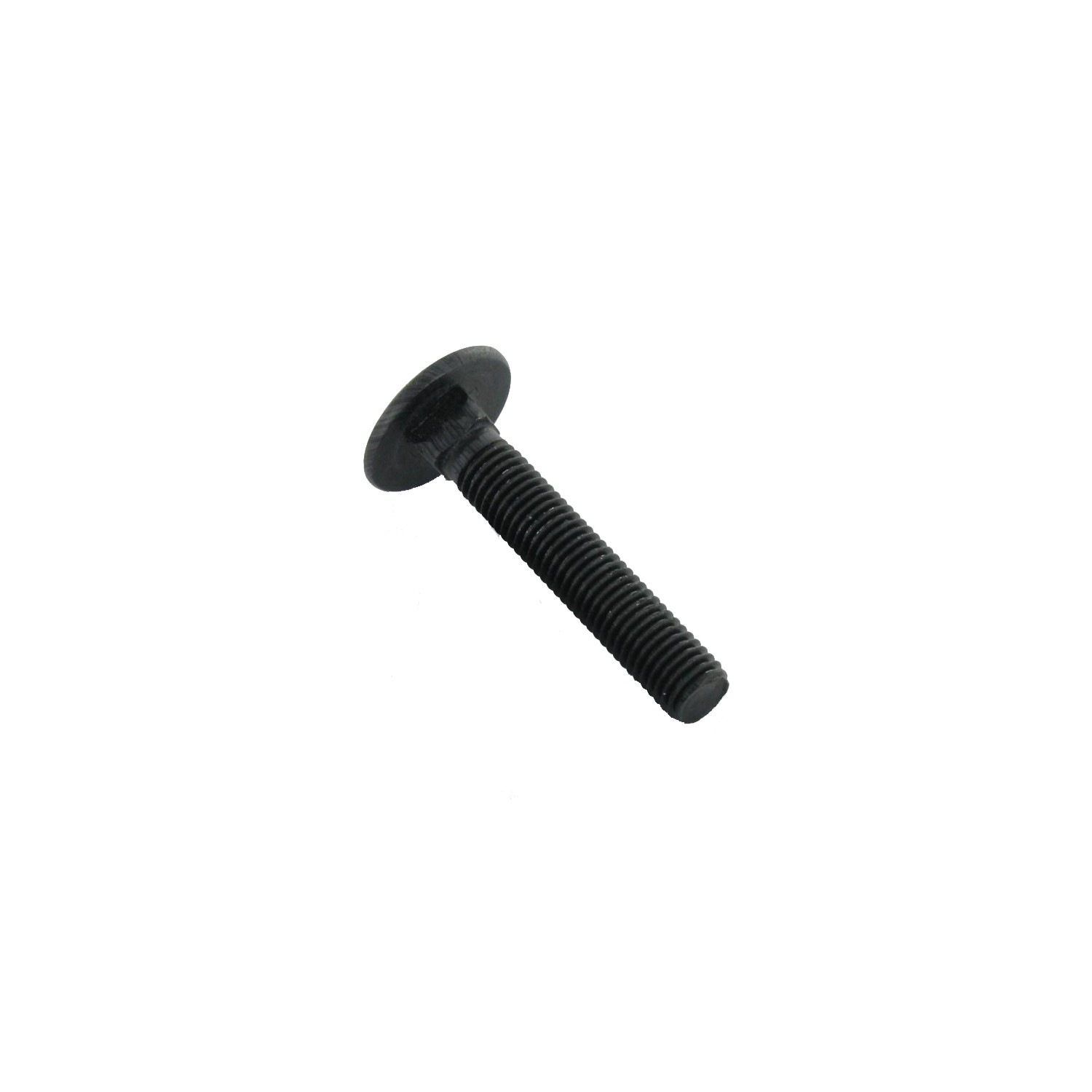

1 x Carriage Bolt M8X110 Full Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Full Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Full Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Full Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Full Thread Black Zinc...
1 x Carriage Bolt M8X110 Full Thread Black Zinc...
1 x Carriage Bolt M8X110 Full Thread Black Zinc...
1 x Carriage Bolt M8X110 Full Thread Black Zinc...

1 x Carriage Bolt M8X110 Full Thread Black Zinc Plated

4516811006_1
In stock 1877 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100 400
Lot price VAT included €1.70 €4.30 €12.90 €43.20 €164.20
DIN603 FT VS4516 - Carriage Bolt M8X110 Full Thread Black Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units
  • 400 Units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
110
Thread
Full Thread
Pitch
Standard pitch 125
Material
Steel
Coating
ZINGUE Black
COLOR
Black
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
43 GR
1877 Items
3663072097858
Carriage Bolt M8X110 Full Thread Black Zinc Plated
Diameter = M8, Length = 110, Coating = Black Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 Full Thread VS4516


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501092372 BOU8110N 3663072097858
