1 x Bolt With Nut Carriage Bolt M8X90 Partial...

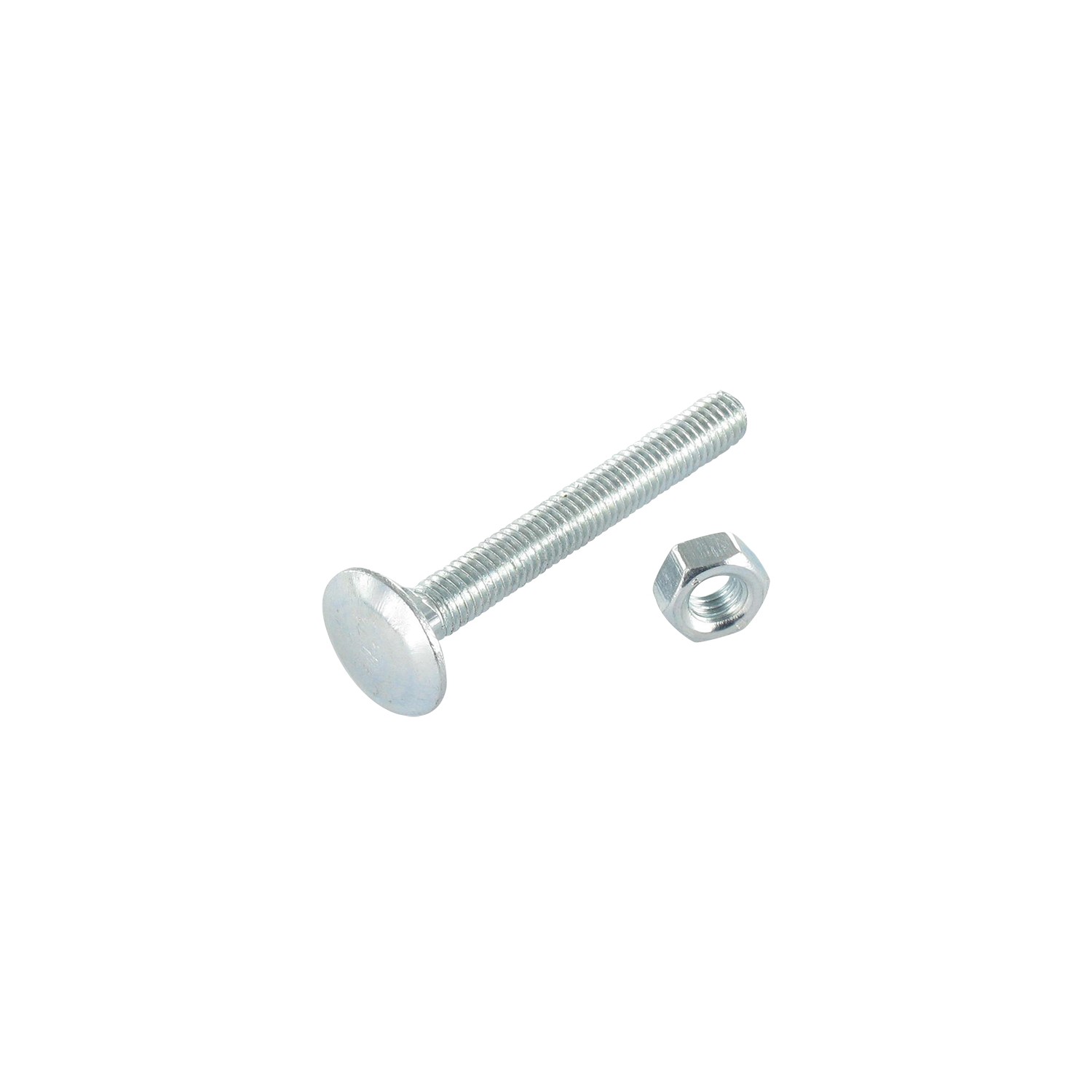

1 x Bolt With Nut Carriage Bolt M8X90 Partial Thread Zinc Plated

4517809102_1
In stock 4210 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.69 £7.33 £10.93 £36.53
DIN603 + DIN555 - Bolt With Nut Carriage Bolt M8X90 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

4210 Items
3663072111950
Bolt With Nut Carriage Bolt M8X90 Partial Thread Zinc Plated
Diameter = M8, Length = 90, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 + DIN555, Product Family = Bolts Carriage Bolt


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9
Thread if total screw length < 125 16 18 20 22 26 30 34 38
Thread if total screw length > 125 0 0 0 28 32 36 40 44
Thread if total screw length > 200 0 0 0 41 45 49 53 57

Other Reference : 3617502059565 3663072111950
