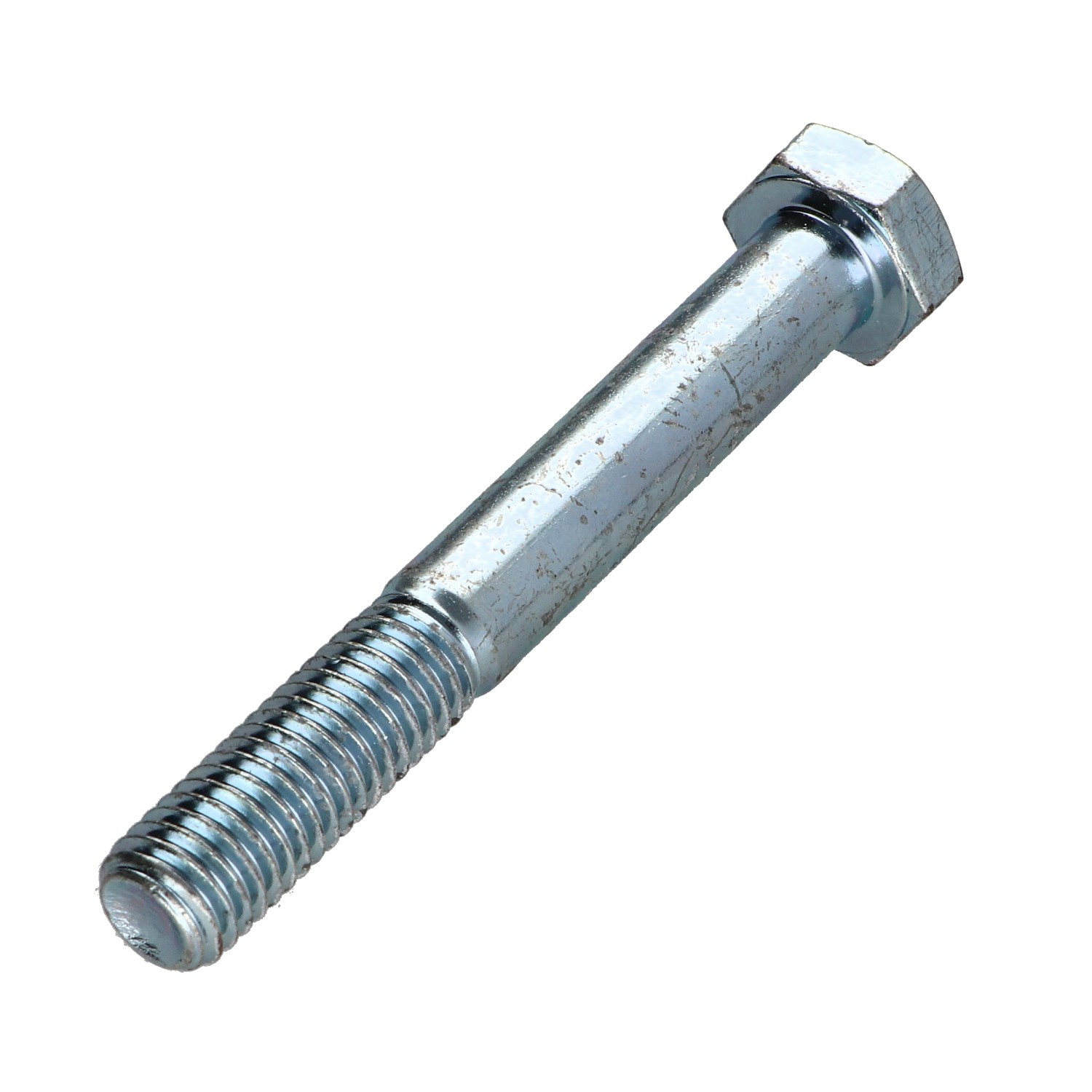

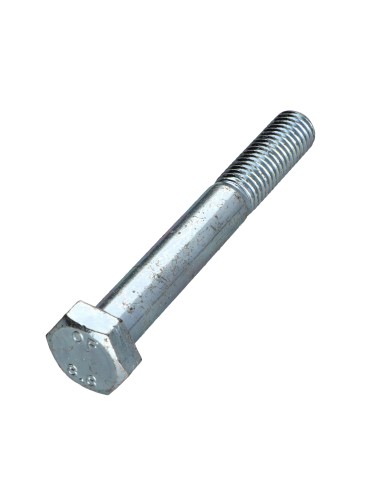

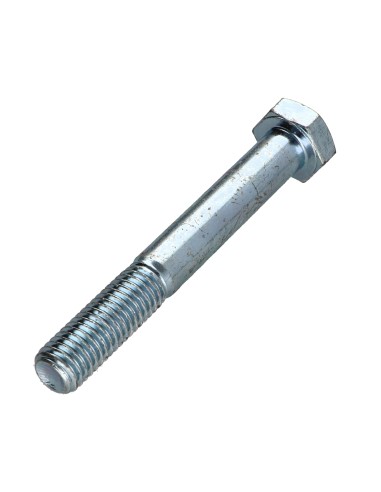

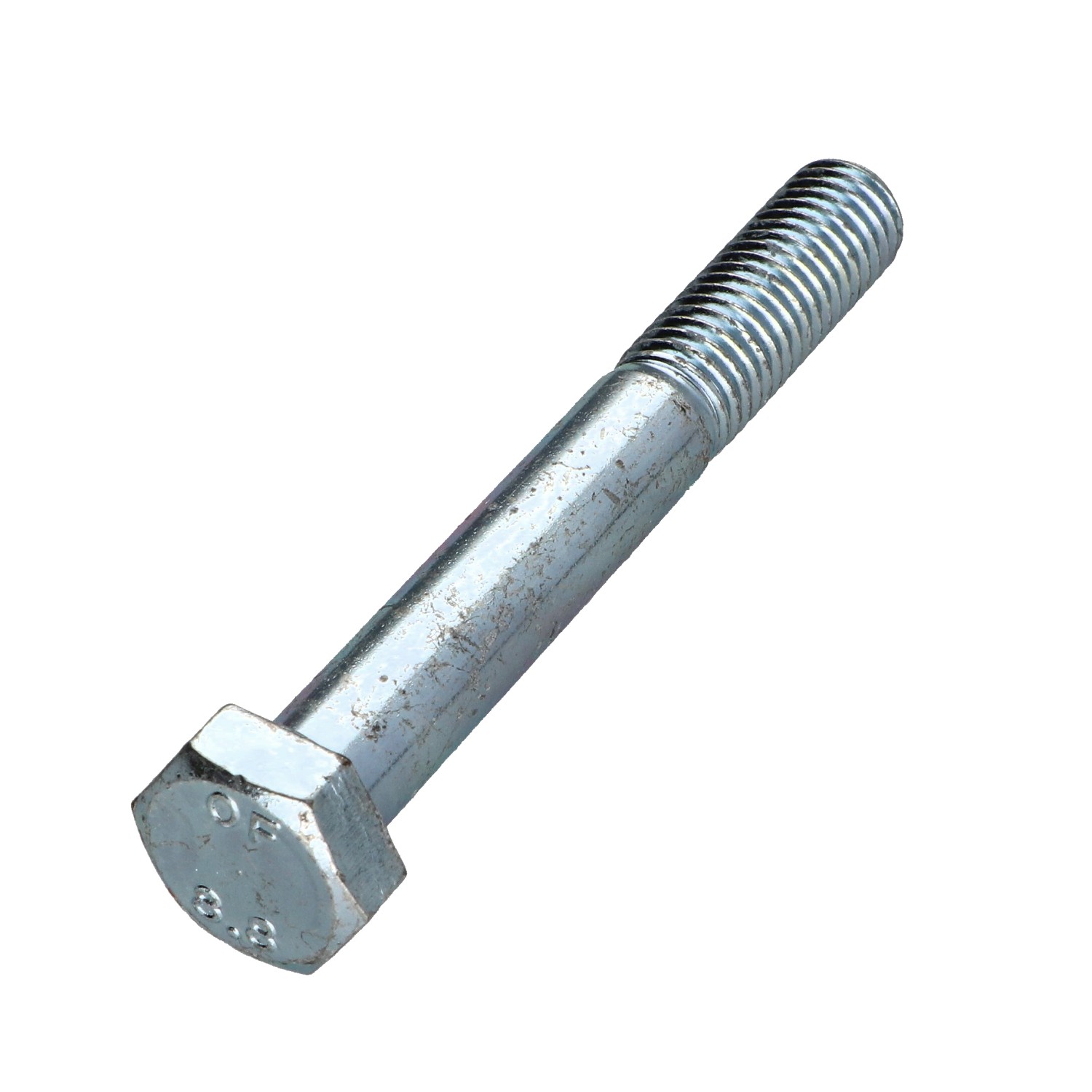

1 x Bolt Partial Thread Hexagonal Head M12X90 Class 8.8 Zinc Plated Rust
1 x Bolt Partial Thread Hexagonal Head M12X90 Class 8.8 Zinc Plated Rust
  • On sale!
  • -50%
  • New
1 x Bolt Partial Thread Hexagonal Head M12X90...
1 x Bolt Partial Thread Hexagonal Head M12X90...

1 x Bolt Partial Thread Hexagonal Head M12X90 Class 8.8 Zinc Plated Rust

4100129099_1
In stock 2343 Pièces
€1.93 Incl VAT €3.85 -50%
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €1.93 €3.85 €4.03 €10.05
DIN931,VS4109 - Bolt Partial Thread Hexagonal Head M12X90 Class 8.8 Zinc Plated Rust
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

2343 Items
3663072108073
Bolt Partial Thread Hexagonal Head M12X90 Class 8.8 Zinc Plated Rust
Diameter = M12, Length = 90, Coating = Zinc Plated, Class = Class 8.8, Material = Steel, Norm = DIN931, VS4109, Product Family = Bolts Hexagonal Head


dimensional guide (mm)
Diameter 5 6 8 10 12 14 16 18 20 24 27 30 33
Head Tickness 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15 17 18.7 21
Across flats 8 10 13 17 19 22 24 27 30 36 41 46 50
Thread if total screw length < 125 16 18 22 26 30 34 38 42 46 54 60 66 72
Thread if total screw length > 125 22 24 28 32 36 40 44 48 52 60 66 72 78
Thread if total screw length > 200 0 0 0 0 0 0 57 61 65 73 79 85 91

Other Reference : 3617502067522 3663072108073
