1 x Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Flat Head ALX Black

3702320606_1
In stock 12775 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.05 €11.90 €41.40

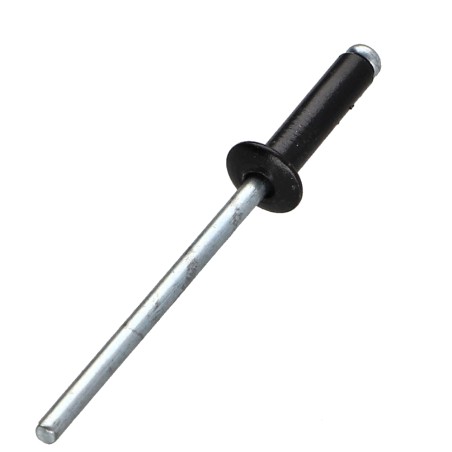

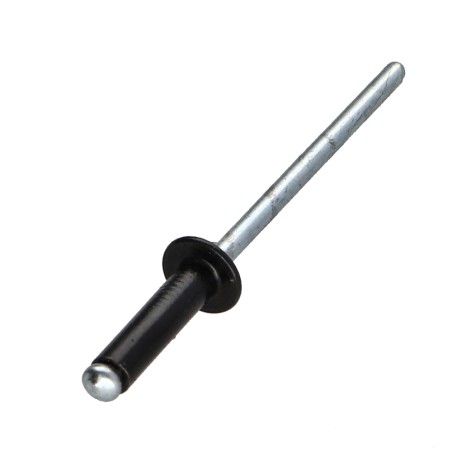

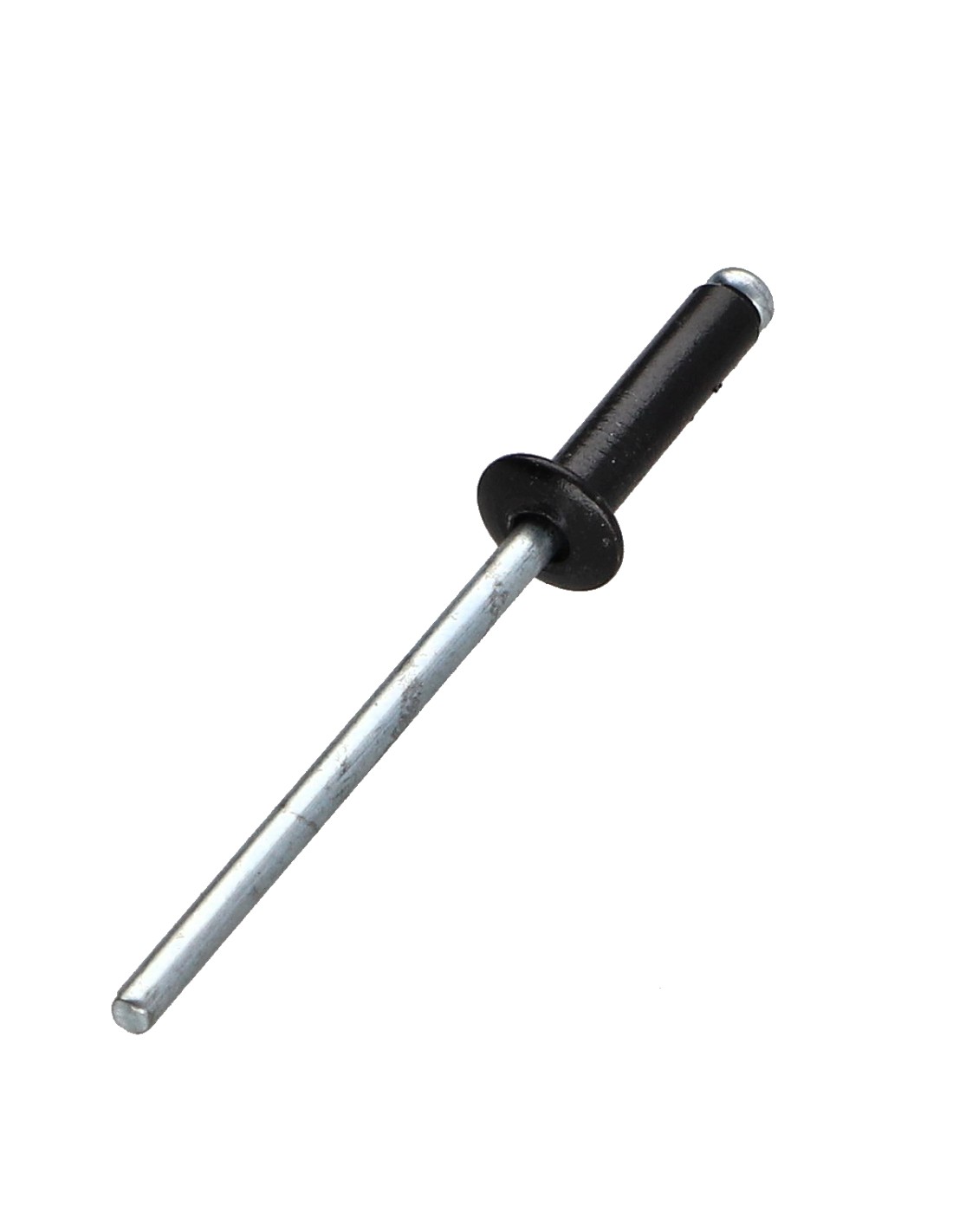

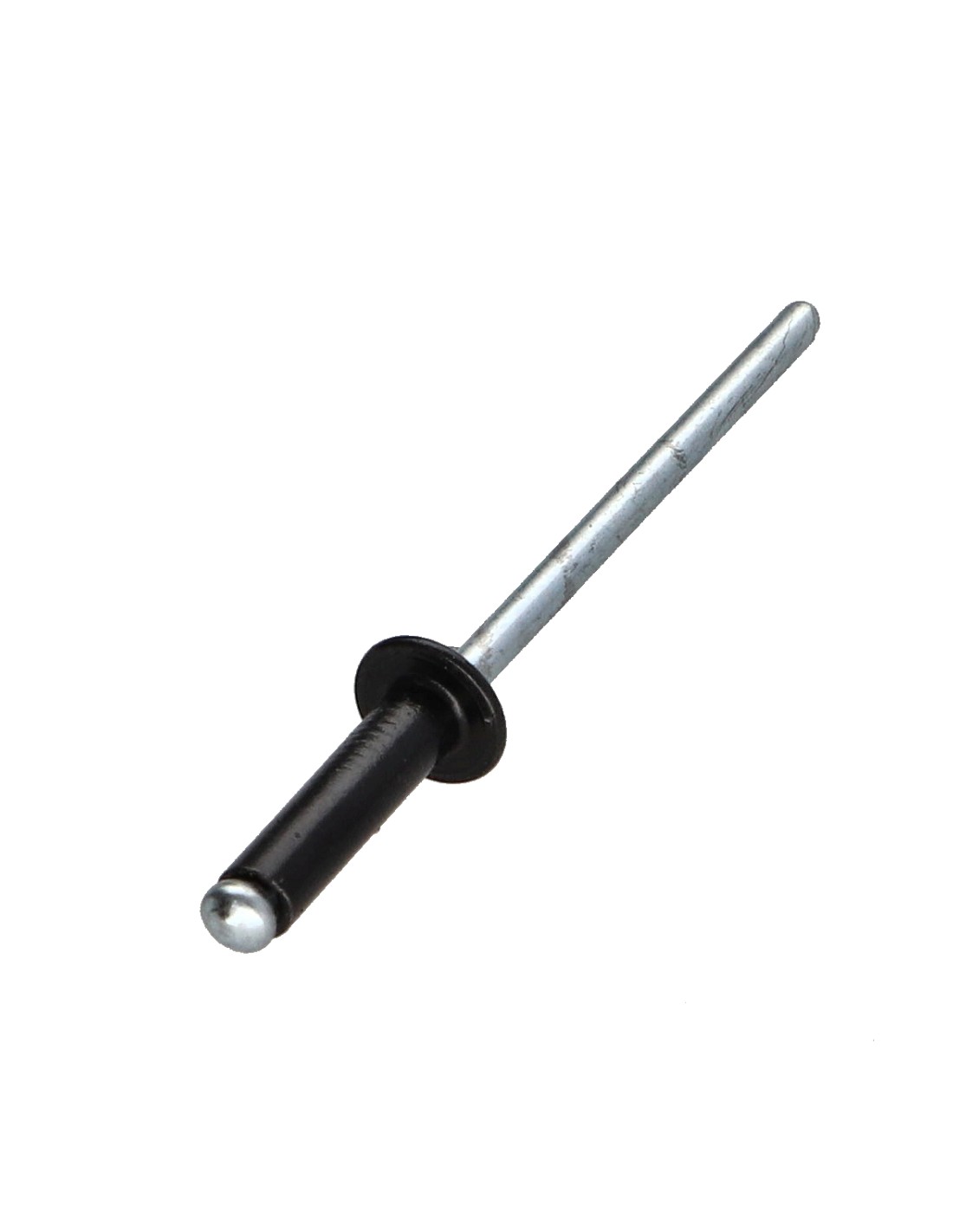

Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Flat Head ALX Black
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Sub product family
Flat Head
WEIGHT For THERE unit
1.4 GR
Clamping thickness
1 to 3 MM
Rivet body length
6
12775 Items
3663072063815
Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Flat Head ALX Black
Diameter = 3.2

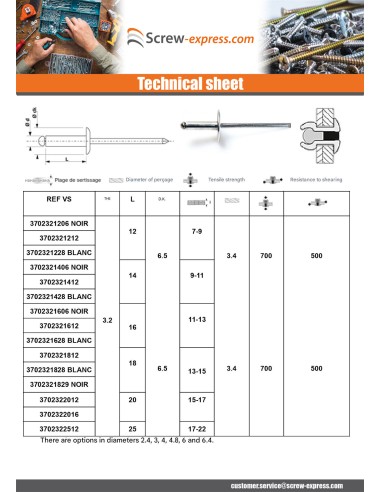

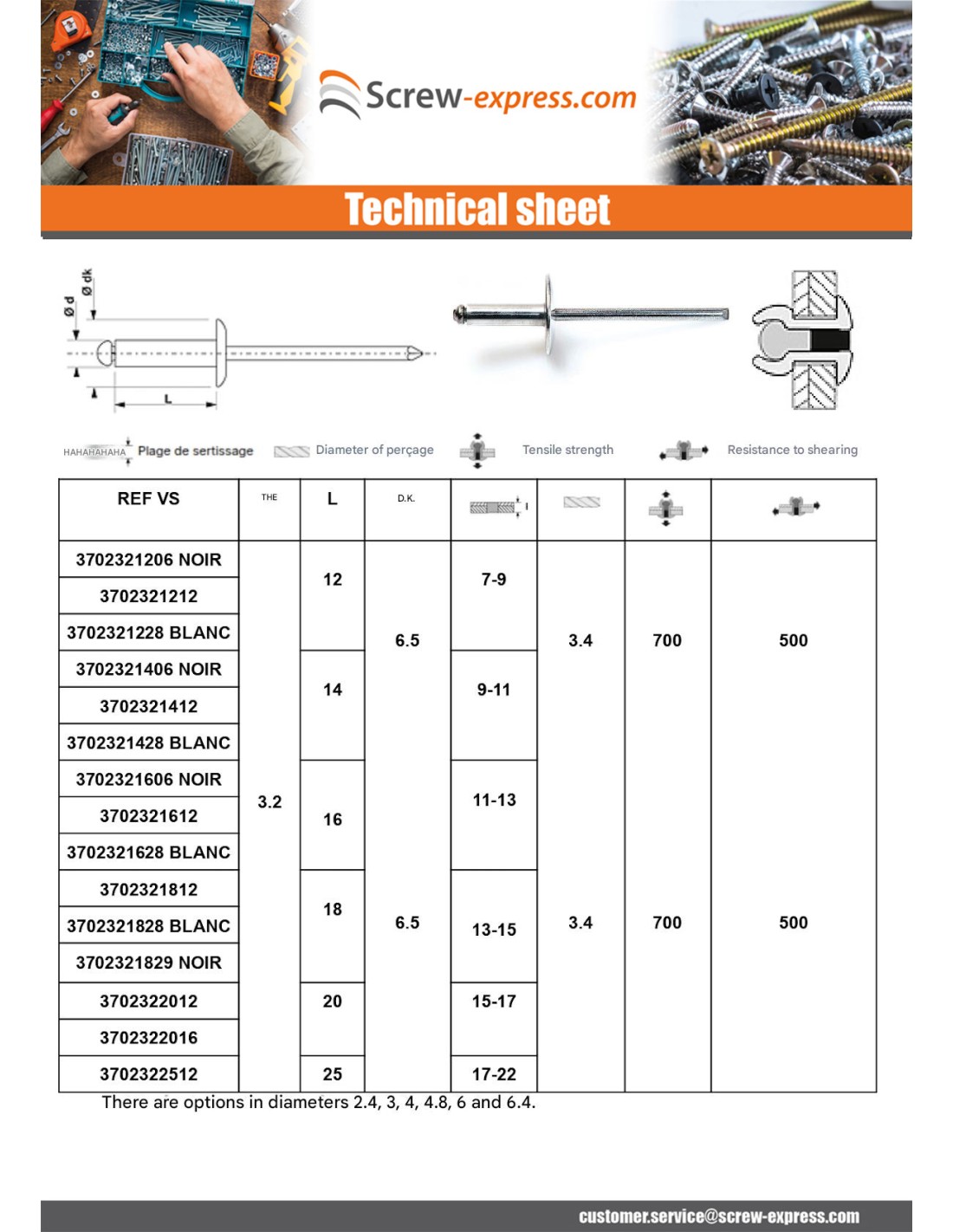

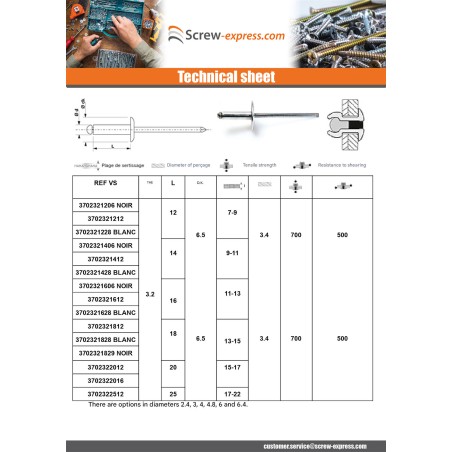

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 115132061 021.I.TP326N 3663072063815
Tom R. (vis-express.fr)
2024-10-27

Rivets are used to assemble a steel tool box, that is to say we fix the handle to the rest of the tool box. Aluminium blind rivet Steel rod 3.2X6 Clamping thickness 1A3 Flat head ALX Black
