1 x Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Standard round head Ral8017/Chocolate Brown

3702952033_1
Available within 25 business days
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.34 £6.68 £8.07 £13.36

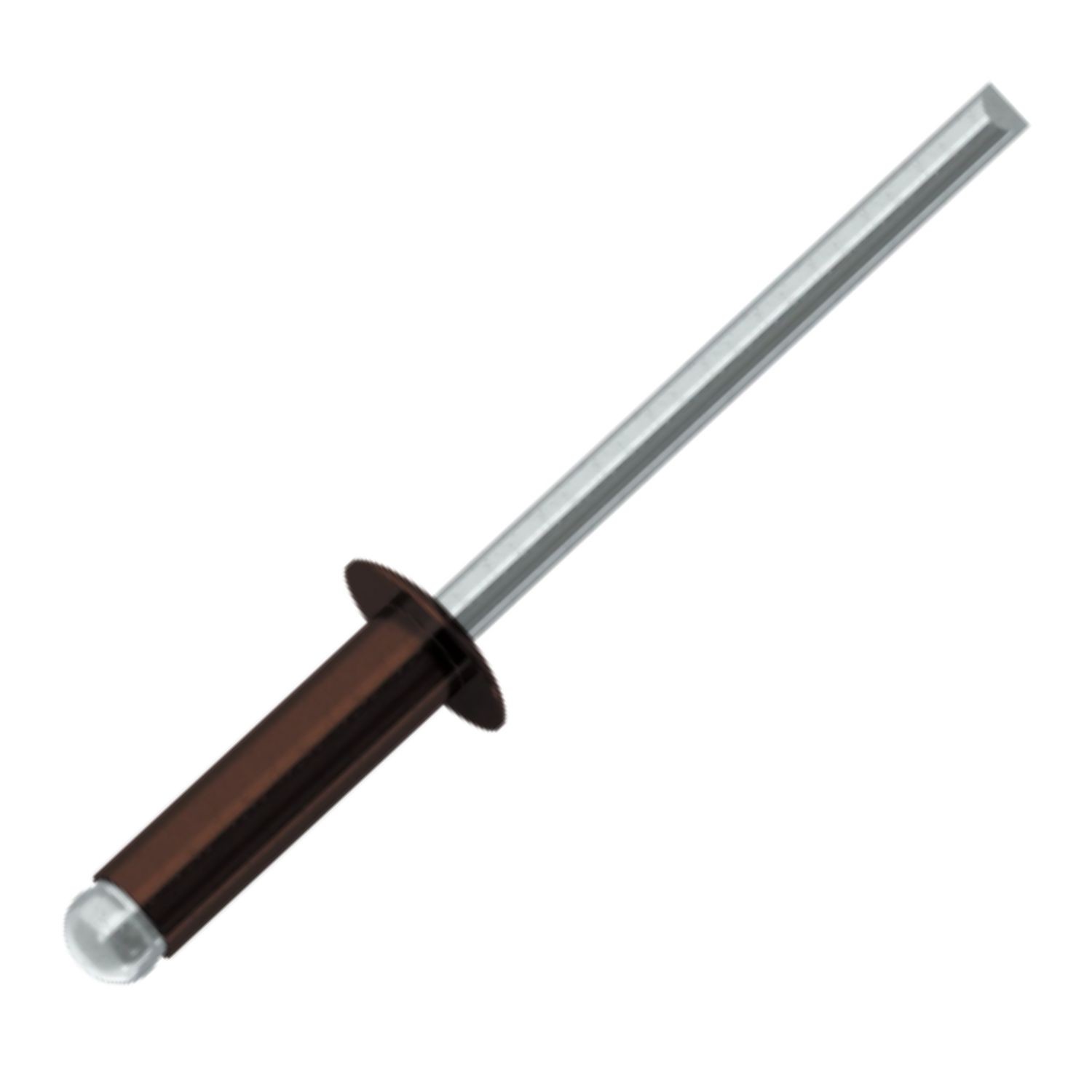

Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Standard round head Ral8017/Chocolate Brown
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
4.8
Material
BODY Aluminium / rod Steel
COLOR
Ral8017/Chocolate Brown
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Clamping thickness
13 a 15 mm
Rivet body length
20
Unit weight
2 GR
Head shape
Round Head standard
3663072086401

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Standard round head Ral8017/Chocolate Brown
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel

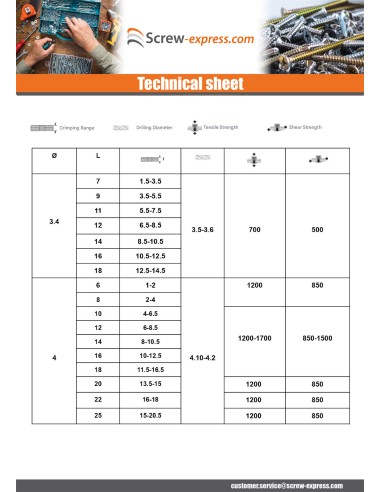

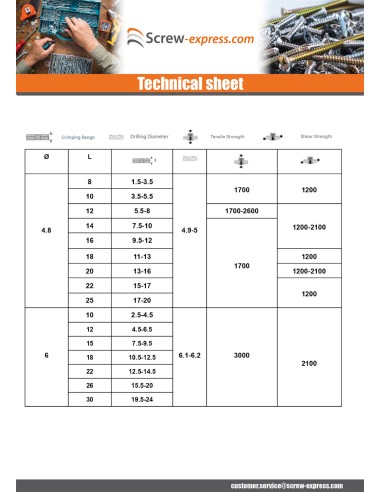

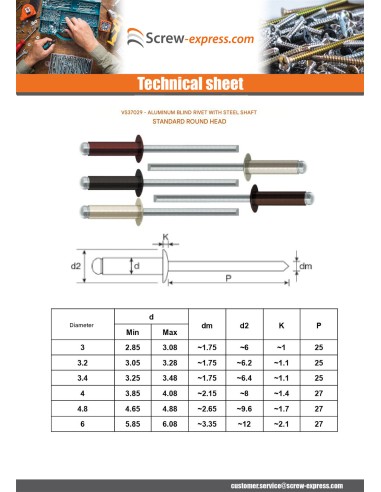

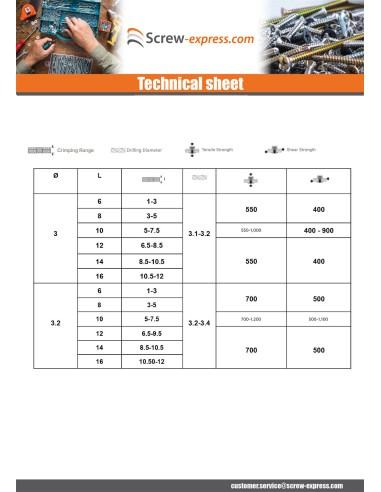

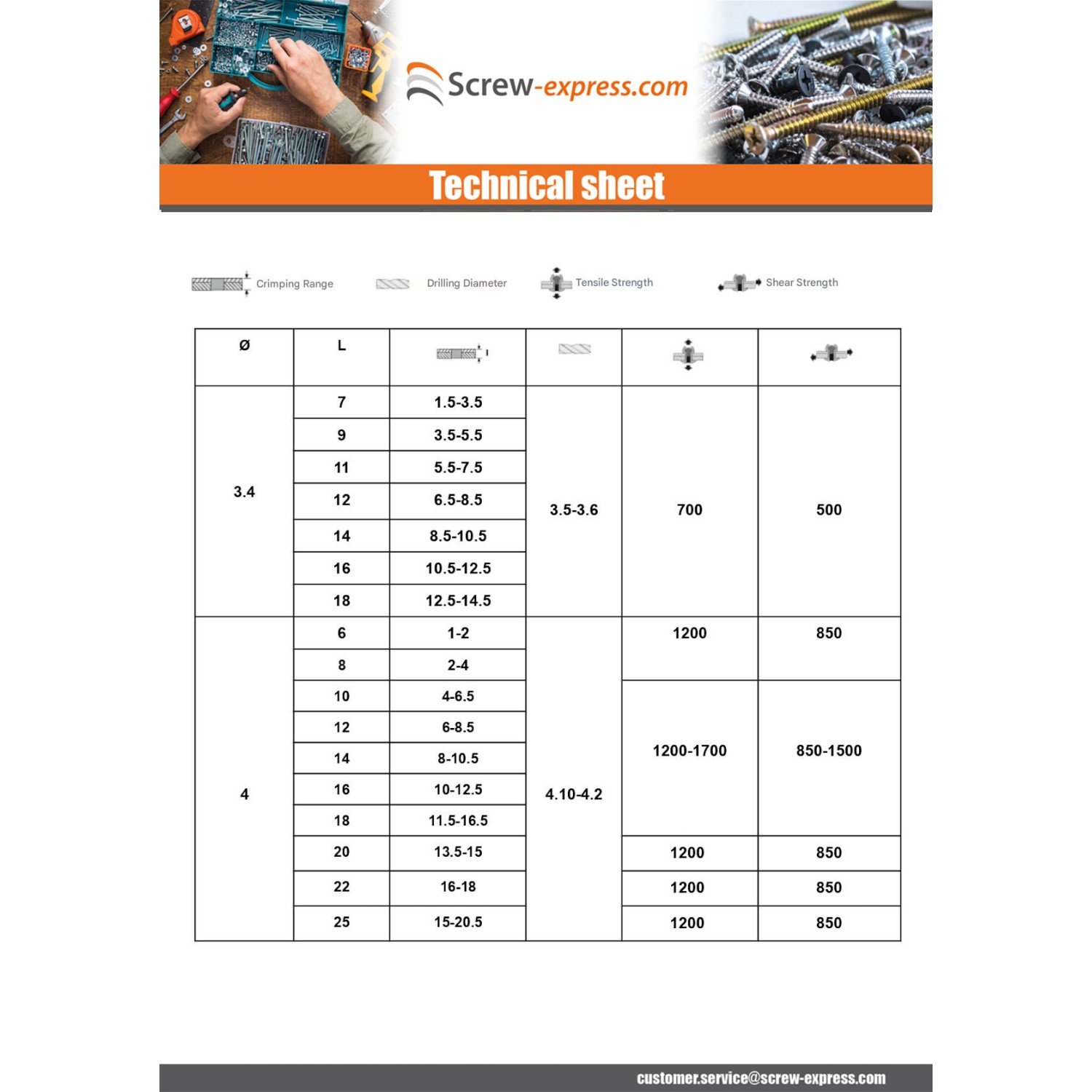

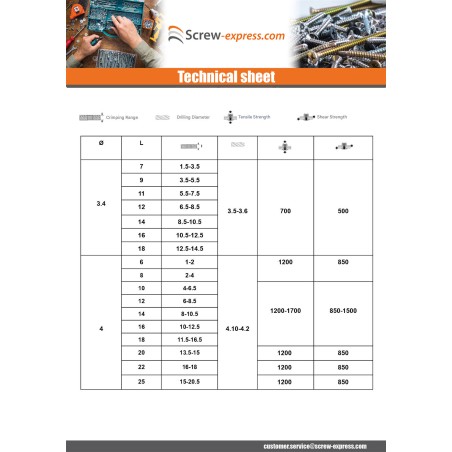

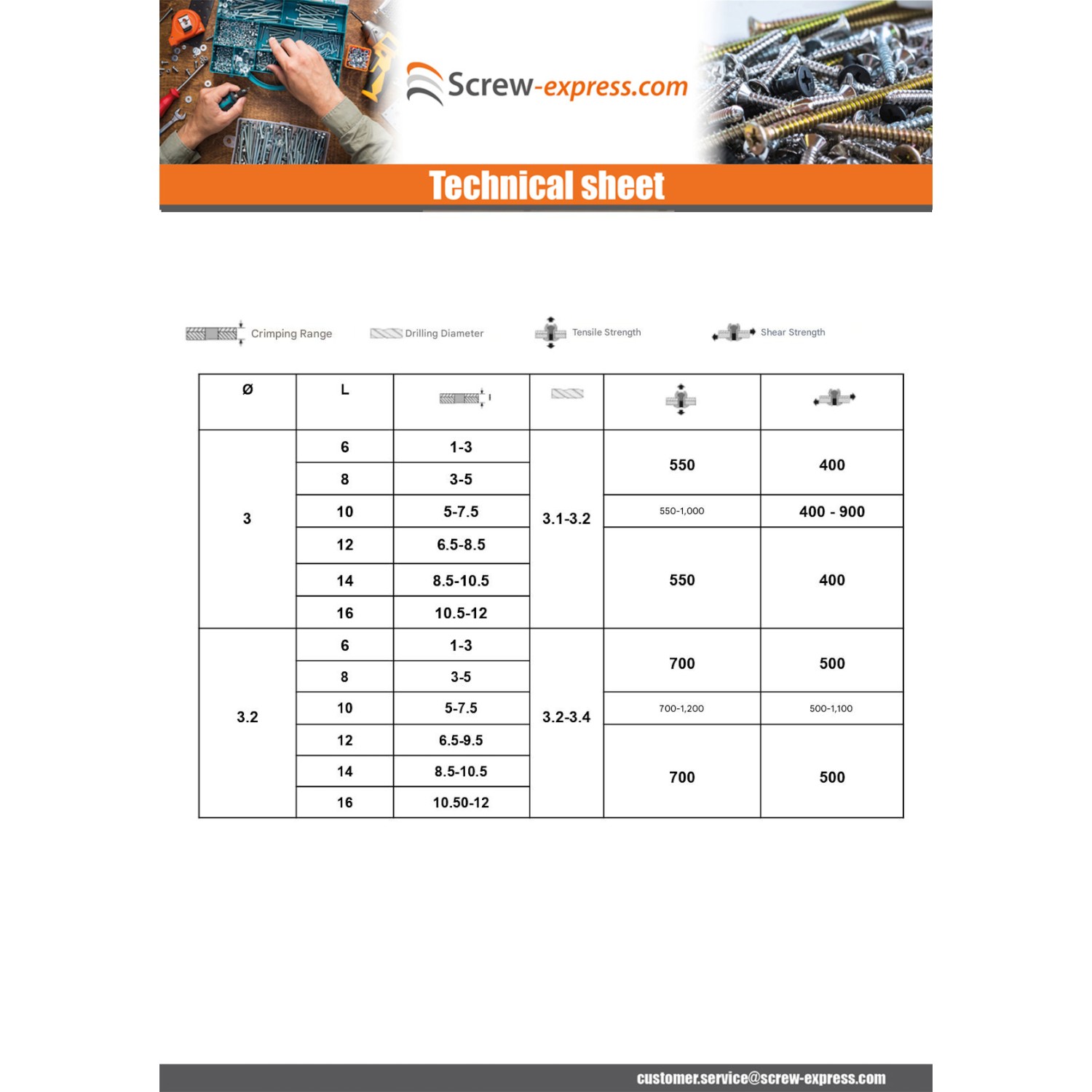

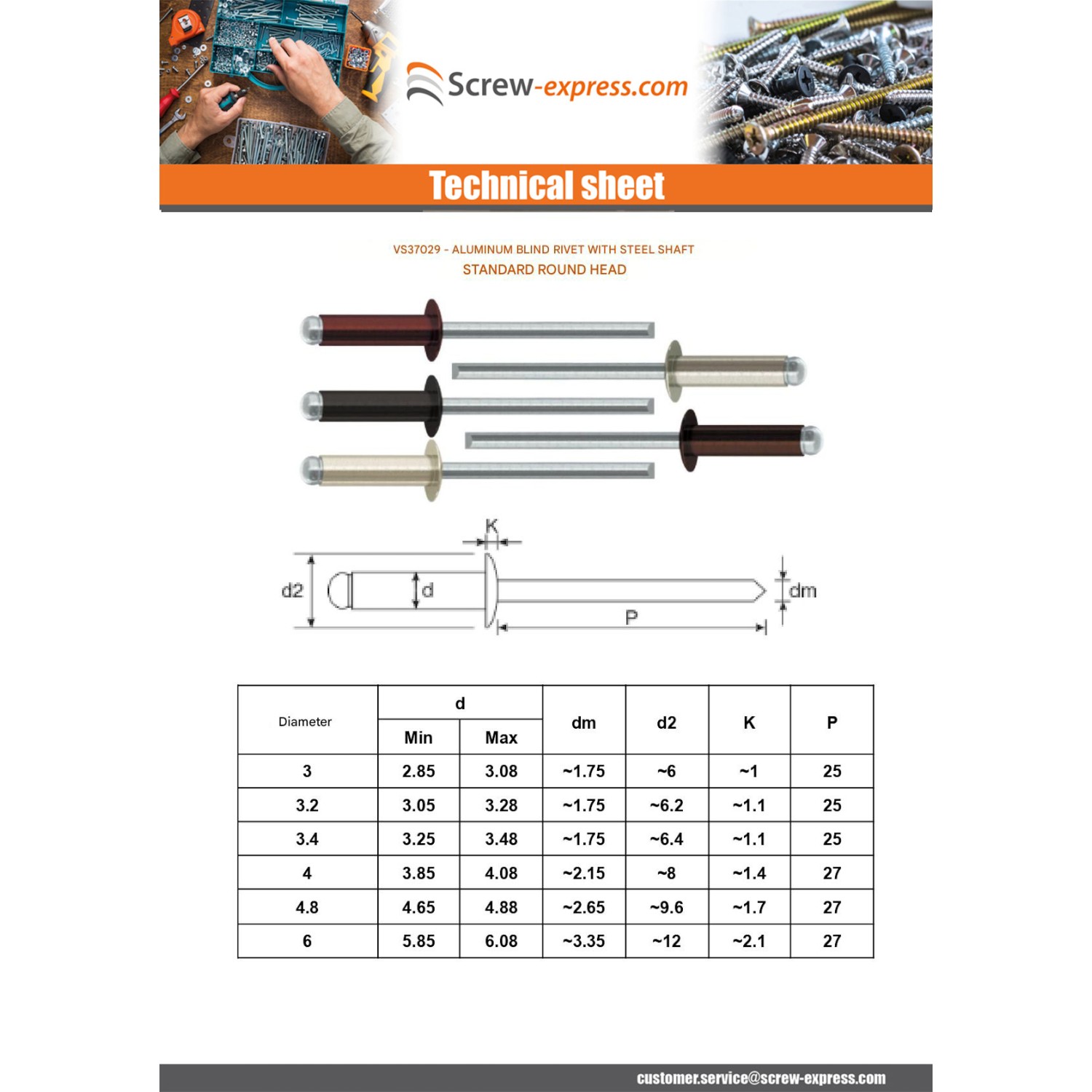

dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 3617502048750 3663072086401
