1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White

3702401628_1
In stock 74096 Pièces
€0.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €0.50 €1.00 €3.25 €15.40 €55.80

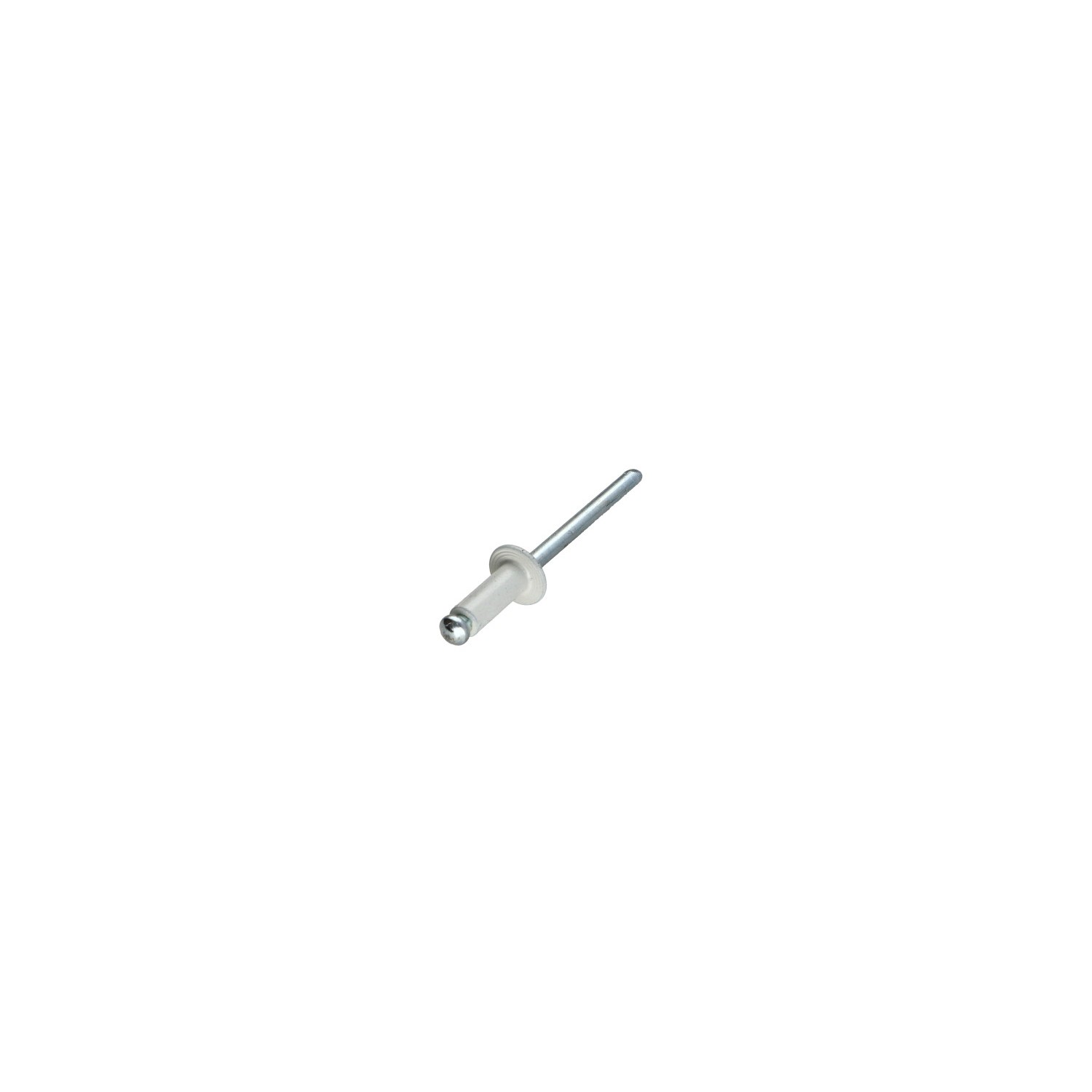

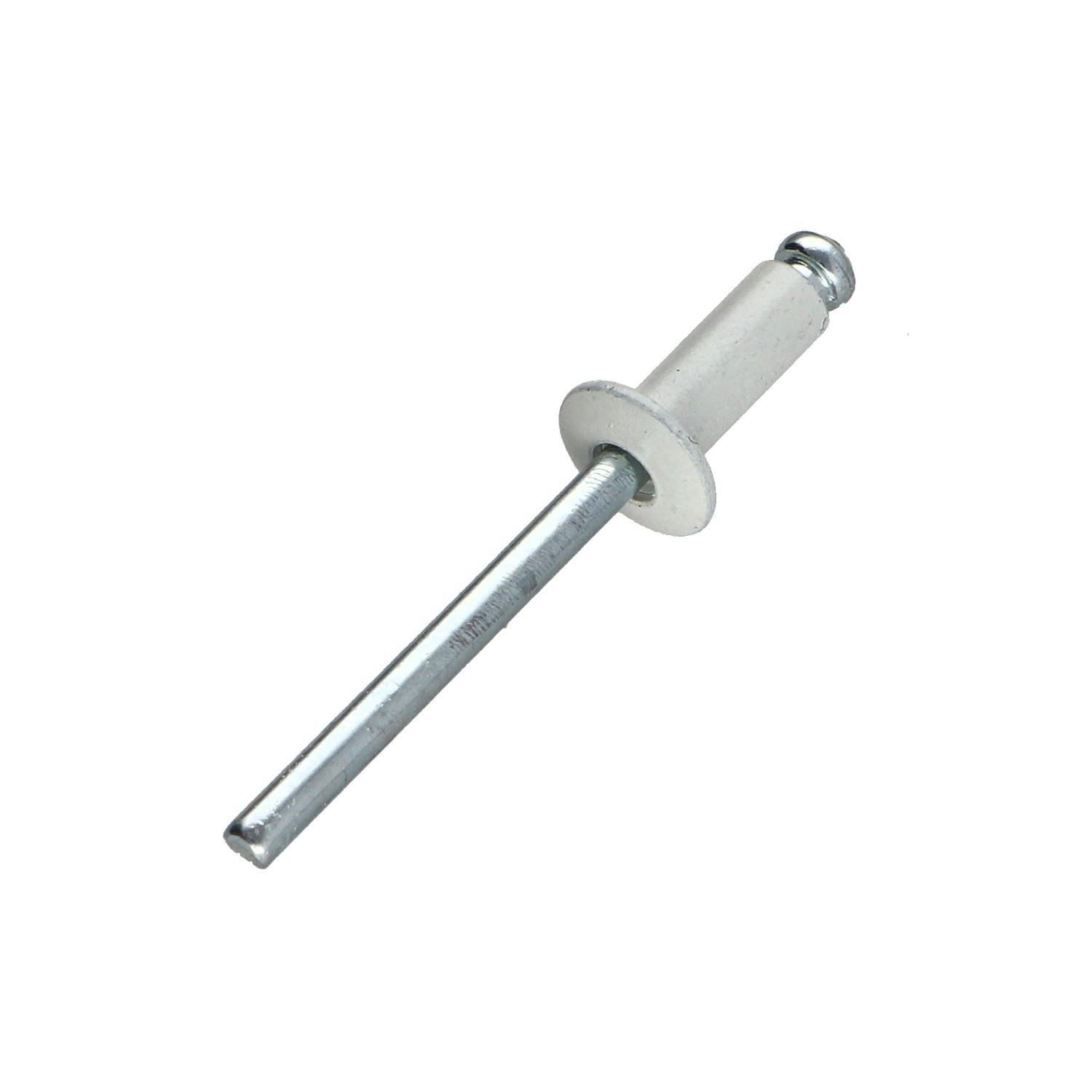

Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
COLOR
Ral9010/Pure White
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
10 a 12 mm
Rivet body length
16
Unit weight
2 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
74096 Items
3663072064065

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9010/Pure White
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 116140161 0001 OU361 410054 250 116140161 RAMRIVTP40X0 500 3663072064065
STEFAN D. (vis-express.fr)
2026-01-18

steel plate mounting license plate mounting


STEFAN D. (vis-express.fr)
2026-01-18

steel plate mounting metal plate assembly and license plate fixing


Florian P. (vis-express.fr)
2025-06-08

plate fixing


SAID A. (vis-express.fr)
2025-01-19

For license plate 4x16 blind rivets white aluminum RAL 9010


Mathieu C. (vis-express.fr)
2024-11-24

For fixing white painted t-bolts White aluminum blind rivets 4x16
