3702482012_1
In stock 46720 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.61 £3.21 £3.86 £18.40 £73.58

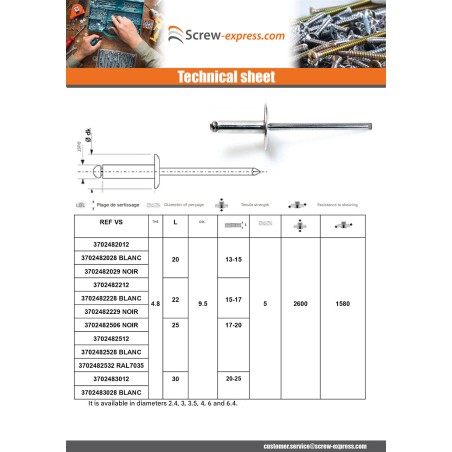

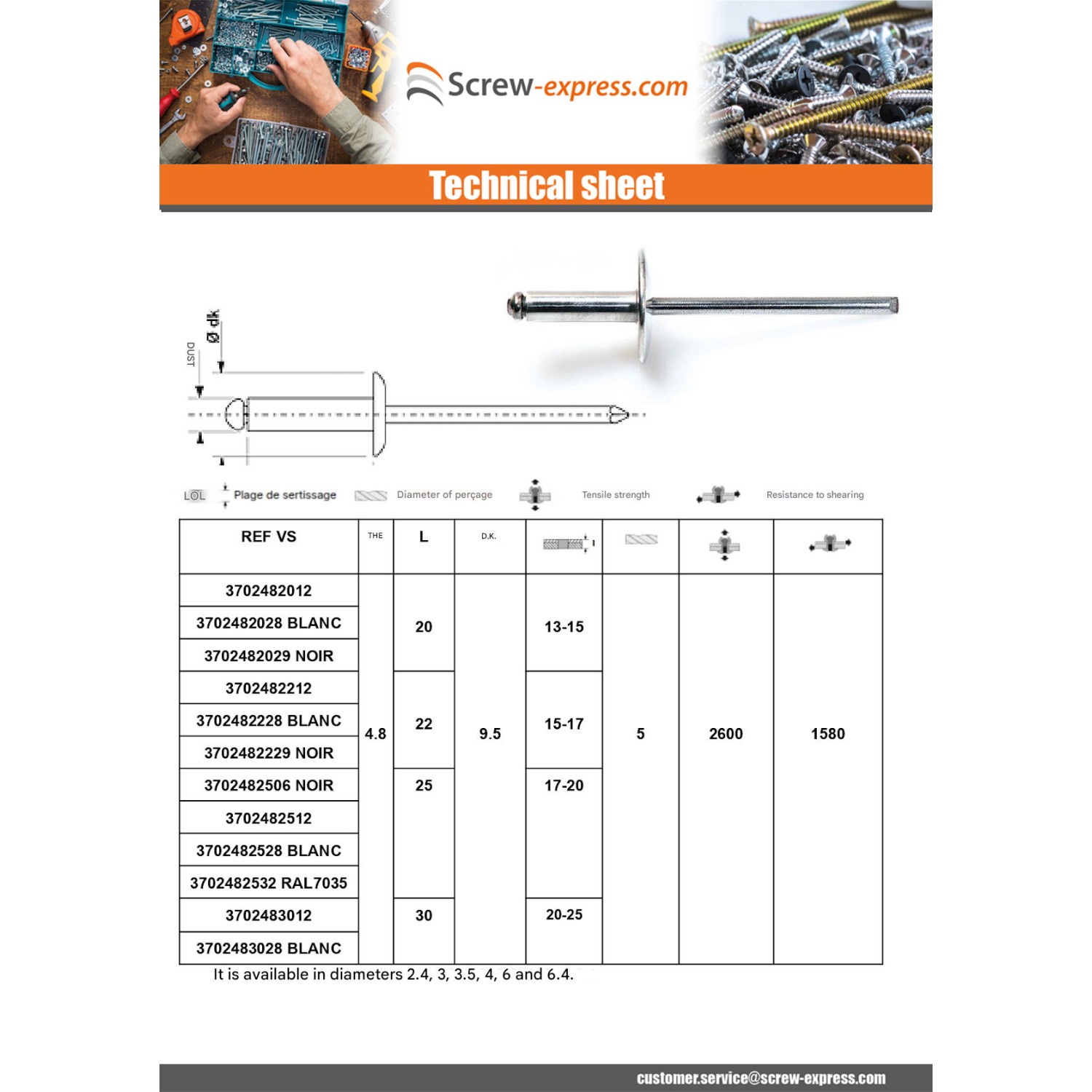

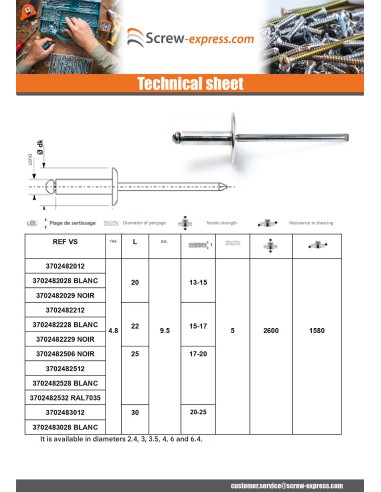

Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Standard round head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
13 a 15 mm
Rivet body length
20
Unit weight
3.3 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2600
46720 Items
3663072064263

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Standard round head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

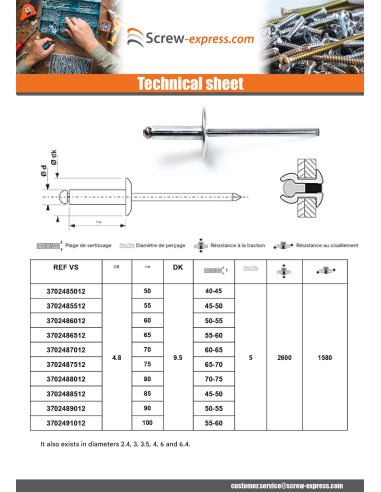

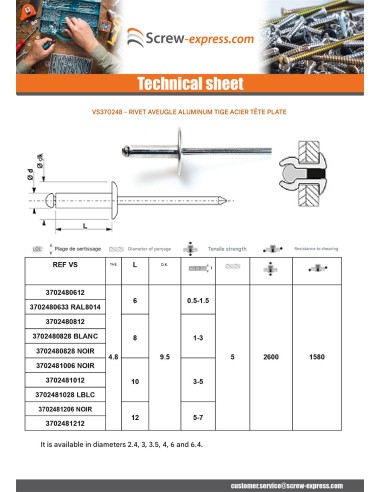

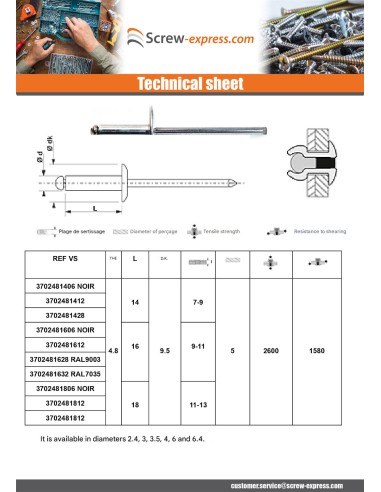

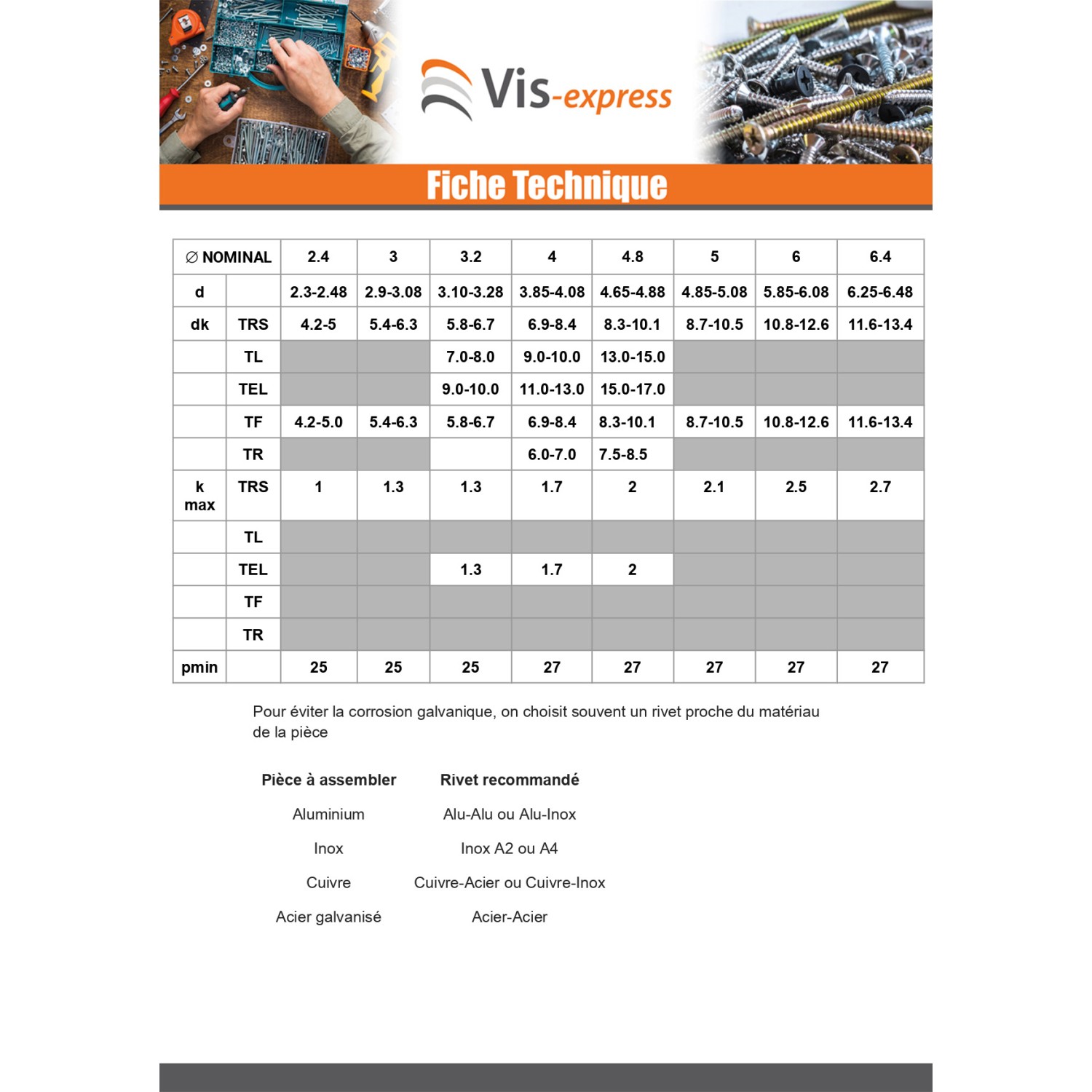

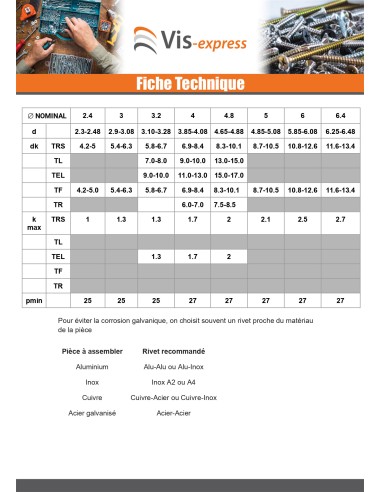

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103148201 RIVETDIAM5 807599 130513 AN 24300 /AN F0141D9 260067 VU061 FO141D9 1519-000008 64RIV4820TP 41382 AN K500032 RIVET4.8X20 203585 OBRIP4820 MAVISRVT001 MAVISRVT001 39772 39772 RIVET4.8*20A 0BRIP4820 312090 014107 P0P4-20 0847/0520 19R05020 EMB-VIS-0180 A501213 DMRIV0037 MOIS AN FA26600 /AN 7690488 R4820 3663072064263
